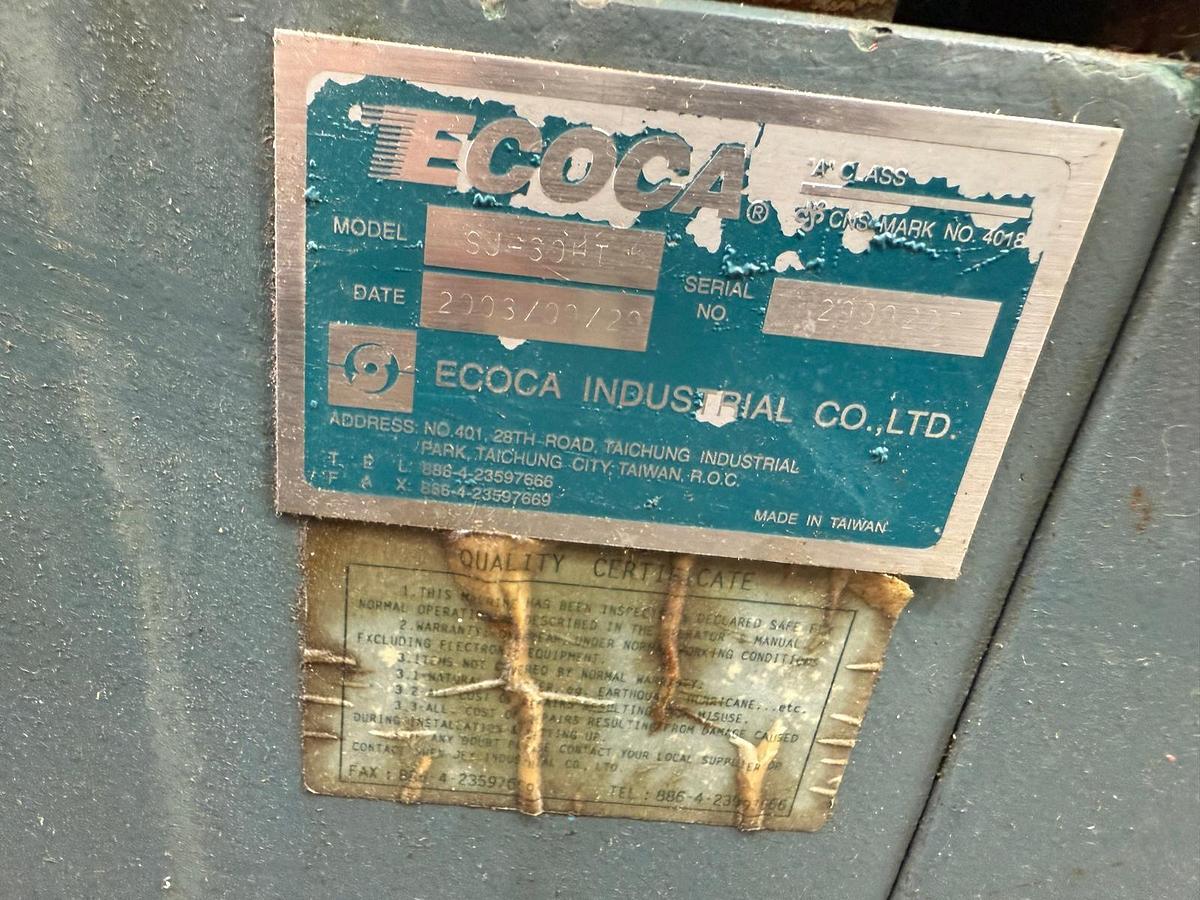

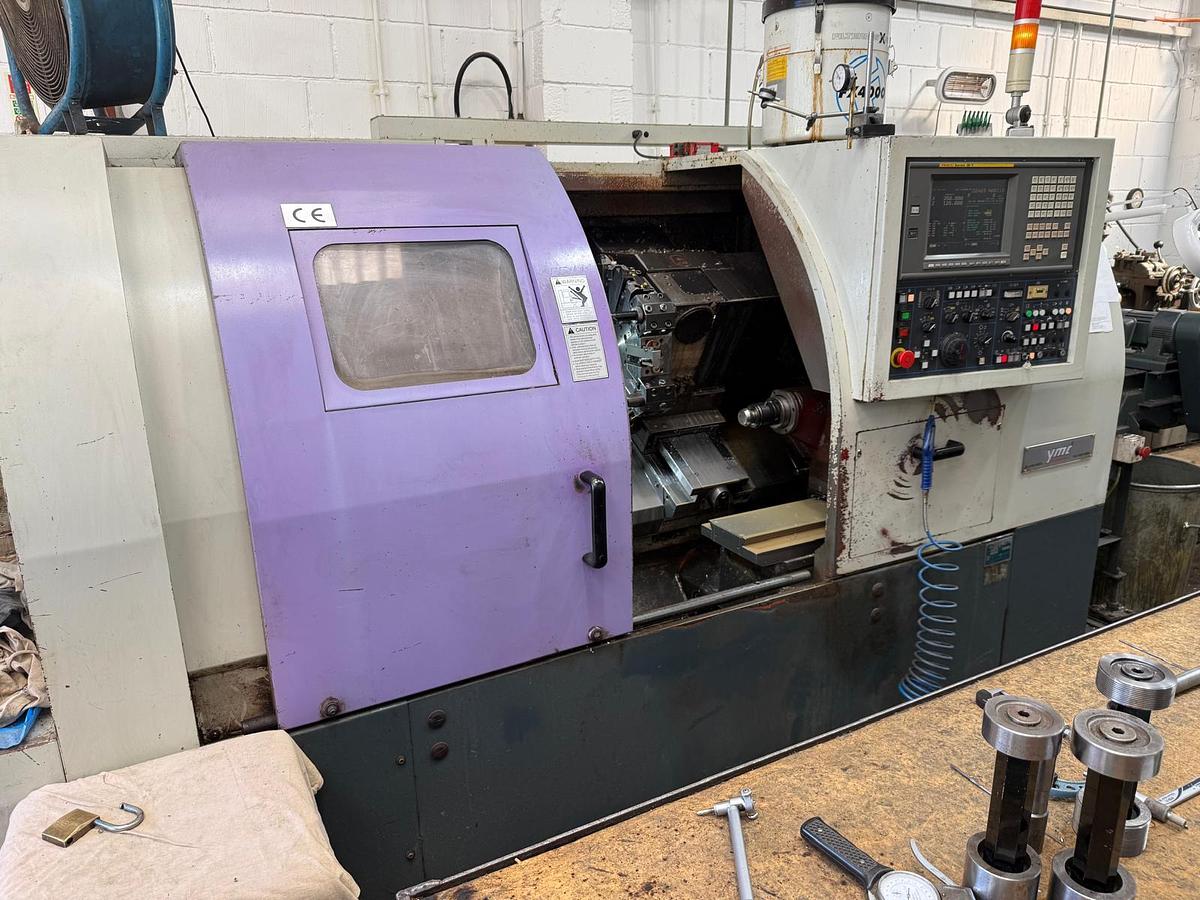

Ecoca SJ 30 HT CNC Lathe (2003)
Description
Ecoca SJ-30 CNC Lathe – 10″ Chuck, Fanuc 18-T, Heavy-Duty Turning
The Ecoca SJ-30 is a robust, high-powered CNC lathe designed for precision turning of larger diameter components. Fitted with a Fanuc 18-T control, this machine provides the reliability and flexibility required for demanding production environments.
Machine Specifications:
Key Features:
• Heavy-duty CNC lathe with excellent stability and cutting capacity
• Fanuc 18-T control for proven reliability and user-friendly operation
• 12-station turret for flexible tooling setups
• Large spindle bore ideal for shaft and bar turning
• MT-5 tailstock for supporting long workpieces
• High-speed, high-power spindle – suitable for a range of materials and applications
Key Specifications
| Year | 2003 |
| Condition | Used |
| Stock | Available! |
| Year of Manufacture | 2003 |

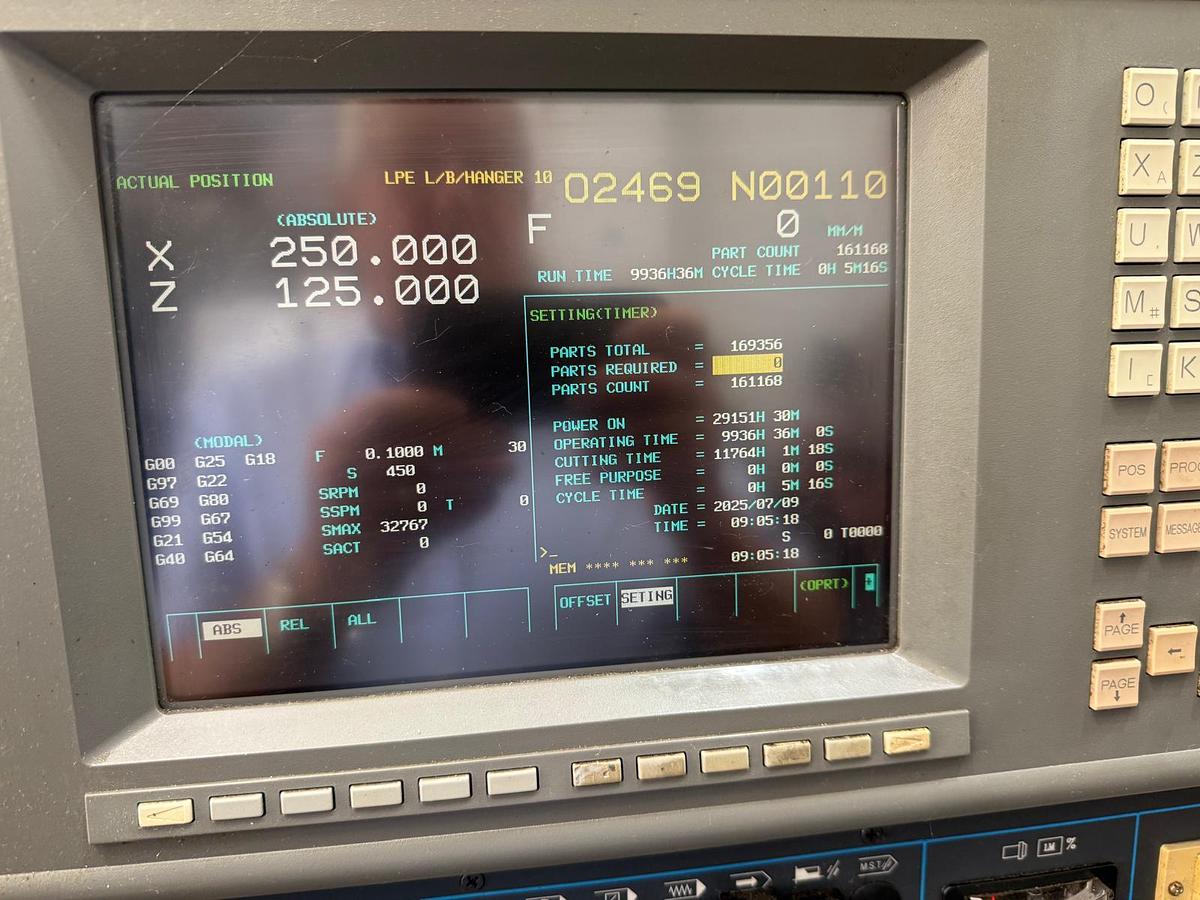

| Control System | Fanuc 18-T |
| Swing Over Bed | 580 mm |
| Swing Over Cross Slide | 434 mm |
| Max Turning Diameter | 280 mm |
| Max Turning Length | 460 mm (between centres) |

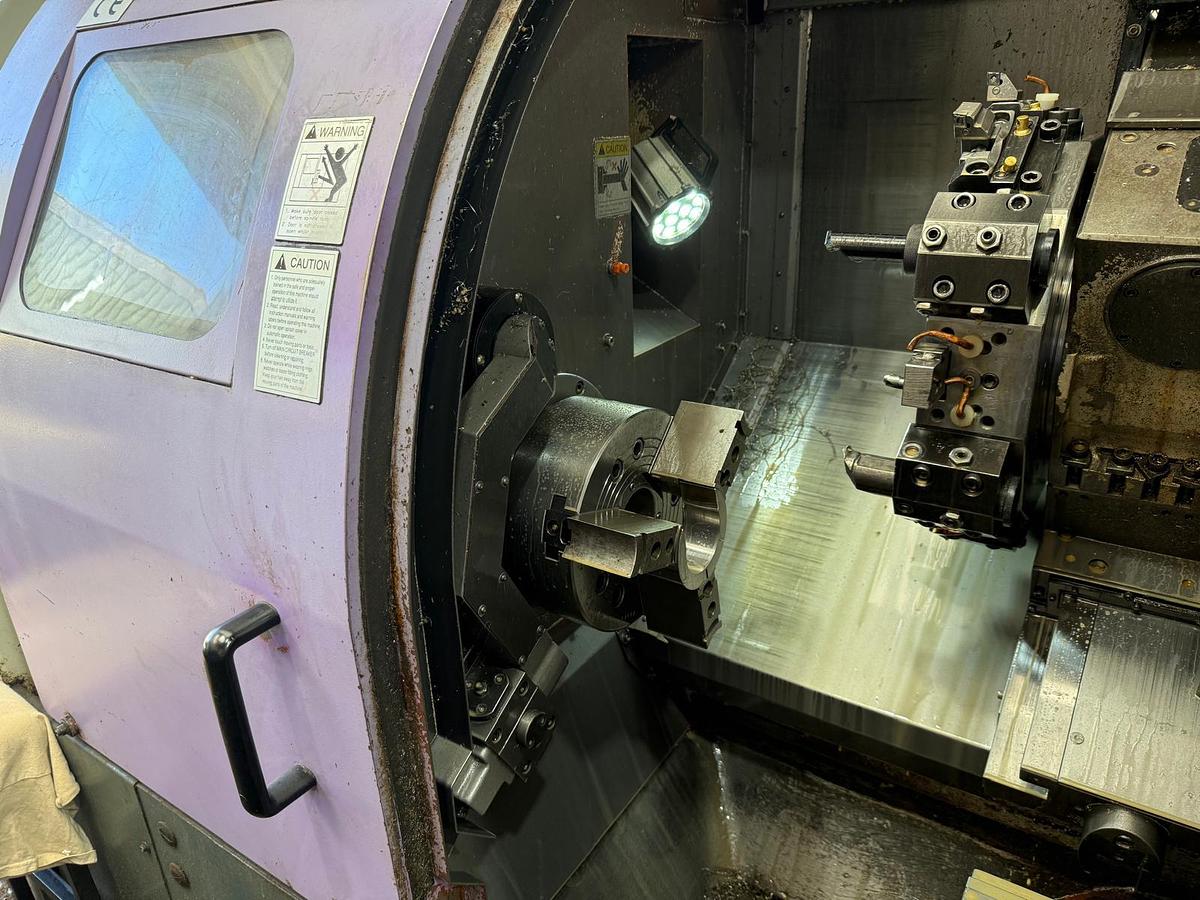

| Chuck Size | 254 mm (10″) |
| Bar Passage / Bore | 90 mm (or 75 mm – SJ-30G version) |
| Spindle Speed | 3,500 – 4,200 RPM |
| Spindle Power | 25–30 HP (18–22 kW) |
| Spindle Nose | A2-8 |
| Spindle Bore | 90 mm |
| X-Axis Trave | 190 mm |
| Z-Axis Travel | 520 mm |
| Rapid Traverse (X/Z) | 15 m/min (X), 20 m/min (Z) |

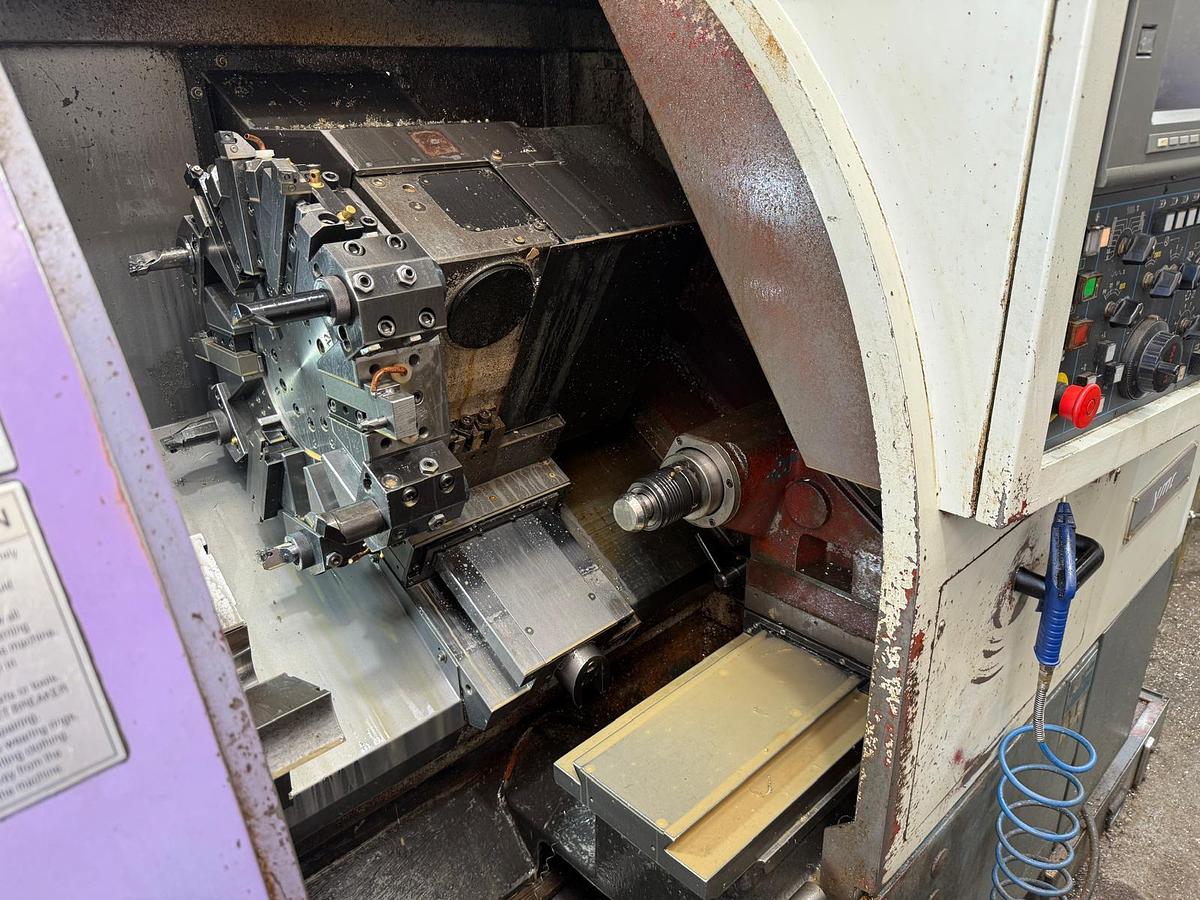

| Tool Turret | 12-station, hydraulic Curvic coupling |
| Tailstock Quill | 90 mm diameter, MT-5 taper, 120 mm travel |
| Coolant Tank Capacity | 147 L |
| Electrical Requirement | 40 kVA, 3-phase |
| Machine Footprint | 4,460 mm × 1,920 mm |
| Net Weight | Approx. 5,000 kg |
