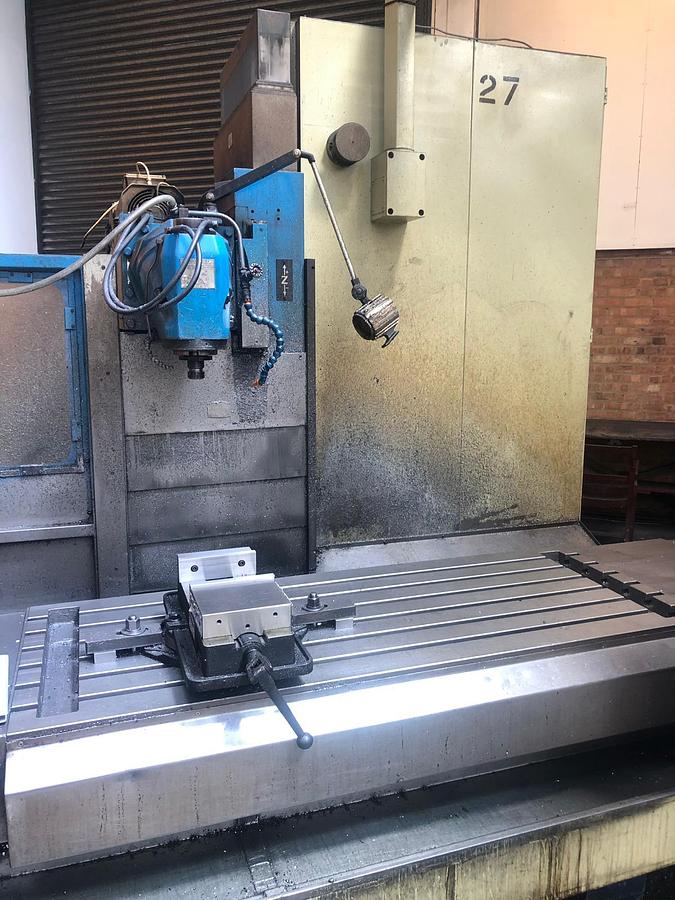

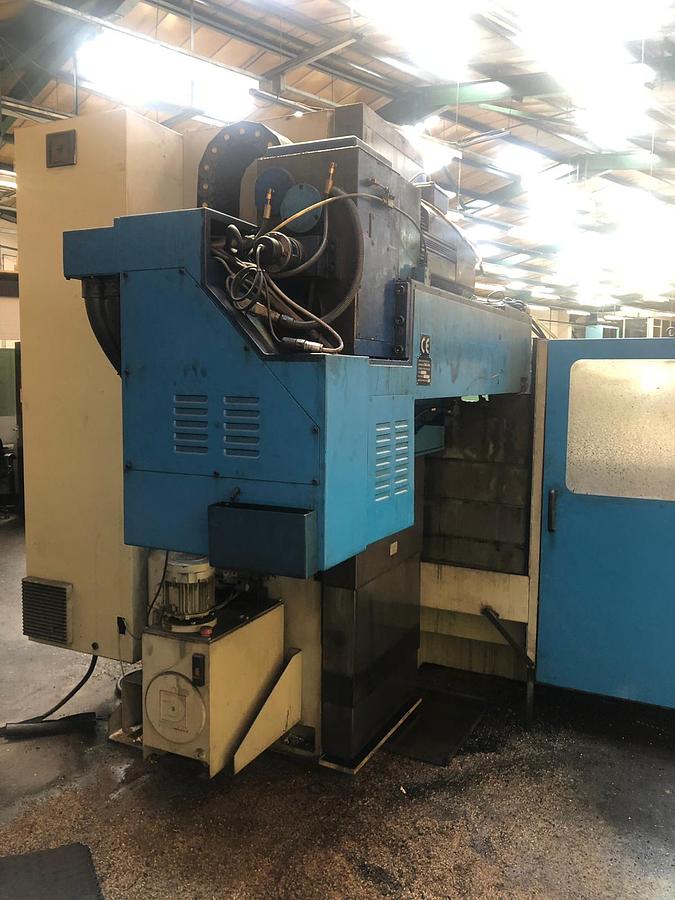

CME BF-02 CNC Bed Type Mill (1996)
Description
CME BF-02 CNC Bed Type Milling Machine (1996) Heavy-duty bed mill ideal for precision machining of large, heavy components. Fitted with Heidenhain TNC407 control, this versatile machine offers high load capacity, large travels, and ISO 50 taper spindle—suitable for a wide range of industrial milling applications. Core Specifications Control Heidenhain TNC 407 Machine Features • Large capacity table supports up to 4.7 tons of workpiece load • Heavy-duty ISO 50 spindle taper for powerful milling operations • Generous X/Y/Z travel for flexible machining of large parts • Precision control via Heidenhain TNC407 • Sliding interlocked guards enhance operator safety • Rigid bed design ensures high stability and accuracy under load
Key Specifications
| Model | CME BF-02 |
| Year | 1996 |
| Condition | Used |

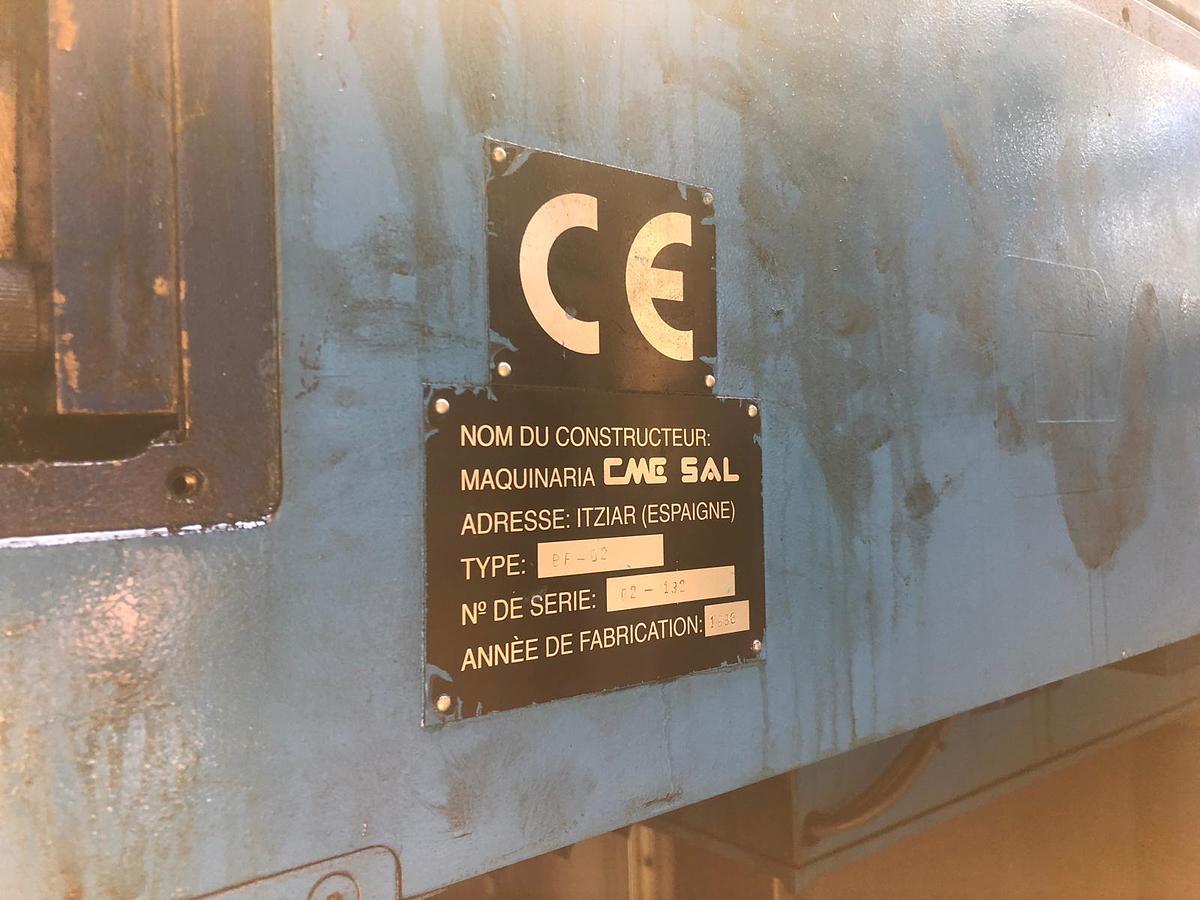

| Serial Number | 02-132 |
| Stock Number | 00268 |
| Stock | Available! |
| Included | Sliding interlocked table guards |

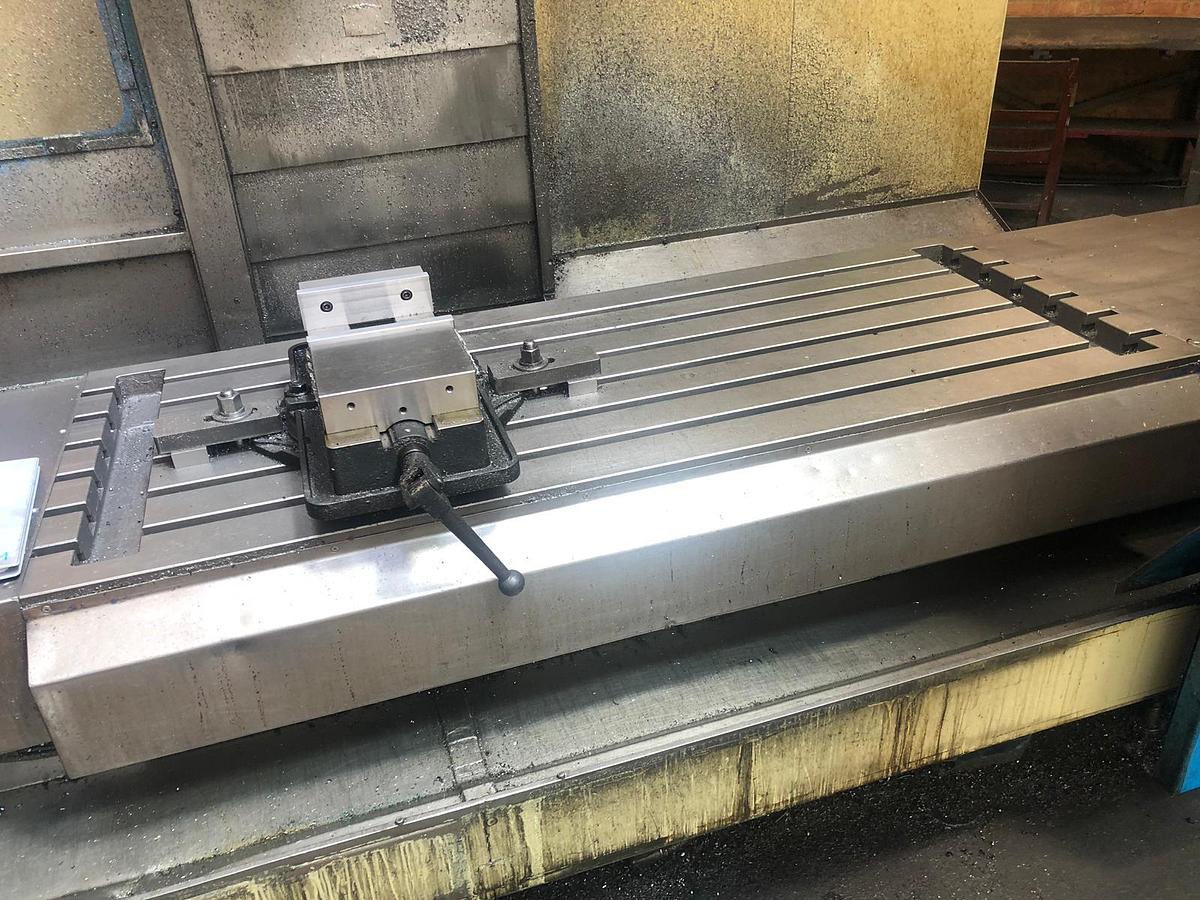

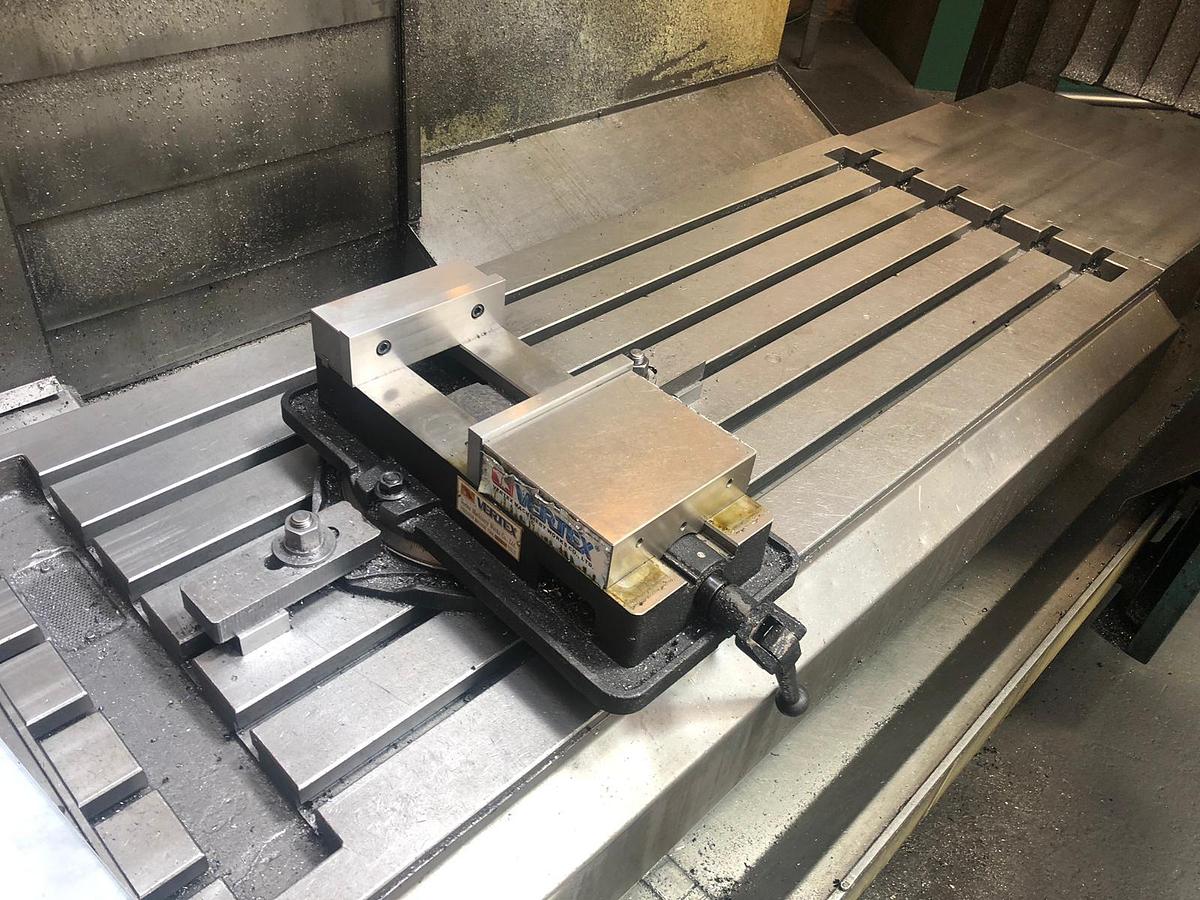

| Table Size | 1,800 × 700 mm |
| Max Table Load | 4,700 kg |
| Longitudinal Travel (X) | 1,500 mm |
| Cross Travel (Y) | 850 mm |
| Vertical Travel (Z) | 850 mm |
| Feed Rate Range | 0 – 4,000 mm/min |
| Rapid Traverse | 10 m/min |

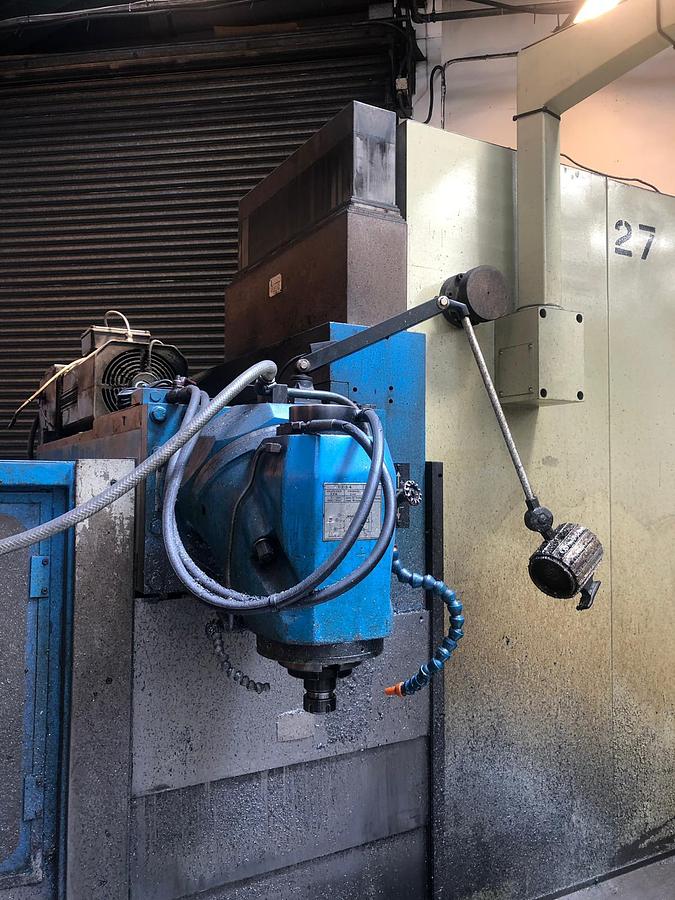

| Spindle Taper ISO | 50 |
| Spindle Speed Range | 50 – 3,000 rpm |
| Main Motor Power | 15 kW |
