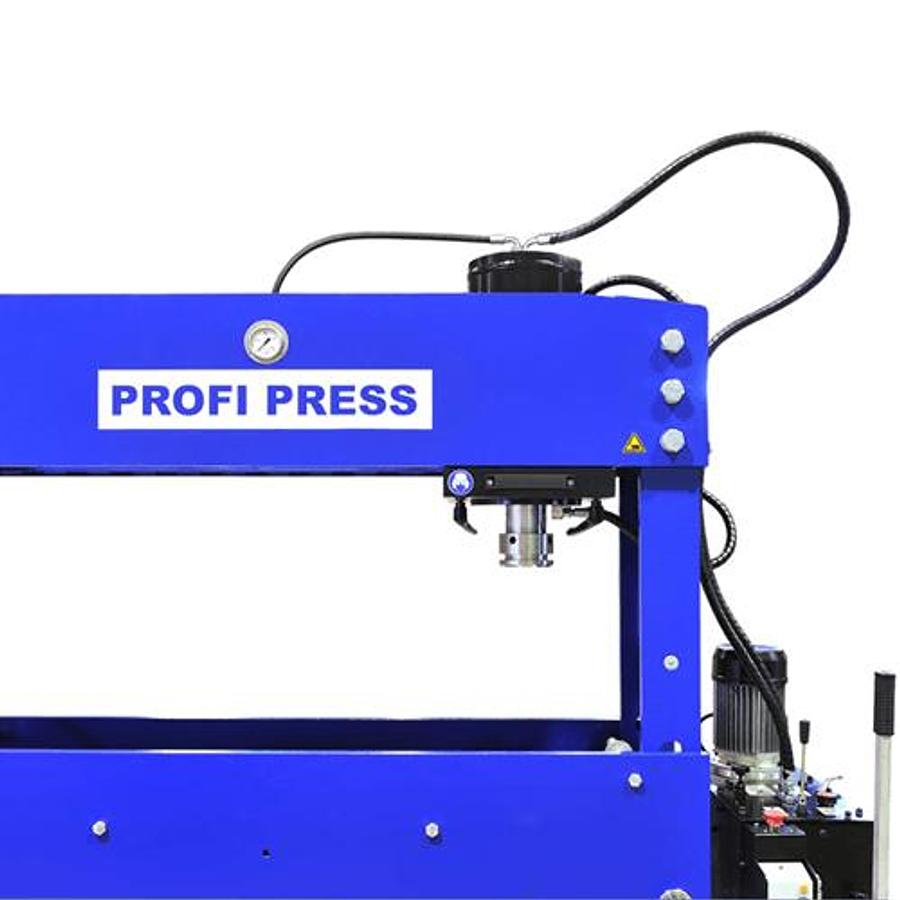

RHTC 100ton Hydraulic Garage Press
Description

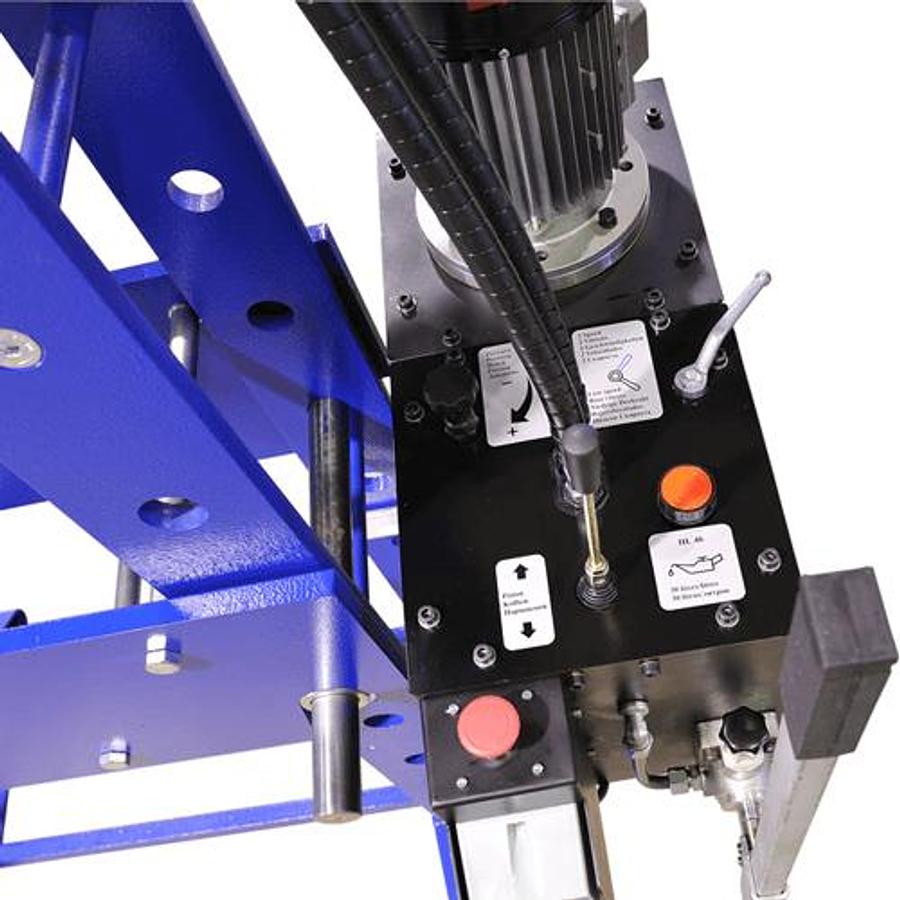

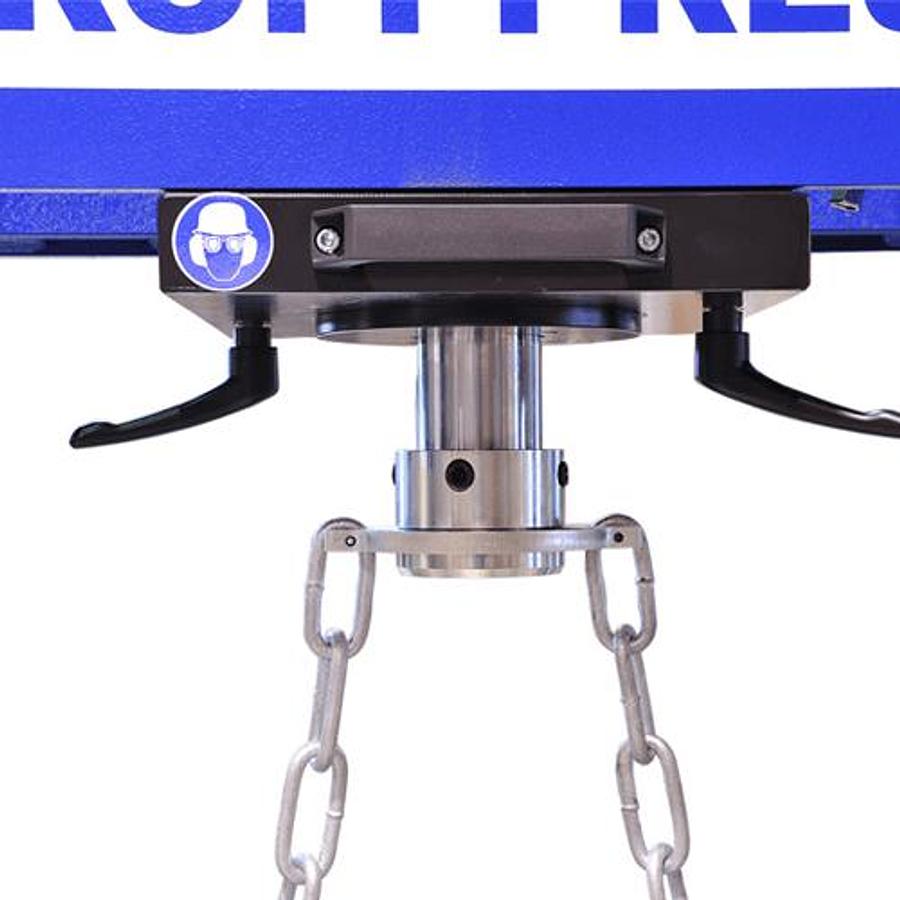

RHTC 100ton Hydraulic Garage Press M/H – M/C-2 Diameters: Features Movable cylinder (left-right) Integrated pressure manometer Pressure regulation Hydraulic unit with two speeds In height adjustable working table Joystick for the control of the piston Hand pump for precise press work Optional accessories: Foot pedal or hand remote controller V-block set for extra support Mandrel set of ∅ 18, 33, 45, 58 and 72 mm (with suitable piston head for the 100 ton press) Dimensions
Key Specifications
| Condition | New |
| Stock Number | 00281 |
| Pressure force [kn] | 981 |
| Maximum pressure [bar] | 258 |
| Piston stroke [mm] | 380 |
| Oil delivery [ltr/min] | 5.64/17.2 |
| Oil capacity [dm³] | 46 |
| Working speed [mm/sec] | 2.47 |
| Approaching speed [mm/sec] | 7.54 |
| Return speed [mm/sec] | 9.06 |
| Motor power [kW] | 2.2 |
| Voltage [V] | 400/3 |
| Frequency [hz] | 50/60 |
| Revolutions per minute [rpm] | 3000 |
| Insulation protection [IP] | 54 |
| Working width [mm] | 1100 |
| Weight [kg] | 970 |
| Inside diameter of cylinder [mm] | 220 |
| Diameter of piston rod [mm] | 90 |
| Diameter of piston head [mm] | 120 |
