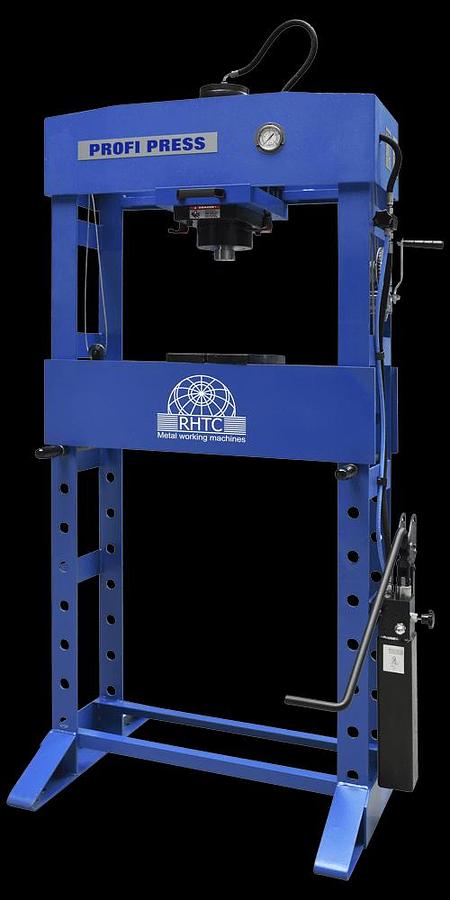

RHTC 50ton HF-2 Manual Workshop Garage Press
Description
Workshop Press 50ton HF-2
Technical specifications:
Diameters
Features:
Hand- and foot operated
Movable cylinder
The height of the worktable is easy to adjust by means of a winch
Integrated pressure manometer
Chrome piston
Automatic piston return

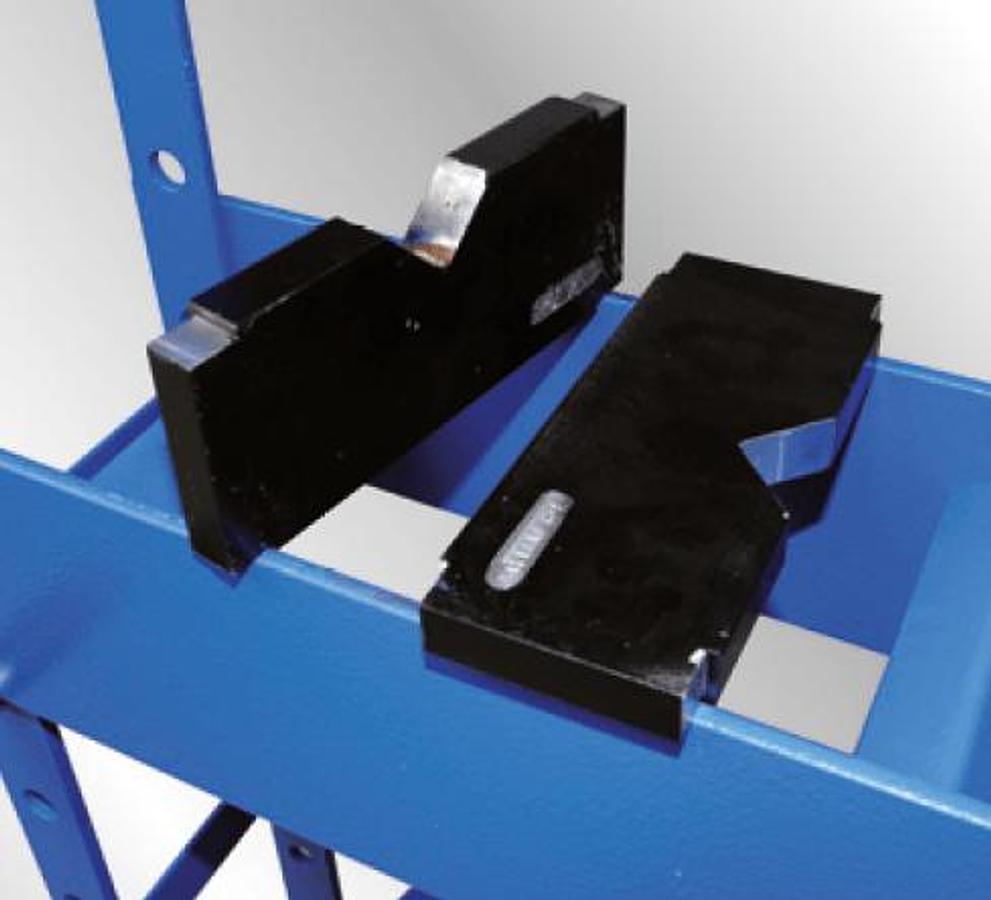

V-block set
Optional:
Mandrel set of Ø 5, 10, 14, 18, 24 and 29 mm (with a suitable piston head for the 50 ton HF-2)
Key Specifications
| Condition | New |
| Stock | Available! |
| Pressure force [kN] | 490.5 |
| Pressure max. [bar] | 399.5 |
| Cylinder stroke [mm] | 160 |
| System capacity [dm³] | 2.5 |
| Fixed cylinder | yes |
| Working width [mm] | 750 |
| Weight [kg] | 340 |
| Inside diameter of cylinder [mm] | 140 |
| Diameter of piston rod [mm] | 50 |
| Diameter of piston head [mm] | 60 |
