RHTC HB 28NC Horizontal Straightening Press
Description

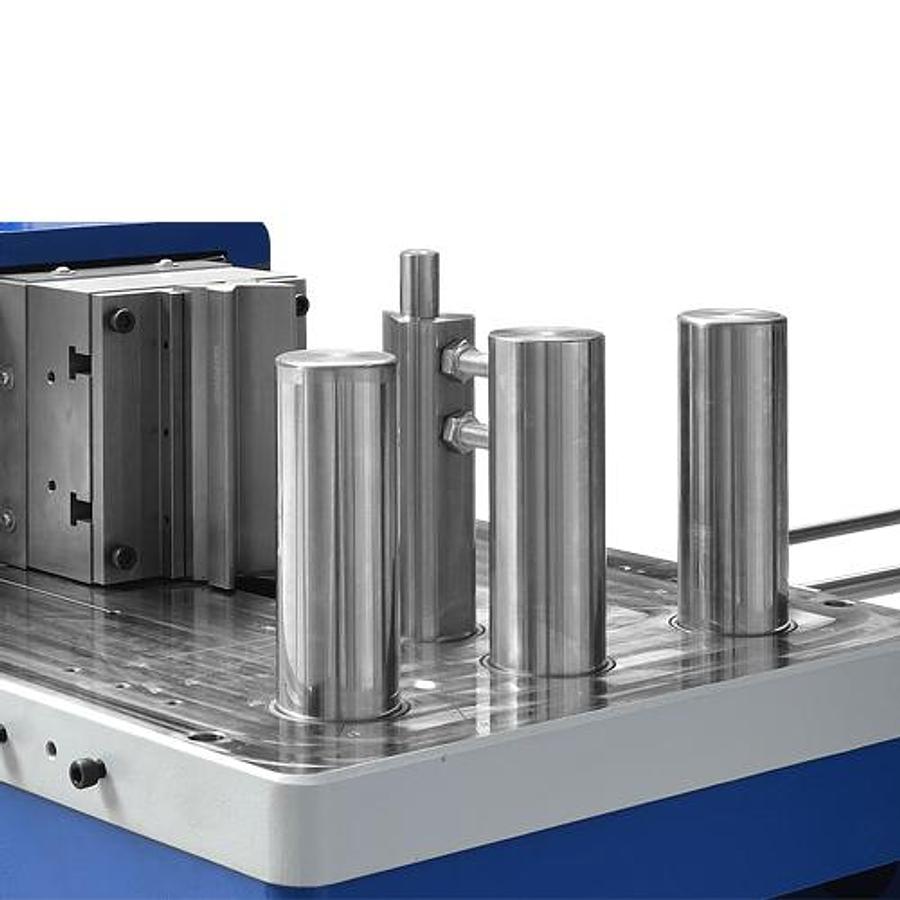

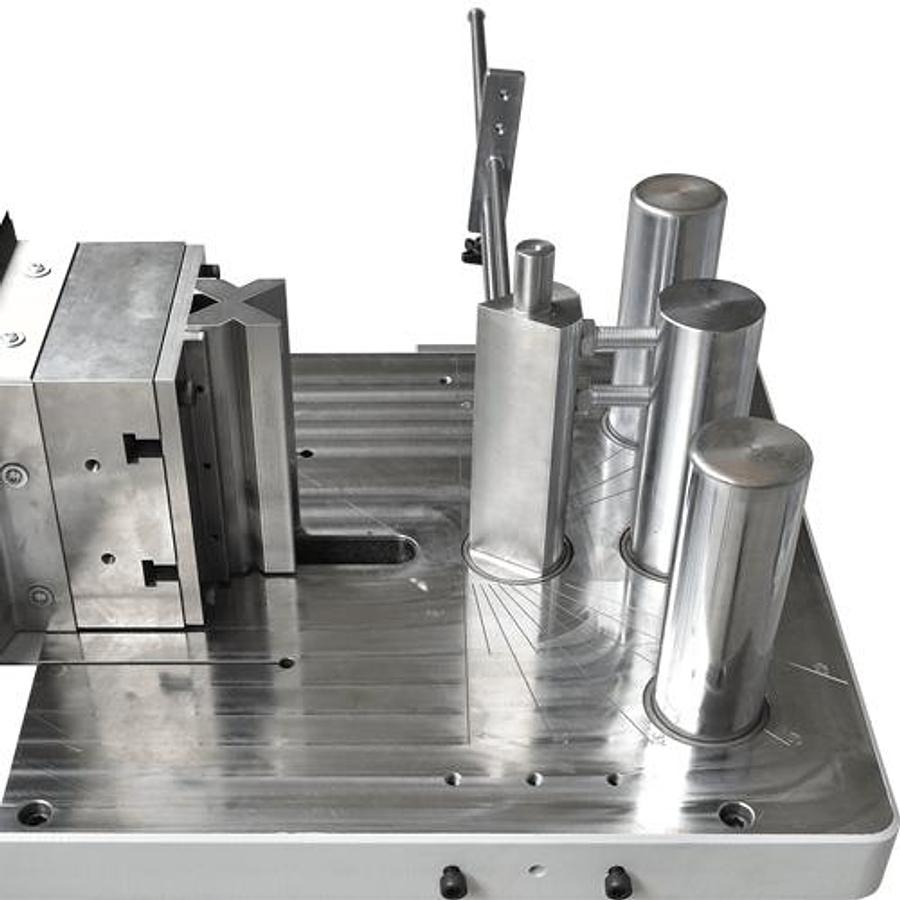

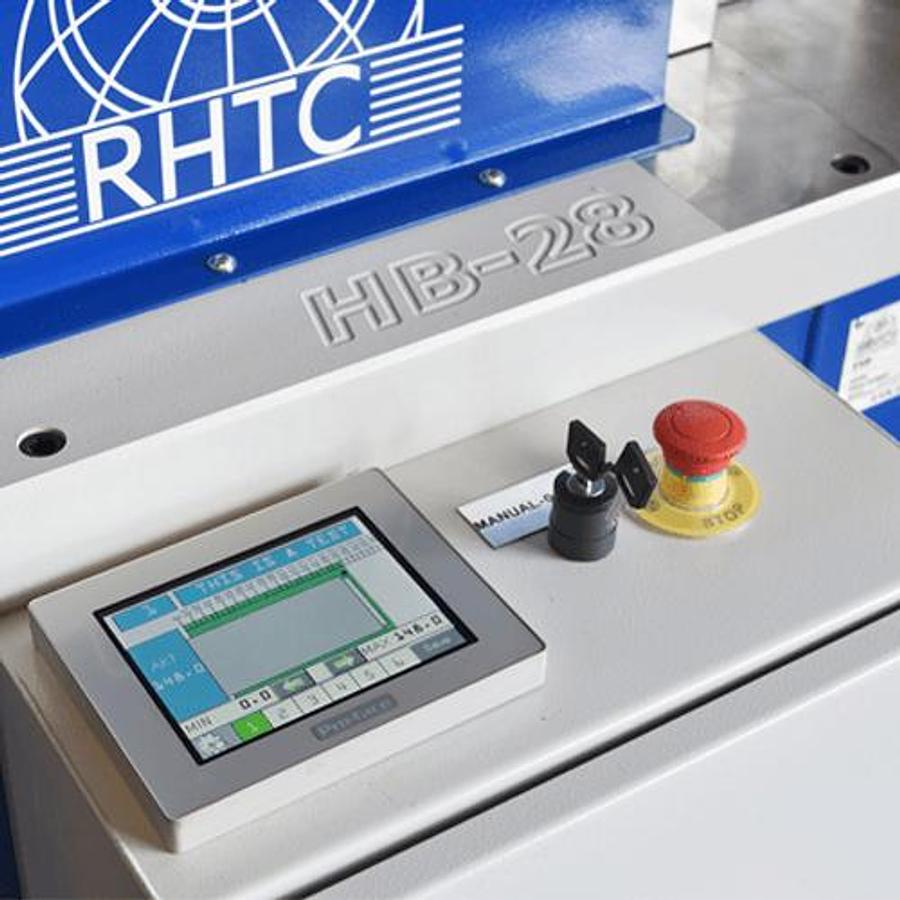

Horizontal Straightening Press Model HB-28 with NC-control and Standard Tooling Set Technical specifications: Features: NC-control to set the piston stroke and save up to 100 programs Selector for manual or semi-automatic operation Flow adjustment valve and pressure control valve Integrated pressure manometer Worktable is equipped with an angular graduation Back gauge Different tooling can be installed on the worktable, on the tool mount and in the punch- and pin holes for a wide range of operations and tasks Optional accessories: Tool for bending material with a large radius Tool for bending a rod (symmetrical) Tool for bending sheet metal into specific shape Several stamps and dieS
Key Specifications
| Model | HB-28 with NC-control and Standard Tooling Set |
| Condition | New |
| Stock Number | 00282 |
| Pressure force [kN] | 28 |
| Motor power [kW] | 4 |
| Piston stroke [mm] | 180 |
| Piston diameter [mm] | 130 |
| Oil delivery [ltr/min] | 8 |
| Min. working speed [mm/sec] | 2 |
| Max. working speed [mm/sec] | 9.8 |
| Return speed [mm/sec] | 20 |
| Pressure max. [bar] | 200 |
| Cylinder stroke [mm] | 180 |
| Useful table size (L x W) [mm] | 300 x 550 |
| Bending capacity flat steel [mm] | 200 x 10 |
| Total length [mm] | 1150 |
| Total height [mm] | 1103 |
| Working width [mm] | 750 |
| Weight [kg] | 800 |
