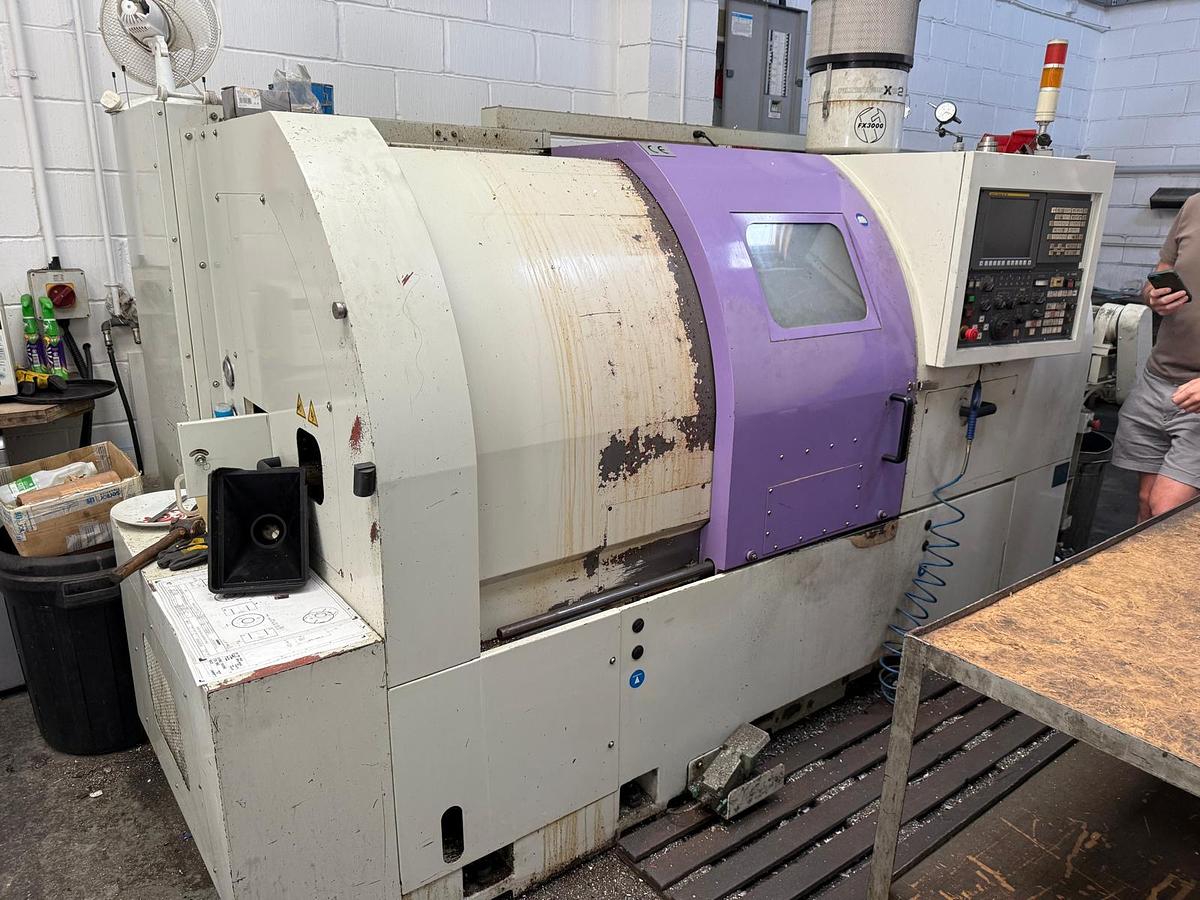

Ecoca SJ-30HT CNC Lathe (2007)
Description
Ecoca SJ-30HT CNC Lathe – FANUC Oi-TC, 3-Jaw Chuck, Tailstock, 2007 The Ecoca SJ-30HT is a precision-built CNC turning centre, featuring a robust FANUC Oi-TC control, a high-torque 25–30 HP spindle, and a 12-station hydraulic turret. Built for high-efficiency turning, it is ideal for production environments that demand repeatability, rigidity, and smooth operation. Features: • Heavy-duty construction with box ways • FANUC Oi-TC – reliable, user-friendly CNC interface • Through-spindle coolant ready • Large 147L coolant tank • Hydraulic turret with Curvic coupling for precision indexing • Suitable for subcontracting and production work
Key Specifications

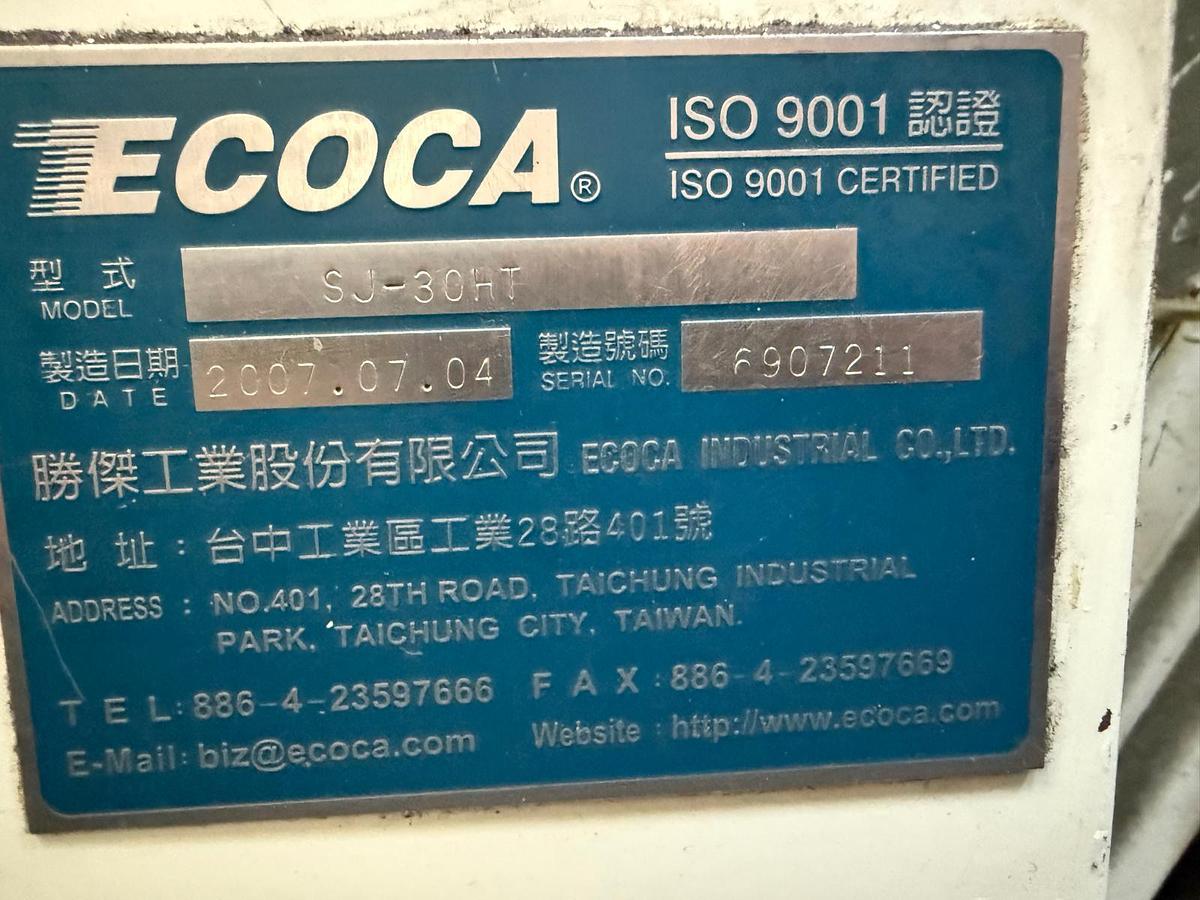

| Manufacturer | Ecoca |
| Model | SJ-30HT CNC Lathe |
| Year | 2007 |
| Condition | Used |
| Stock Number | 00181 |
| Stock | Available! |

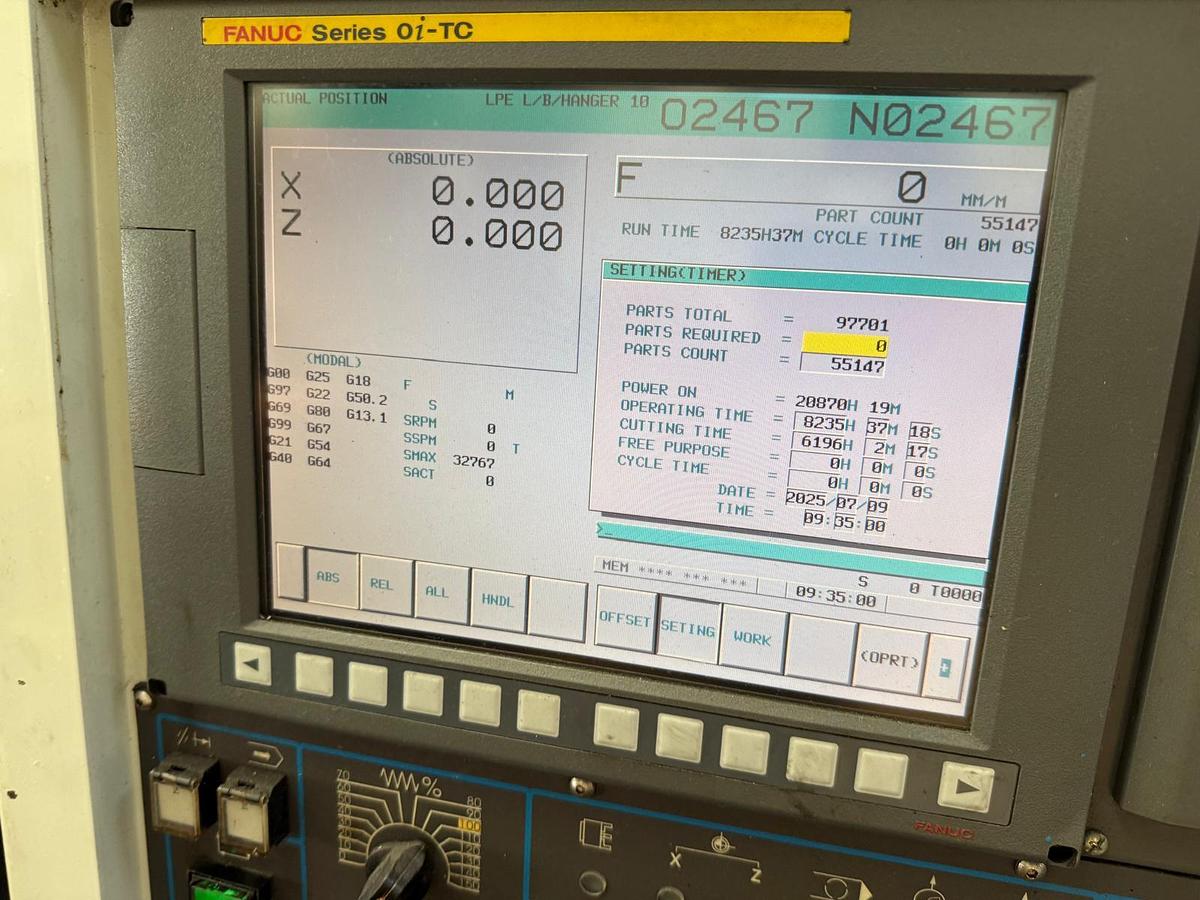

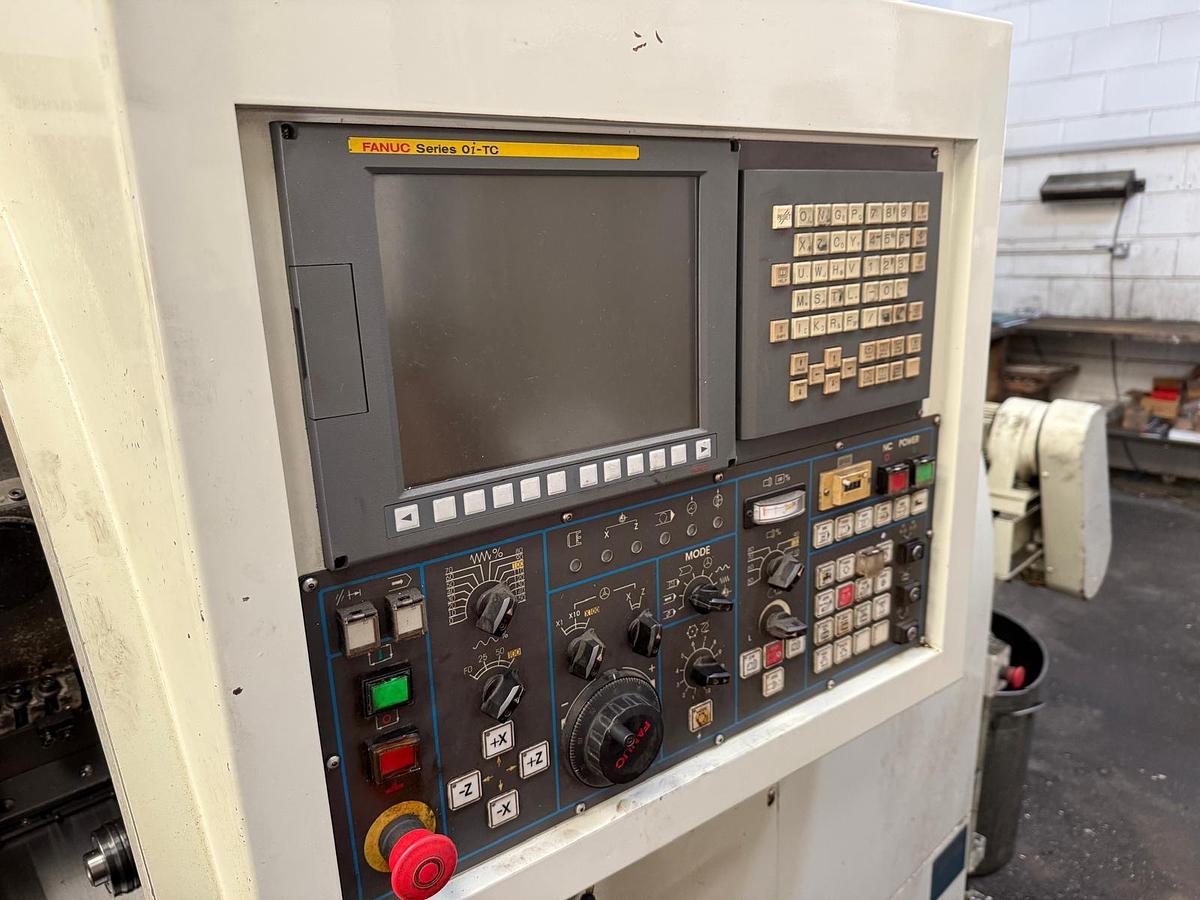

| Control System | FANUC Oi-TC |
| Swing Over Bed | 580 mm |
| Swing Over Cross Slide | 434 mm |
| Max Turning Diameter | 280 mm |
| Max Turning Length (Between Centres) | 460 mm |

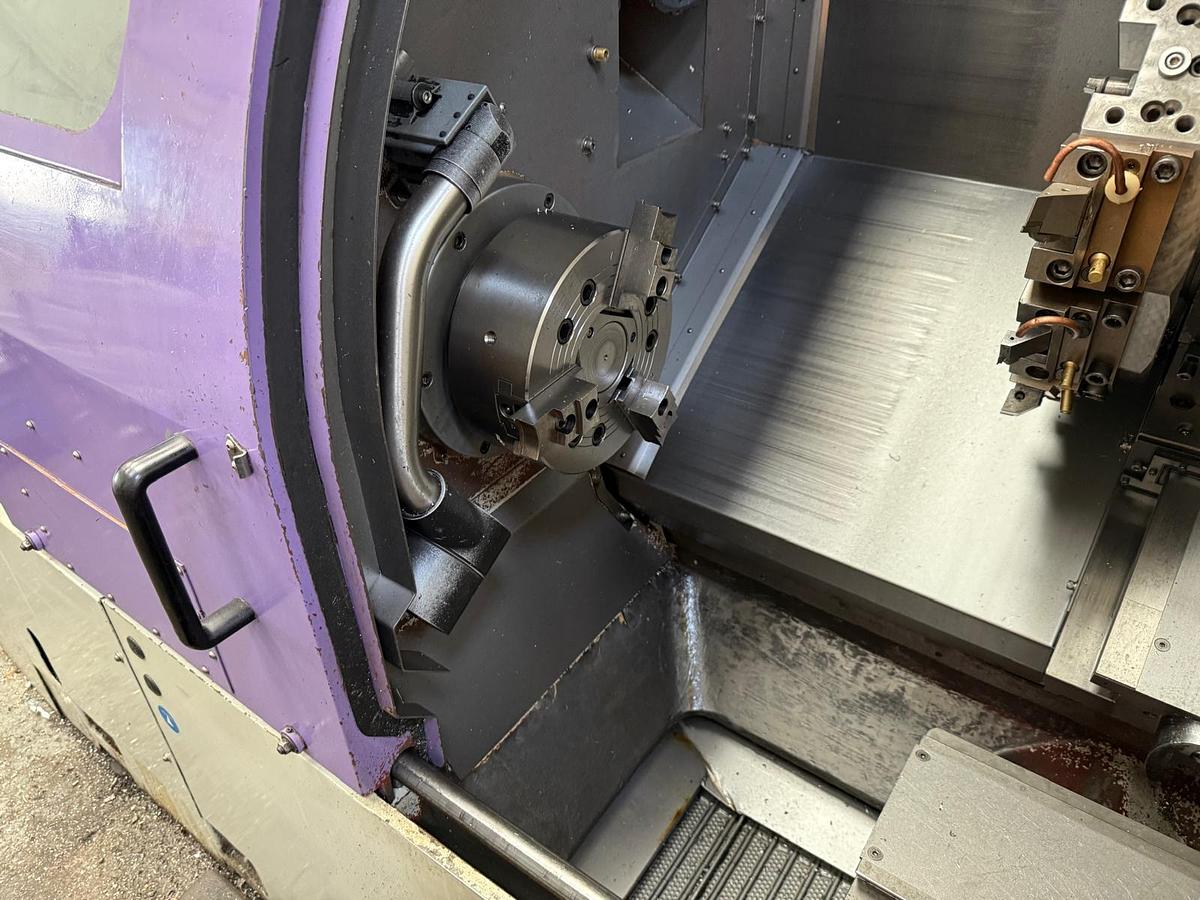

| Chuck Size | 254 mm (10″) – 3-Jaw |
| Bar Capacity / Bore | 90 mm (75 mm for SJ-30G variant) |
| Spindle Speed | 3,500–4,200 RPM |
| Spindle Motor Power | 25–30 HP (18–22 kW) |
| Spindle Nose | A2-8 |
| Spindle Bore (Through Hole) | 90 mm |
| X-Axis Travel | 190 mm |
| Z-Axis Travel | 520 mm |
| Rapid Traverse | X = 15 m/min, Z = 20 m/min |

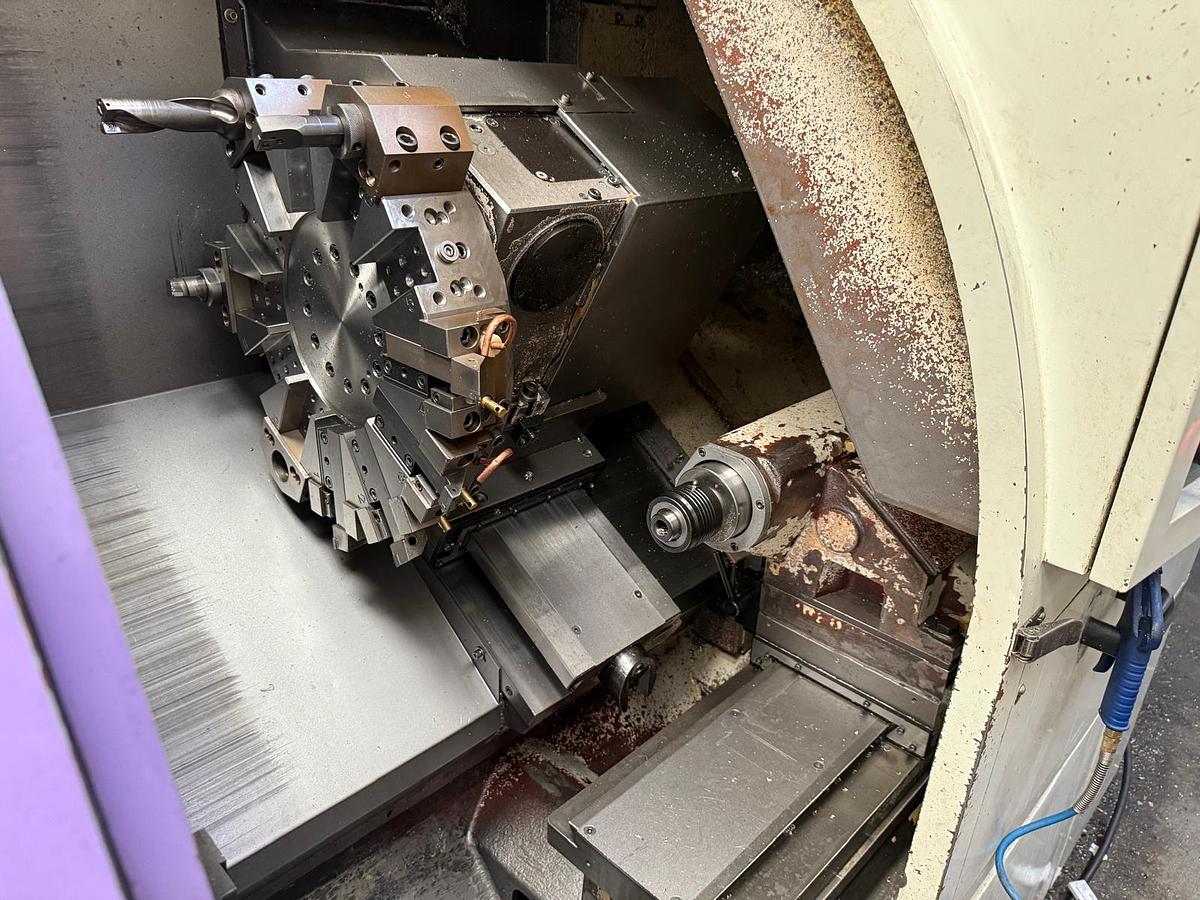

| Turret | 12-station, hydraulic, Curvic coupling |
| Diameter | 90 mm |
| Taper | MT-5 |
| Travel | 120 mm |
