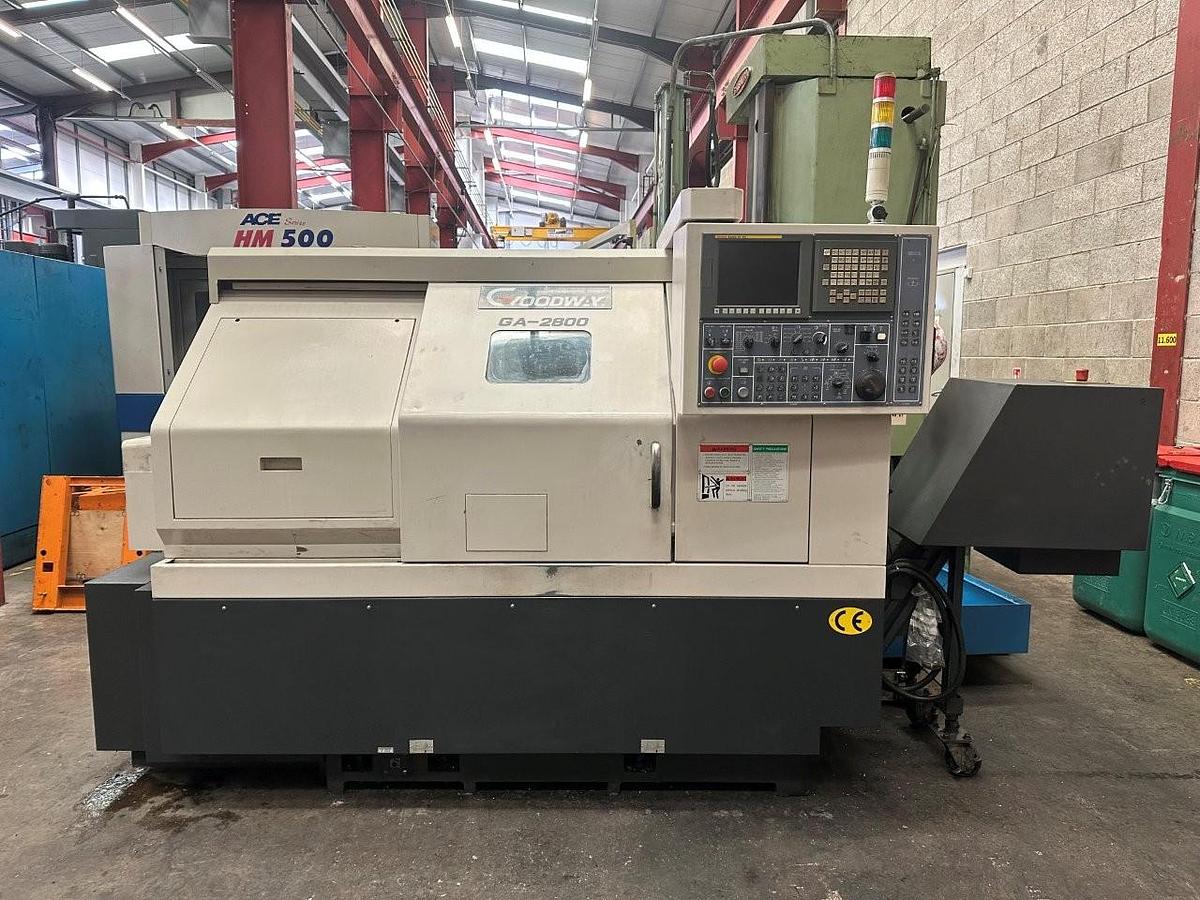

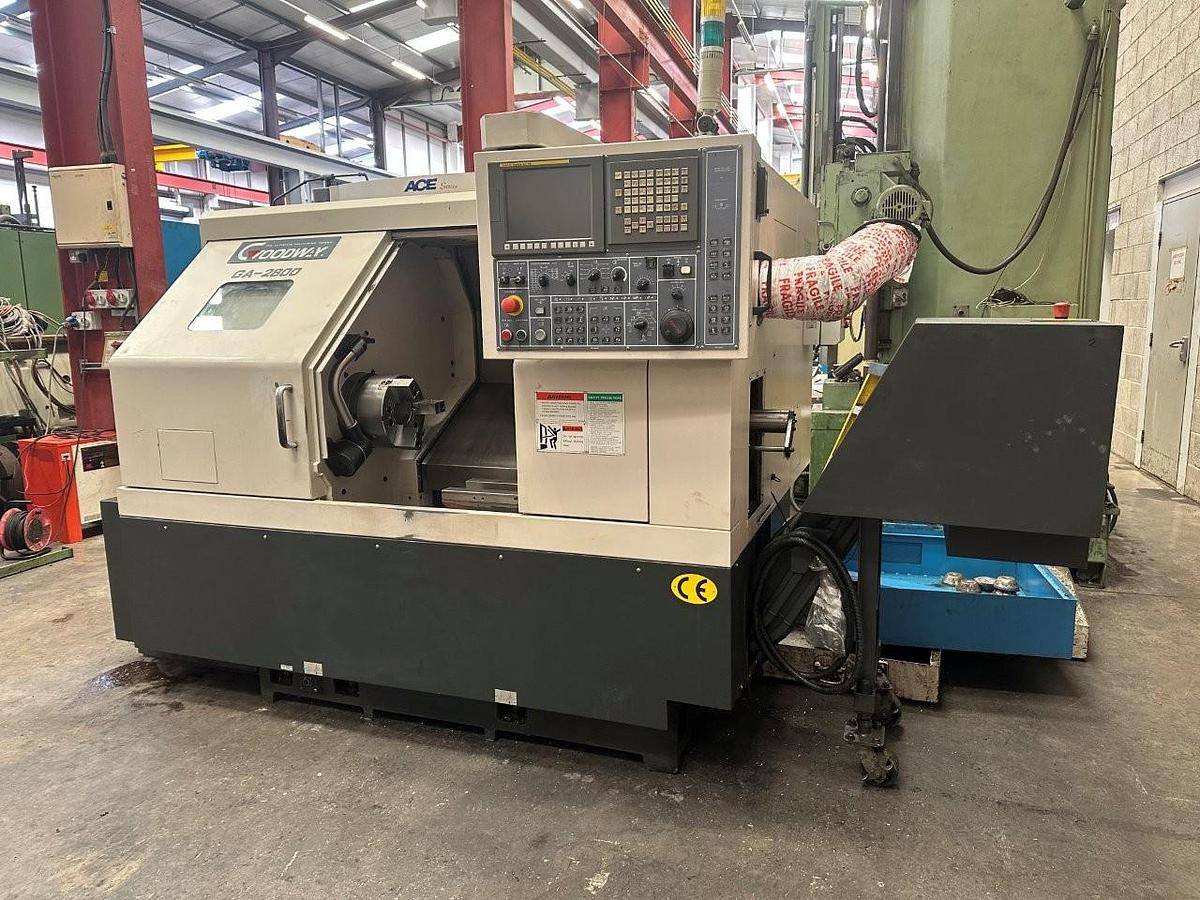

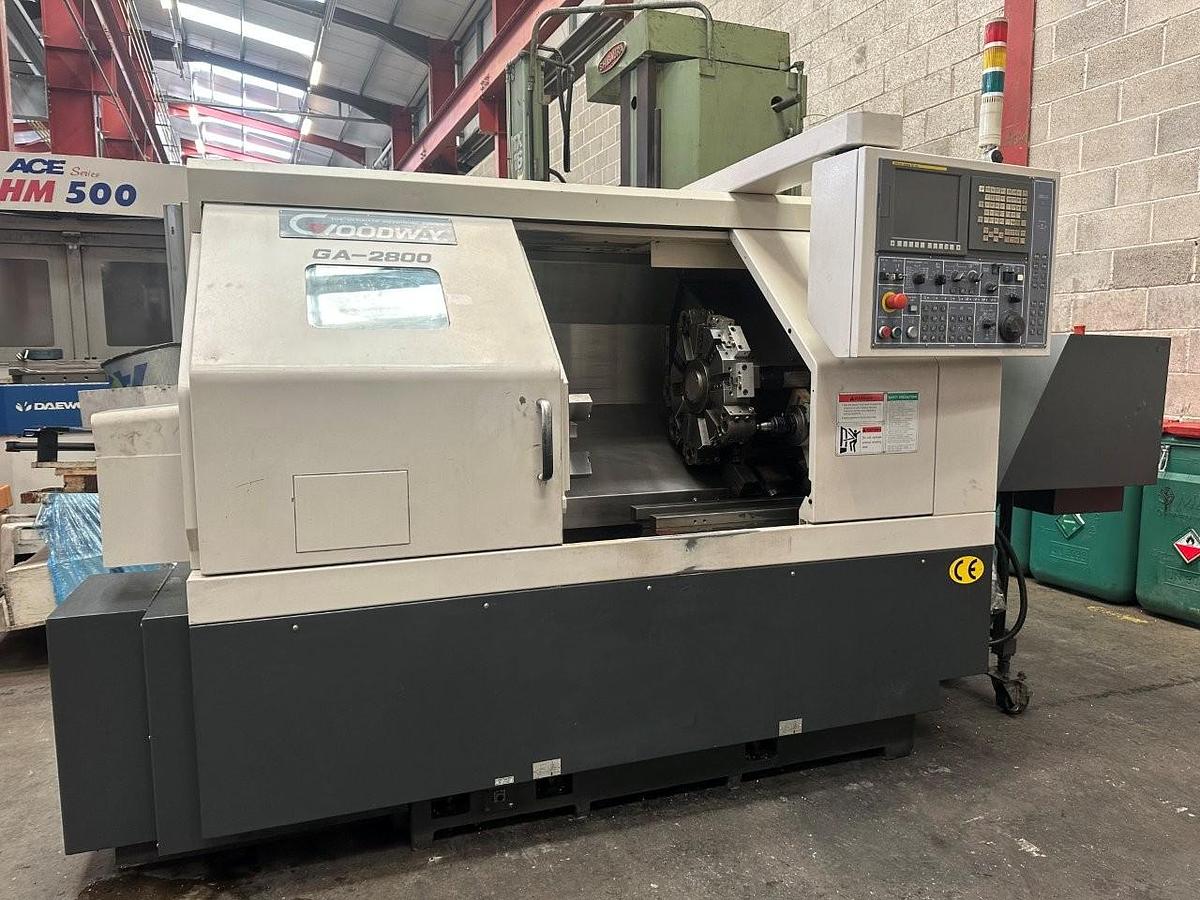

Goodway GA-2800 CNC Lathe (2007)

Description

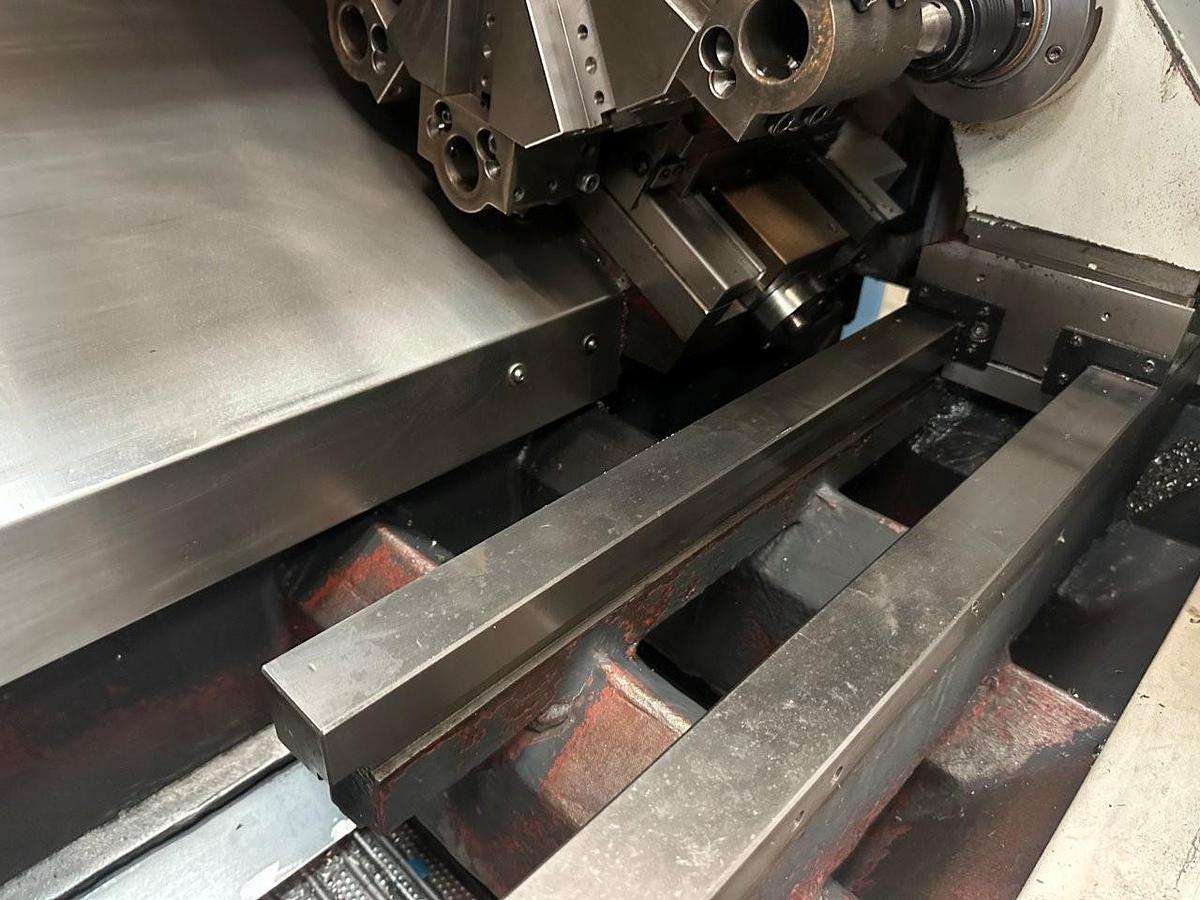

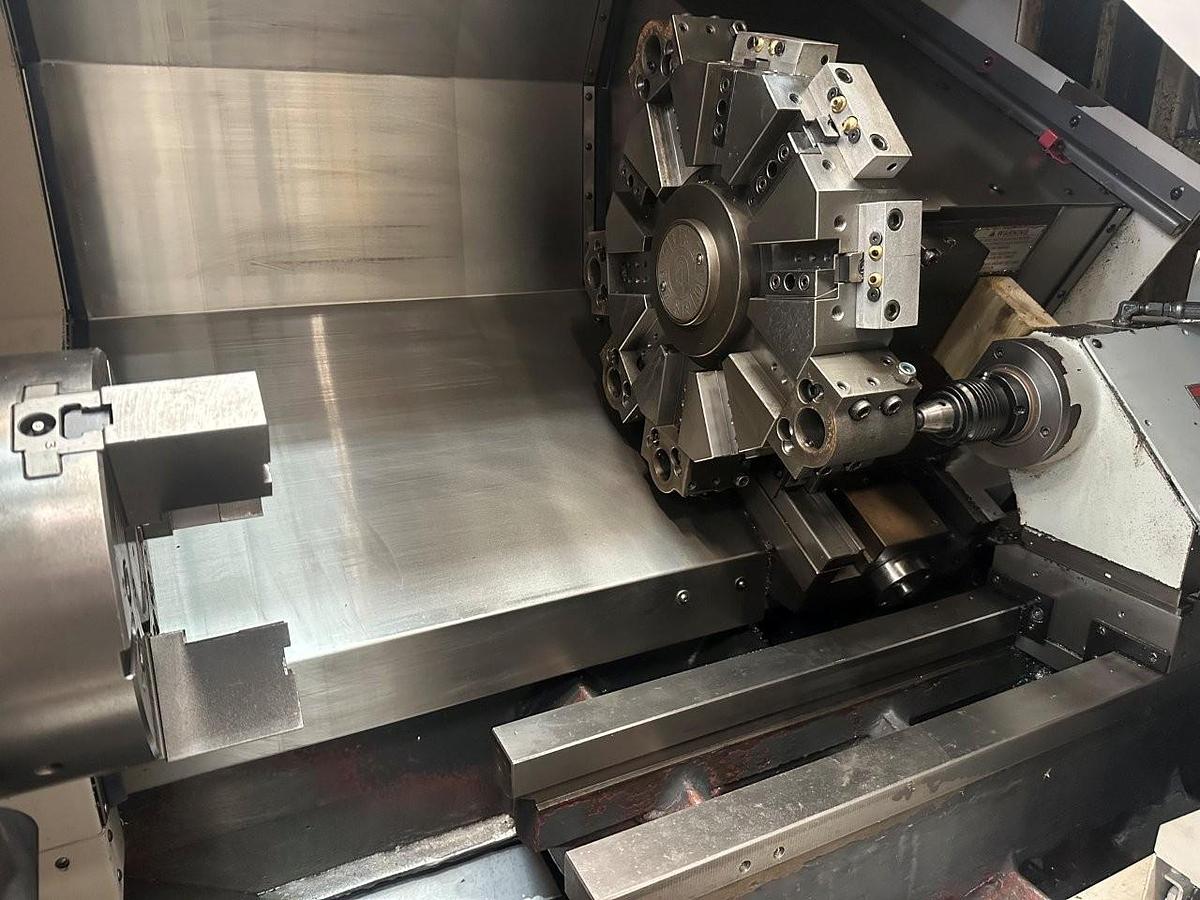

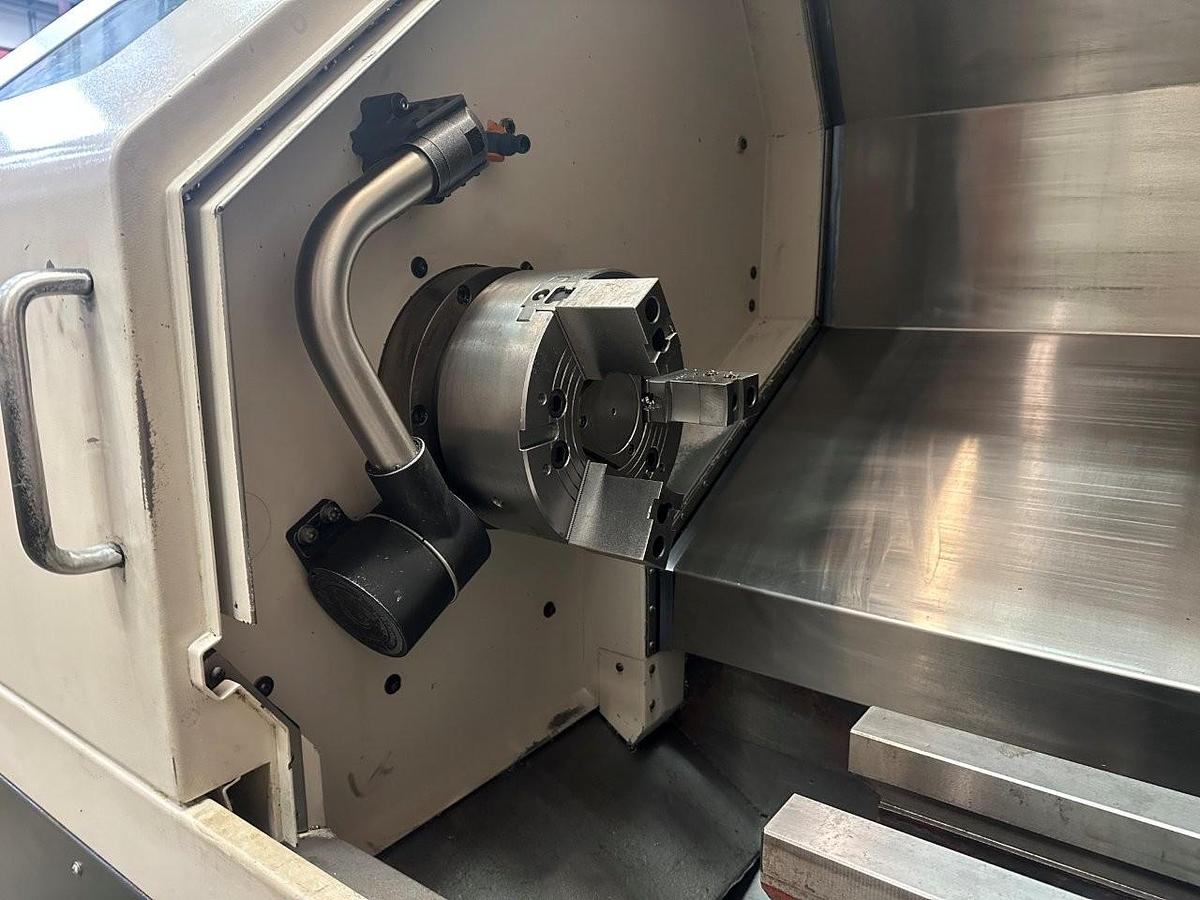

Goodway GA-2800 CNC Lathe – 3-Jaw Chuck, Tailstock, FANUC Oi-TC, 2007 The Goodway GA-2800 is a powerful and precise CNC turning centre equipped with a FANUC Oi-TC control, box guideways, 12-station turret, and a programmable tailstock. Designed for high-rigidity turning of medium to large components, it delivers smooth performance across both short and long parts. Machine Features: • Hardened and ground box guideways for long-term rigidity • 3-jaw chuck included (203 mm or 254 mm options) • Programmable tailstock with MT-4 taper • Heavy-duty construction suitable for tough materials • Ideal for small-batch and continuous production • Smooth FANUC control and AC servo turret indexing • High power-to-size ratio – 250 kg workpiece capacity

Key Specifications

ManufacturerGoodway
ModelGA-2800 CNC Lathe
Year2007
ConditionUsed
Stock Number00173
StockAvailable!

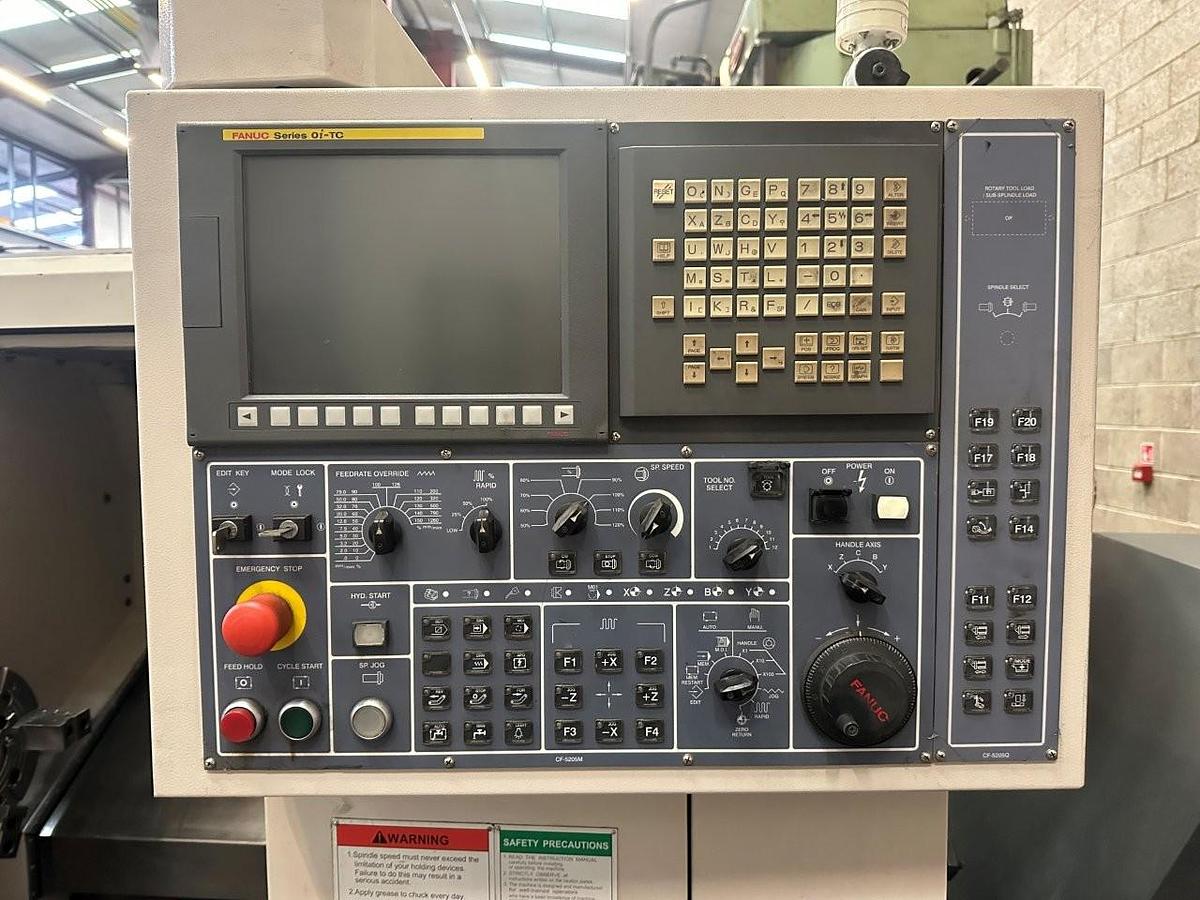

ControlFANUC Oi‑TC
Swing Diameter Over Bed580 mm
Swing Over Saddle400 mm
Max Turnable Diameter350 mm
Turning Lengths (Models)575 mm
Bar CapacityØ 75 mm
Spindle BoreØ 90 mm
Spindle Speed Range35–3,500 rpm
Spindle Power11 kW (continuous), 15 kW (peak)
Spindle Torque~325 N·m (30 min rating)

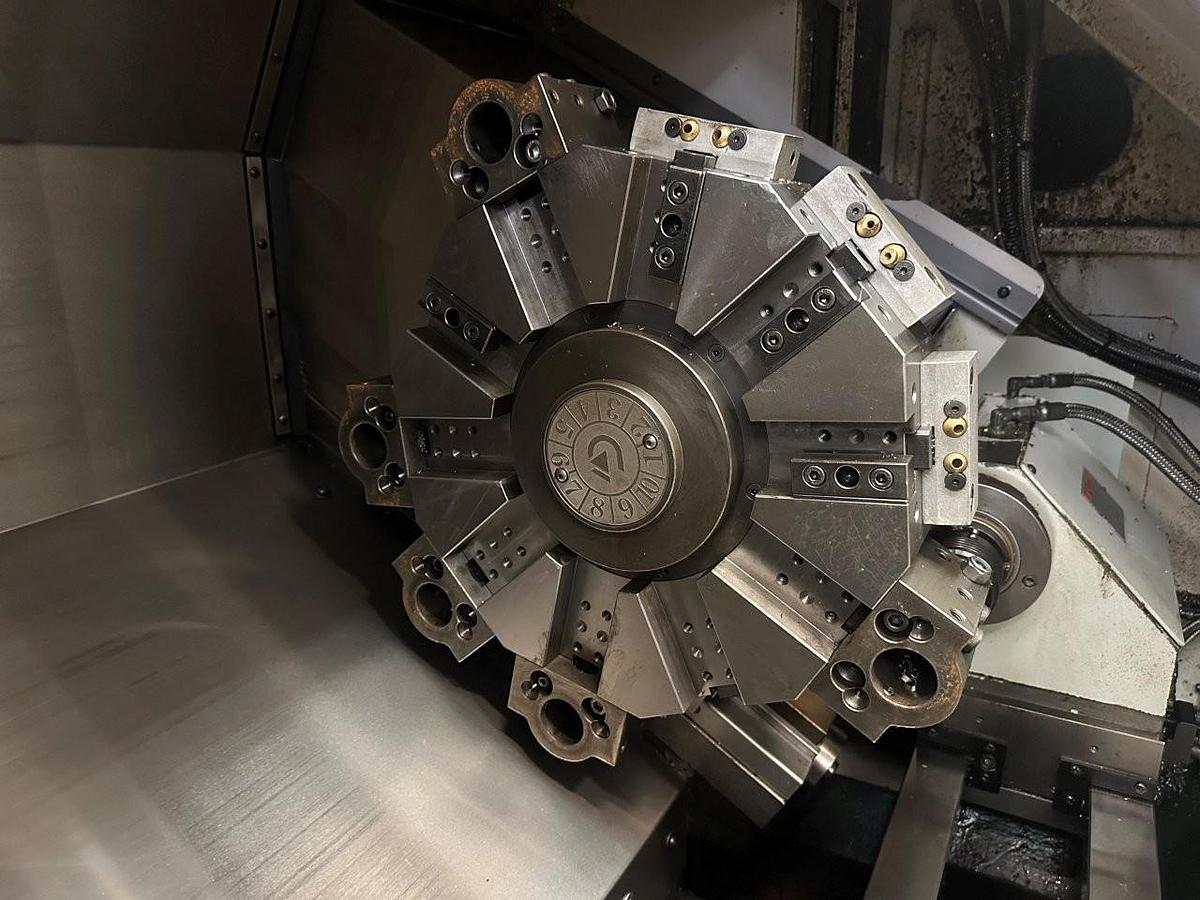

Turret12-station, AC-servo indexing
X-Axis Travel205 mm
Z-Axis Travelup to 1,230 mm
Rapid TraverseX = 20 m/min, Z = 24 m/min
Tool Arm / Turret12-position AC-servo

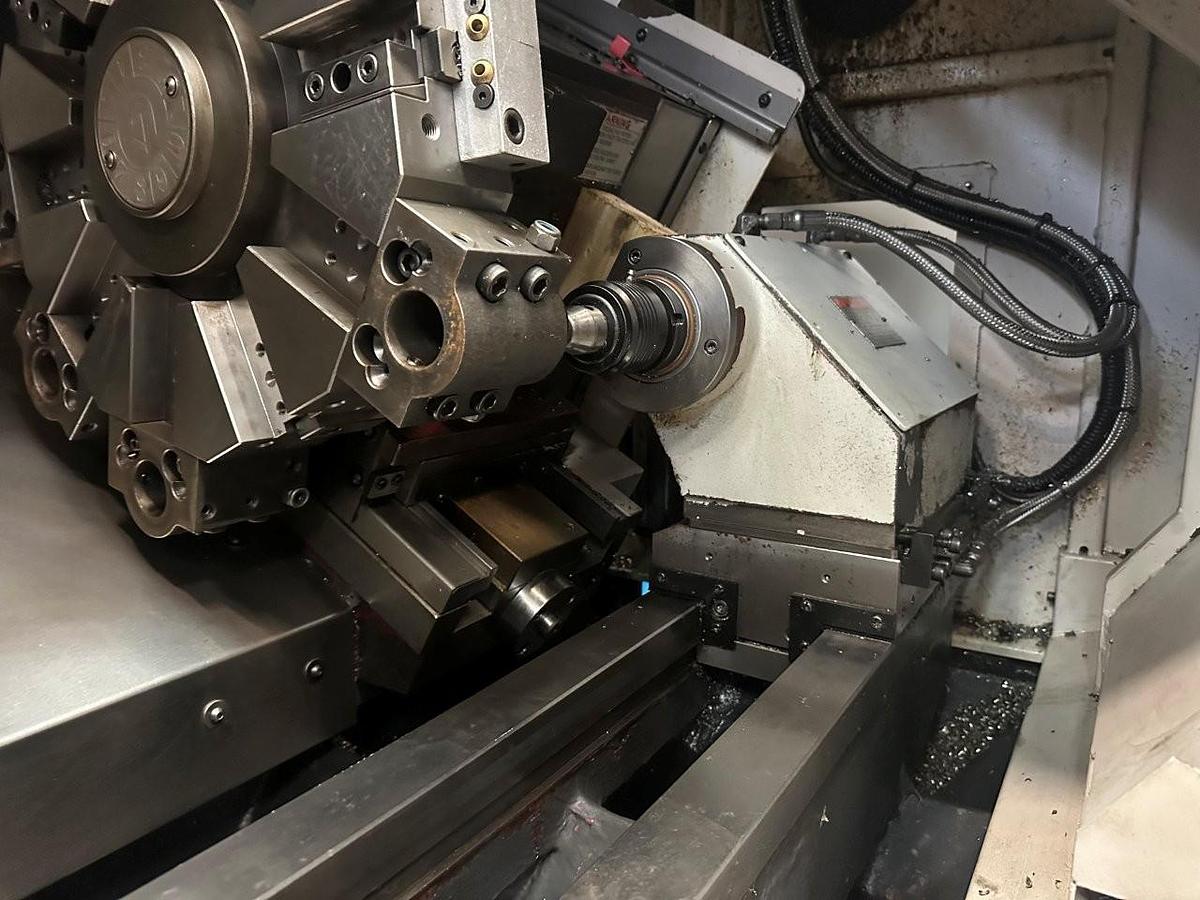

TailstockProgrammable base & quill
TaperMT-4
Quill Diameter70 mm
Quill Travel150 mm
