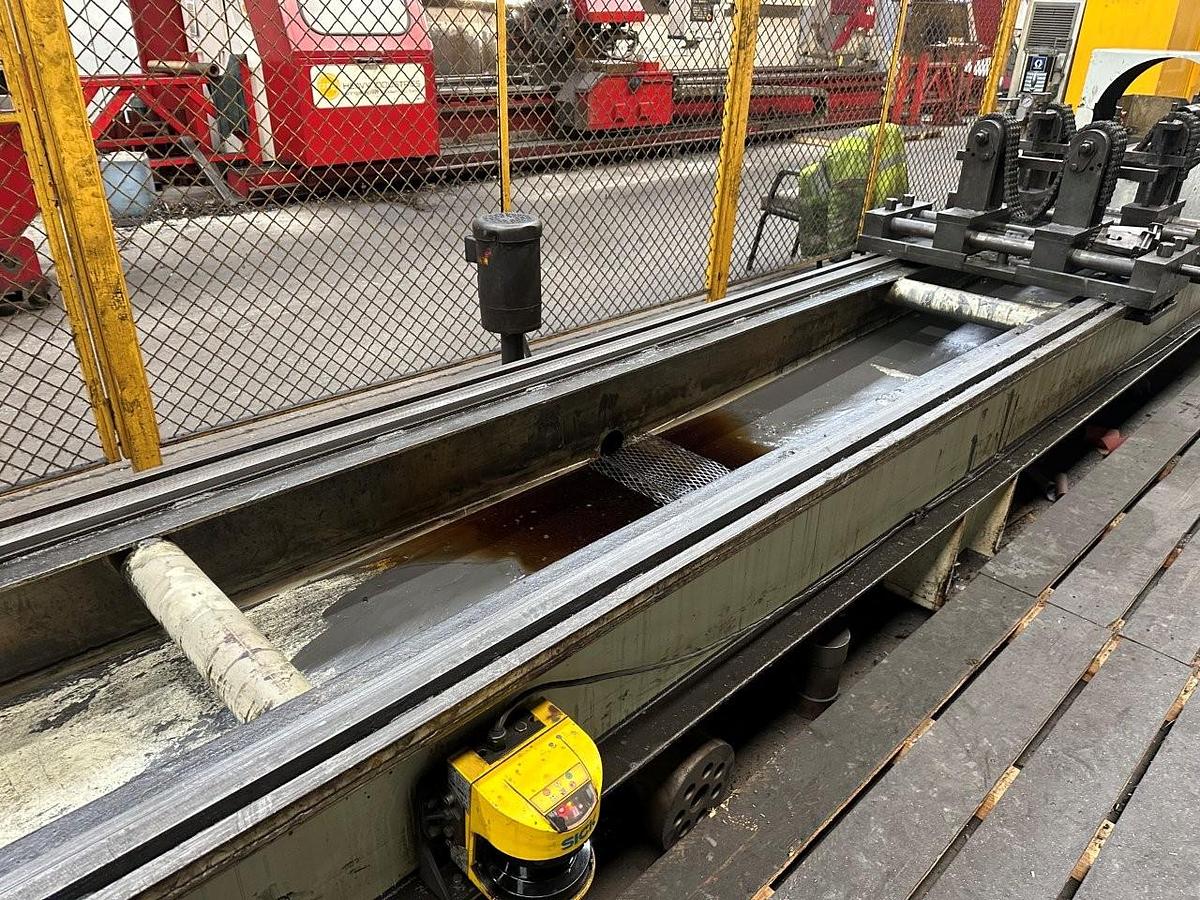

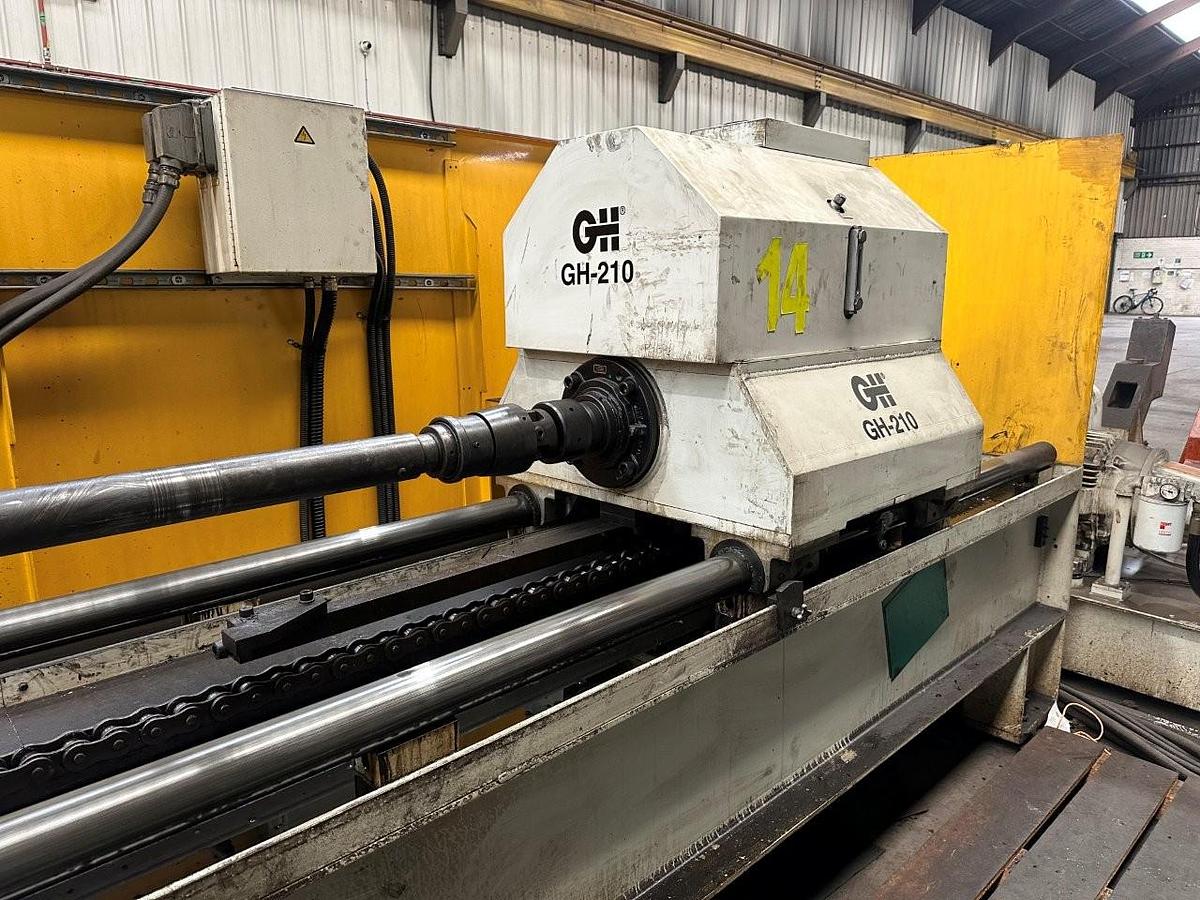

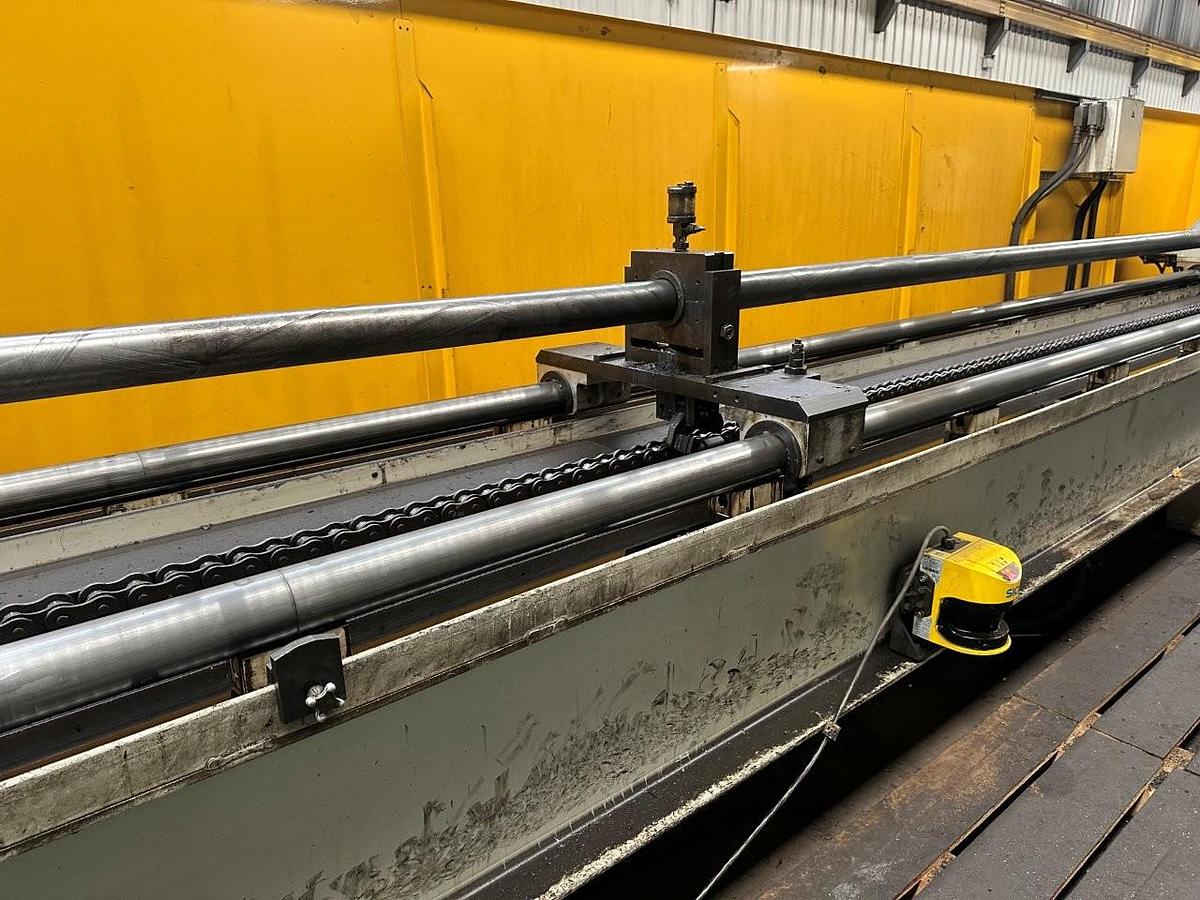

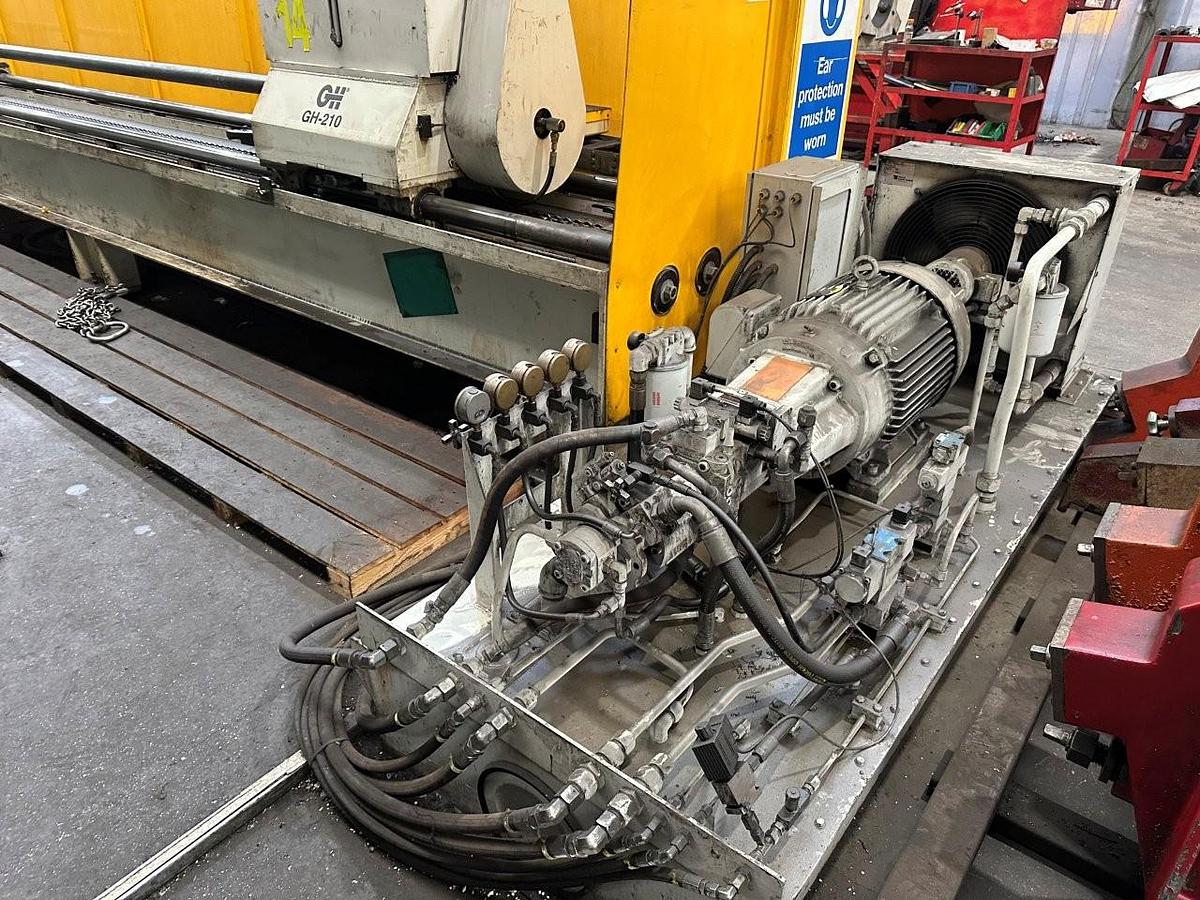

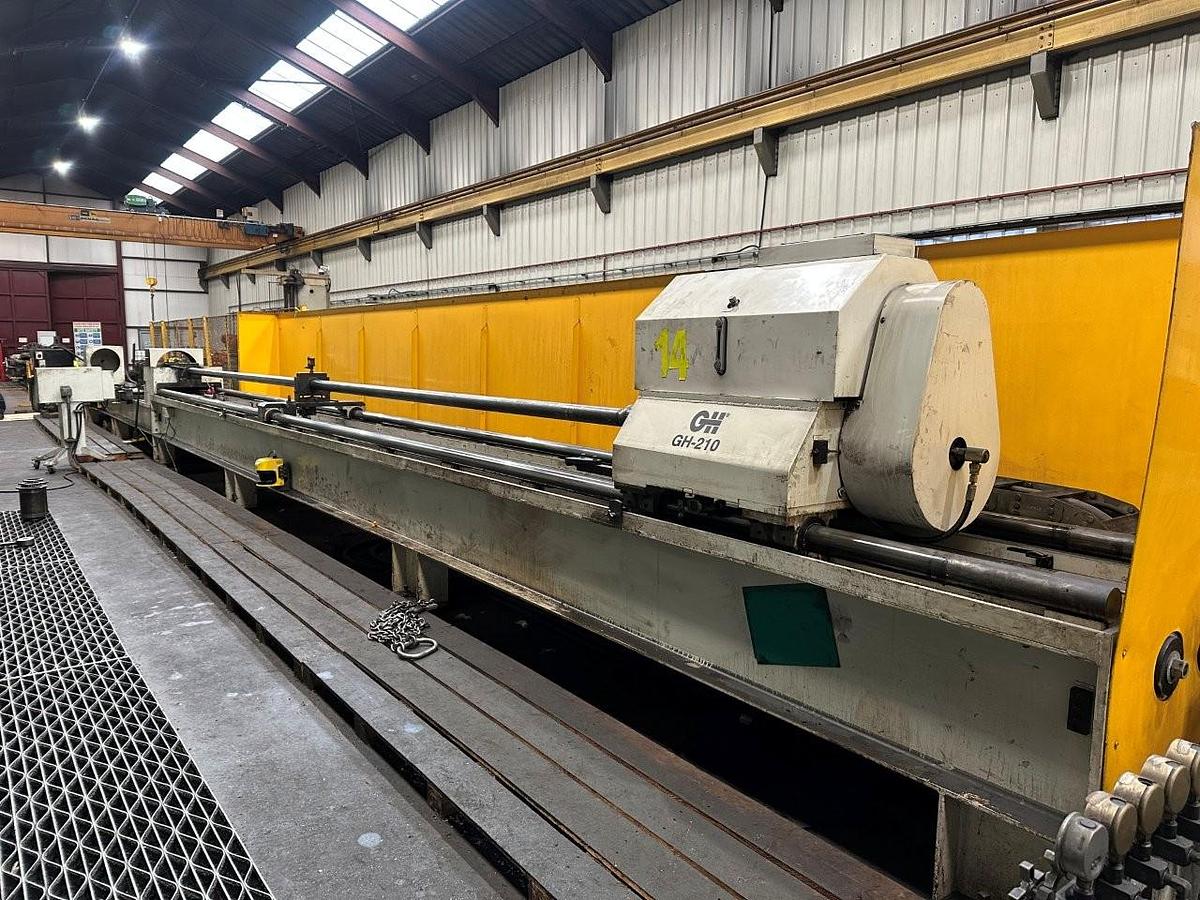

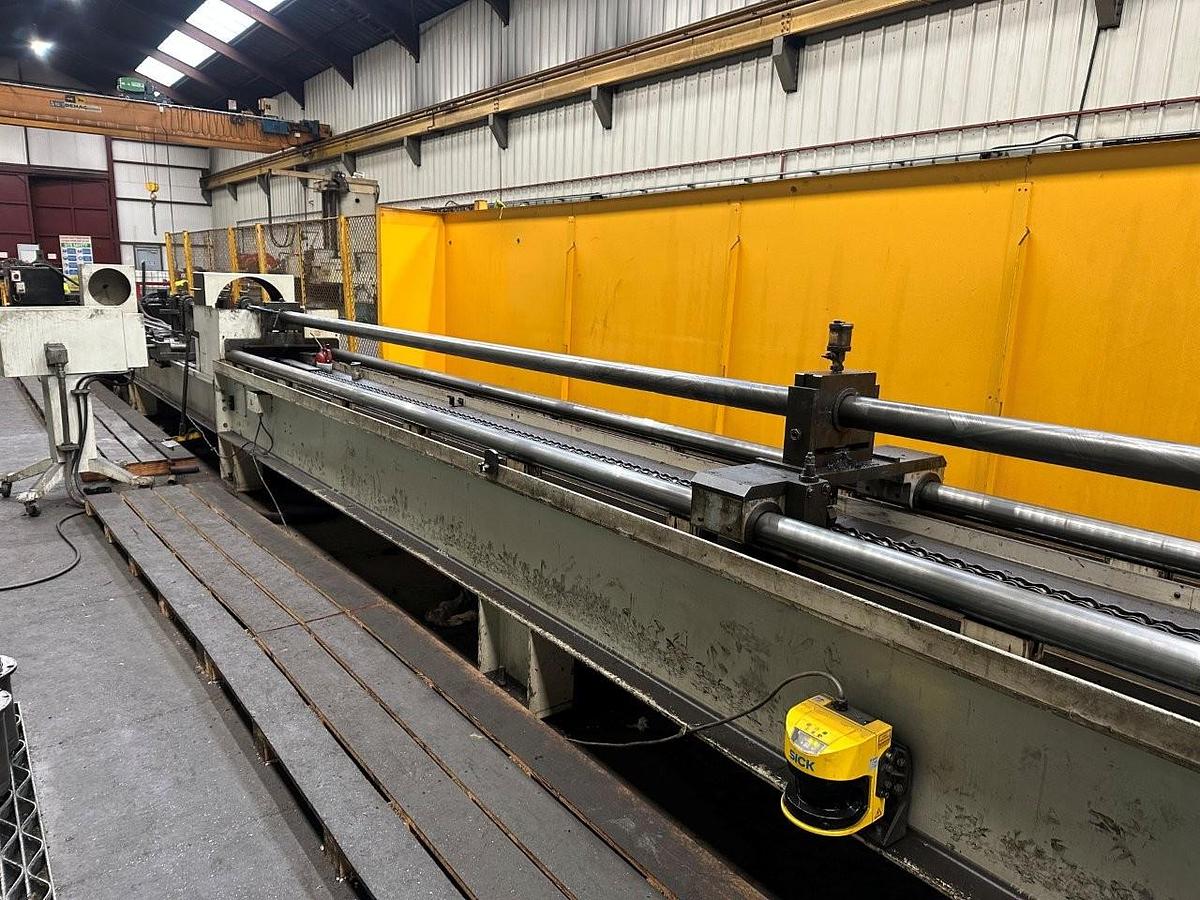

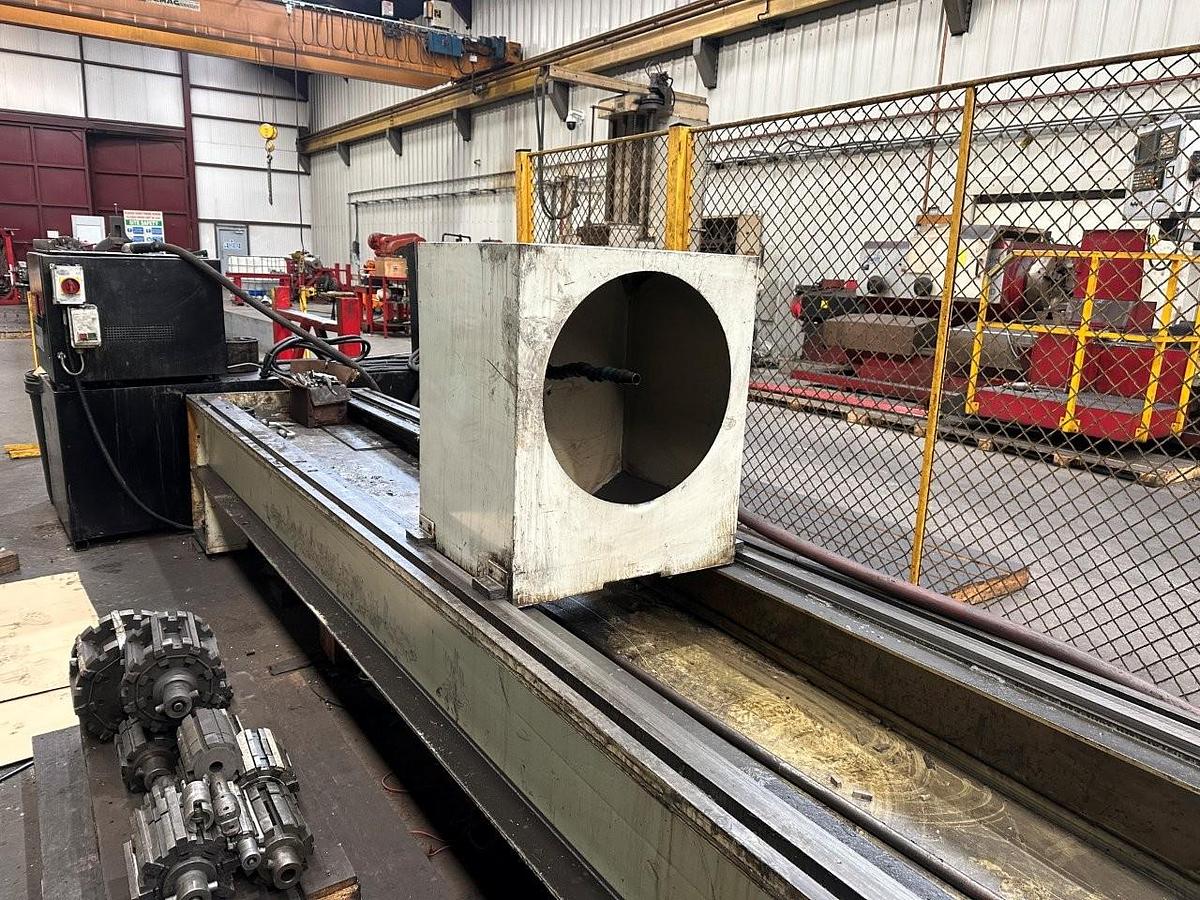

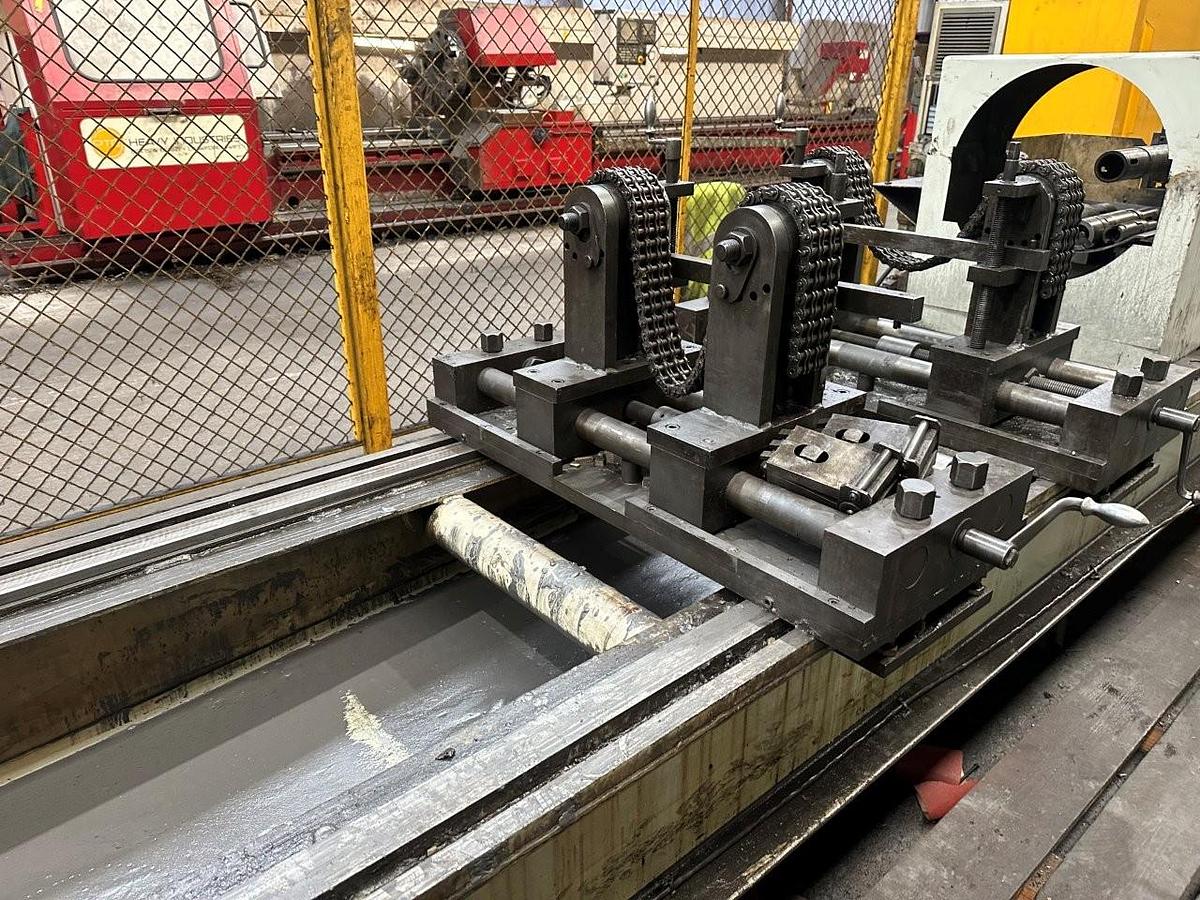

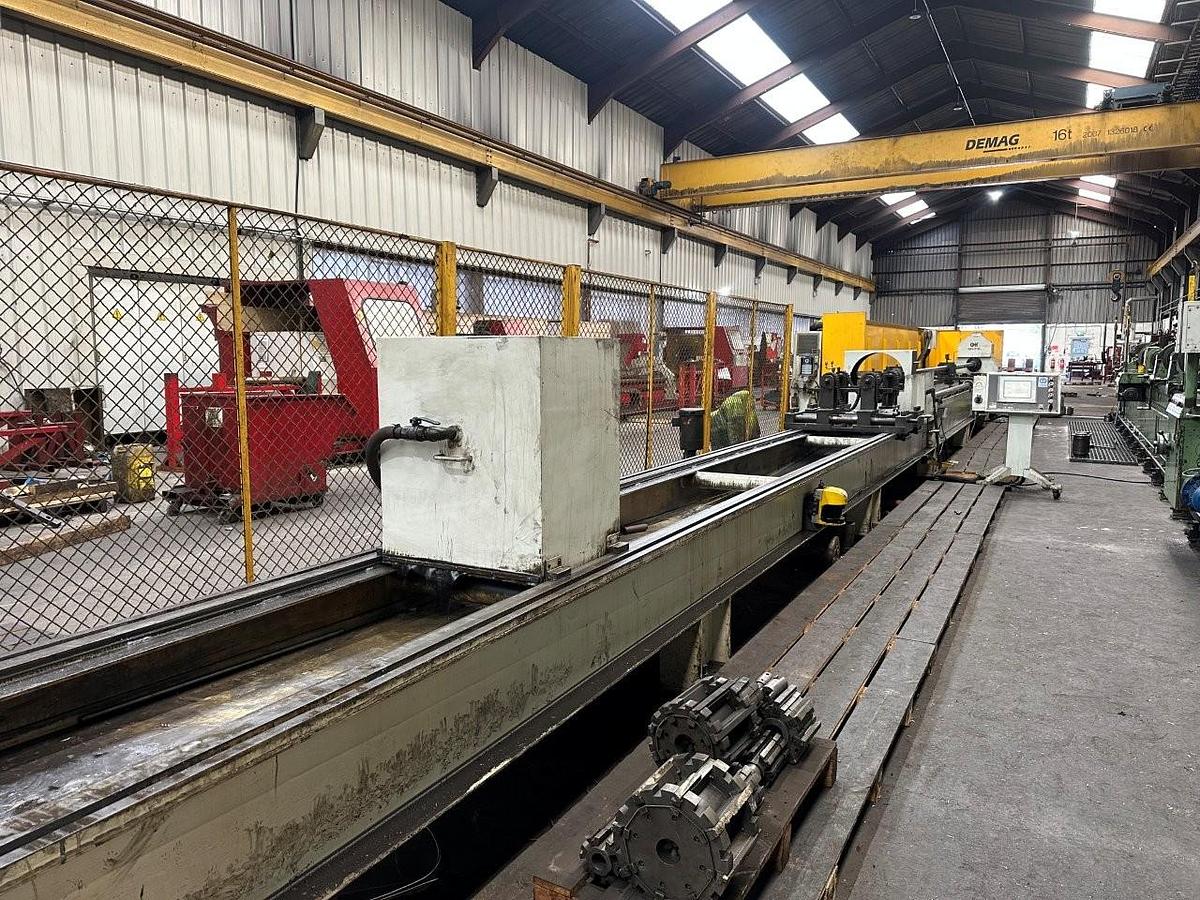

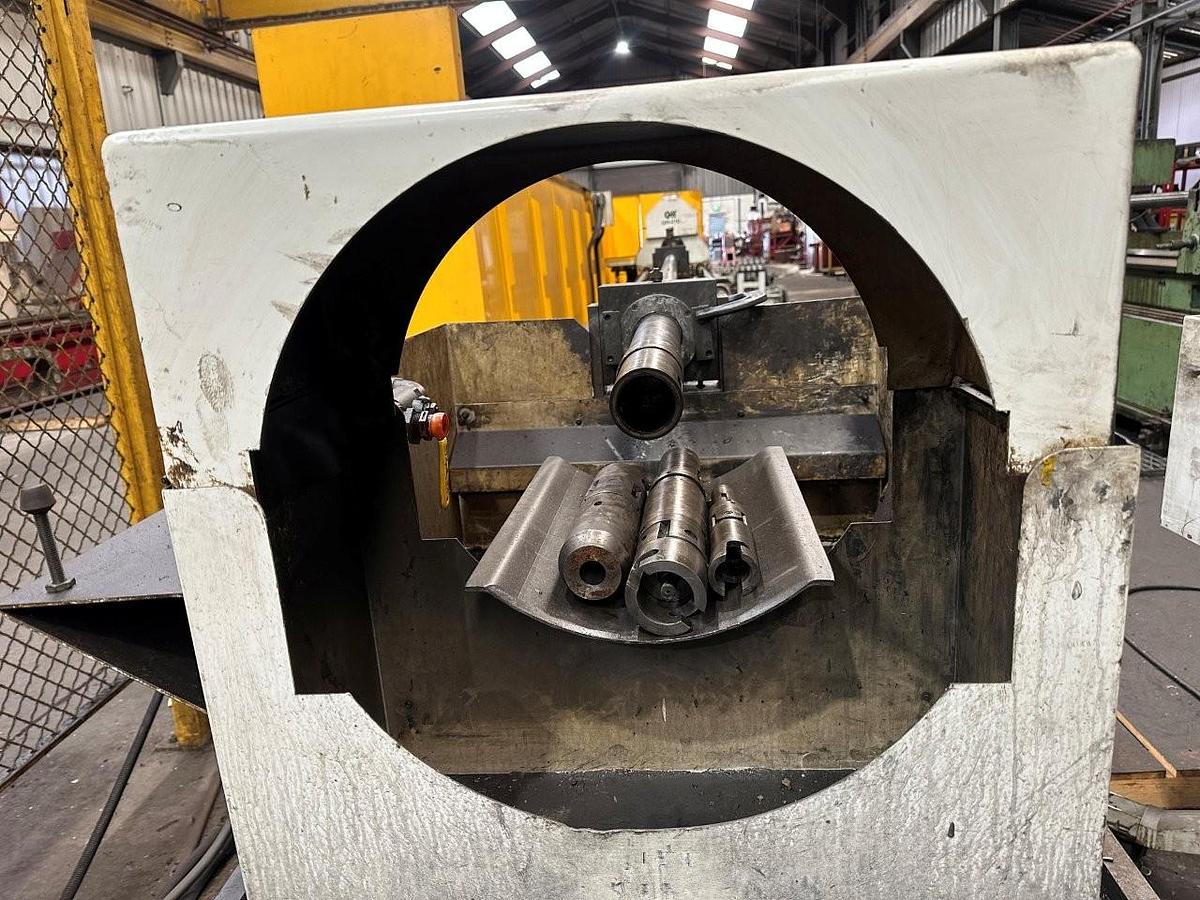

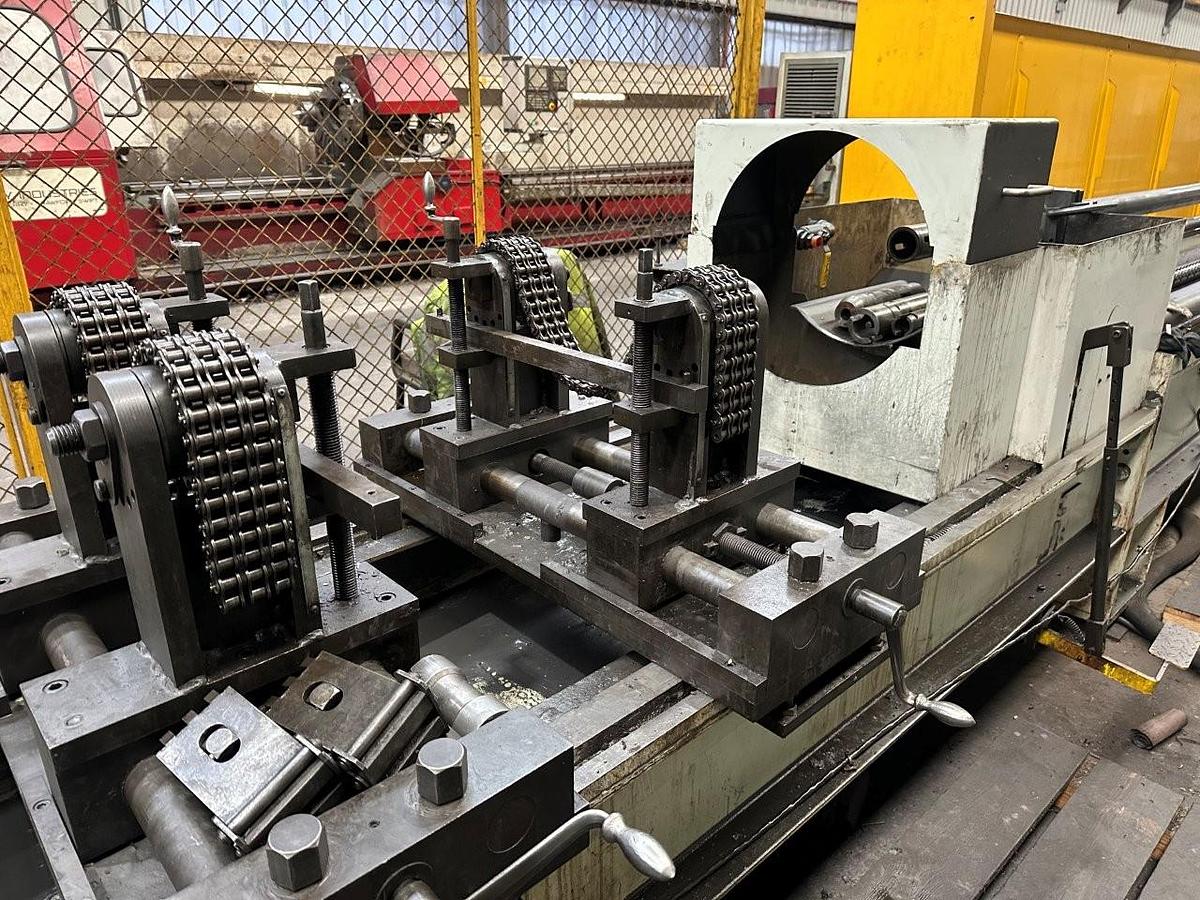

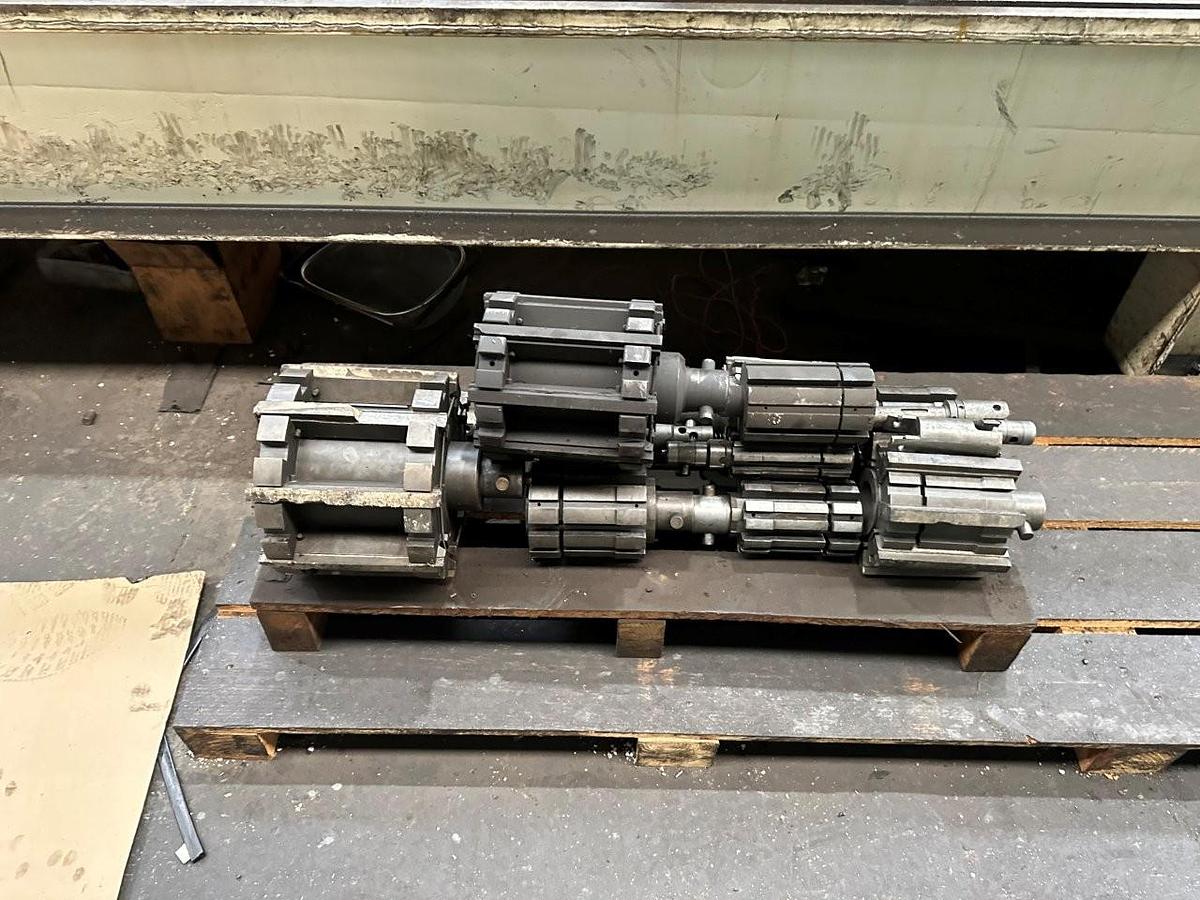

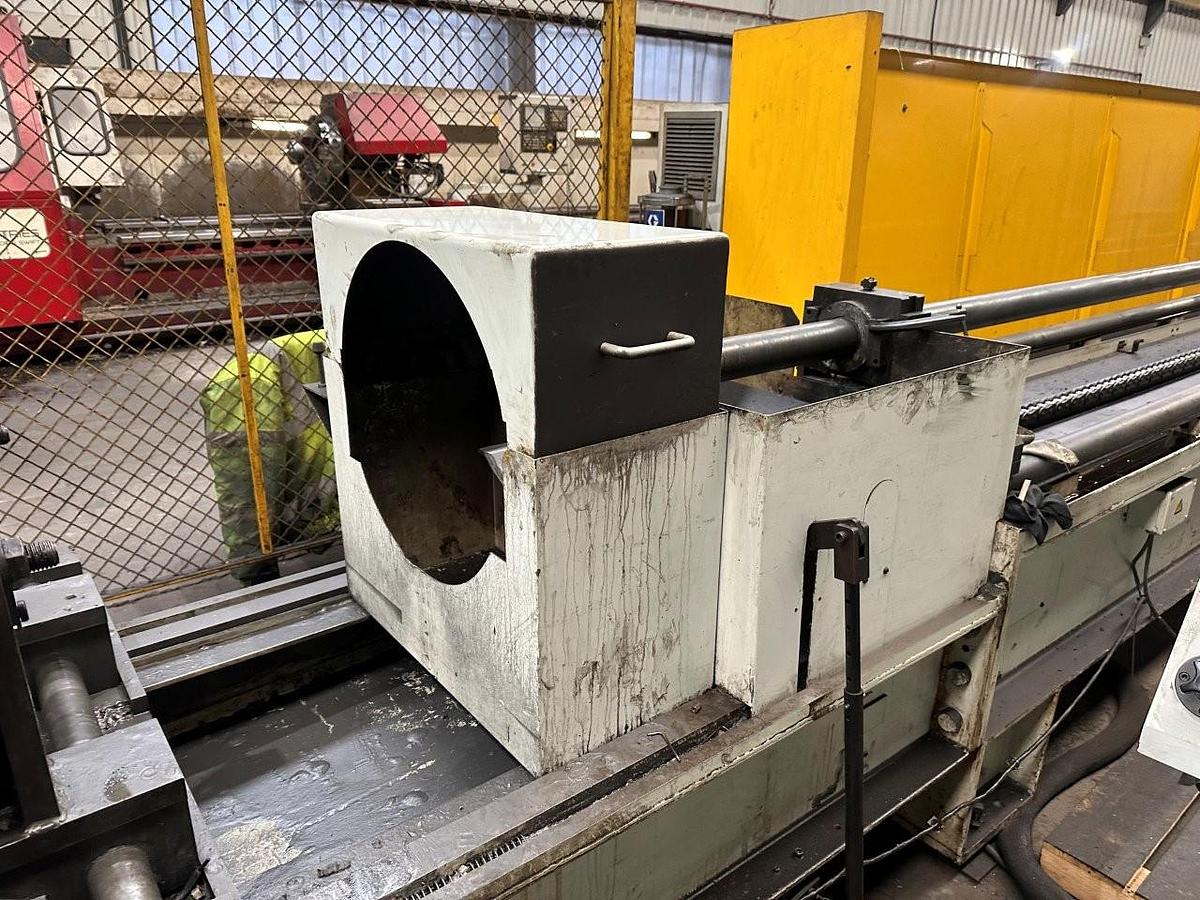

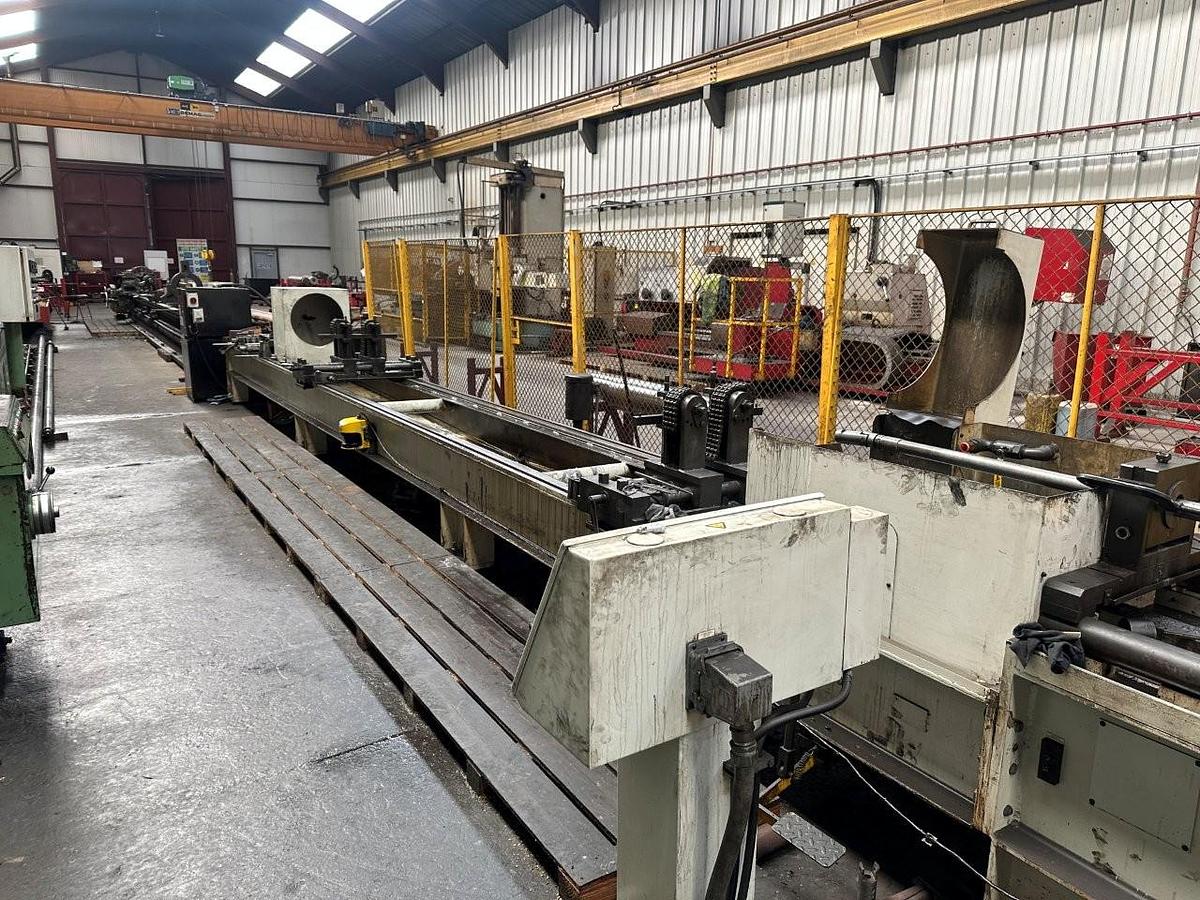

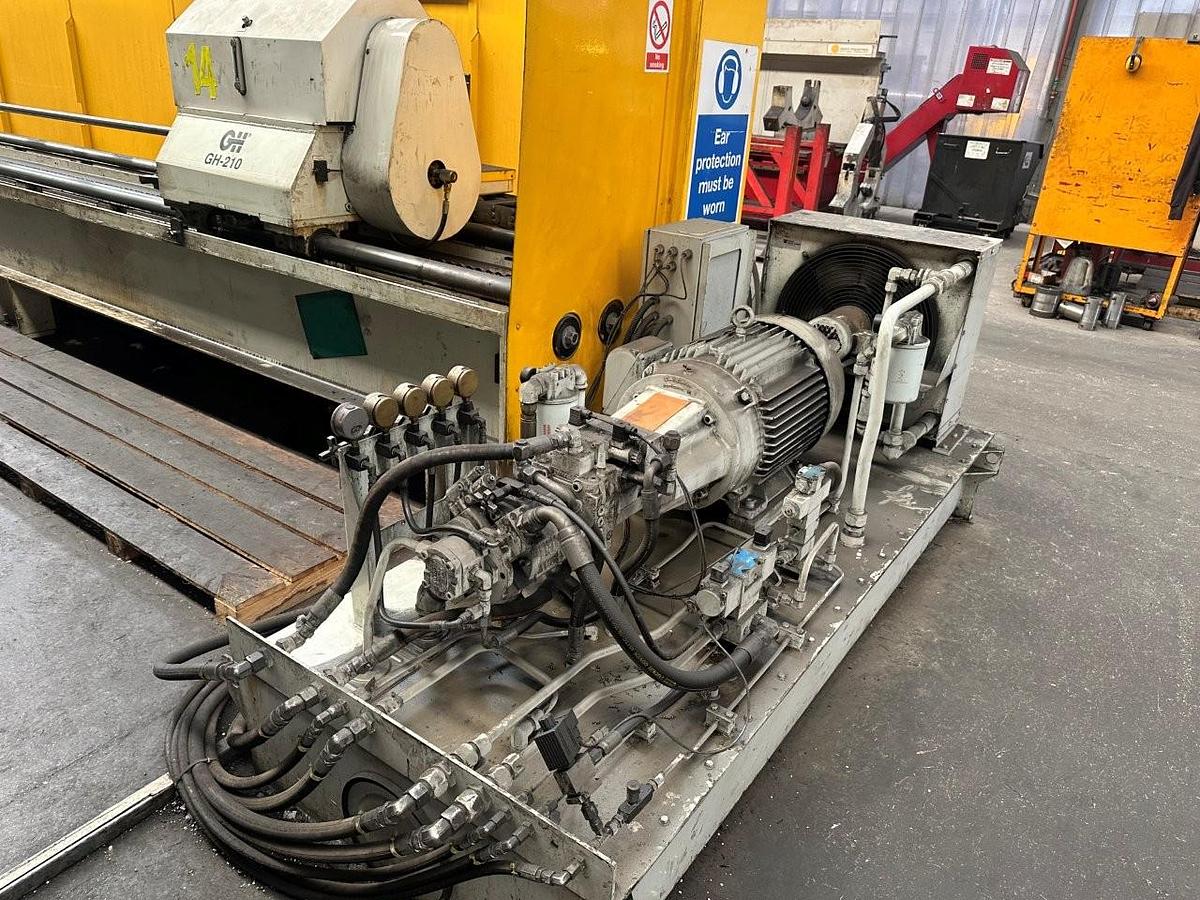

Sunnen GH210 x 7600mm Honing Machine
Description
Sunnen GH210 x 7600mm Honing Machine
Max Stroke 7600mm,
Spindle Speed:0 - 300 rpm
Maximum Spindle Power: 40 Hp (29.83 kW)
Maximum Stroker Power: 18 Hp (13.42 kW)

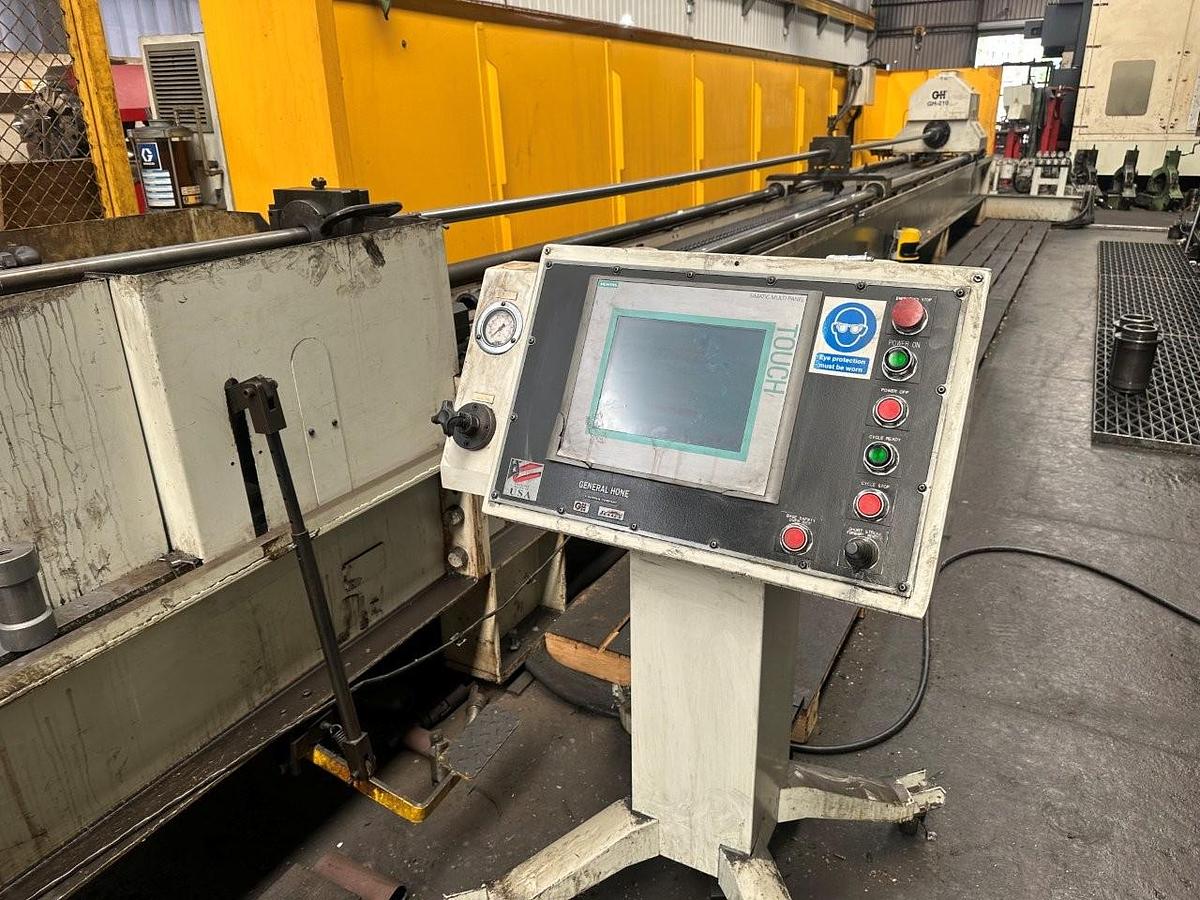

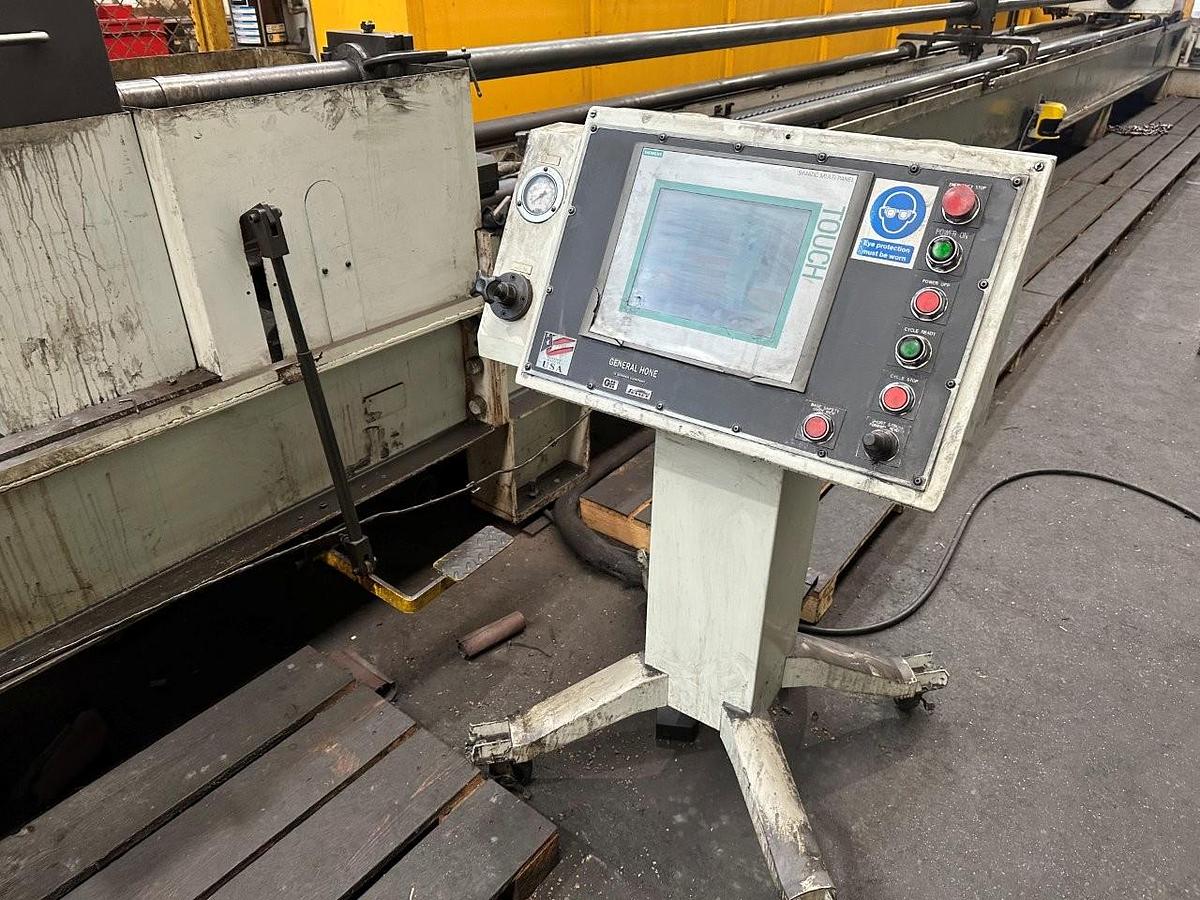

Siemens Simatic Control,
Key Specifications
| Manufacturer | Sunnnen |
| Model | GH210 X 7600mm |
| Year | 2010 |
| Condition | Used |
| Stock Number | 2816 |
| Maximum Spindle Power | 40 Hp (29.83 kW) |
| Maximum Stroker Power | 18 Hp (13.42 kW) |
| I.D. Range | 2 – 24 inches (50.8 – 609.6 mm) |
| O.D. Range | 26 inches standard (660.4 mm) |
| Maximum Part Weight | 8000 kg |
| Max Stroke | 7600mm |
Additional Features
Stroke Speed Range: 0 – 100 ft/min (0 – 30.5 m/min)
I.D. Range: 2 – 24 inches (50.8 – 609.6 mm)
O.D. Range: 26 inches standard (660.4 mm)
Maximum Part Weight: 8000 kg
Approximate Machine Weight: 12,066 kg
400 VAC 50 Hz, 3-Phase (85 A)
