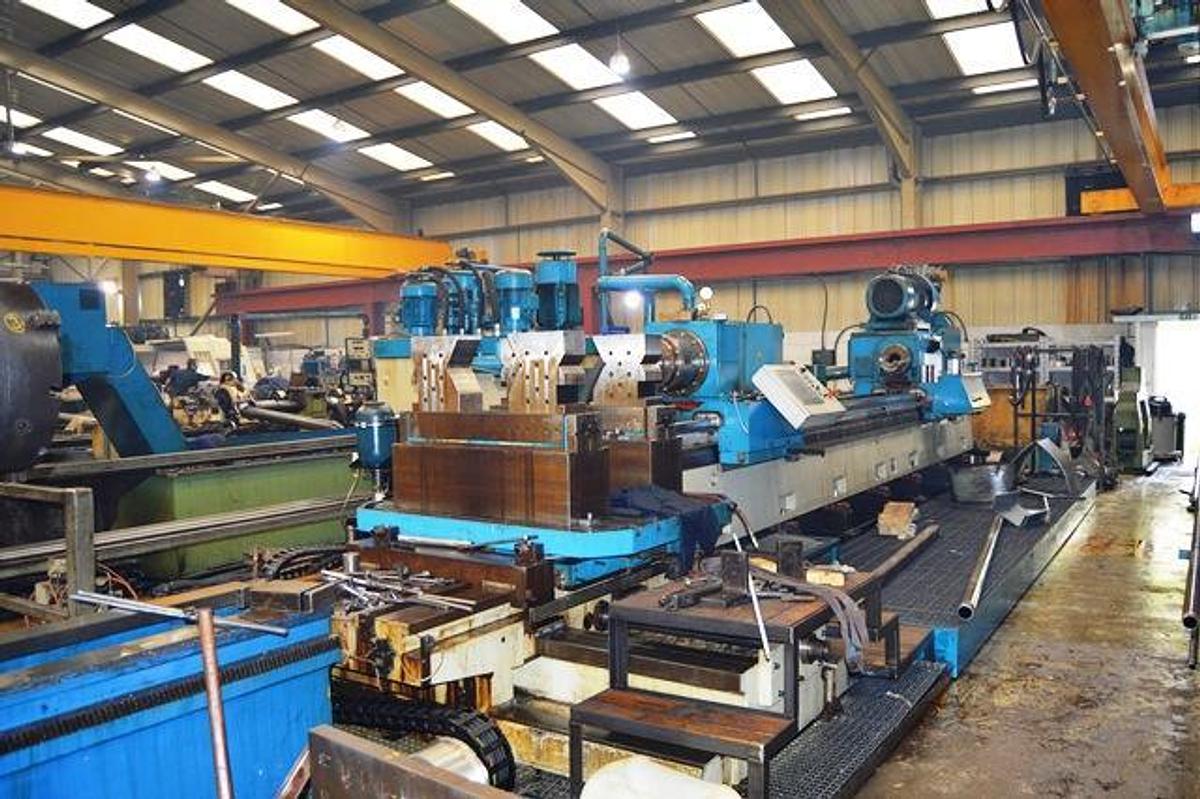

VDF B630-4000 Table Type Deep Hole Borer
Description

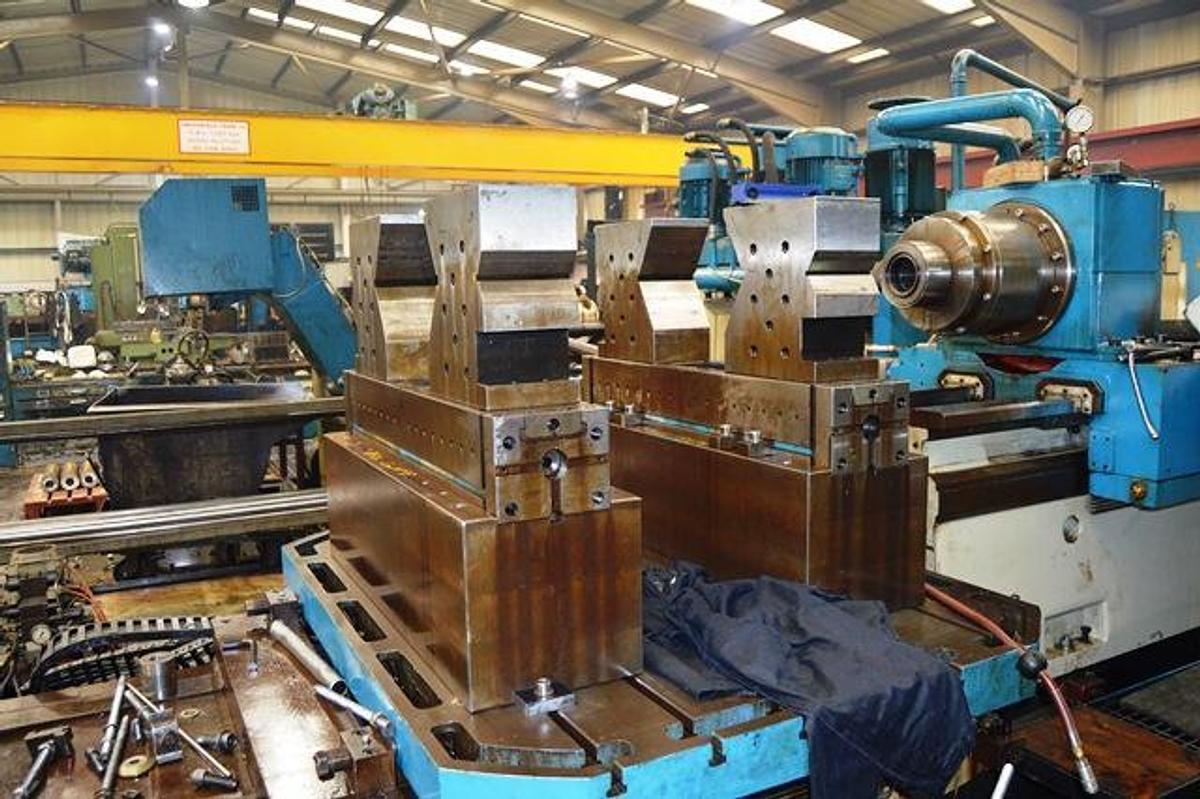

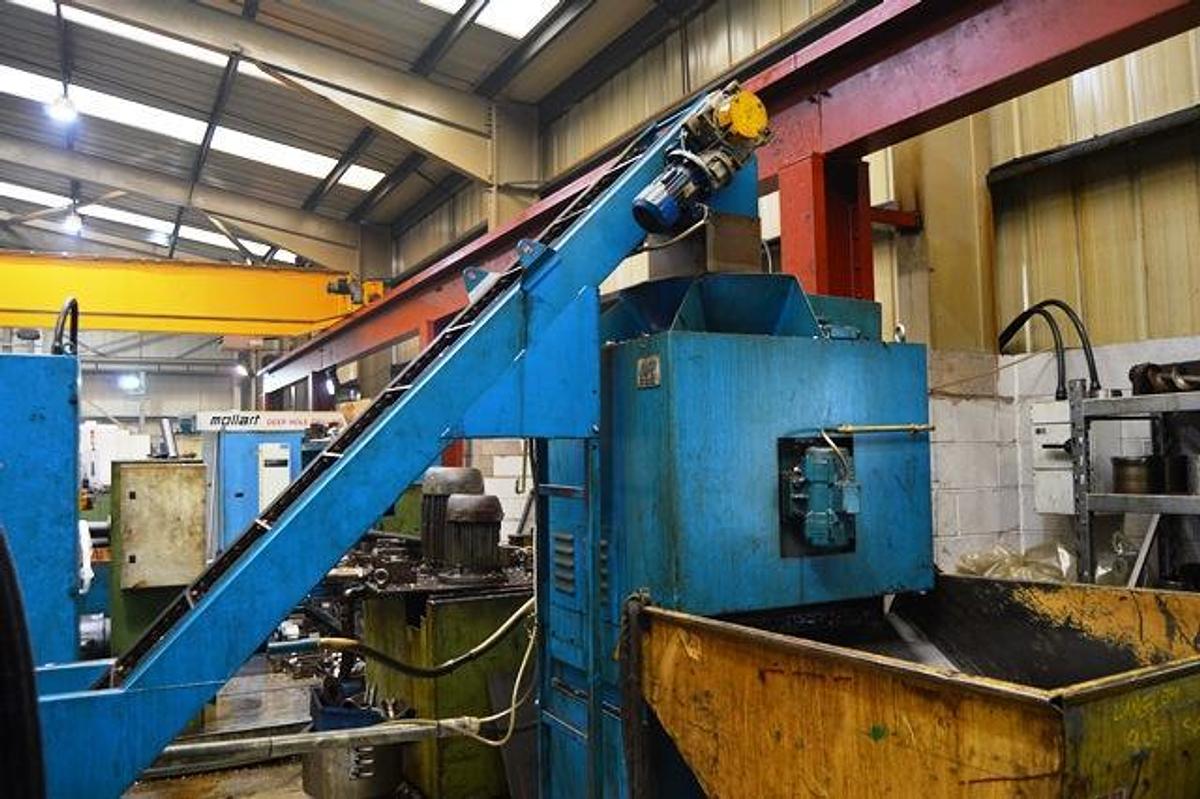

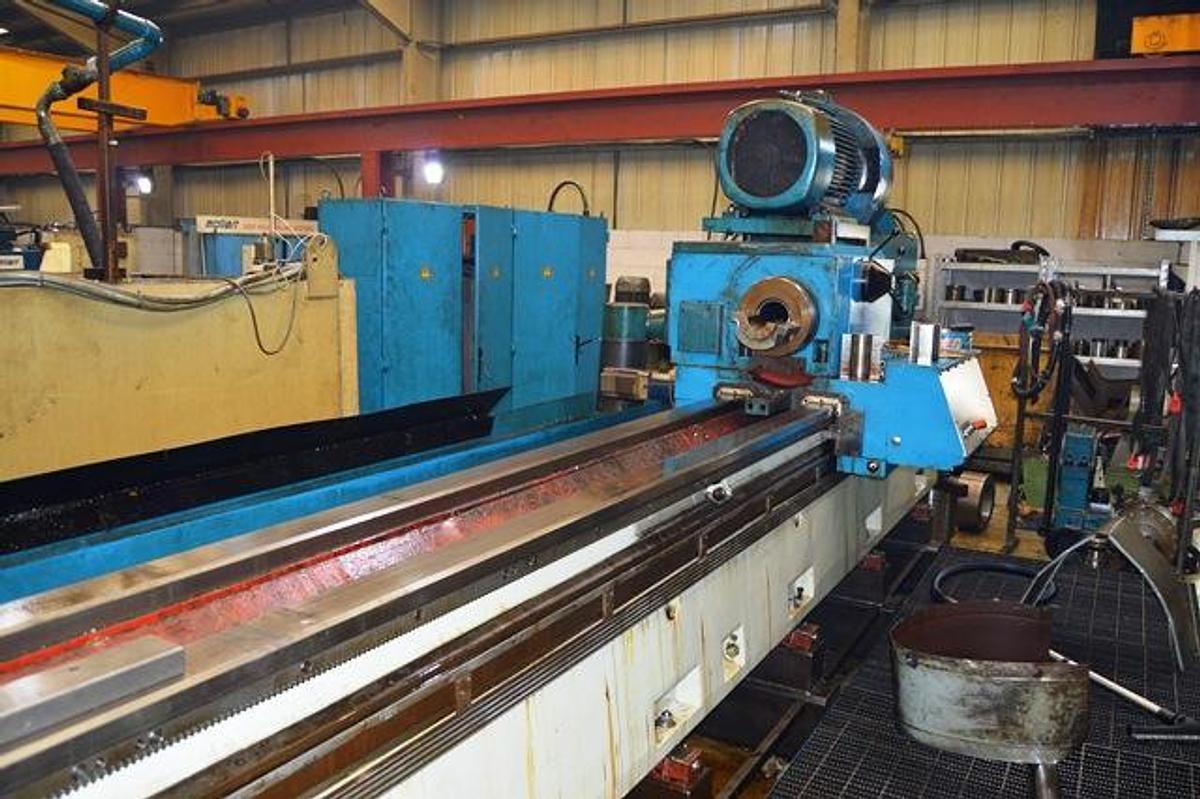

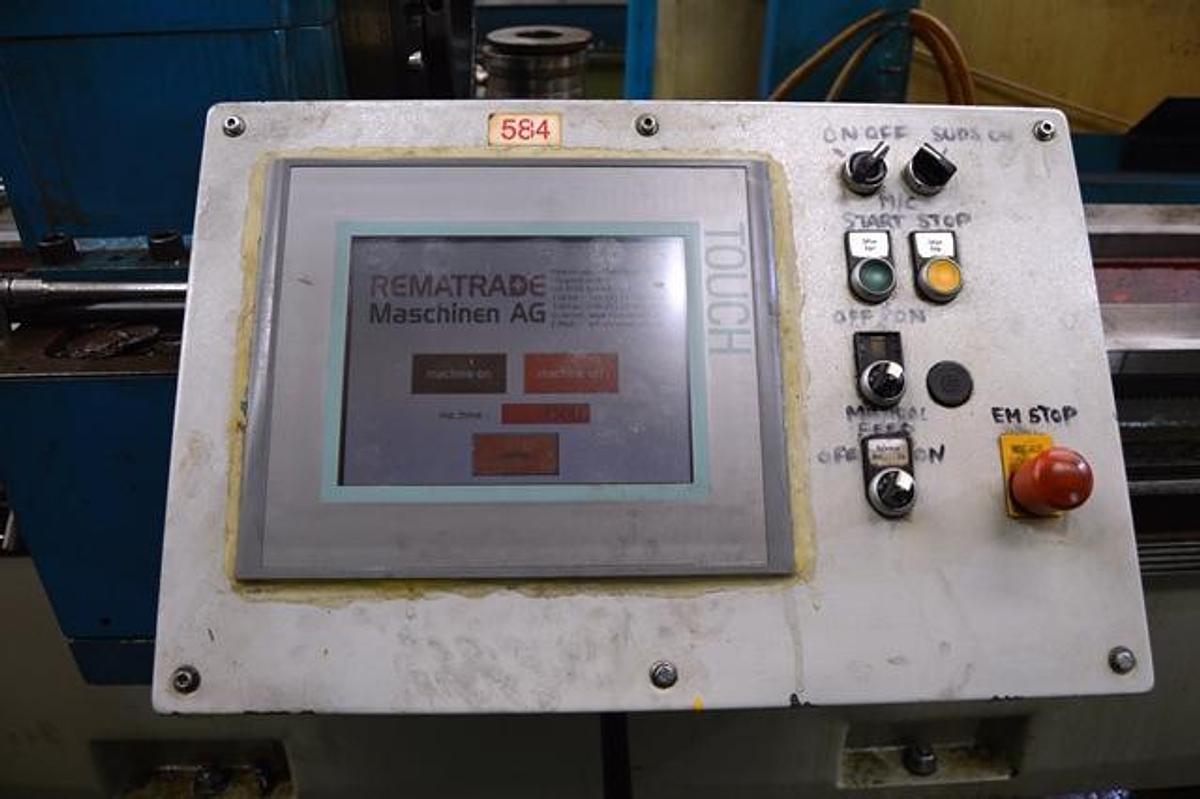

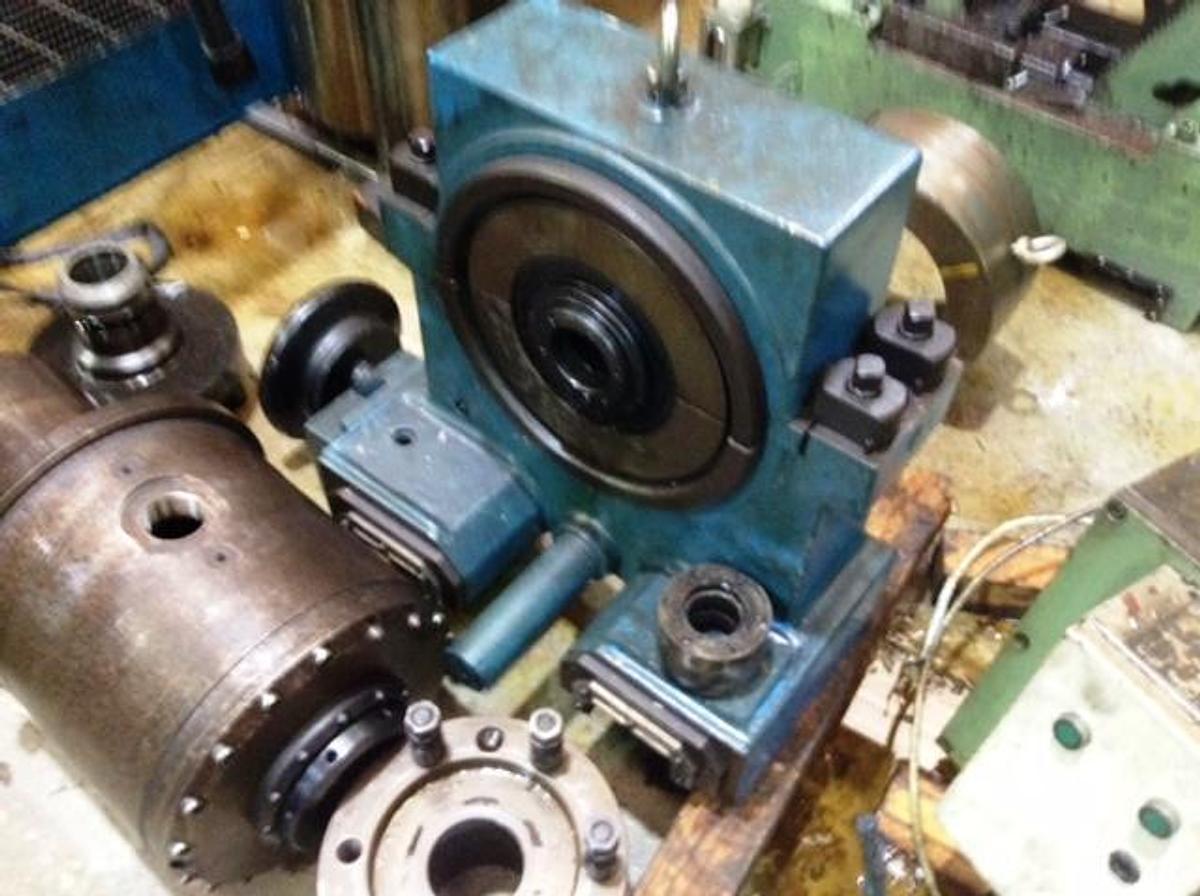

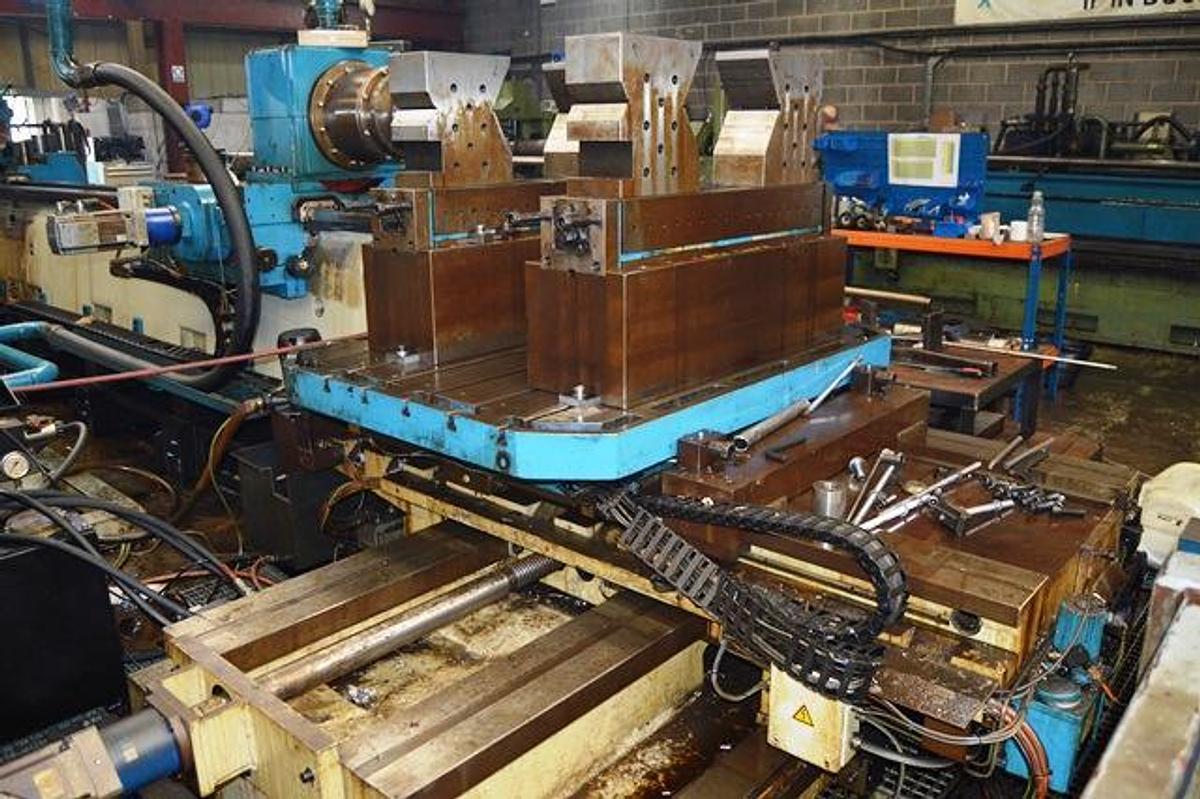

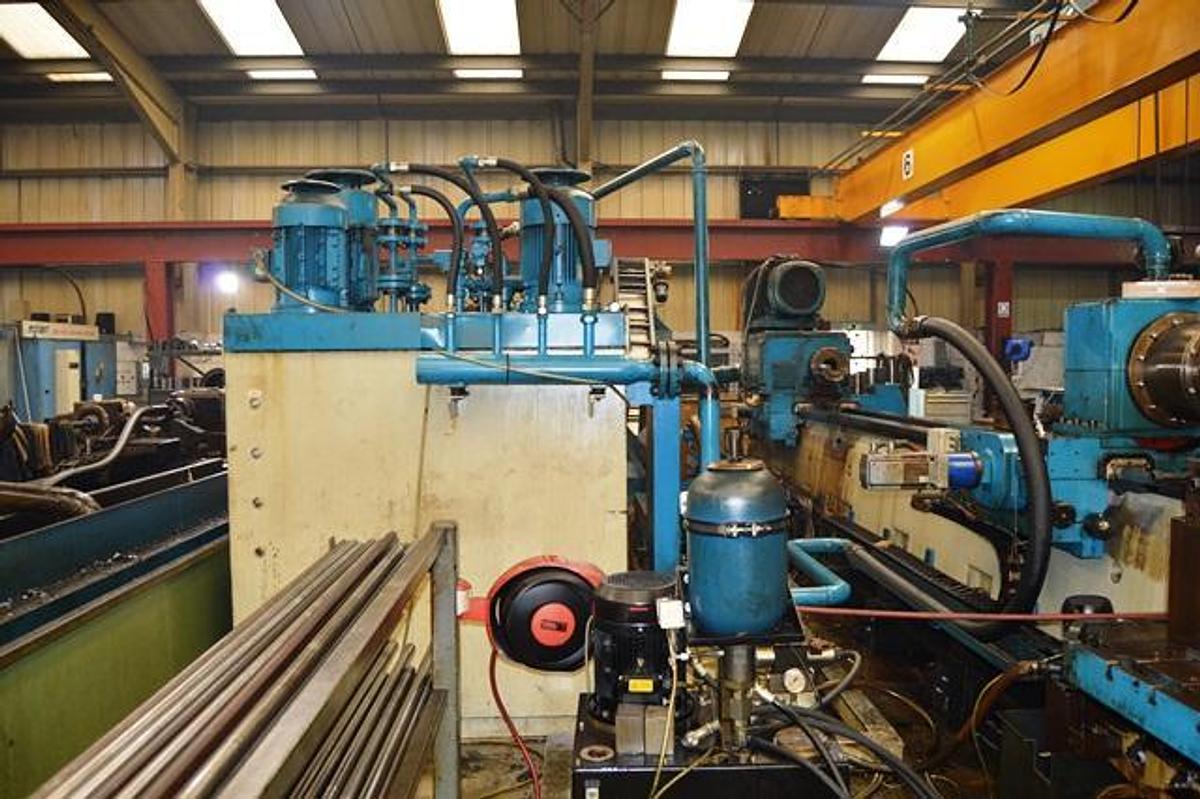

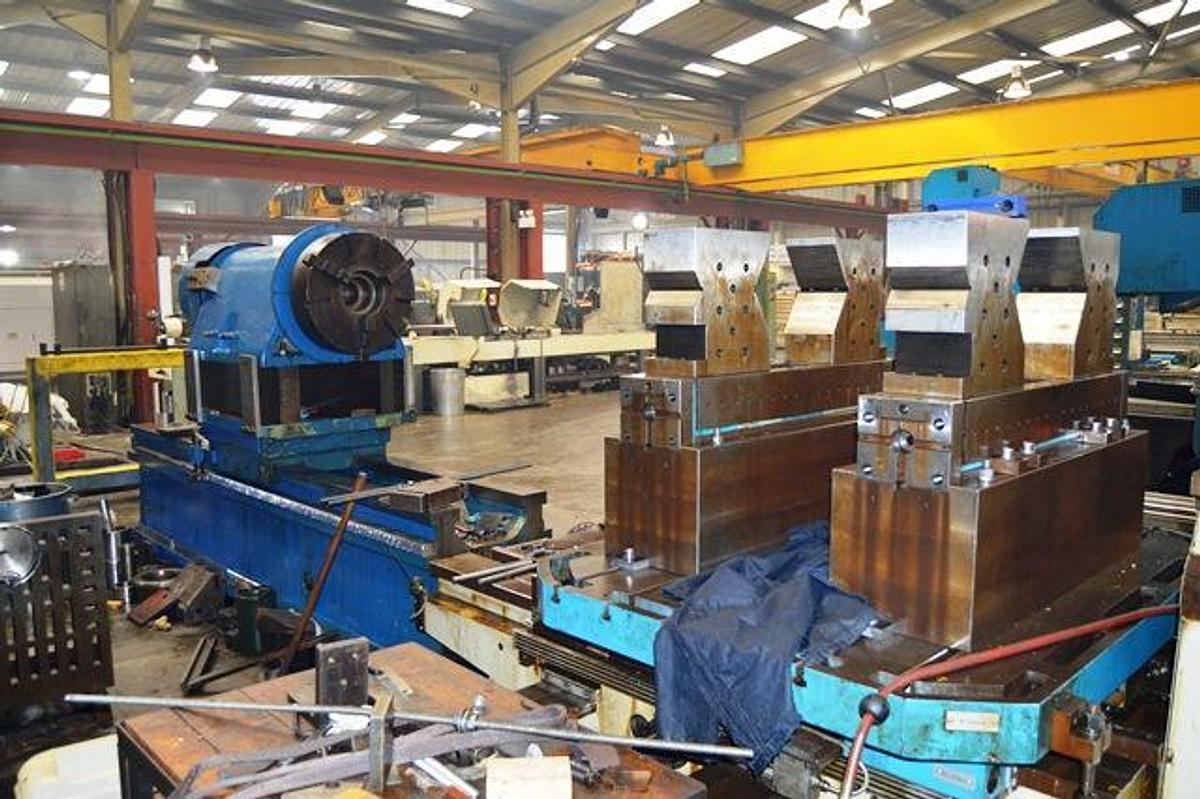

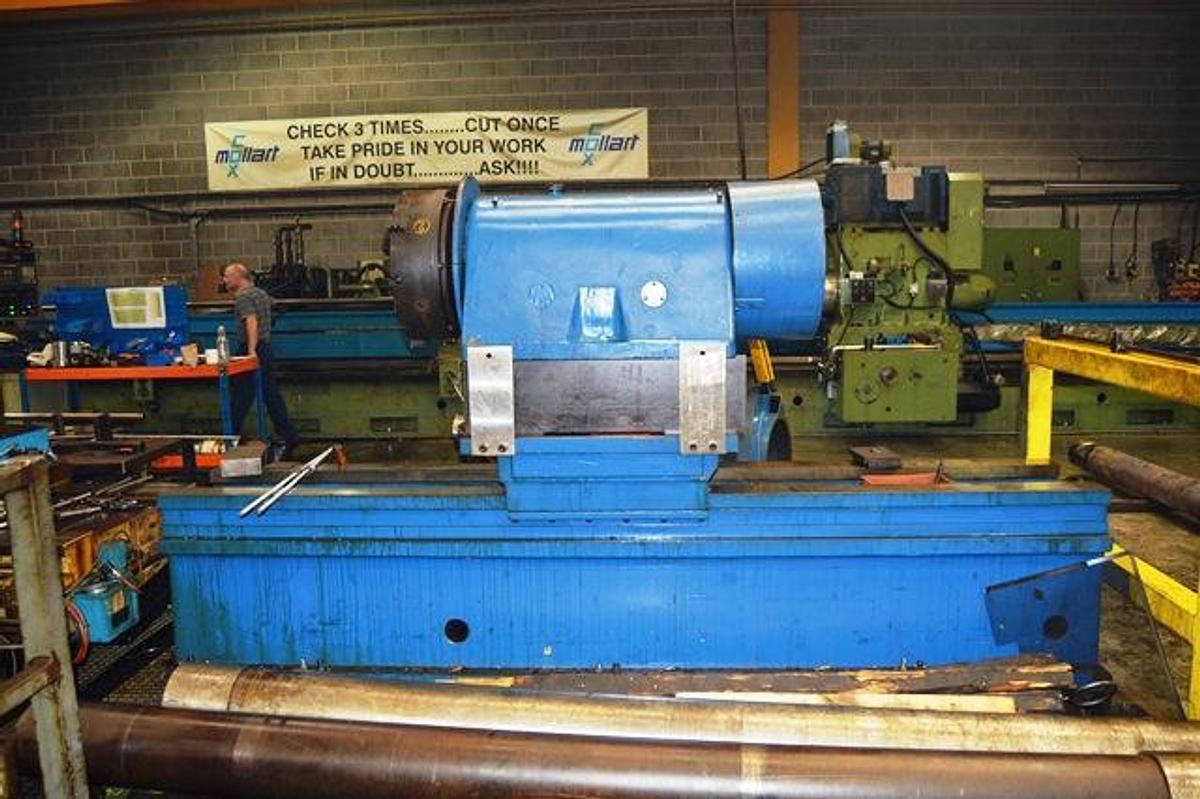

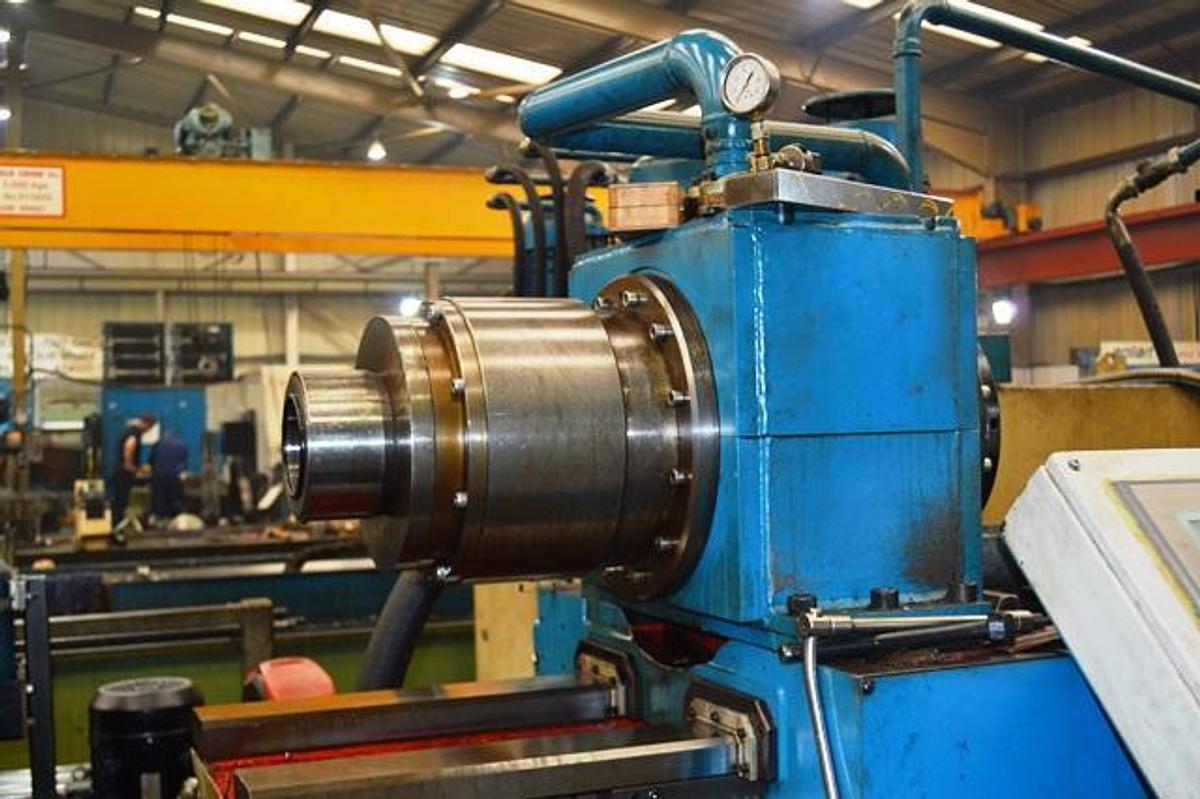

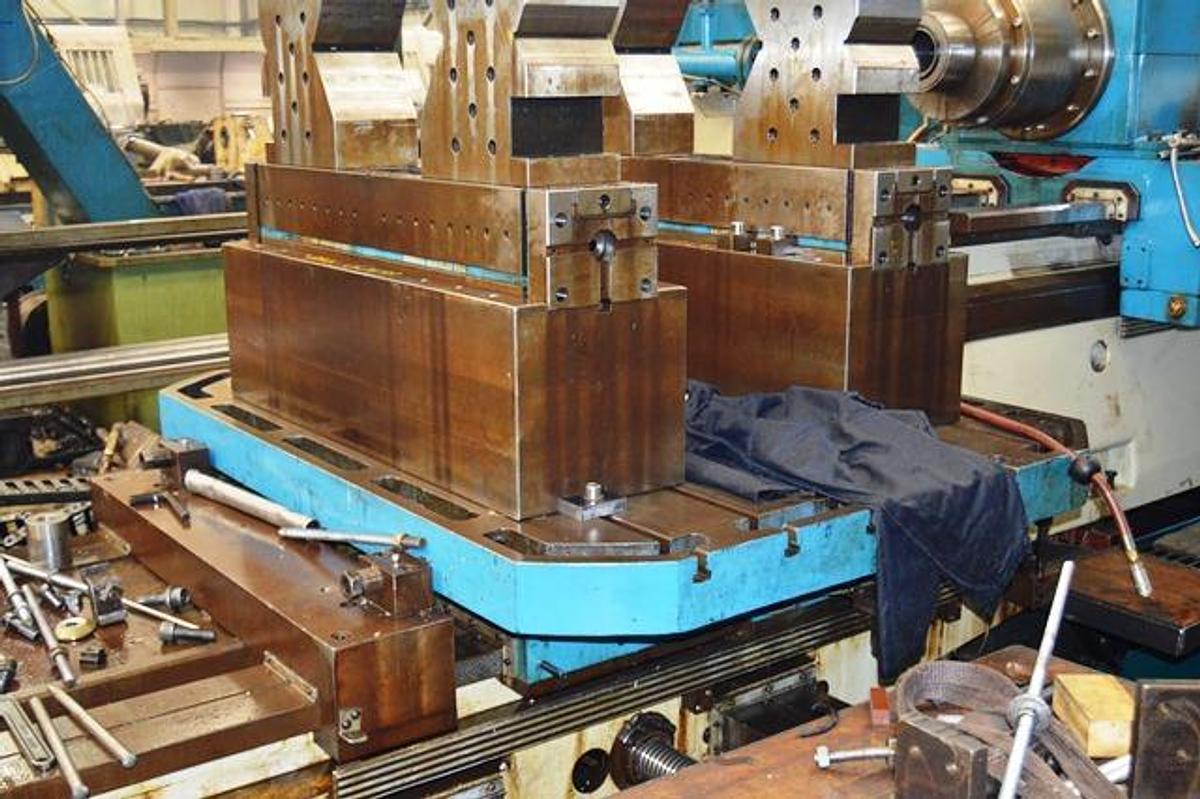

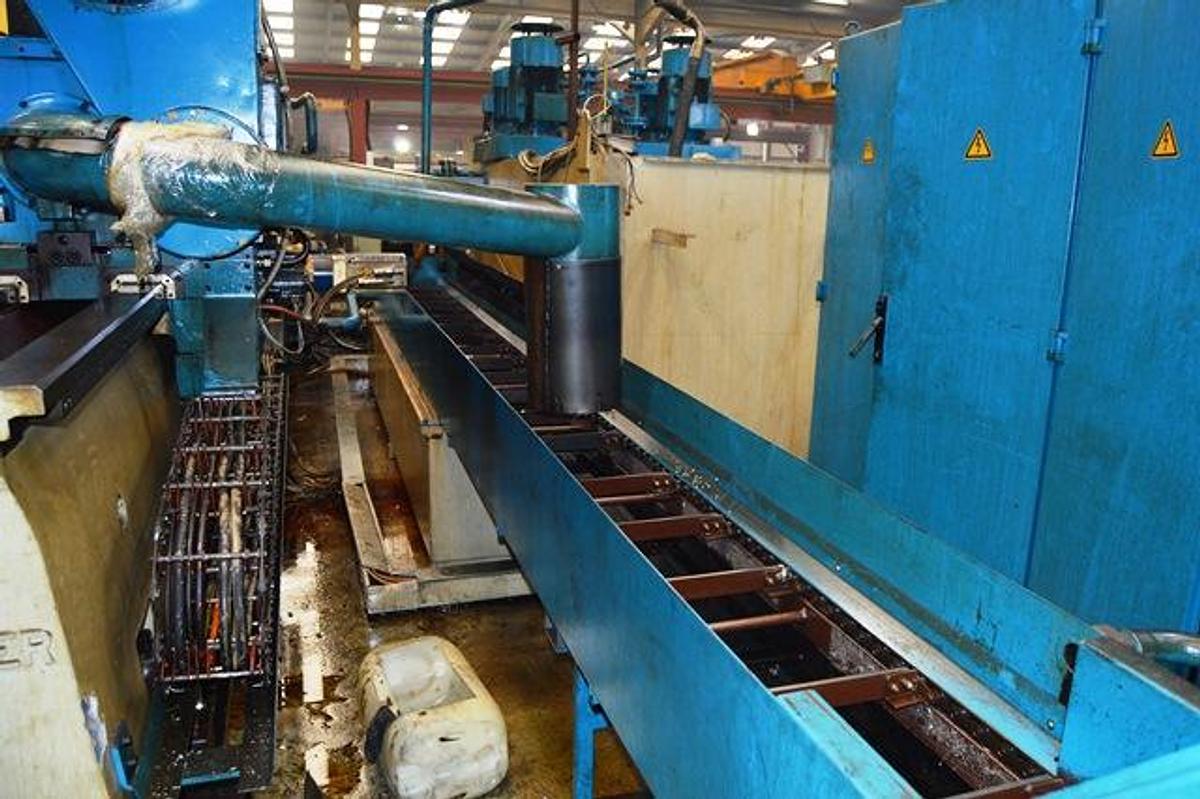

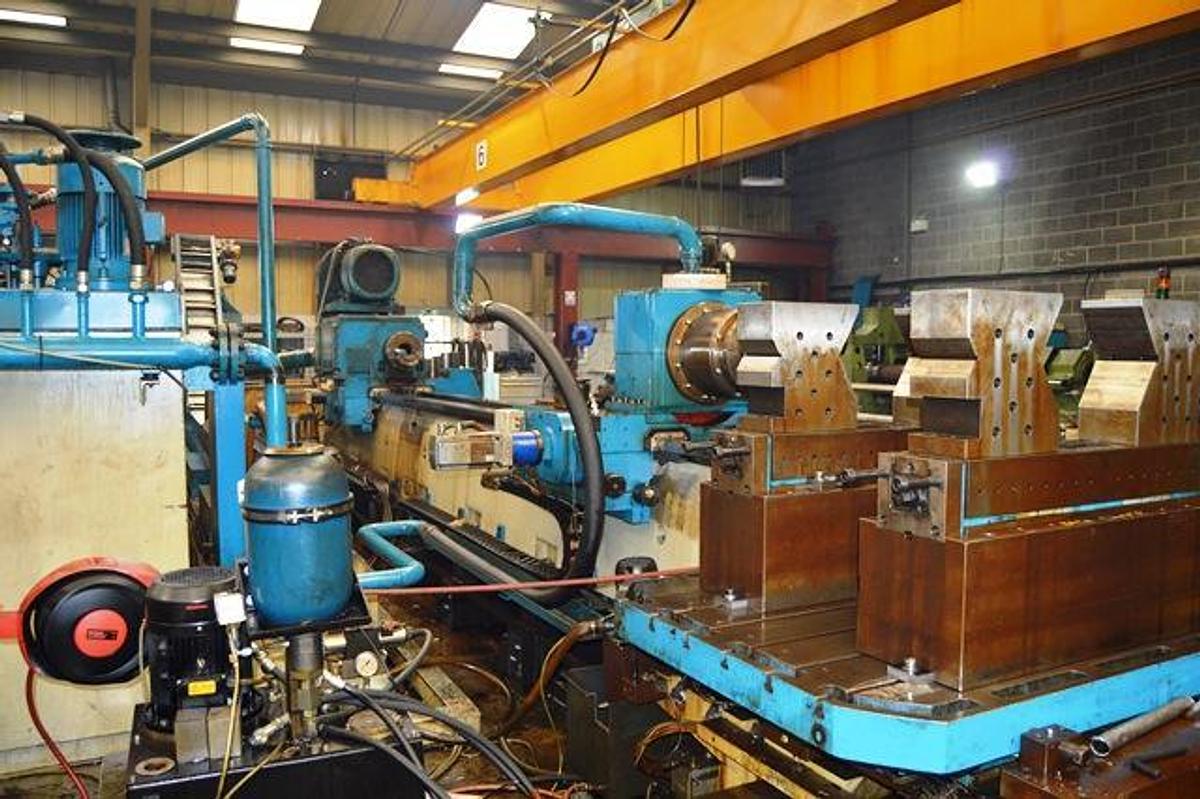

VDF B630-4000 Table Type Deep Hole Borer (1976/2007) Rotary table 1250mm x 1750mm with 0.1 degree “B” Axis, adjustable 500mm either side of centre for offset boring, programmed through Siemens control Two 400 mm capacity hydraulic vices Back bed section with headstock and 3 jaw chuck to allow boring up to max. 4000mm Siemens AC servo motors Siemens TP 177A with SPS Siemens S7-200 touch screen control 2 off pressure heads Oil tank with high pressure oil delivery pumps Swarf Conveyor Swarf Spinner Machine Data: Year 1976 Retrofitted in 2007
Key Specifications
| Year | 1976 |
| Condition | Used |
| Stock Number | 00187 |
| Stock | Available! |
| Maximum boring length | 4000mm |
| Max. centre height above table | 500mm |
| Solid boring | 15 – 130mm |
| Counter boring | up to 250mm |
| Spindle speeds | 35.5 – 1800rpm |
| Max. Torque | 4500 Nm |
| Main motor | 55kw |
| Spindle bore | 128mm |
| Feeds | 10-2000 mm/min |
| Feed force | 40,000 N |
| Rapids | 3000 mm/min |
| Machine weight | 25,000kg |
