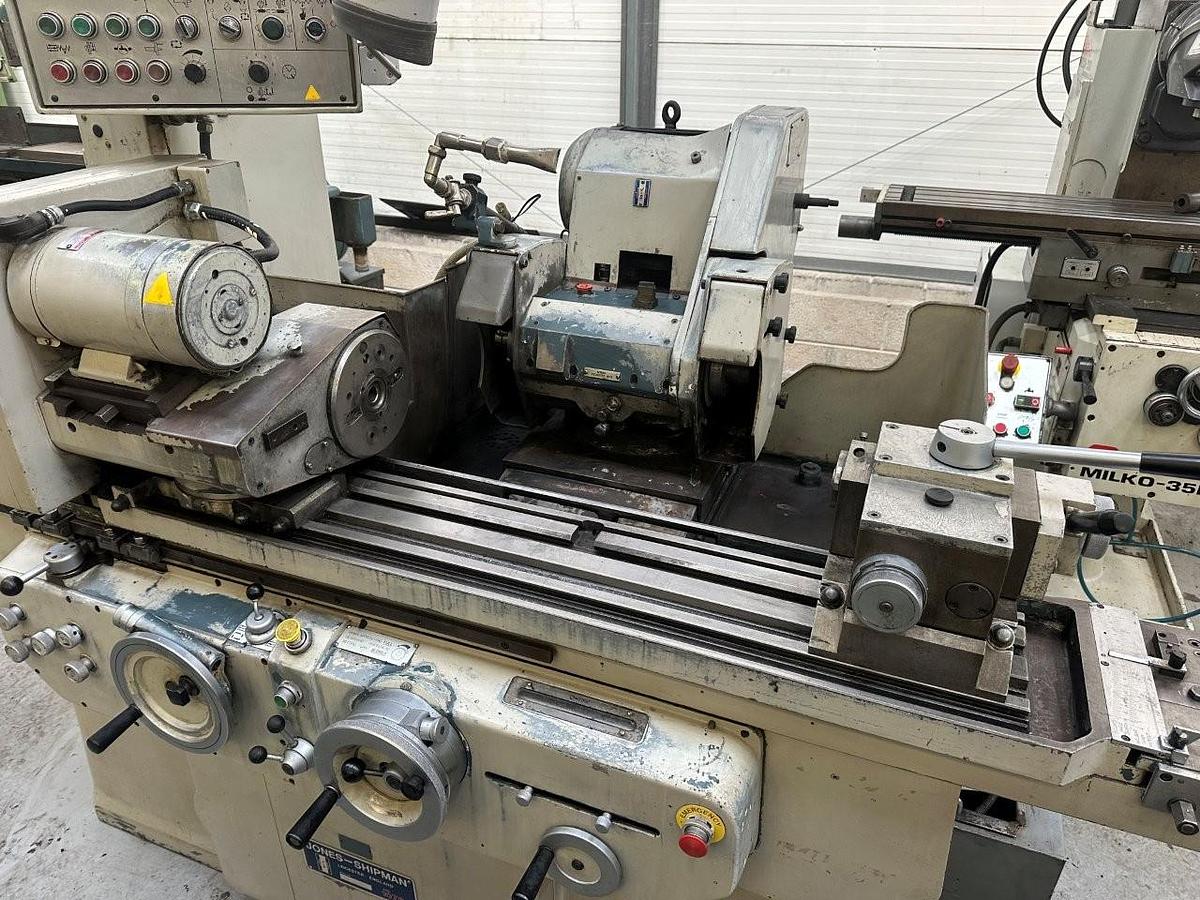

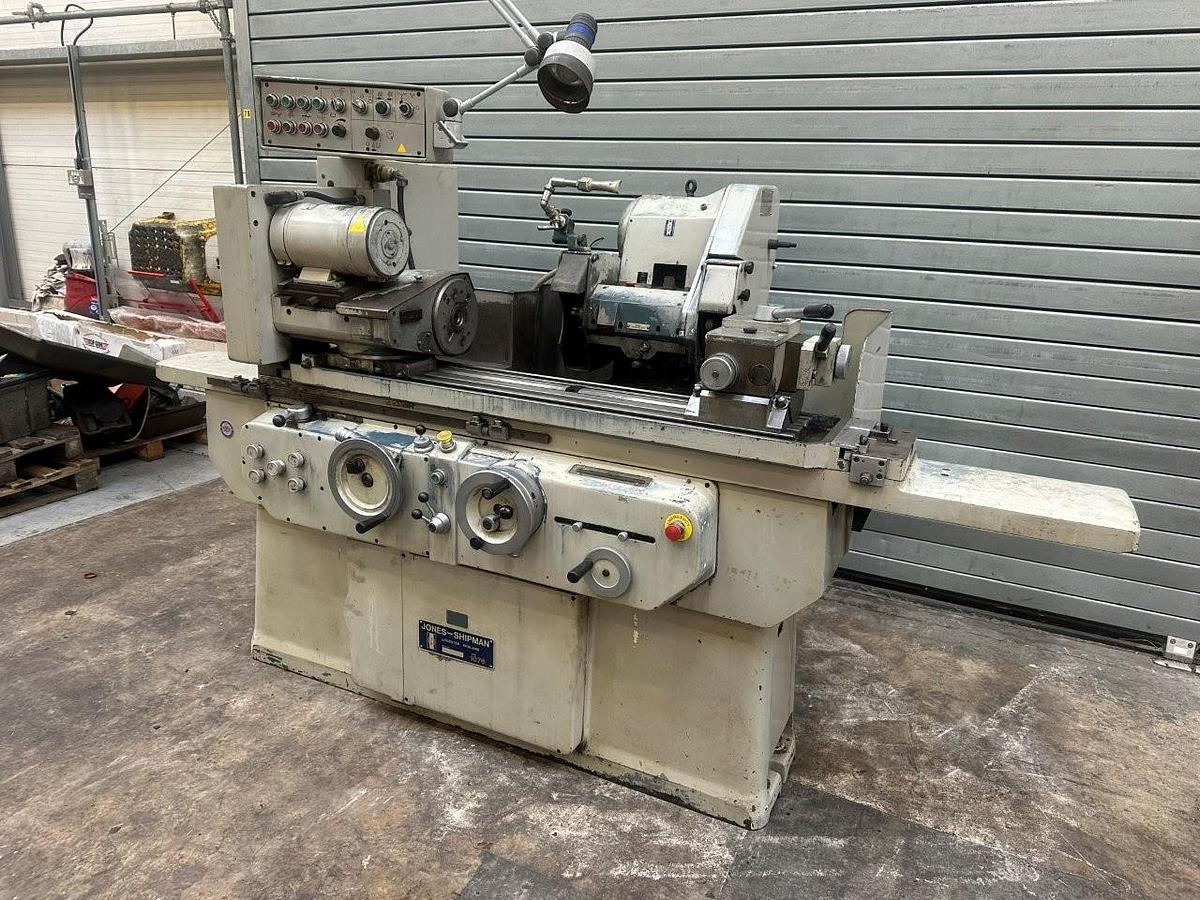

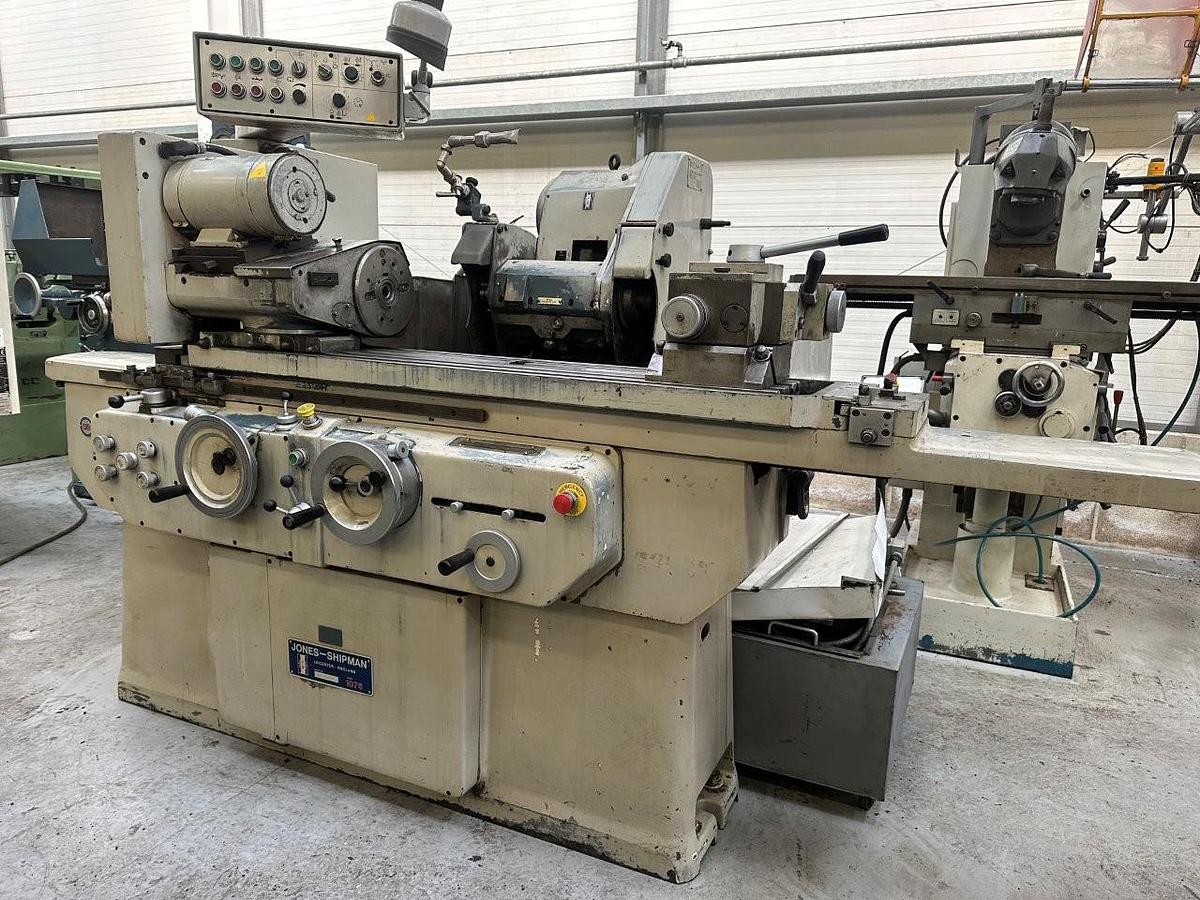

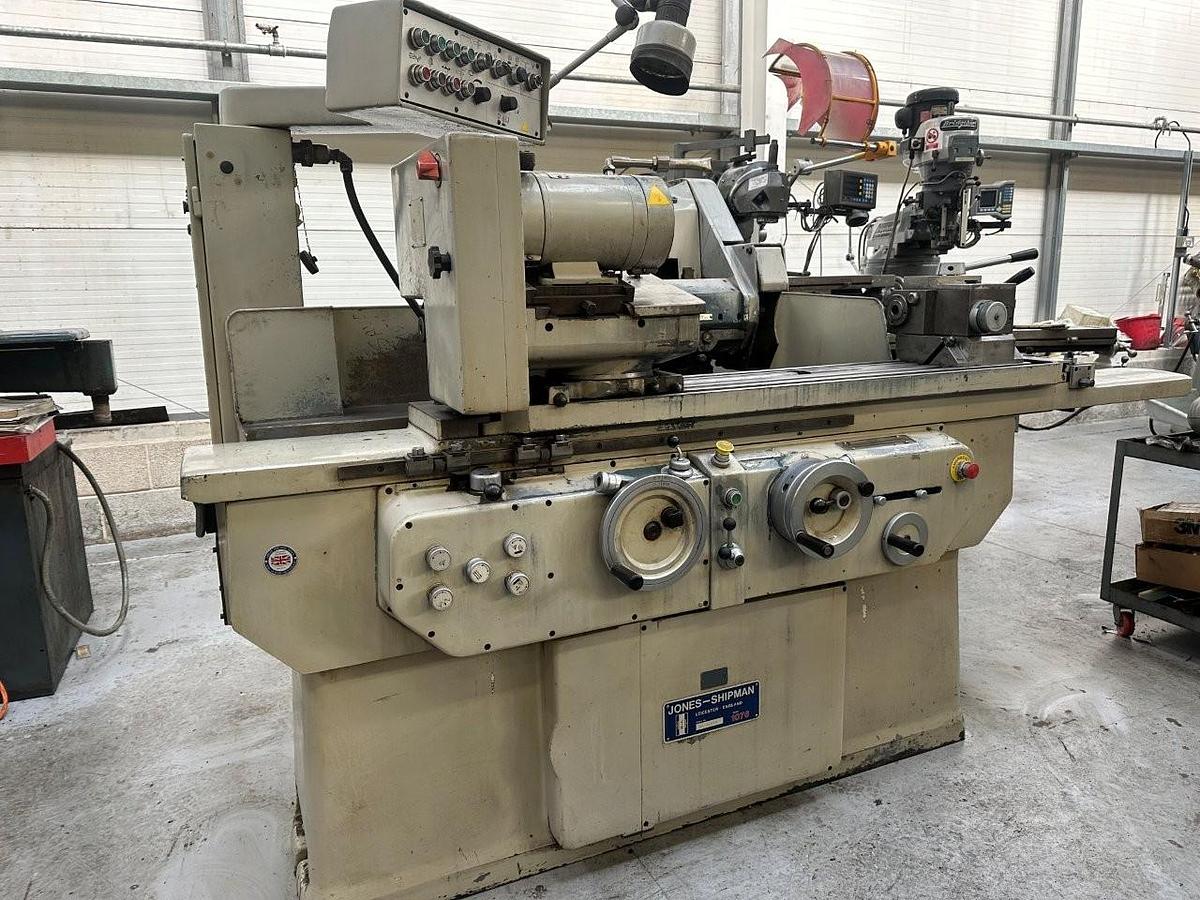

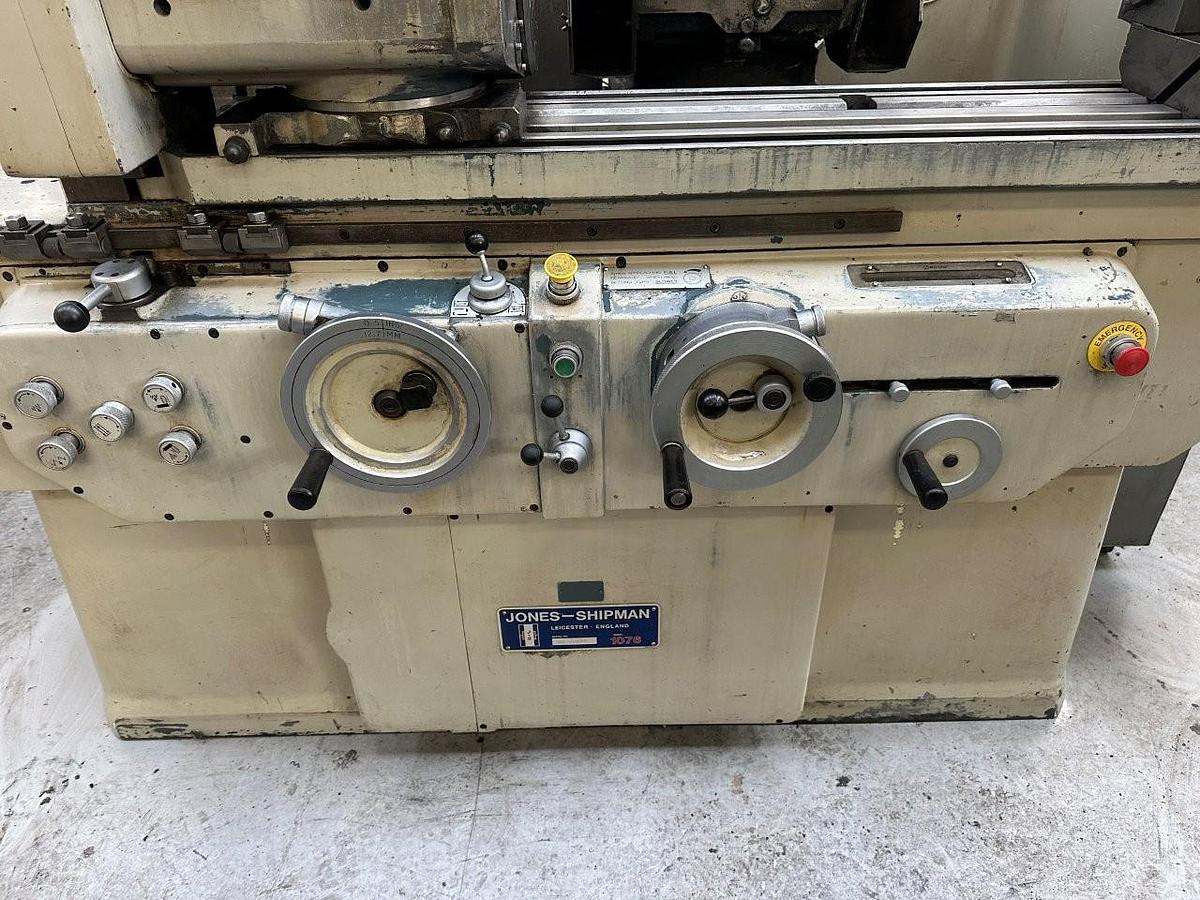

Jones & Shipman 1076 EIU Universal Grinder
Description
Jones & Shipman 1076 EIU Universal Grinder
Key Specifications
| Manufacturer | Jones & Shipman |
| Model | 1076 EIU |
| Year | 1980 |
| Condition | Used |

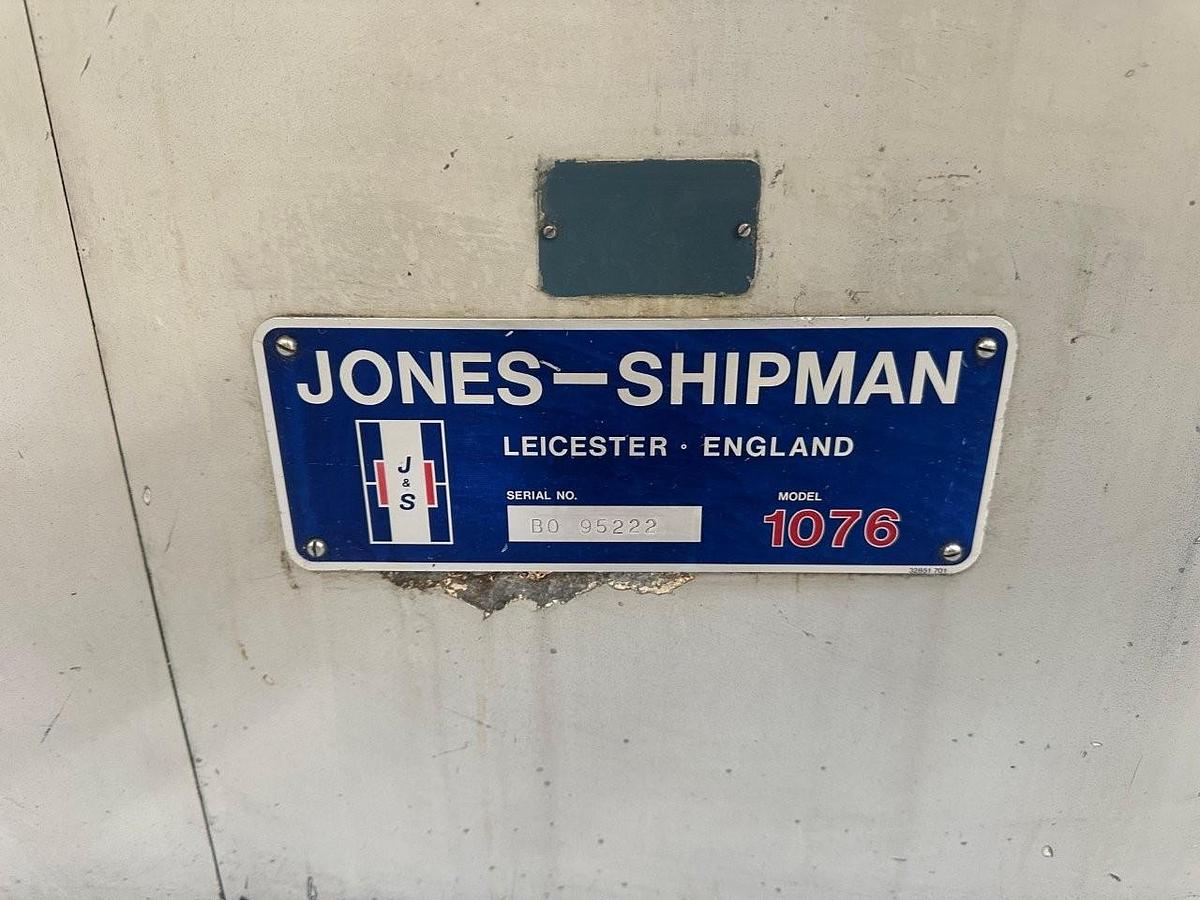

| Serial Number | BO 95222 |
| Stock Number | 2783 |
| Max Grinding Diameter | 250 mm (9.84″) |
| Max Grinding Length | 600 mm (23.62″) |
| Centre Height | 150 mm (5.91″) |
| Workpiece Weight Capacity | 100 kg between centres |

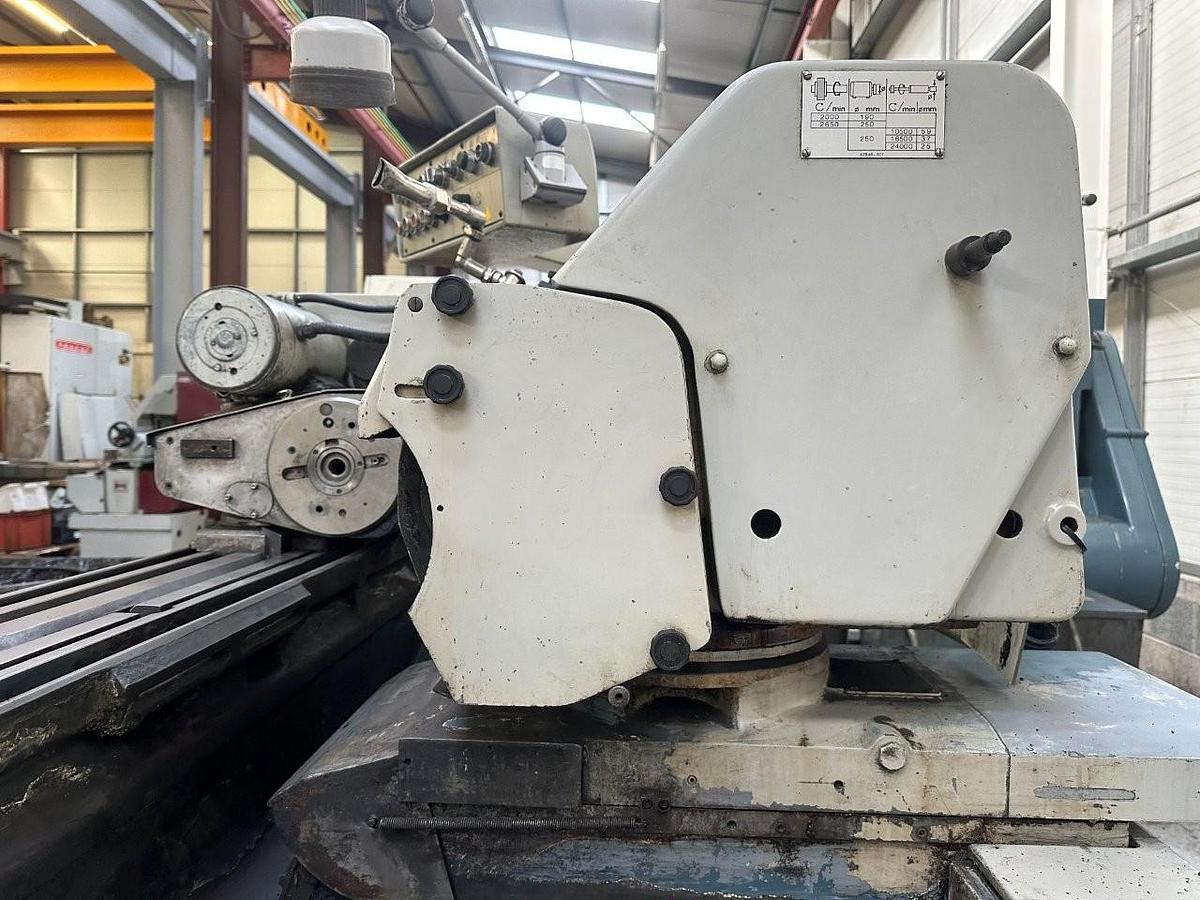

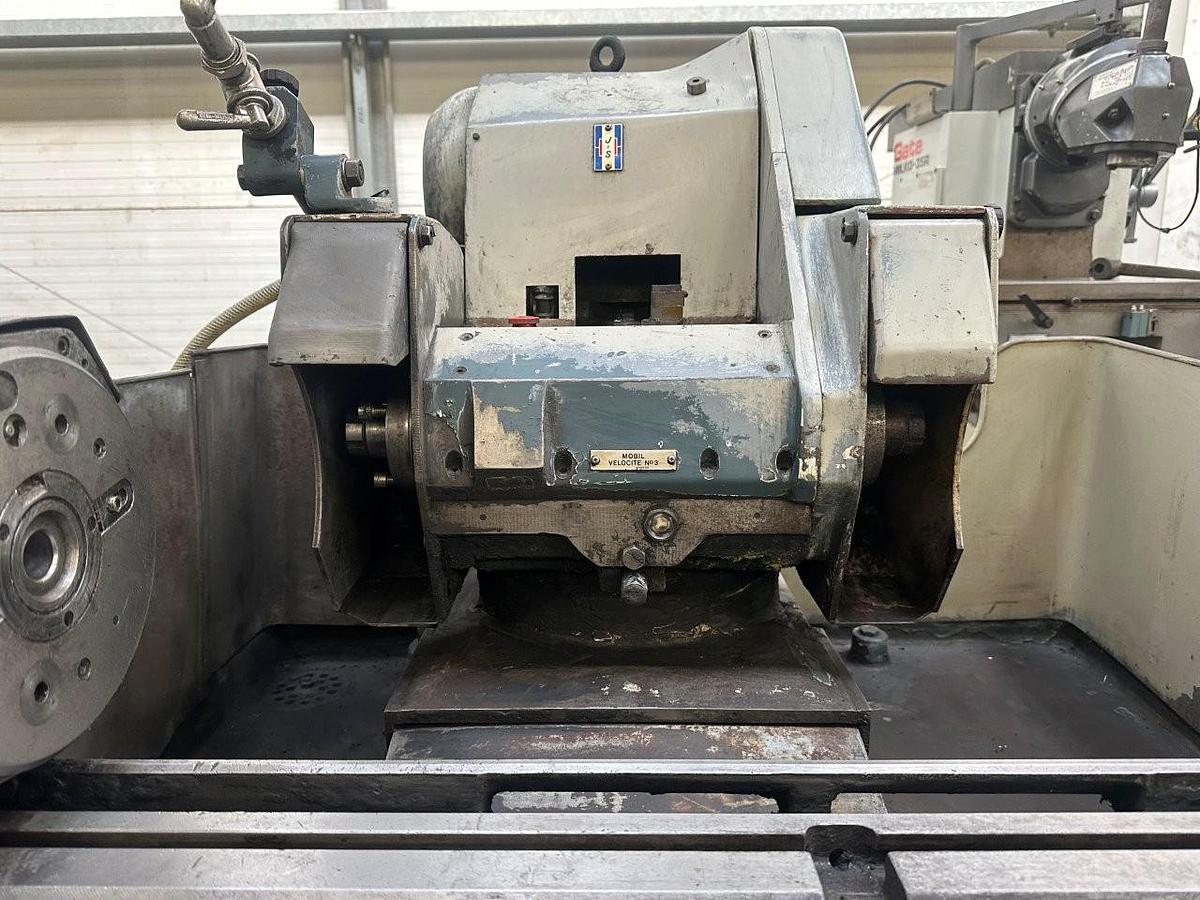

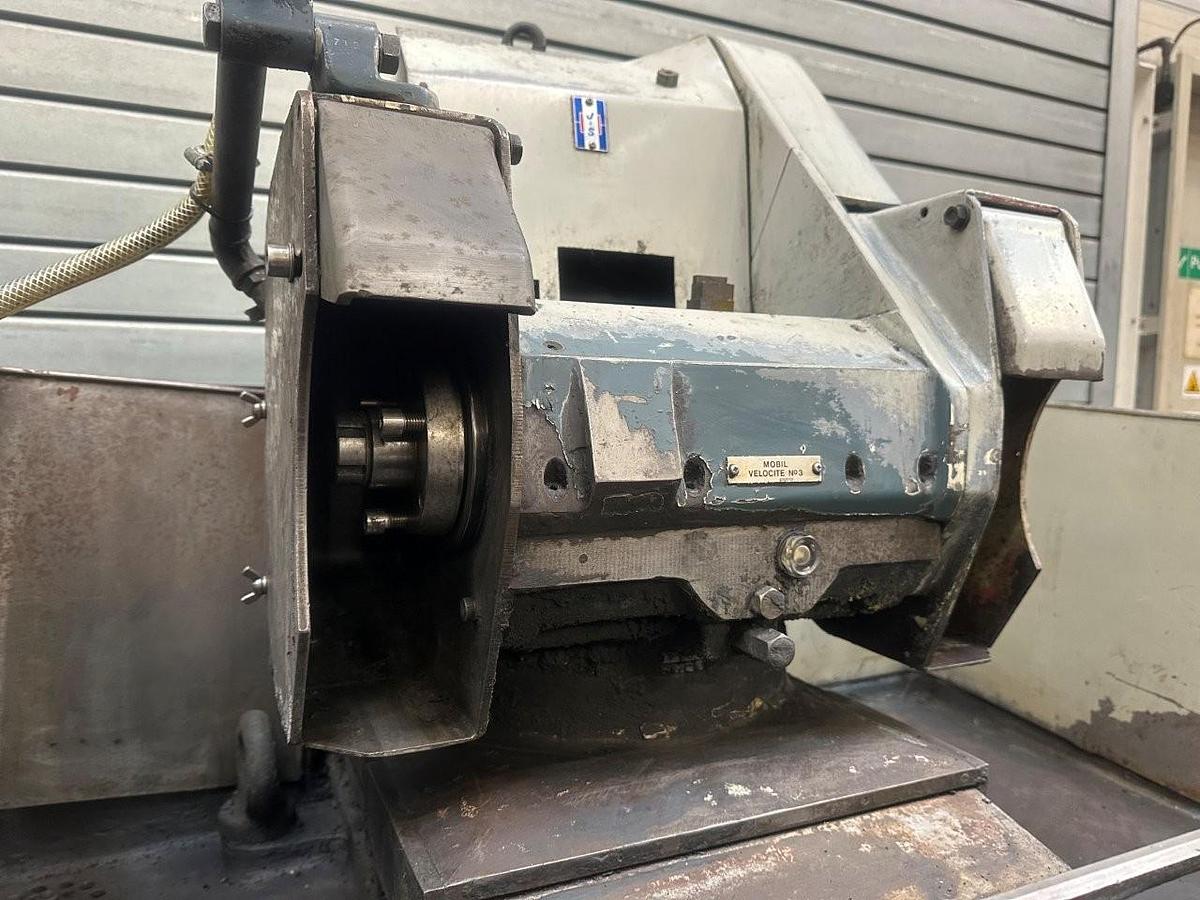

| Wheel Head | Twin grinding wheels (coarse + finish), independently driven |
Additional Features
Centre Height 5” (127mm)
Max dia. ground with new wheel 10”(254mm)
Max length between centres 27” (686mm)

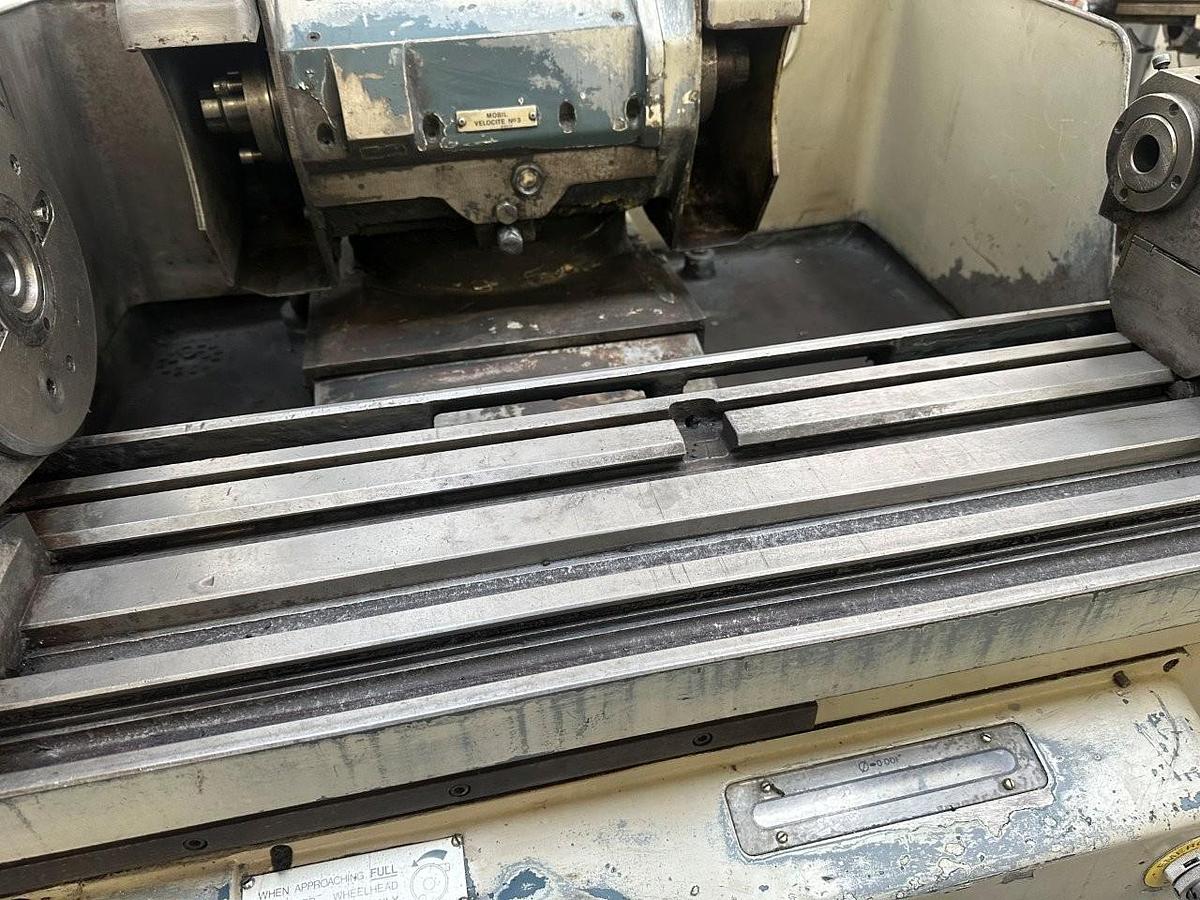

Swivel table 16/18 Deg.
Table traverse speeds 76-4572mm/min.

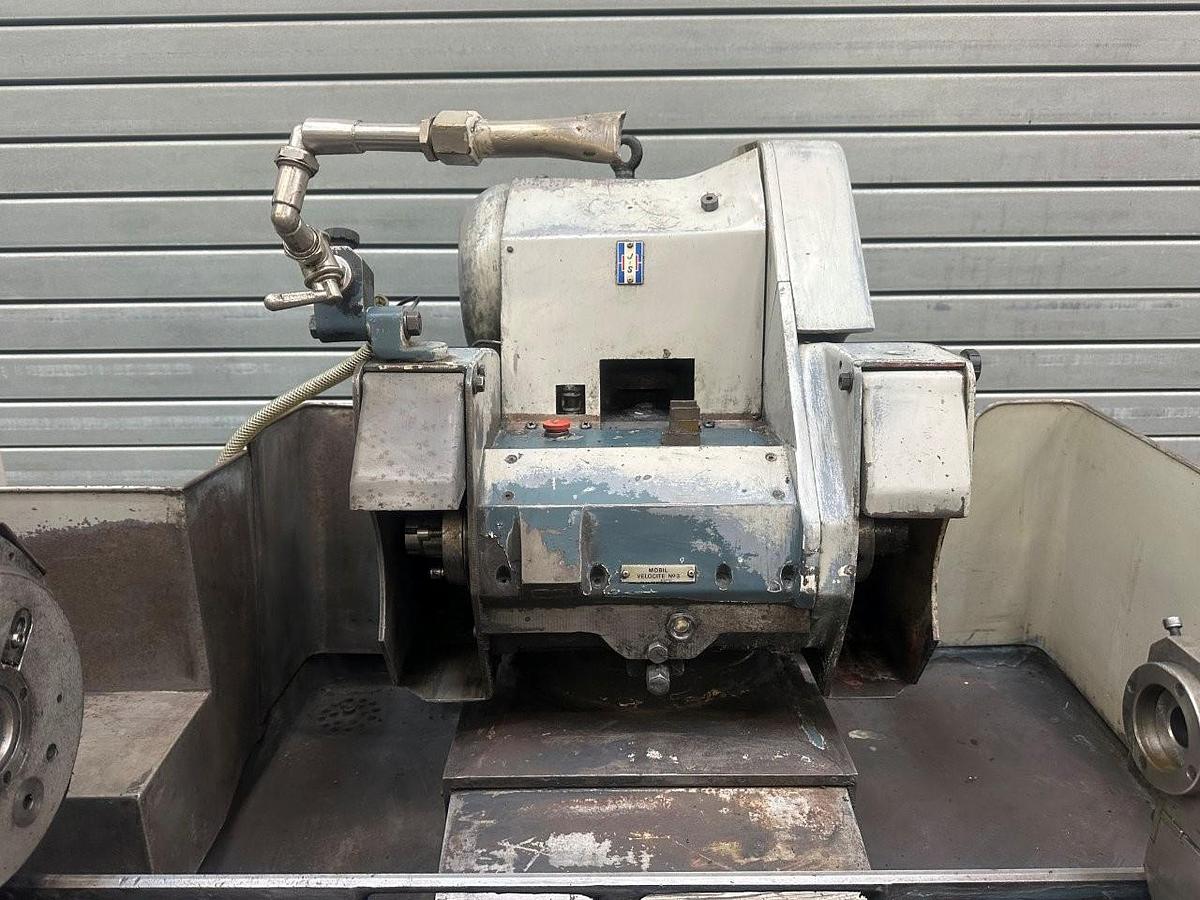

Swivel wheel head 360 Deg.
Wheel size 400 x 40 x 127mm
Wheelhead motor 4kw

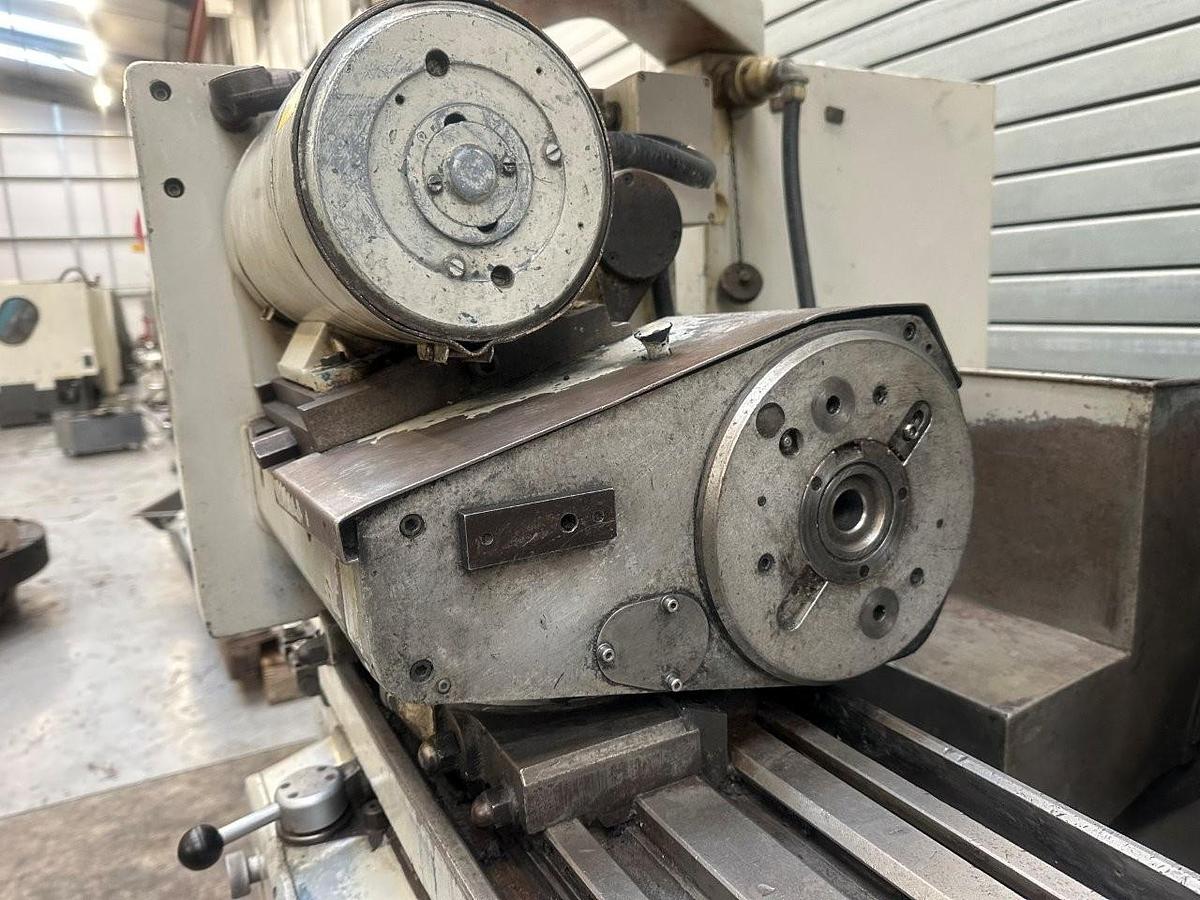

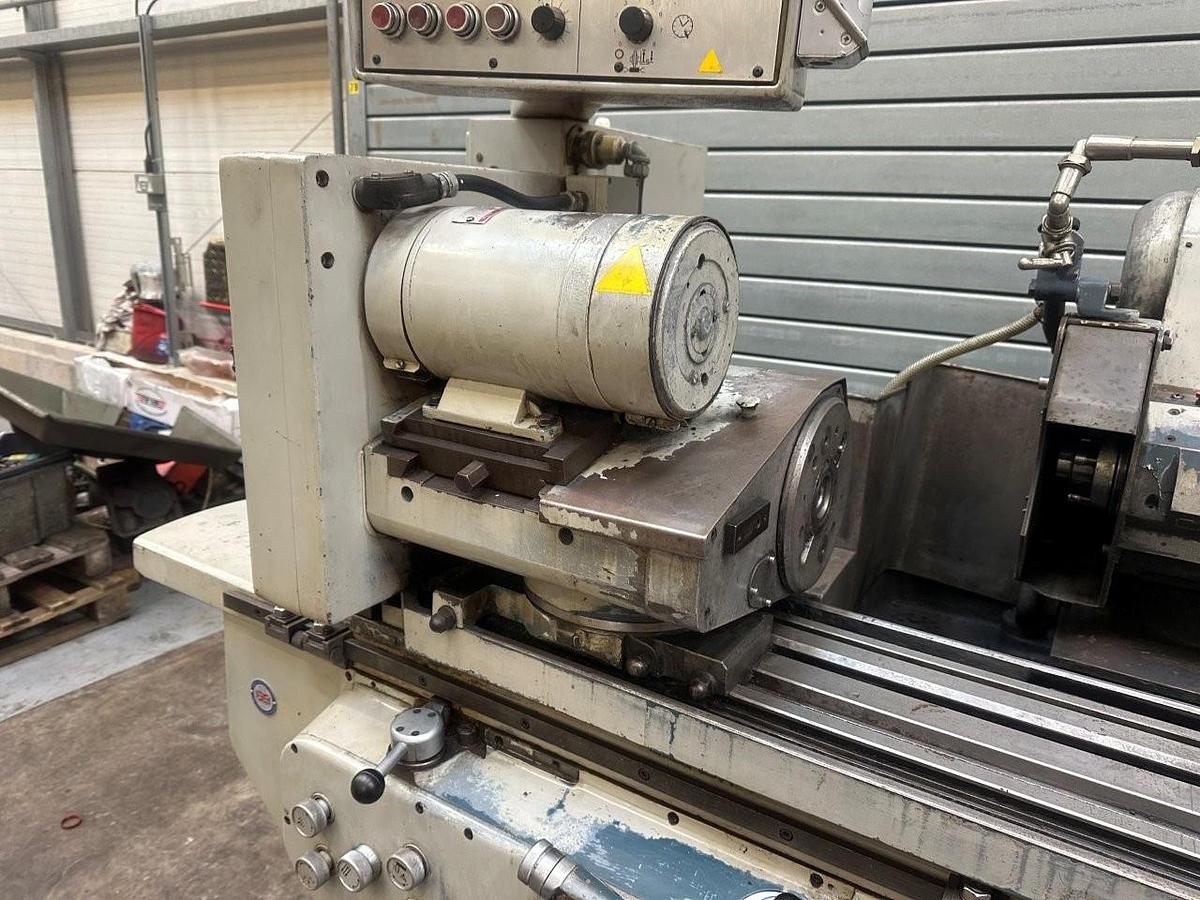

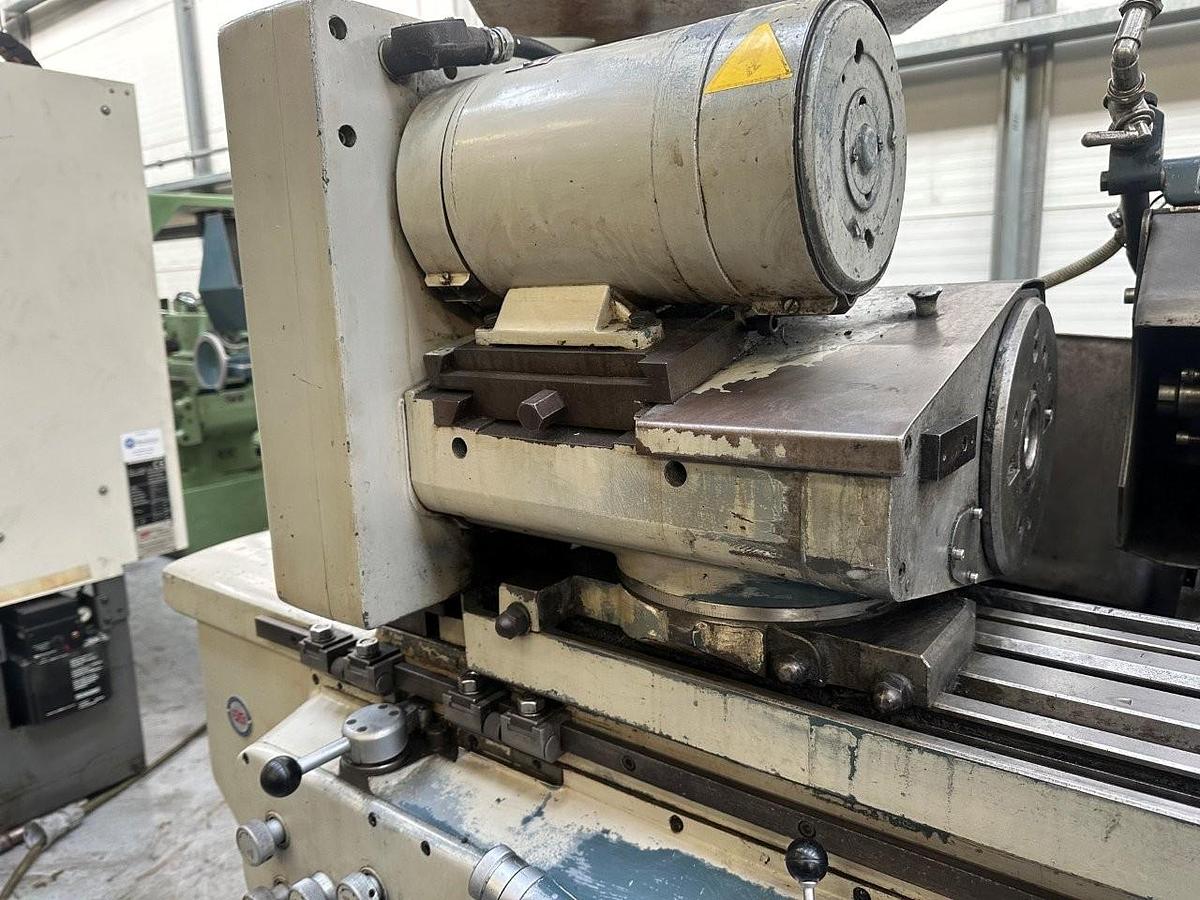

Swivel Workhead
Workhead speeds variable 0-320 rpm
Variable speed Workhead motor
Coolant Tank and Pump
Weight 3000kg
