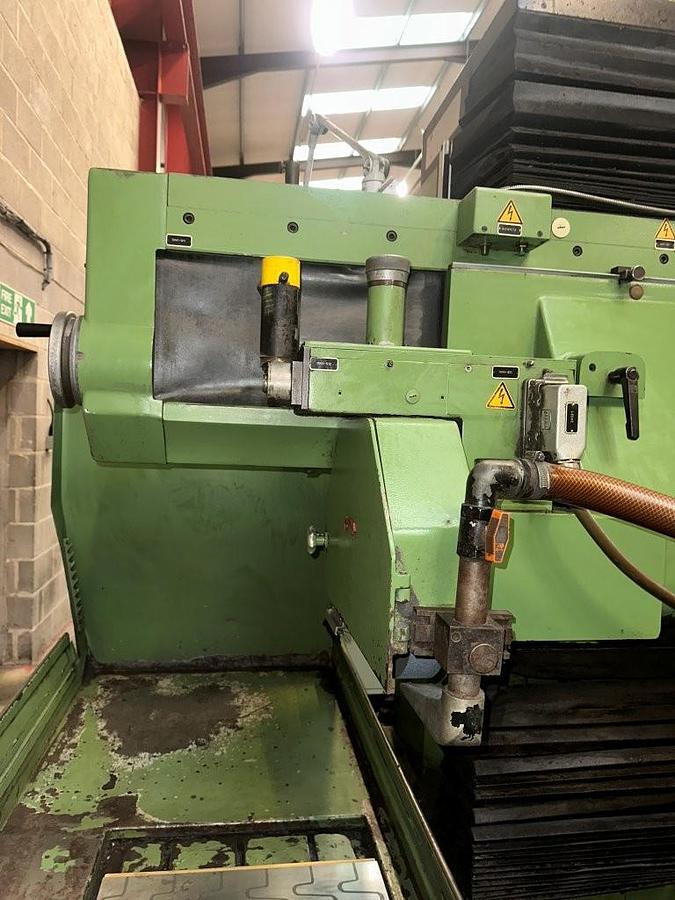

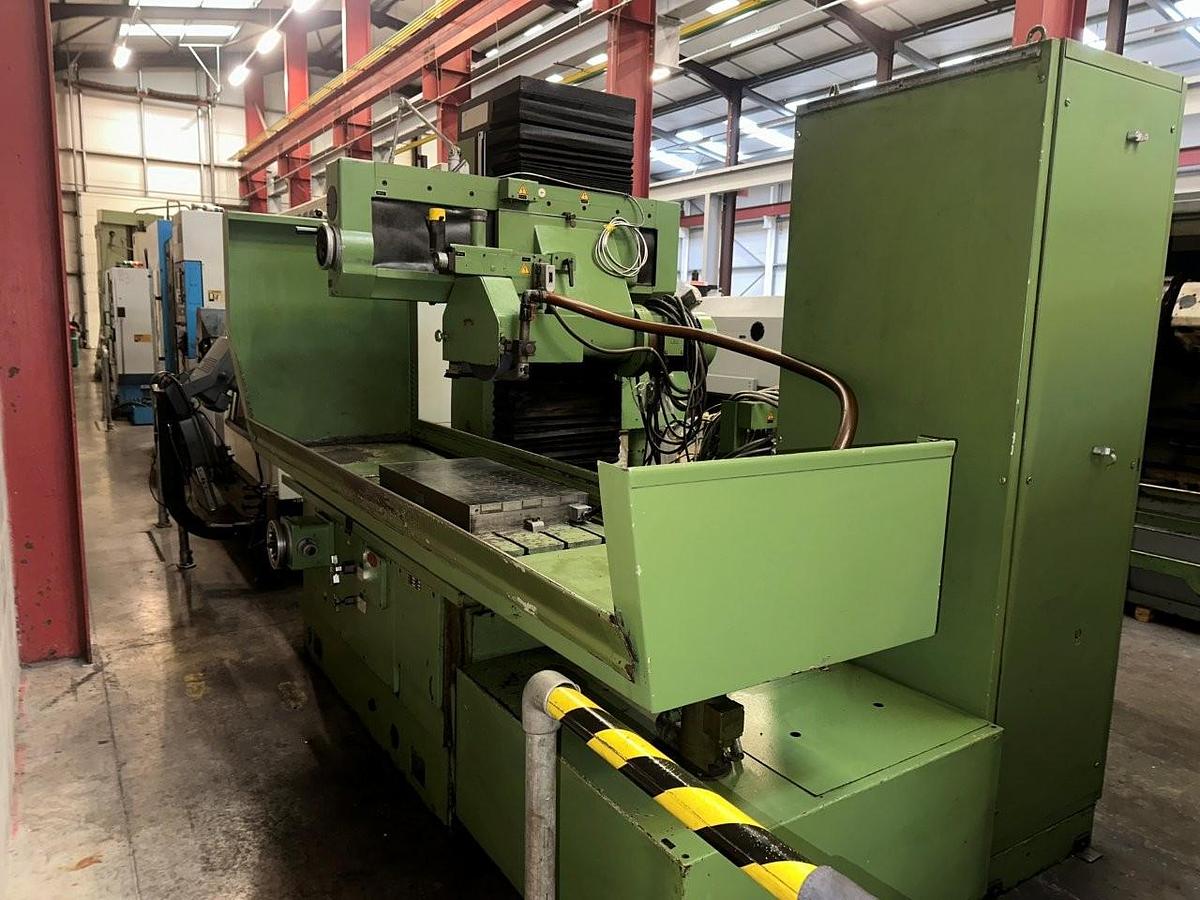

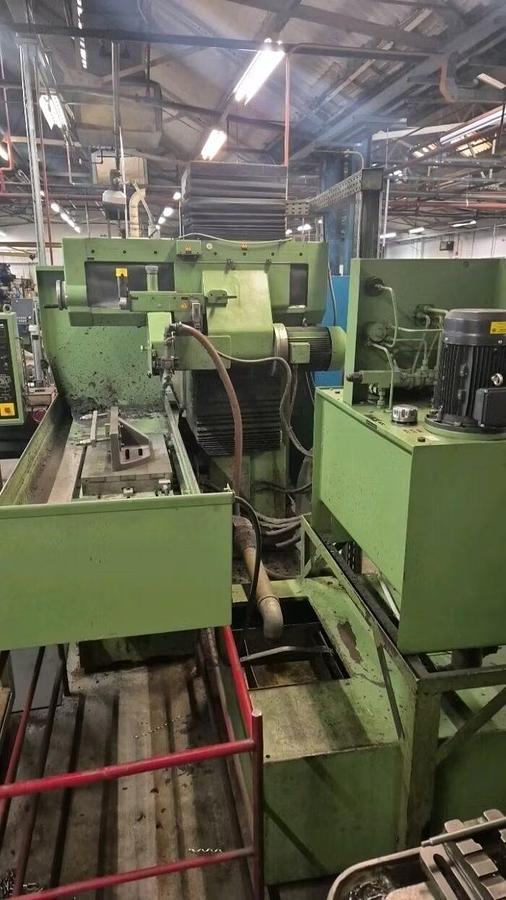

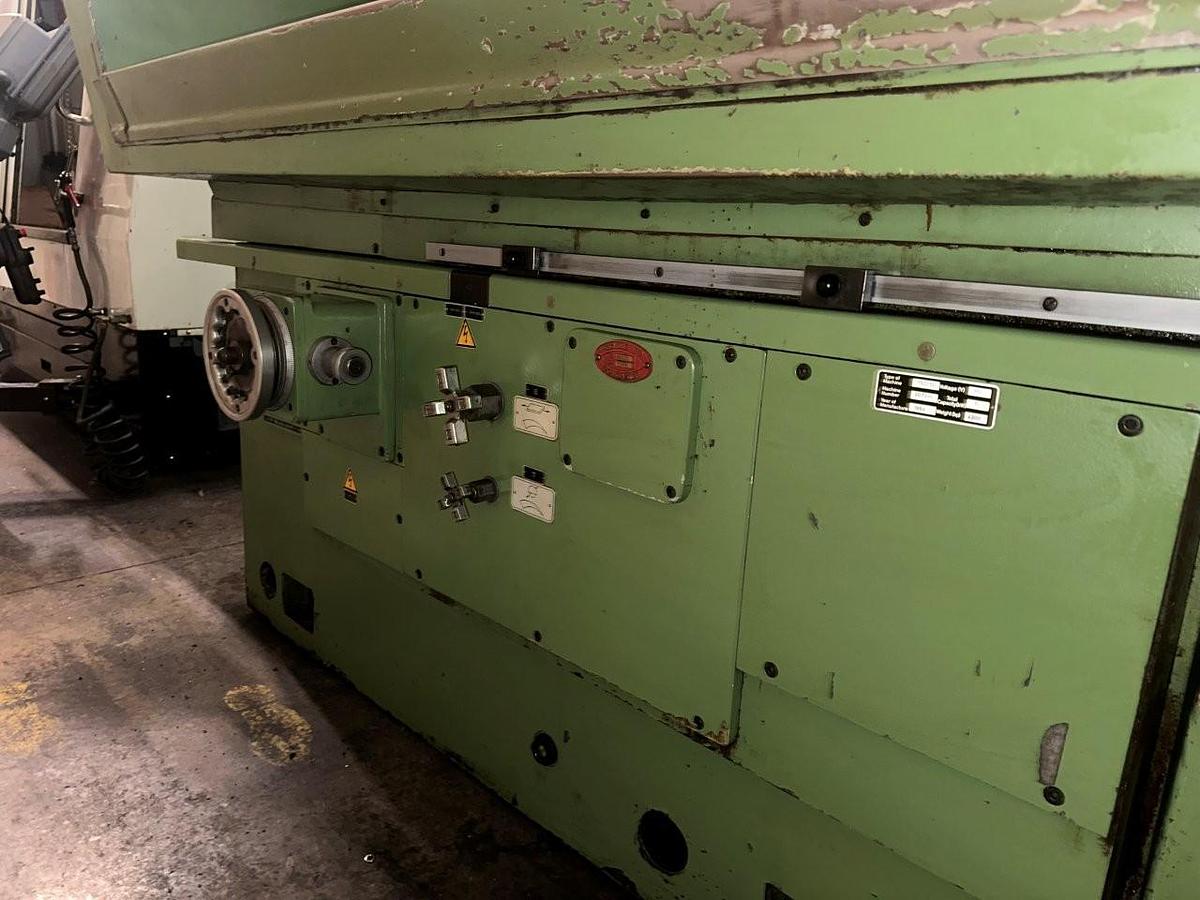

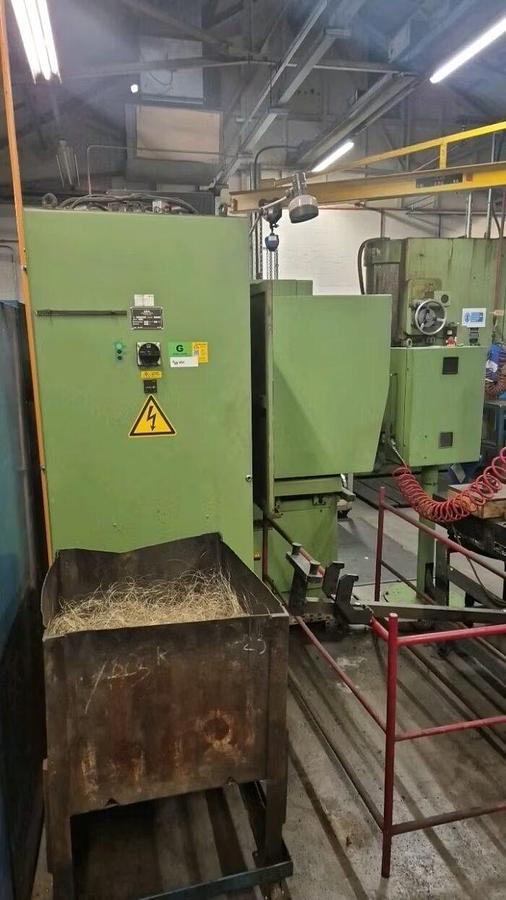

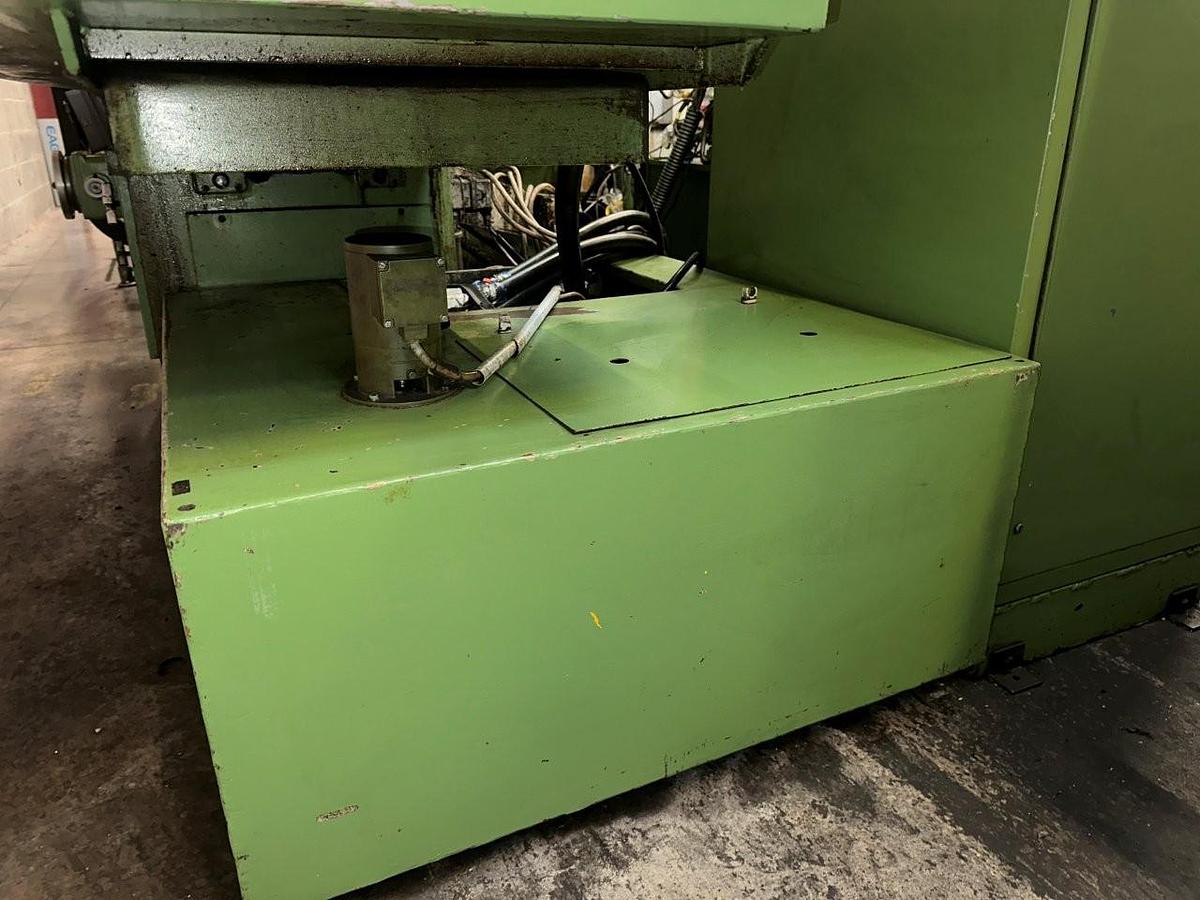

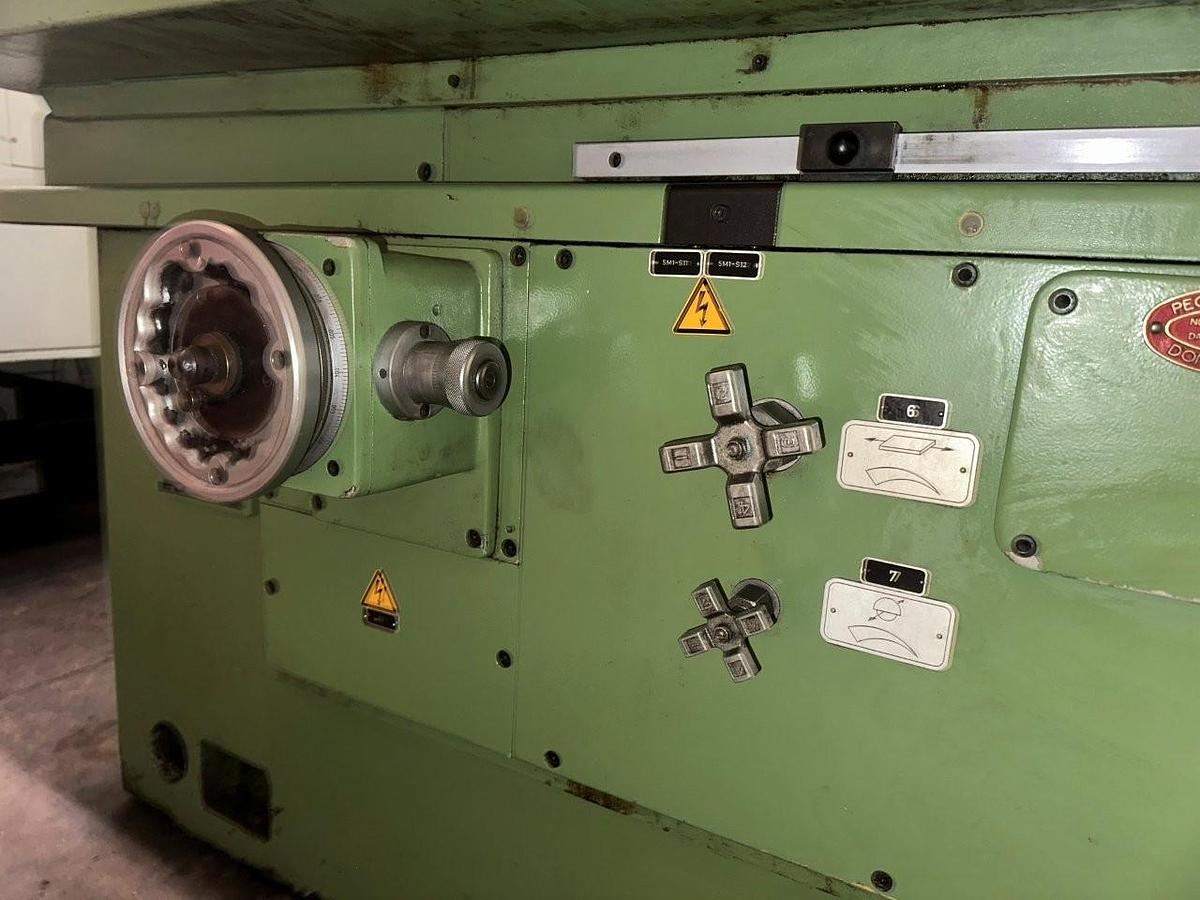

ABA 750/50 FFU Surface Grinder (1984)
Description
ABA 750/50 FFU Surface Grinder – Heavy-Duty Precision (1984) The ABA 750/50 Surface Grinder is a robust, German-built precision grinder known for its large capacity, stability, and accuracy. With a 750 × 500 mm grinding capacity, variable table speeds, and up to 32 kW spindle power, this machine is ideal for toolrooms, die shops, and precision grinding facilities handling medium to large components.
Key Specifications
| Year | 1984 |
| Condition | Used |
| Stock Number | 00150 |
| Stock | Available! |

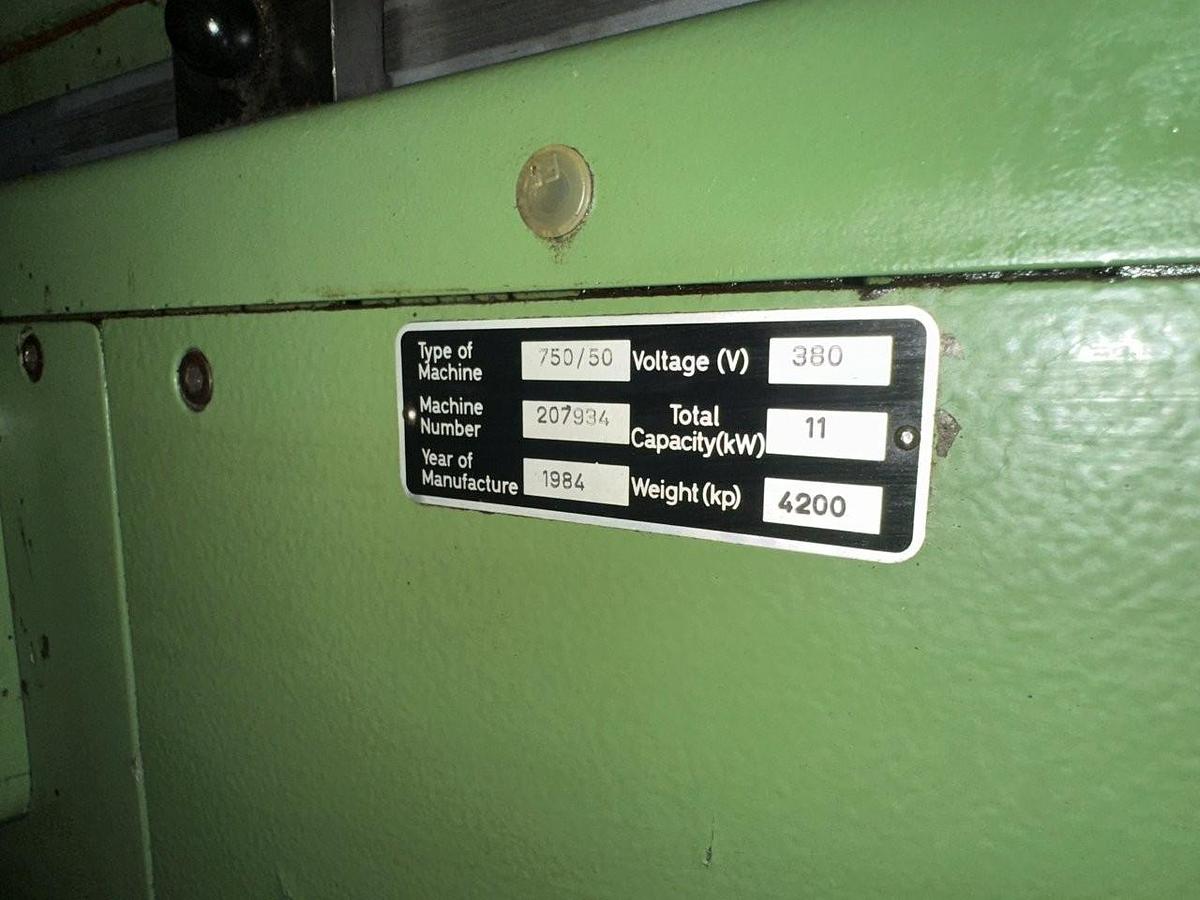

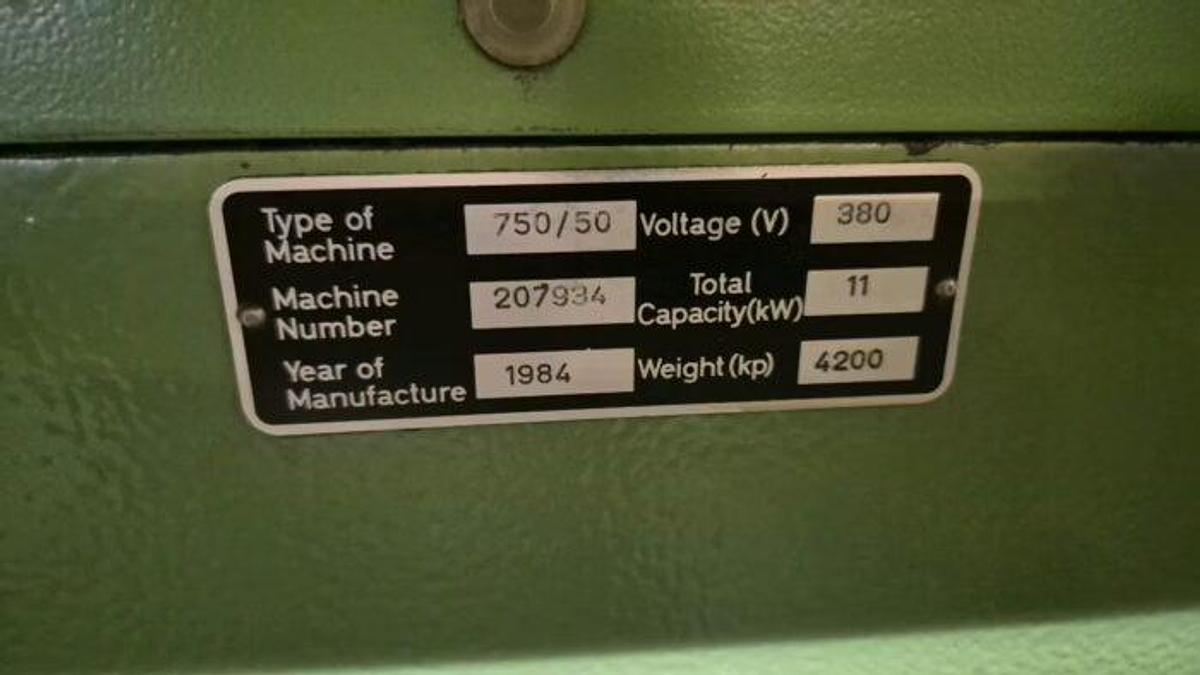

| Serial Number | 207934 |
| Year of Manufacture | 1984 |
| Table Size | 400mm x 900mm |

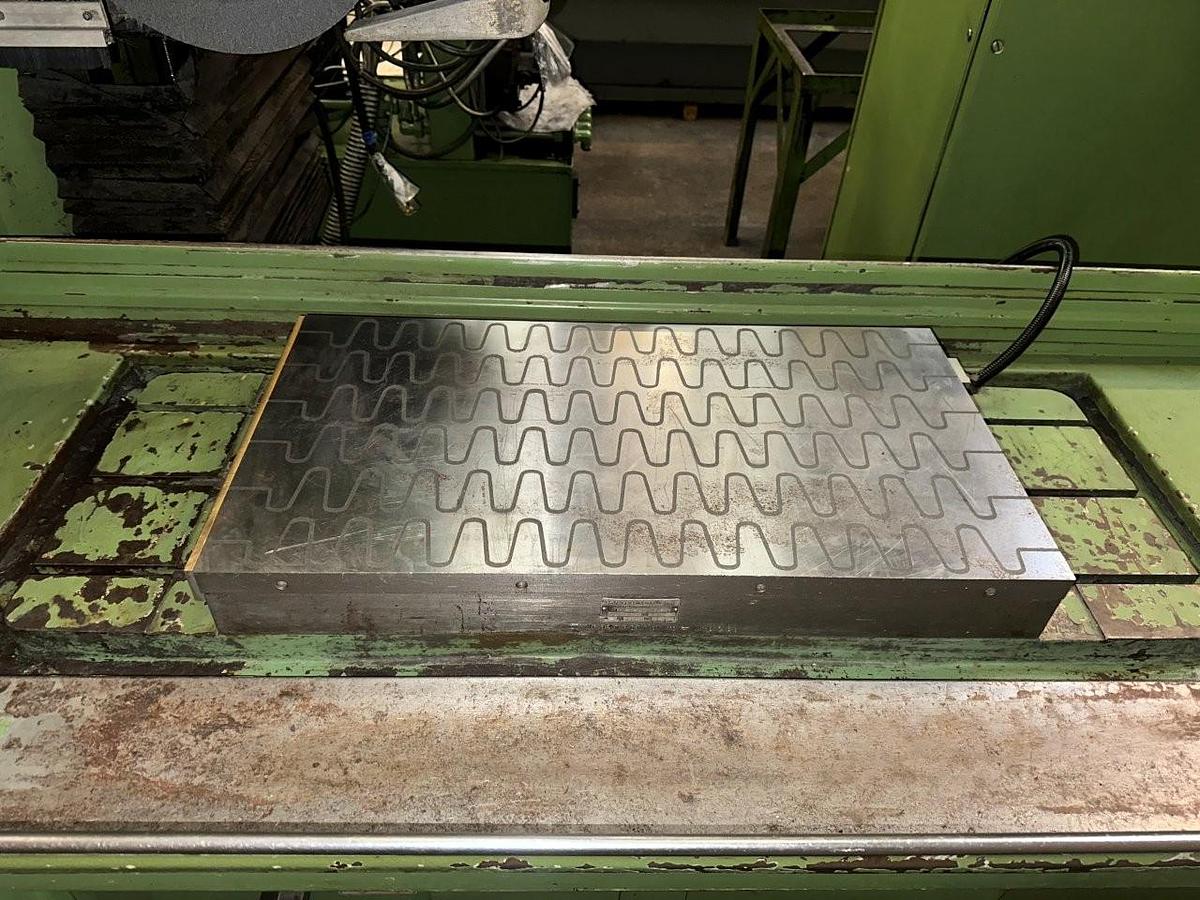

| Electro-Magnetic Chuck Size | 400mm x 750mm |
| Longitudinal Table Travel | 800mm |
| Cross Feed Travel (Grinding Head) | 450mm |
| Maximum Grinding Width | 500mm |
| Maximum Distance – Spindle Centre to Table | 700mm |
| Grinding Wheel Size (Fitted) | 50mm wide x 320mm diameter |
| Maximum Grinding Wheel Diameter | 350mm |
| Main Spindle Motor Power | 7.5 kW |
| Machine Weight | 3,750 kg |
Additional Features
Power rise and fall to the grinding head
Automatic downfeed to wheel head
Automatic cross feed to wheel head
Variable table speeds for optimal grinding control

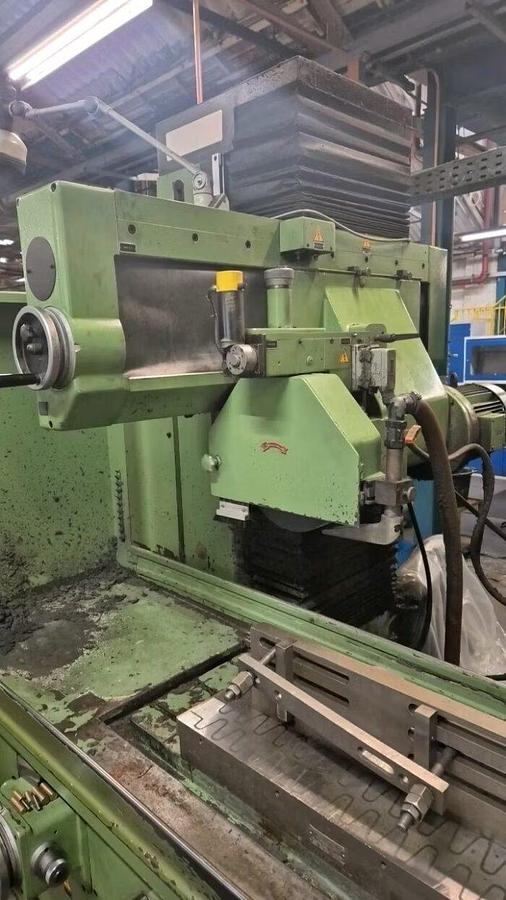

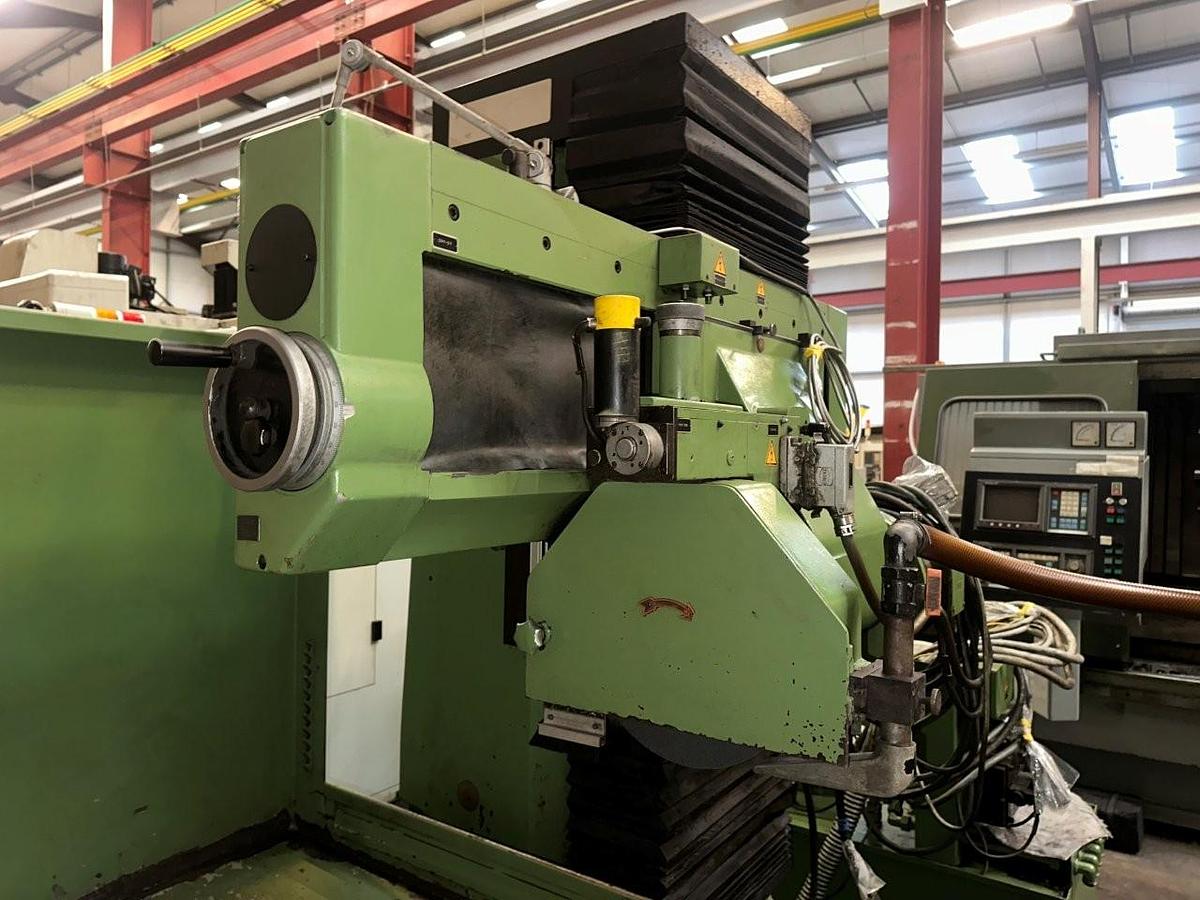

Integrated overhead wheel dresser

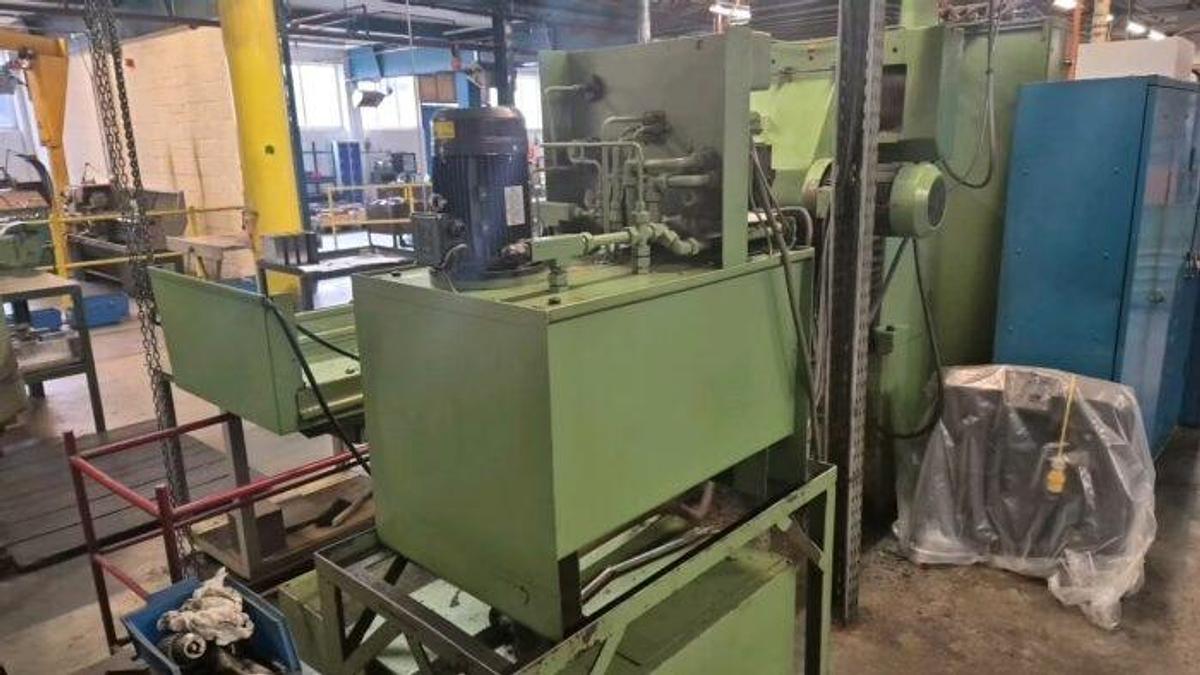

Coolant system with tank and pump

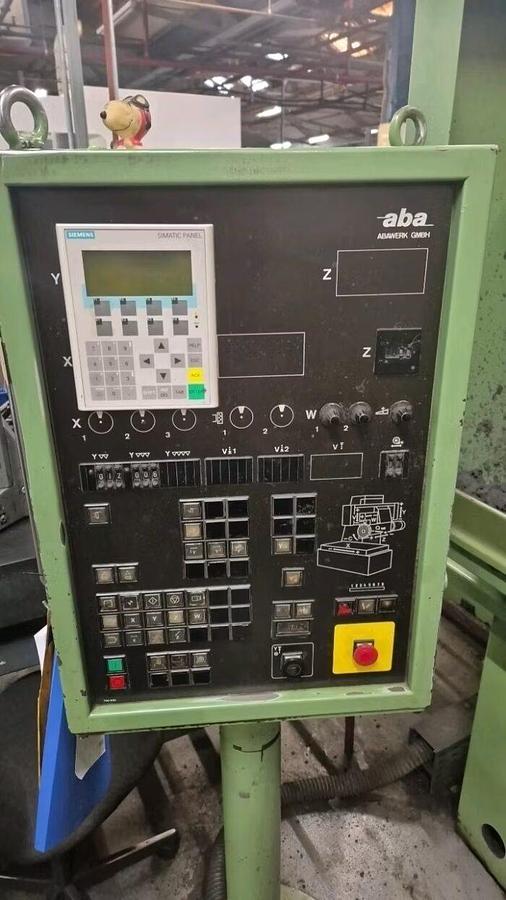

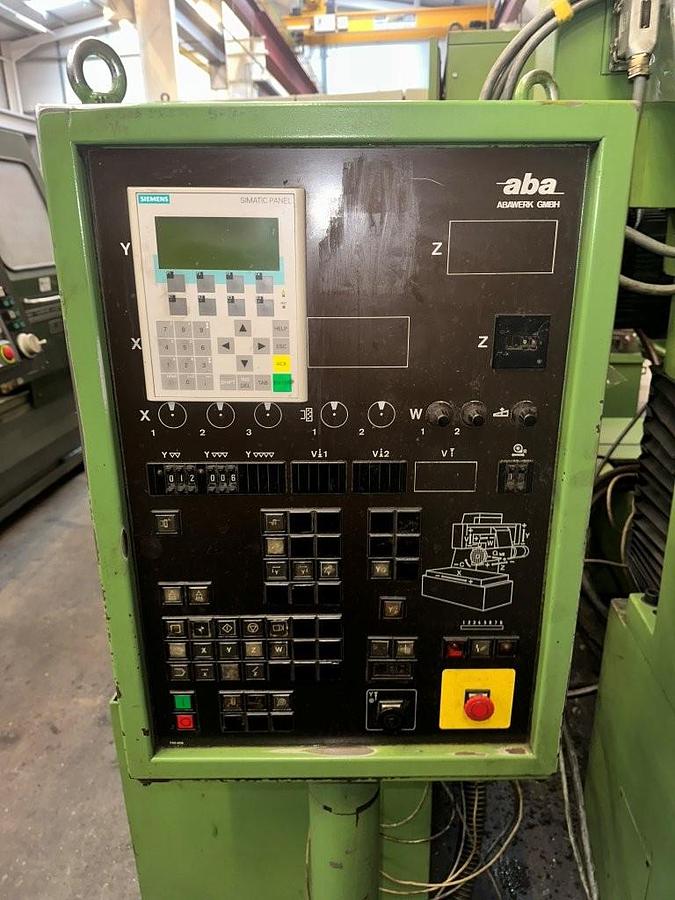

Pendant control station for operator convenience
