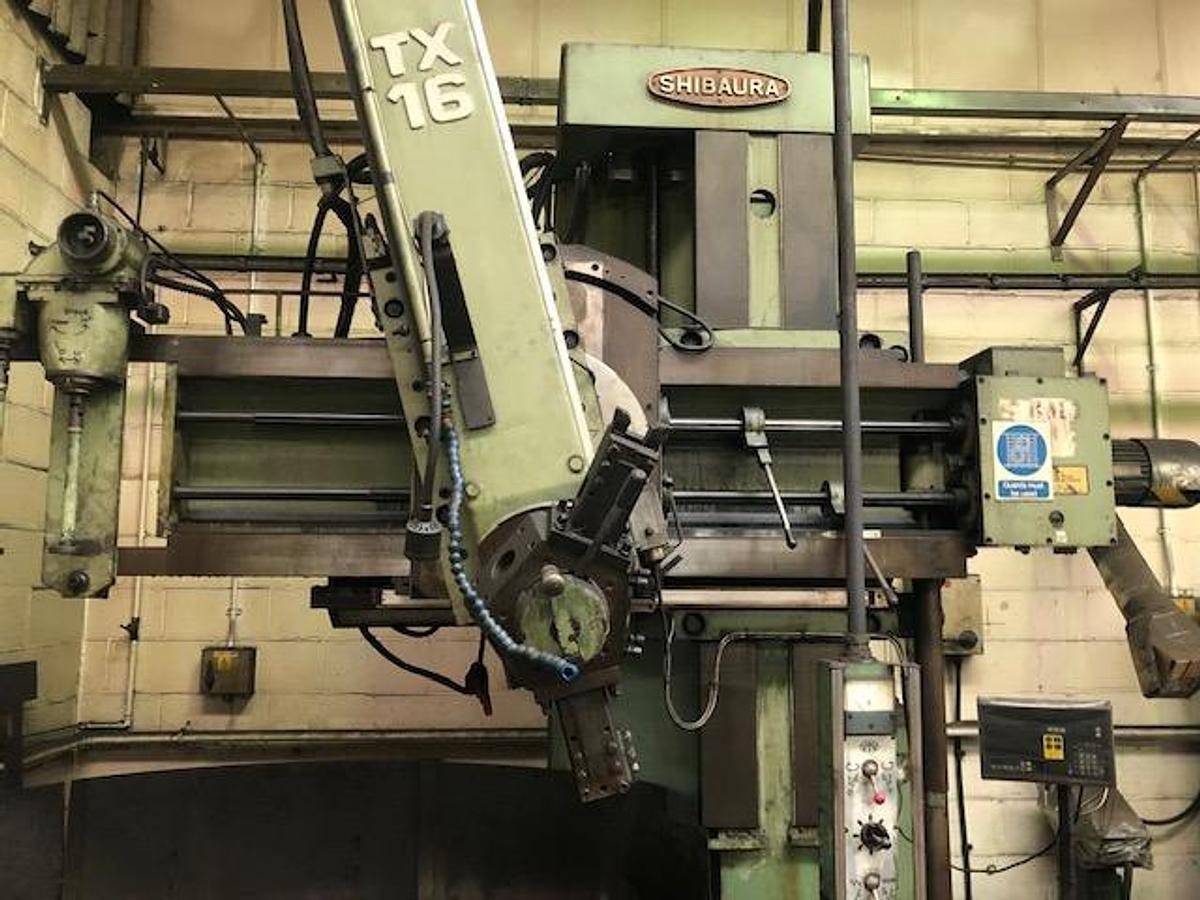

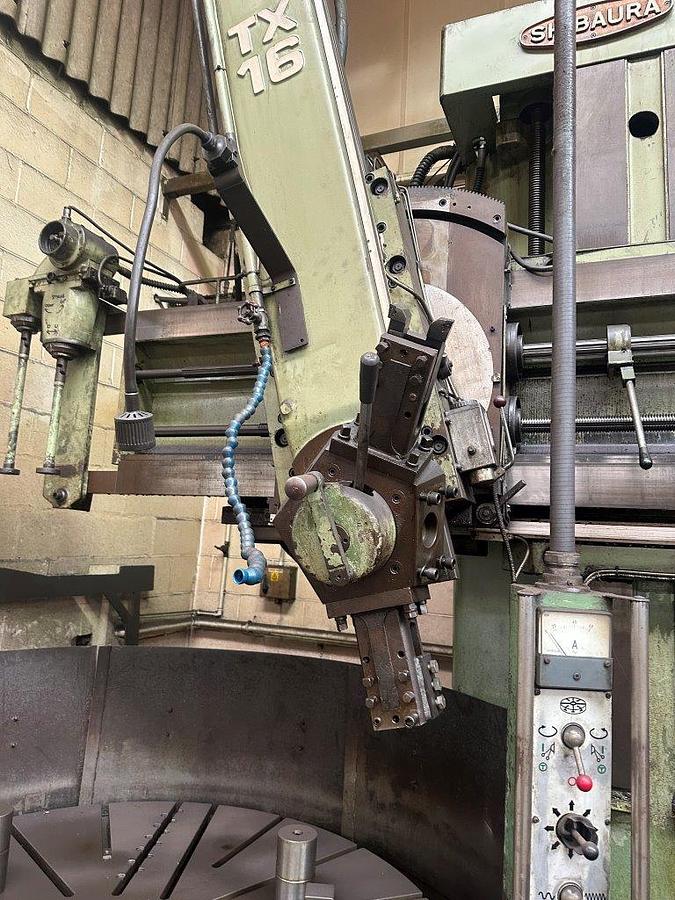

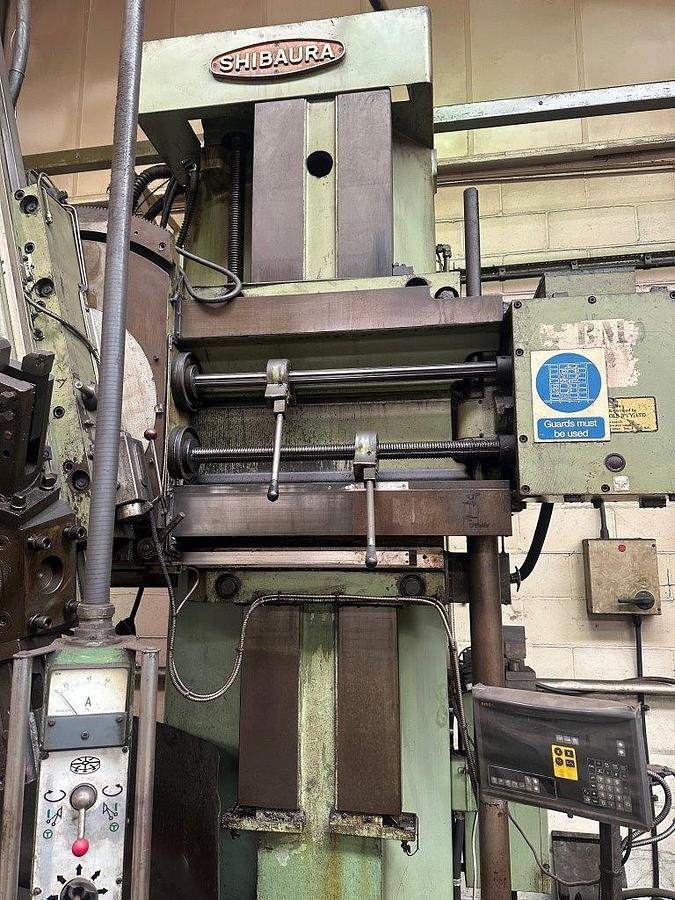

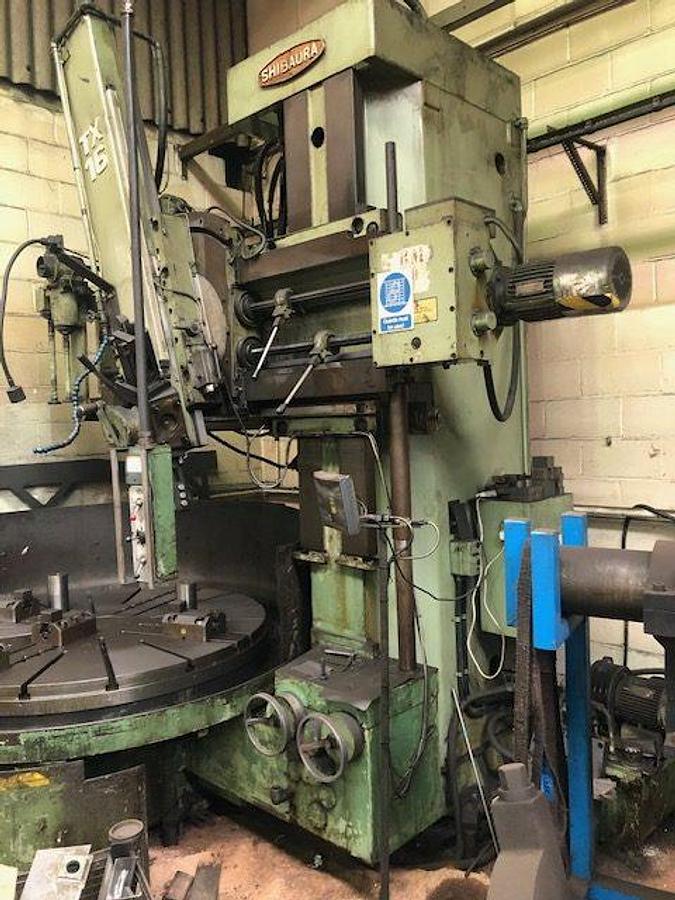

Toshiba TX 16 Elevating Rail Vertical Borer
Description
Toshiba TX 16 Elevating Rail Vertical Borer
Key Specifications
| Manufacturer | Toshiba |
| Model | TX 16 |
| Year | 1981 |
| Condition | Used |
| Serial Number | 320156 |
| Stock Number | 2513 |

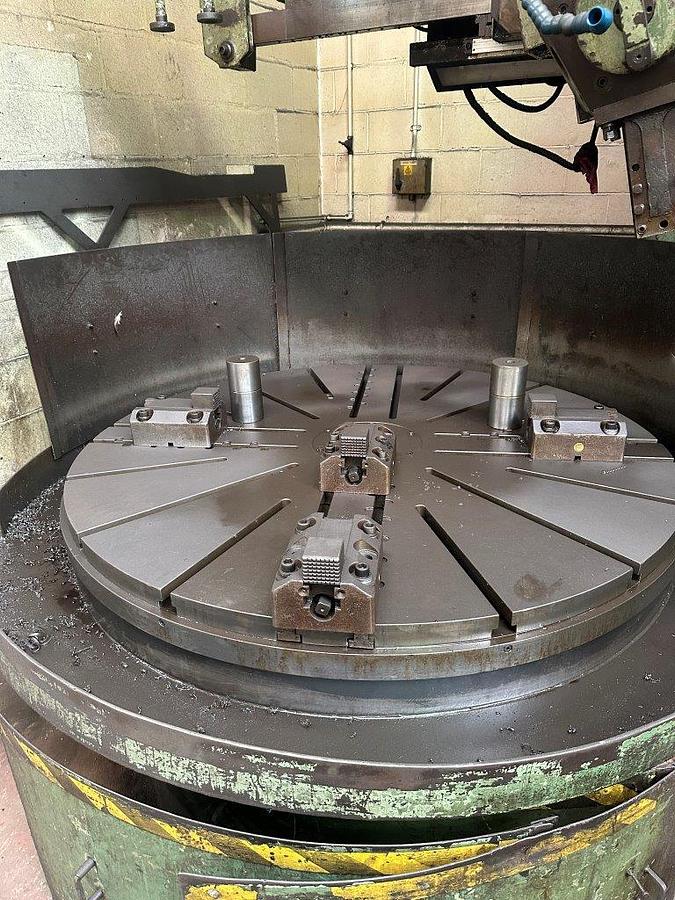

| Table | 1600mm dia with 4 x Adjustable clamping jaws |
| Swing | 2000mm |
| Under Rail | 1500mm |
| Vertical Travel distance of C/slide | 46″ |
| Vertical Slide travel | 1000mm |
| Main Motor | 30HP/22Kw |
Additional Features
Year of Manufacture 8/1981
Turret 5 Positions,
5 adaptors + 3 extension Bars.
Copy Turning Unit.
X & Z DRO.
Swing Pendant Control & Fixed Station control panels for copy unit.
Separate coolant tank and pump.
Box of clamping equipment.
