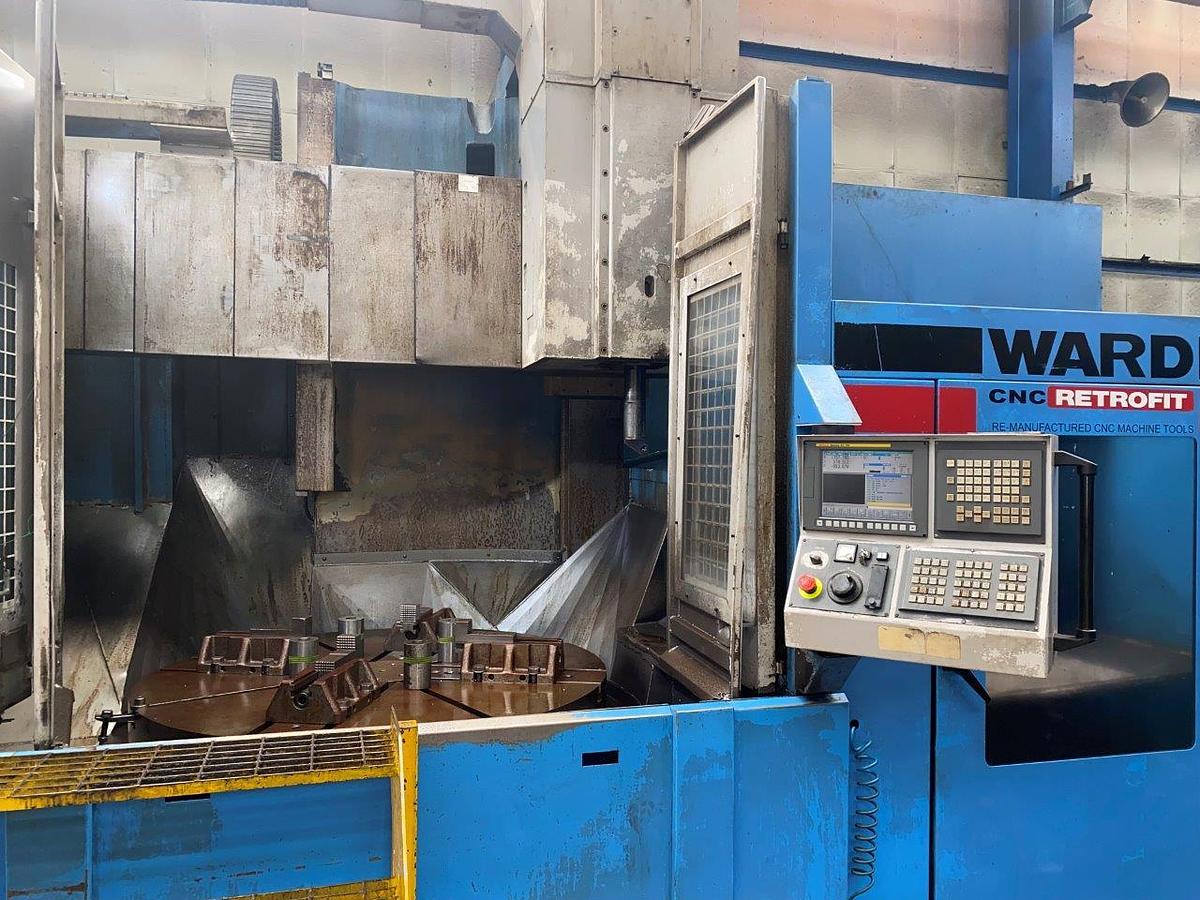

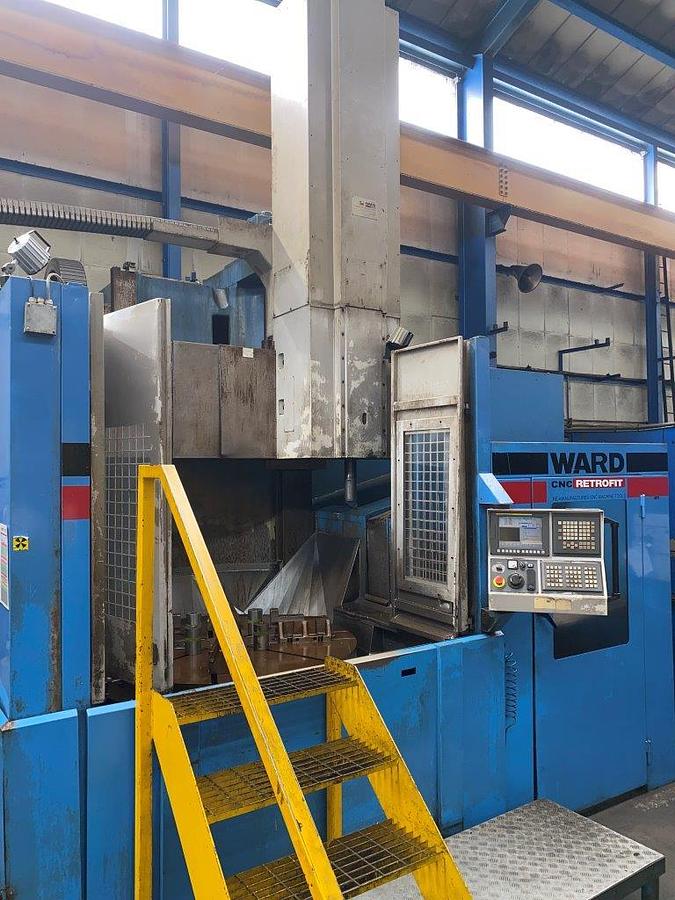

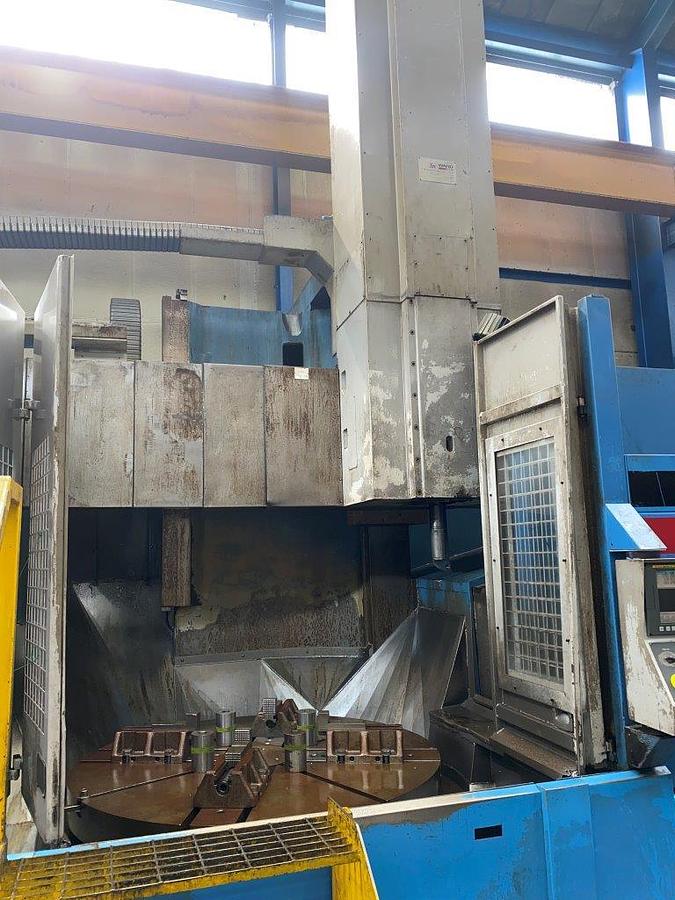

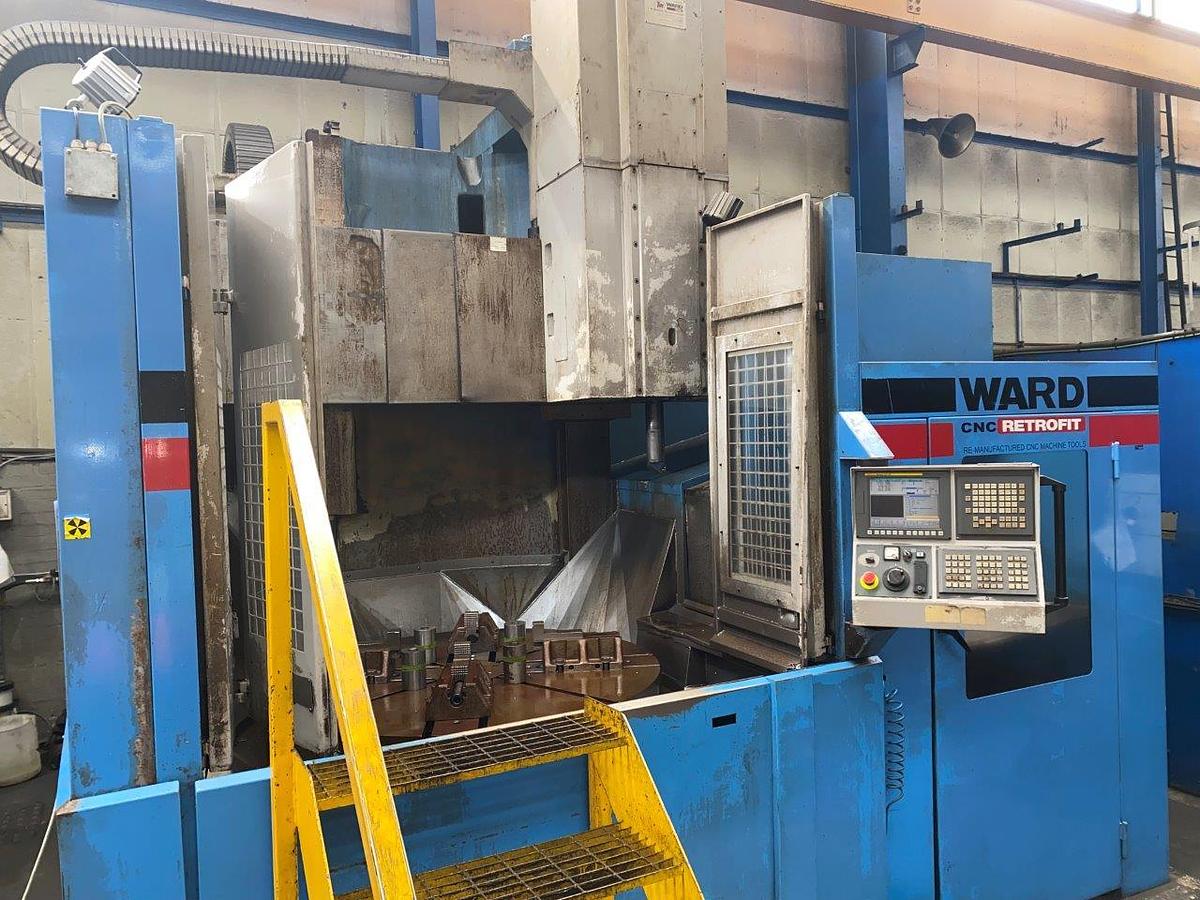

Webster & Bennett Series S Type Vertical Borer
Description
Webster & Bennett Series S Type Vertical Borer and Turning Machine Retrofitted by Ward CNC (2005)
Key Specifications
| Manufacturer | Webster & Bennett |
| Model | S Type |
| Year | 2005 |
| Condition | Used |
| Stock Number | 2137 |
| Table diameter | 1500 mm |
| Max. Swing | 2100 mm |
| Max. Height under Crossrail | 1600 mm |
| Max. Turning diameter | 2100 mm |
| Min. Height under Crossrail | 700 mm |
| Ram travel | 1219 mm |
| Ram section | 203mm |
| Main spindle motor | 57 kw |
Additional Features
ONE 'WARD CNC RETROFIT' WEBSTER AND BENNETT SERIES S ELEVATING RAIL
RAM TYPE VERTICAL BORING

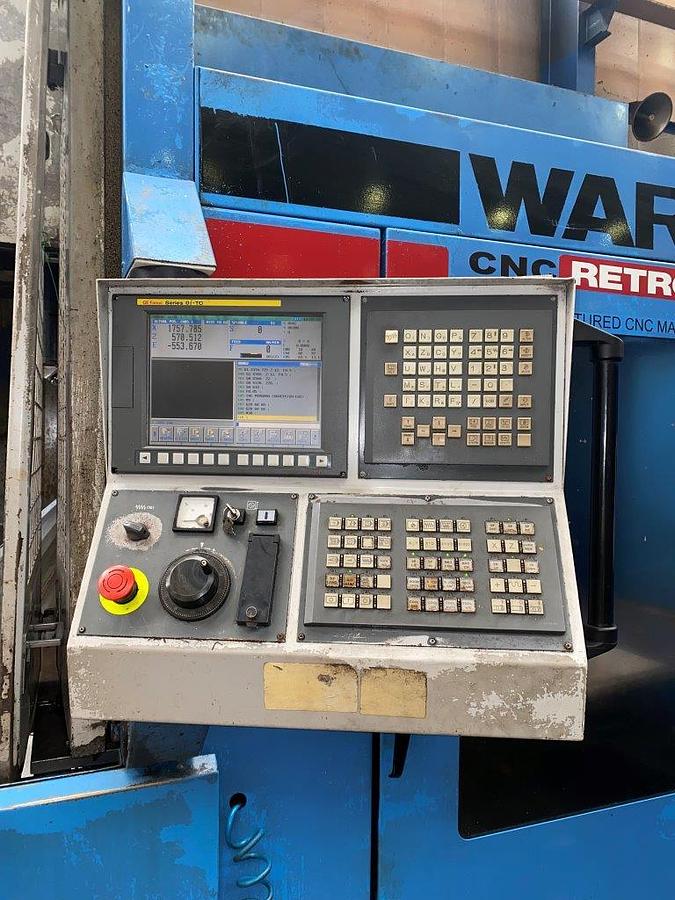

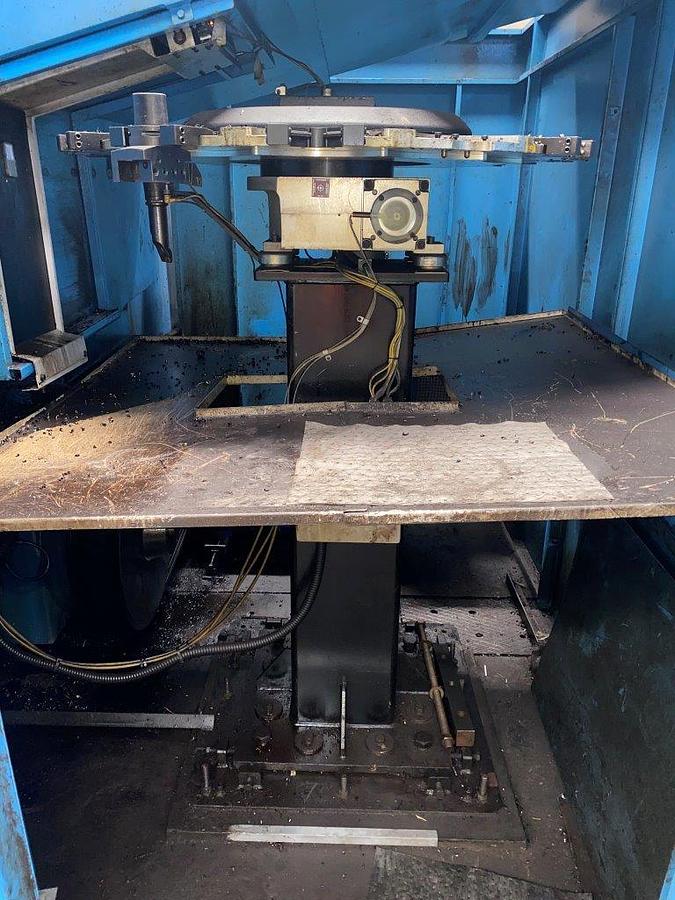

AUTOMATIC TOOL CHANGERRECONDITIONED AND RETROFITTED WITH FANUC 18i CONTROL SYSTEM IN 2005/6.
TABLE DIAMETER 1500 MM
MAX. SWING 2100 MM
MAX. TURNING DIAMETER 2100 MM
MAX. HEIGHT UNDER CROSSRAIL 1600 MM
MIN. HEIGHT UNDER CROSSRAIL 700 MM
RAM TRAVEL 1219 MM
RAM SECTION 203MM
NUMBER OF GEAR RANGES 2
MAIN SPINDLE MOTOR 57 KW
RAPID TRAVERSE RATES 5000mm/min
ELECTRICAL SUPPLY 415V, 3PH, 50HZ
FEATURES AND EQUIPMENT
MACHINE:
FULLY ENCLOSED AND INTERLOCKED GUARDING SYSTEM TO CE SAFETY REGULATIONS, COOLANT TANK AND EQUIPMENT
PROVIDING MANUAL AND AUTO OPERATION,

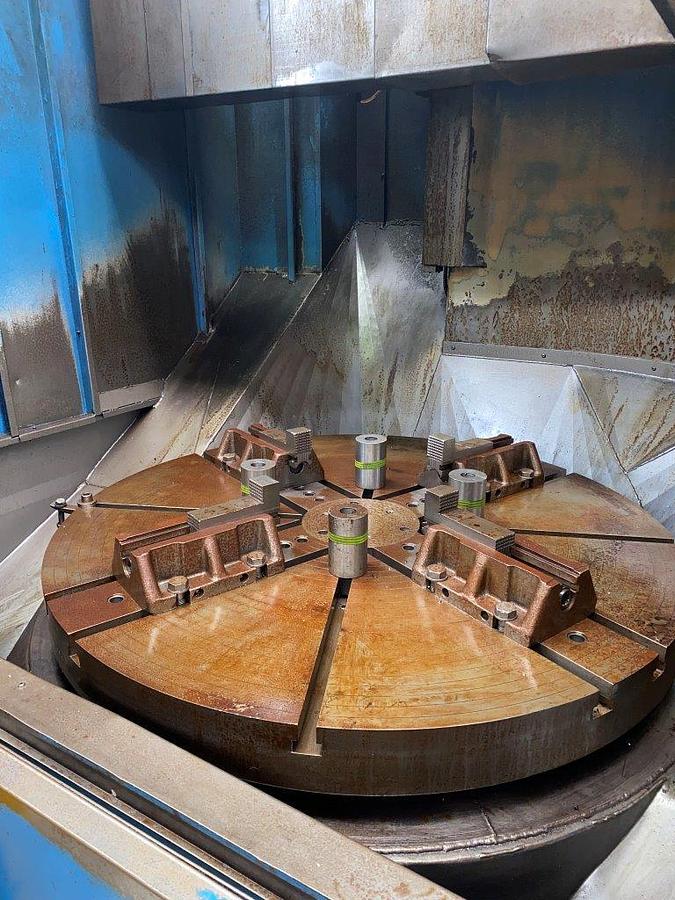

4 JAW MANUAL FACEPLATE TYPE CHUCK
CENTRALISED LUBRICATION SYSTEM FOR AXES & BALLSCREWS, OIL COOLED RECIRCULATING LUBRICATION SYSTEM FOR MAIN SPINDLE AND DRIVE.
