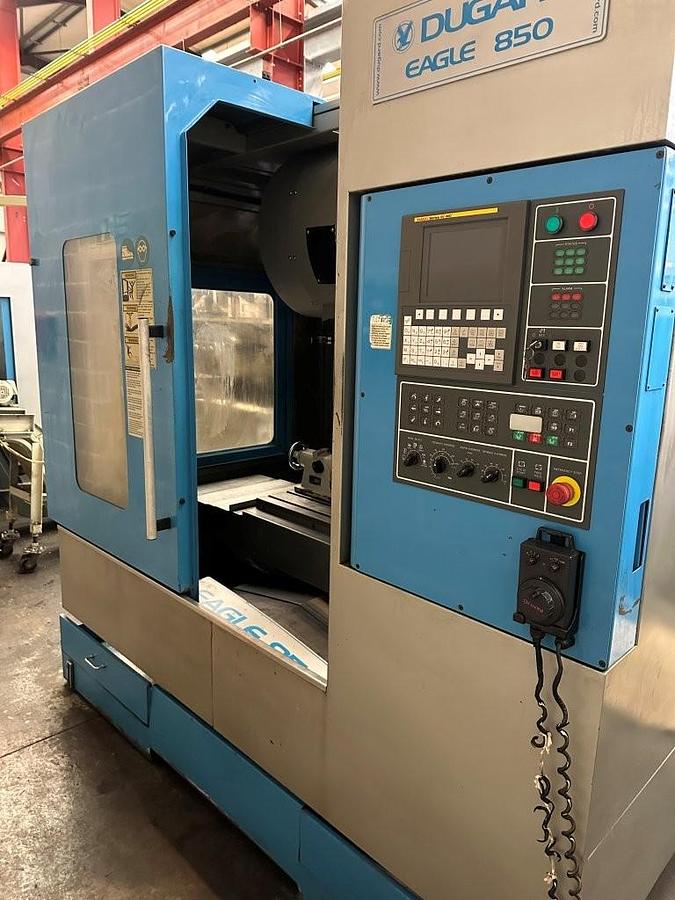

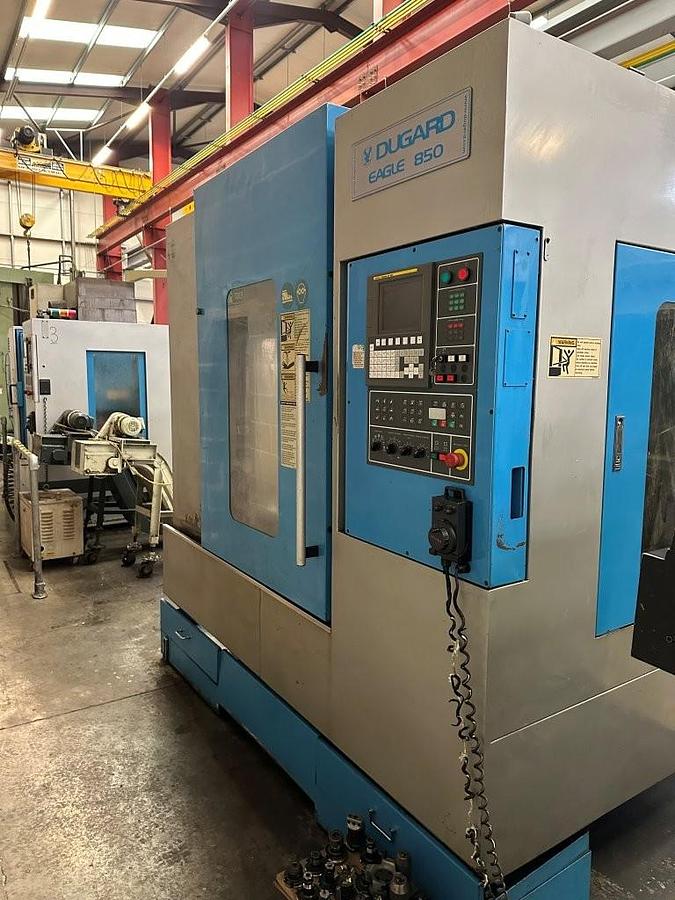

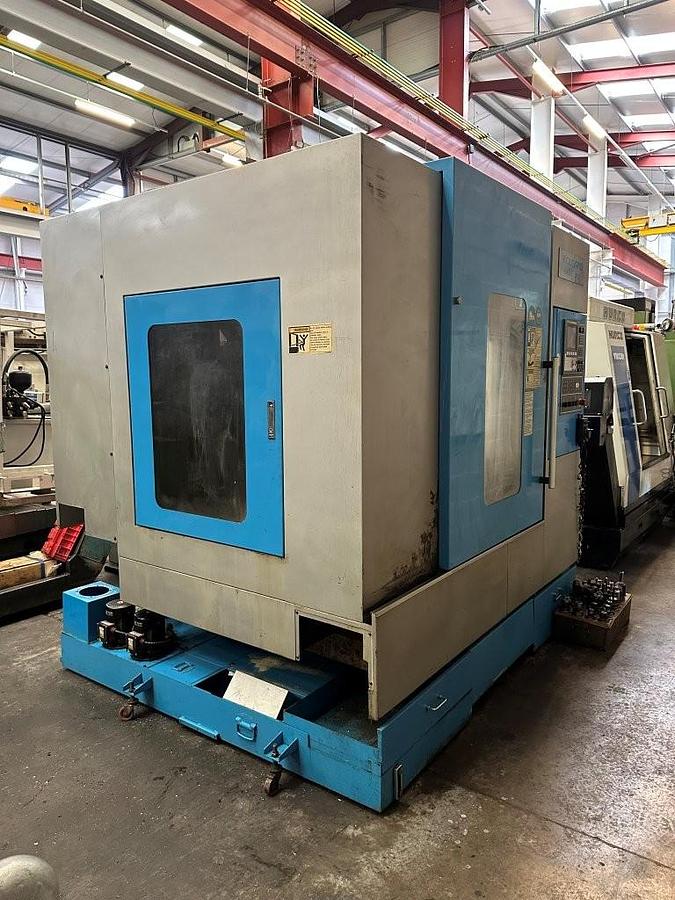

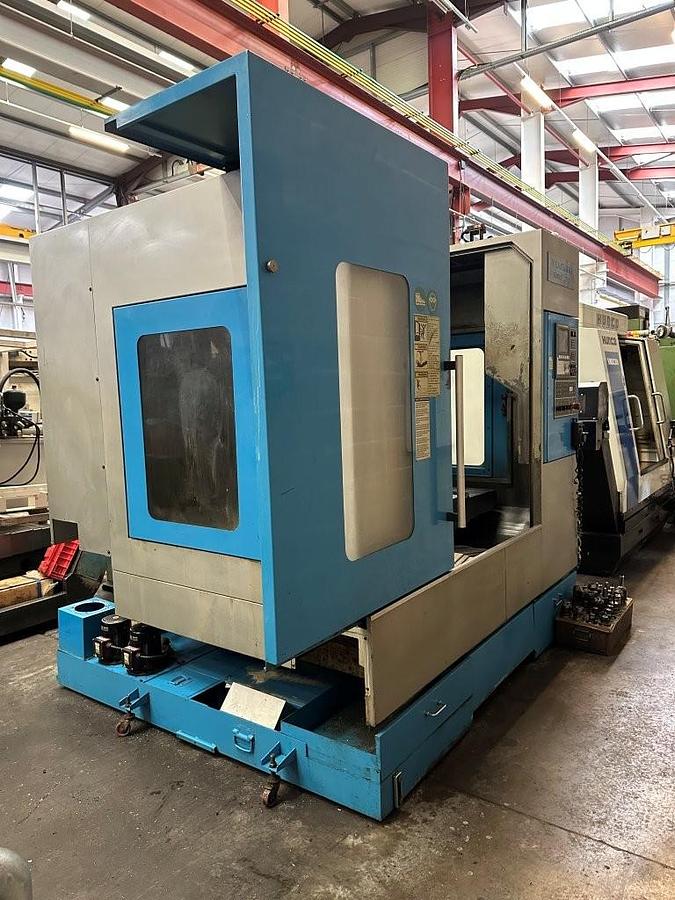

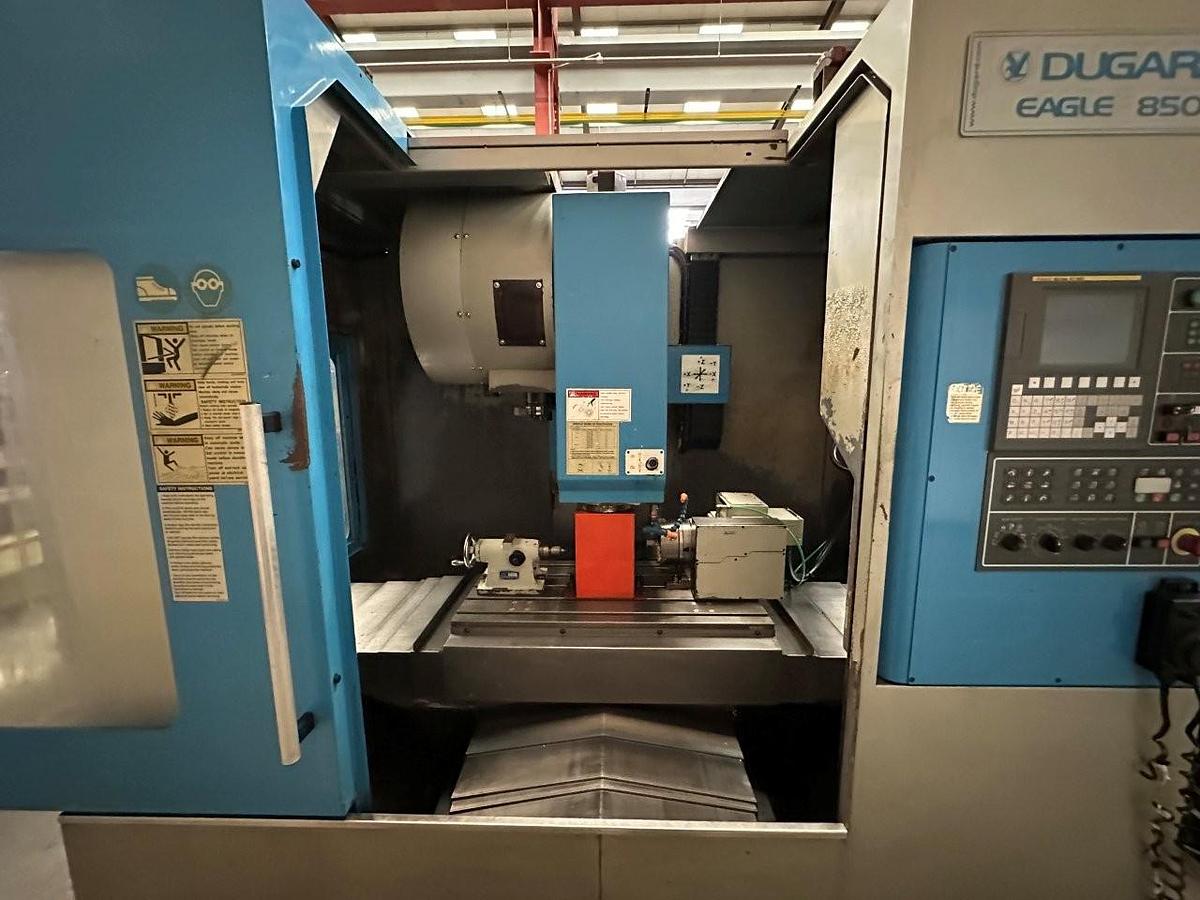

Dugard Eagle 850 CNC Vertical Machining Centre
Description

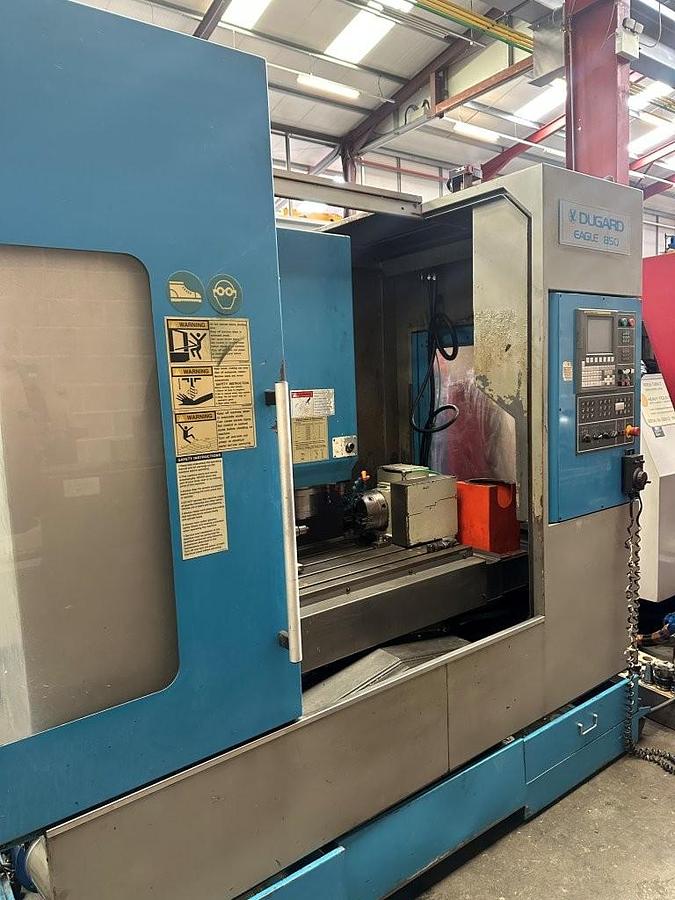

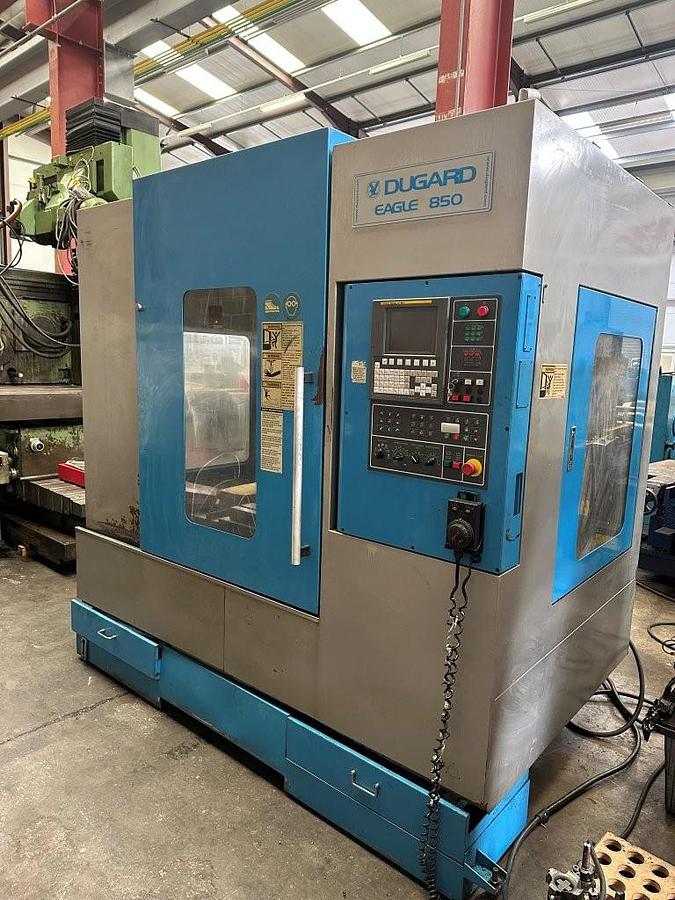

Dugard Eagle 850 CNC Vertical Machining Centre – 4th Axis, Fanuc Oi, 2011
The Dugard Eagle 850 VMC is a compact yet robust CNC machining centre equipped with Fanuc 0i-MD control, a 4th axis and tailstock, and 24-tool ATC. This 2011 machine is built for versatility and precision, ideal for sub-contract engineering, tooling, and general component production.
Key Specifications:
Machine Features:

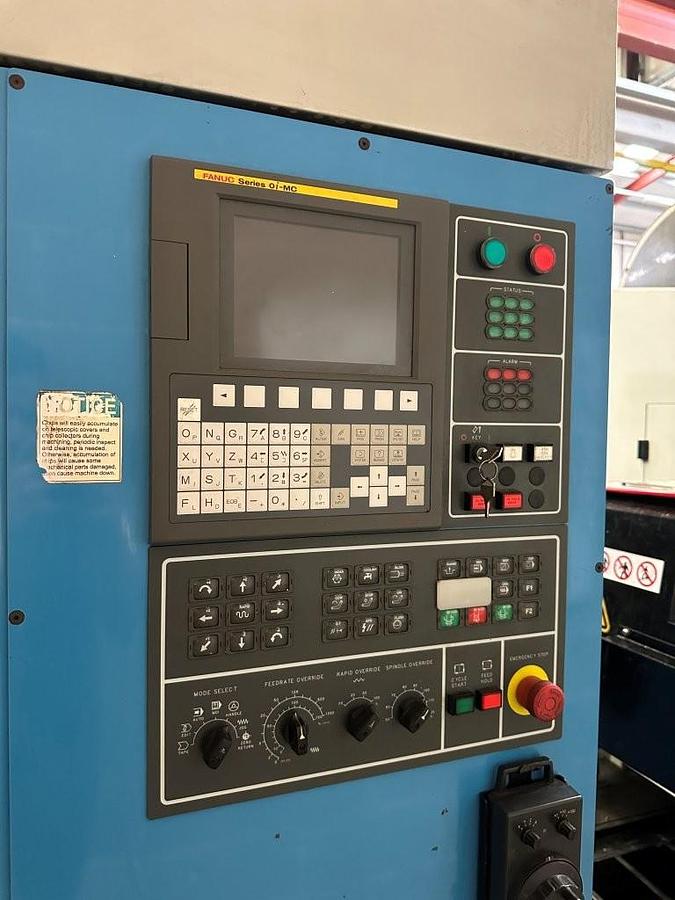

• Fanuc 0i-MD control with conversational programming
• Rigid, high-quality frame for excellent surface finish

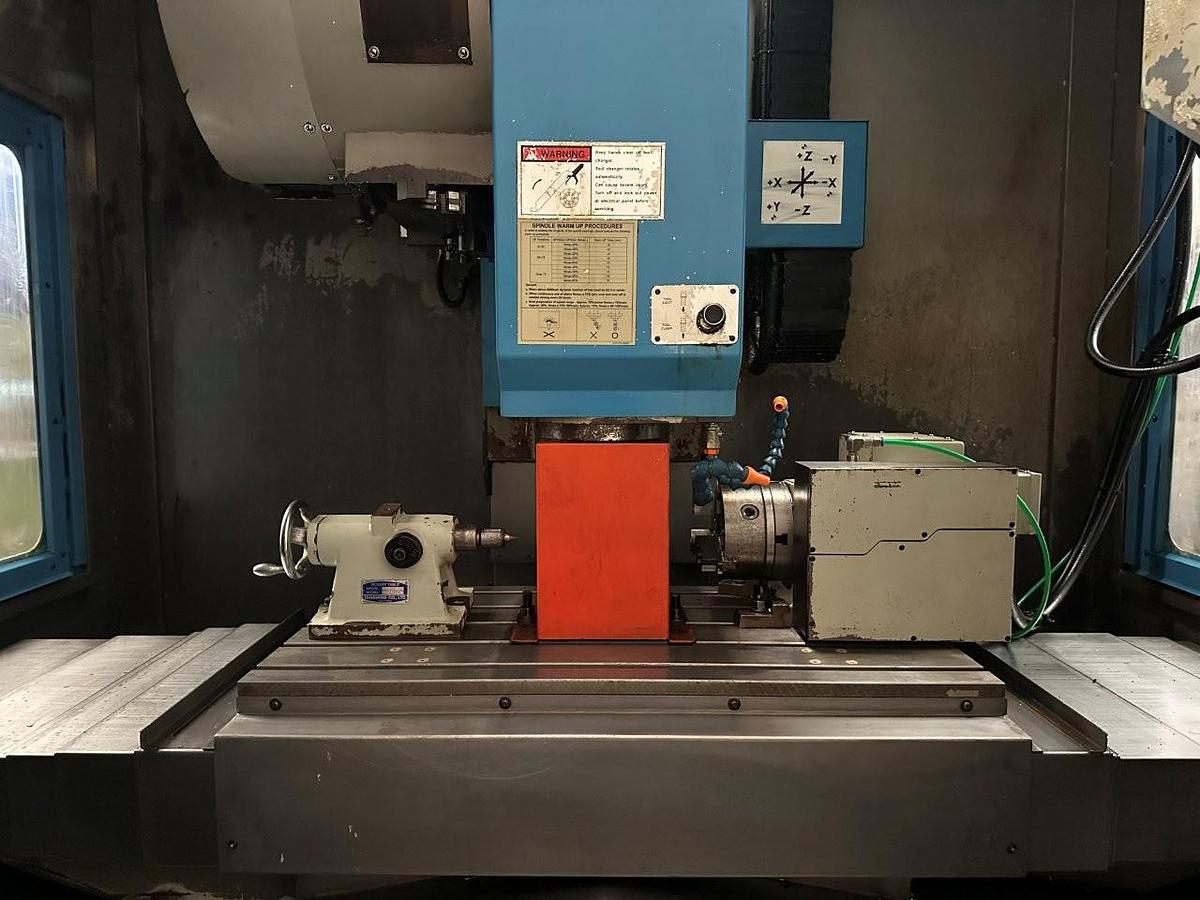

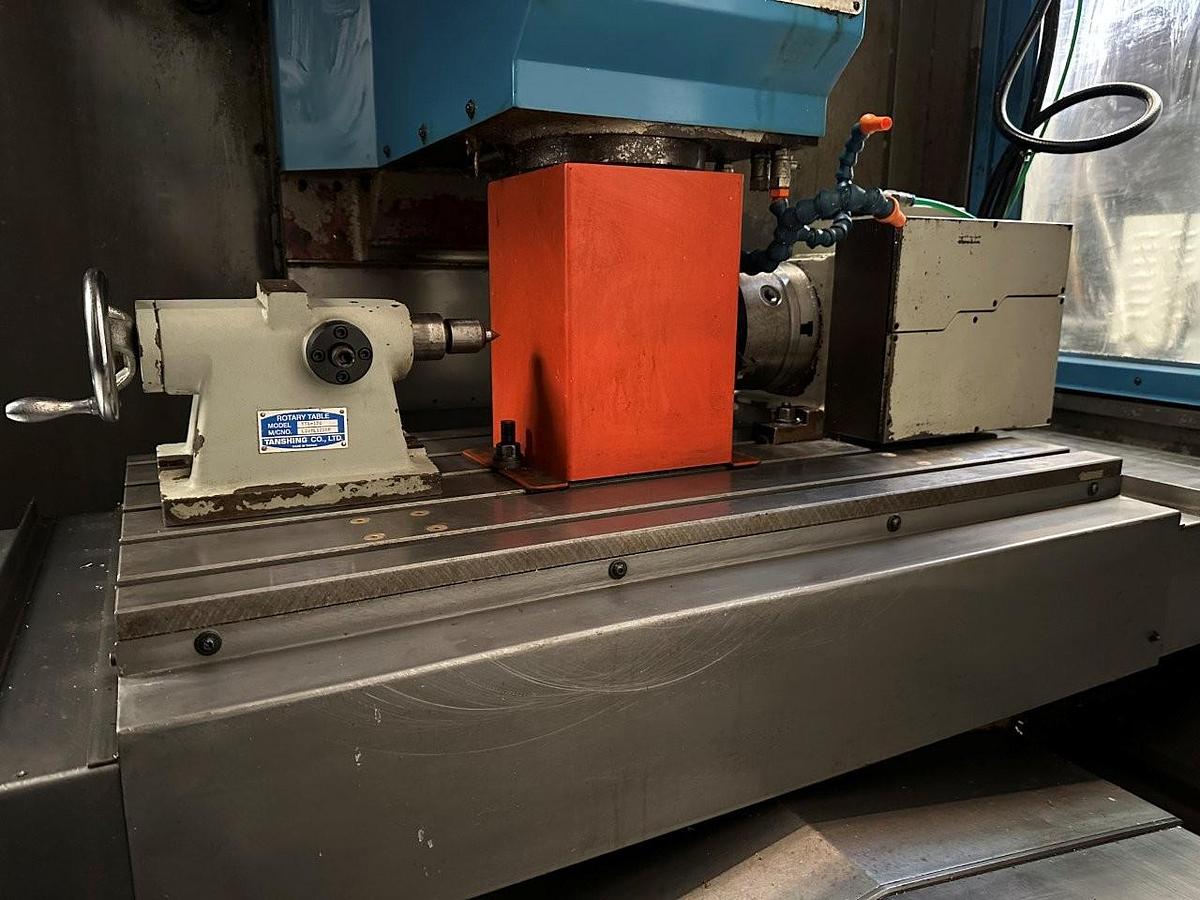

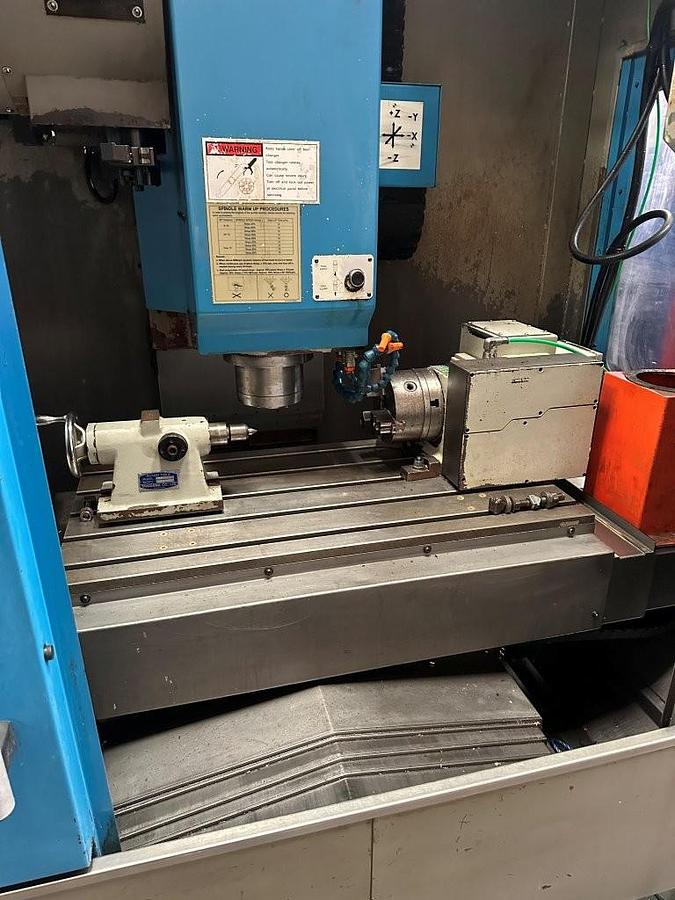

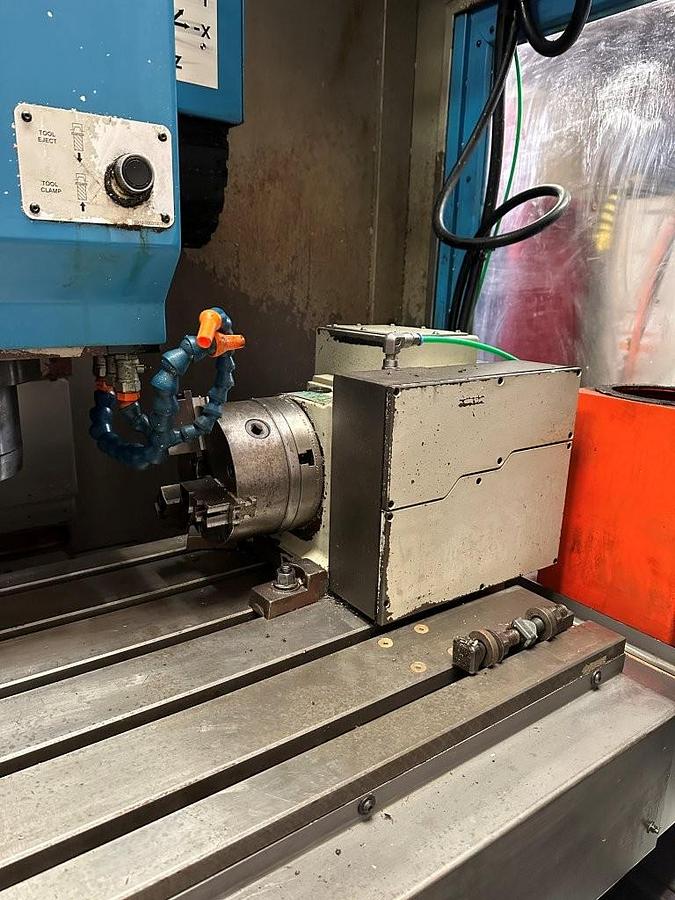

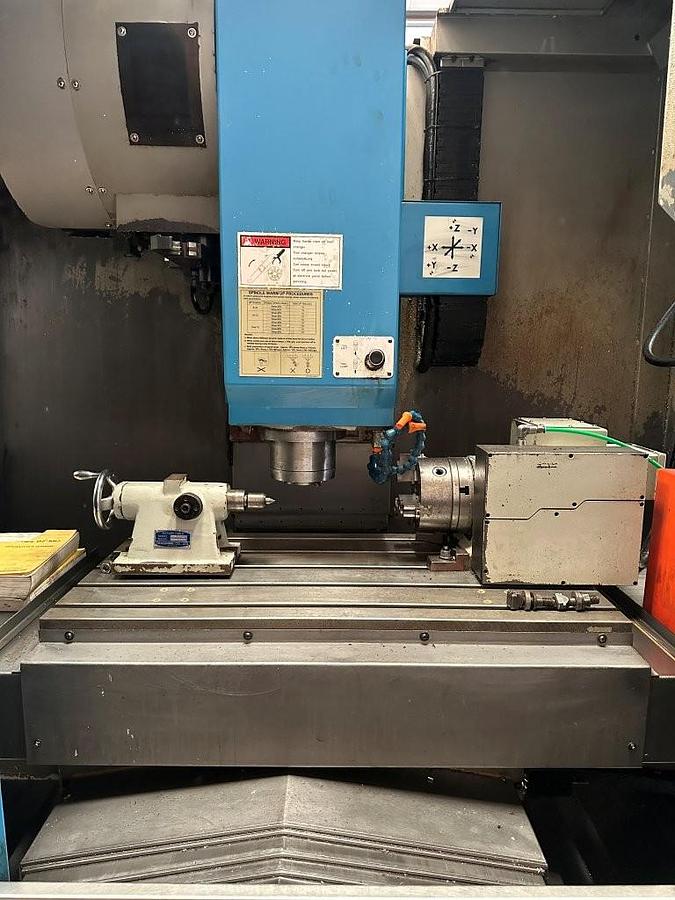

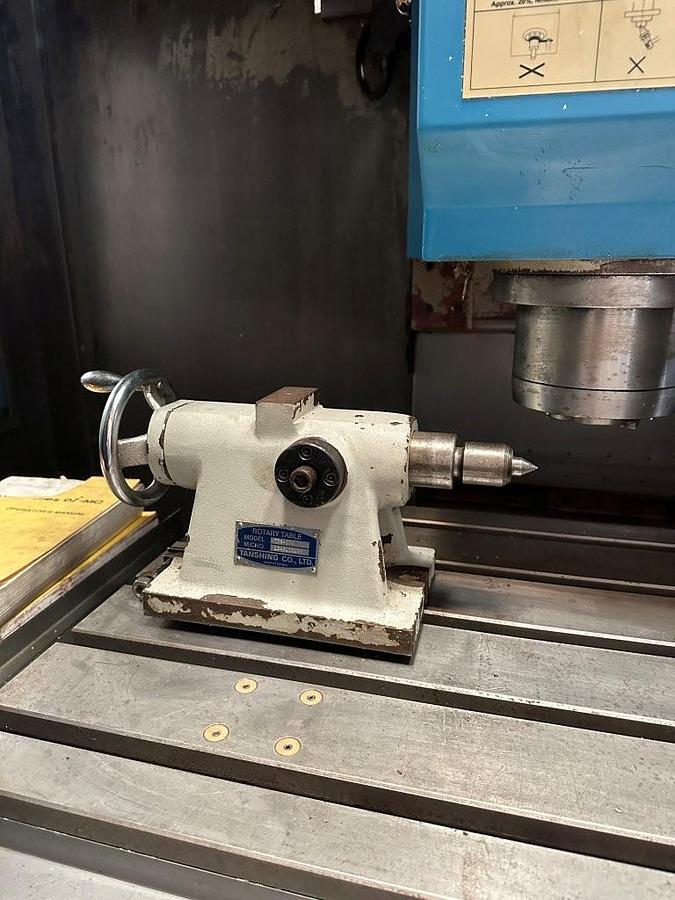

• Includes full 4th axis and tailstock
• 24-tool automatic toolchanger
• High-speed rapids for faster positioning
• Compact footprint with excellent work envelope
Key Specifications
| Condition | Used |
| Stock | Available! |
| Control | Fanuc 0i-MD |
| Travels (X/Y/Z) | 850 × 520 × 510 mm |
| Table Size | 1,000 × 510 mm |
| Max Table Load | 500 kg |
| Spindle Taper | BT40 |
| Spindle Speed | 80–8,000 RPM |
| Spindle Power | 11 kW continuous / 15 kW peak |
| Toolchanger | 24-tool carousel ATC |
| 4th Axis & Tailstock | Included |
| Rapid Traverse (X/Y/Z) | 30 / 30 / 24 m/min |
| Cutting Feedrates | Up to 10,000 mm/min |
