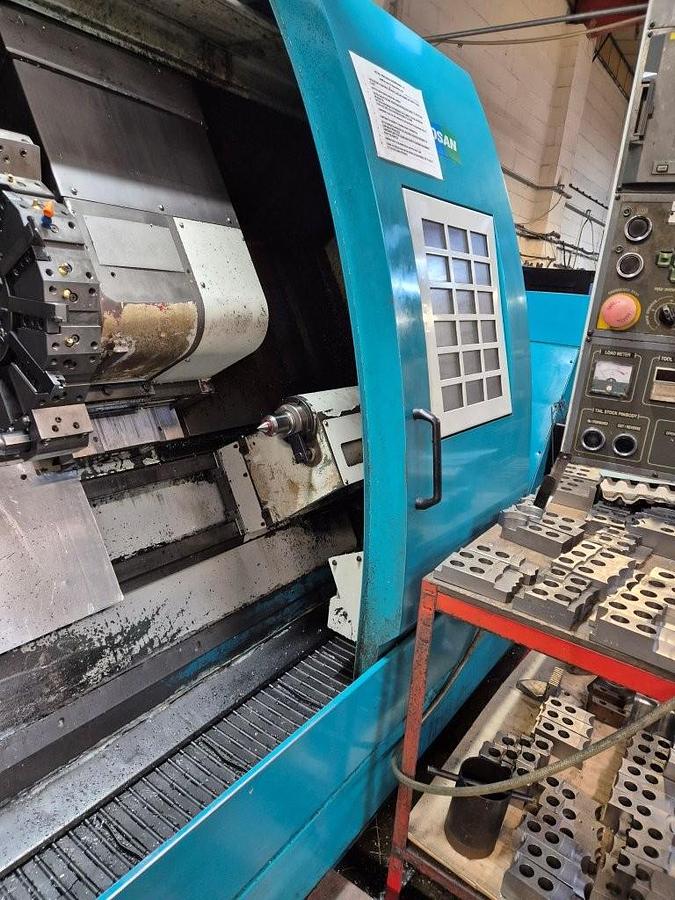

Doosan Model S 550L CNC Lathe
Description
Doosan Model S 550L CNC Lathe

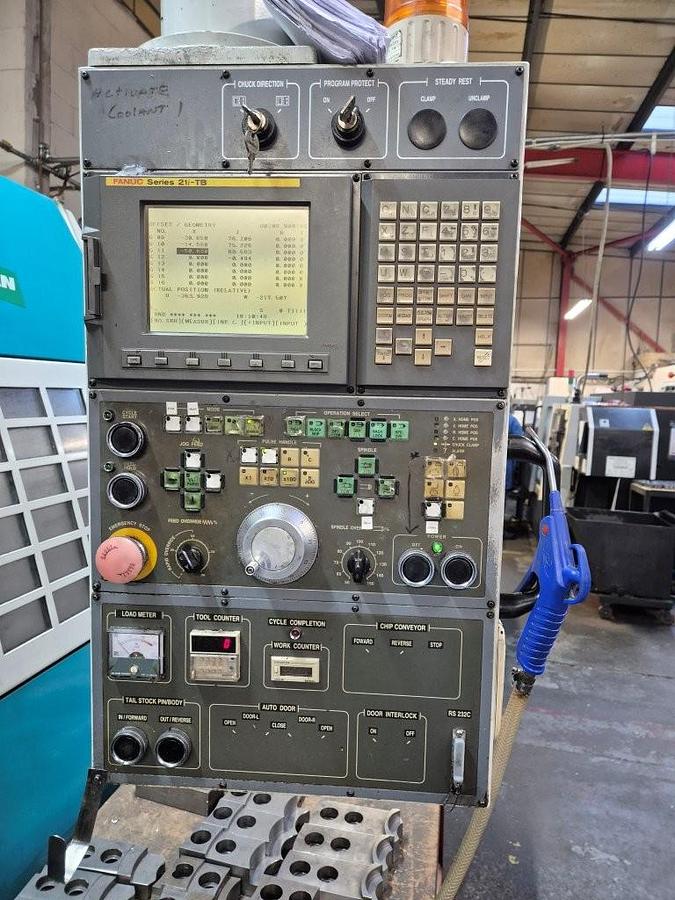

Control Fanuc 21T
Swing over bed 710.0 mm
Max turning dia 550.0 mm
Max turning length 1130.0 mm
Key Specifications
| Manufacturer | Doosan |
| Model | S550L |
| Year | 2005 |
| Condition | Used |
| Stock Number | SN 2866 |
Additional Features
Chuck dia 400.0 mm
Spindle bore 102.0 mm
Spindle nose 6 mt
Spindle speed 30 – 2500 rpm
Spindle motor power 22 kw
Turret 12 stations,
Feeds 0.001 – 133 mm/rev
Rapid X 20m/min Z 24m/min
Bar capacity 90.0 mm
Tailstock
Swarf conveyor
Manuals
