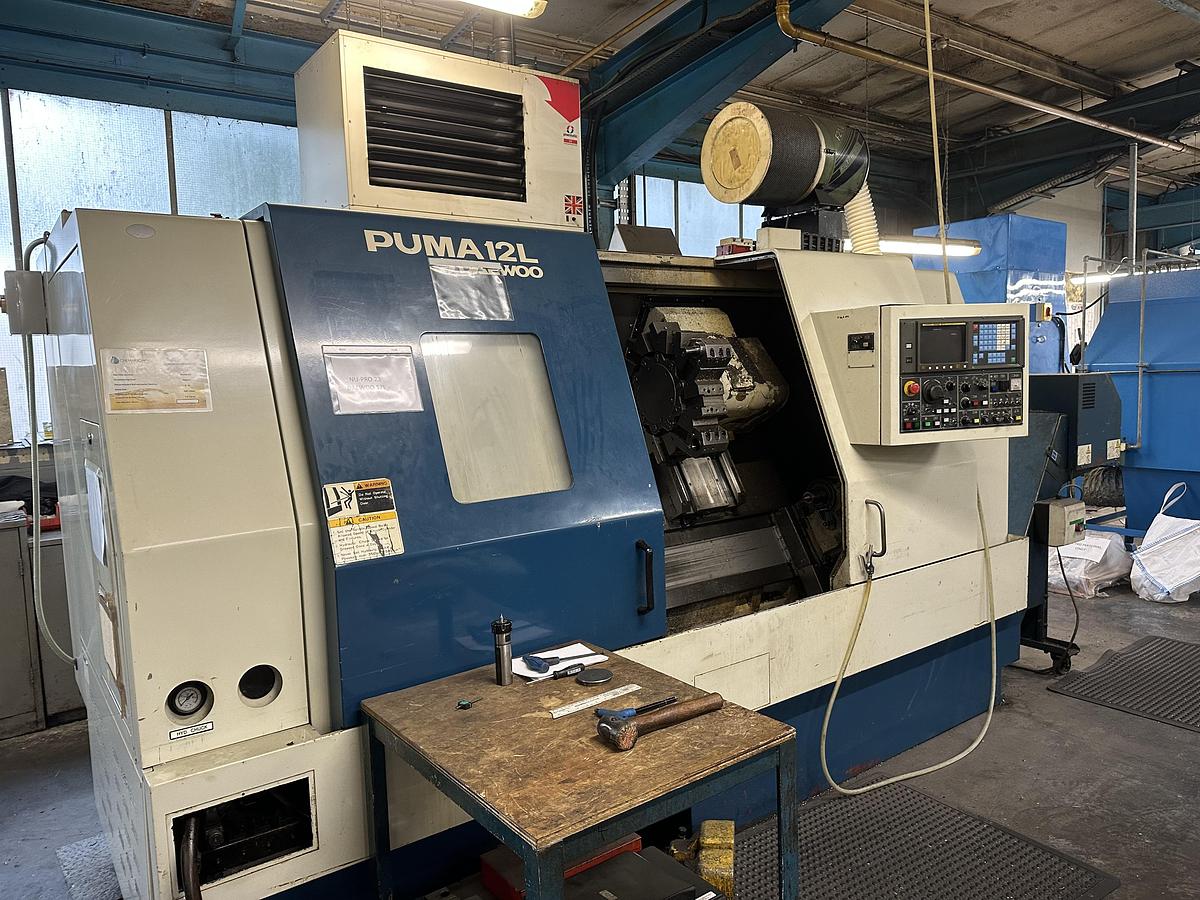

Daewoo Puma 12L CNC Lathe (1996)
Description
Daewoo Puma 12L CNC Lathe (1996)
Turning Capacity:
Swing over bed: 570 mm
Swing over cross slide: 350 mm
Maximum turning diameter: approx. 480 mm
Maximum turning length: approx. 1020 mm
Distance between centres: approx. 1020 mm
Used Daewoo Puma 12L CNC Turning CentreFanuc 0T Control – For Sale
A 1996 Daewoo Puma 12L CNC lathe for sale, fitted with the reliable Fanuc 0T control and supplied with 3-jaw chuck, tailstock and tool arm. The Puma 12L is a heavy-duty CNC turning centre well known for its rigid construction, powerful geared spindle and excellent reliability in production machining.
This machine is ideal for subcontract engineering, precision turning, and general machining of medium to large components.
The Daewoo Puma series CNC lathes are widely used in engineering workshops due to their durability and machining accuracy. The Puma 12L offers excellent turning capacity and is suitable for a wide range of CNC machining applications.
This used Daewoo CNC lathe is available for inspection and can be demonstrated under power if required.
Key Specifications
| Manufacturer | Daewoo |
| Model | 12L |
| Year | 1996 |
| Condition | Used |

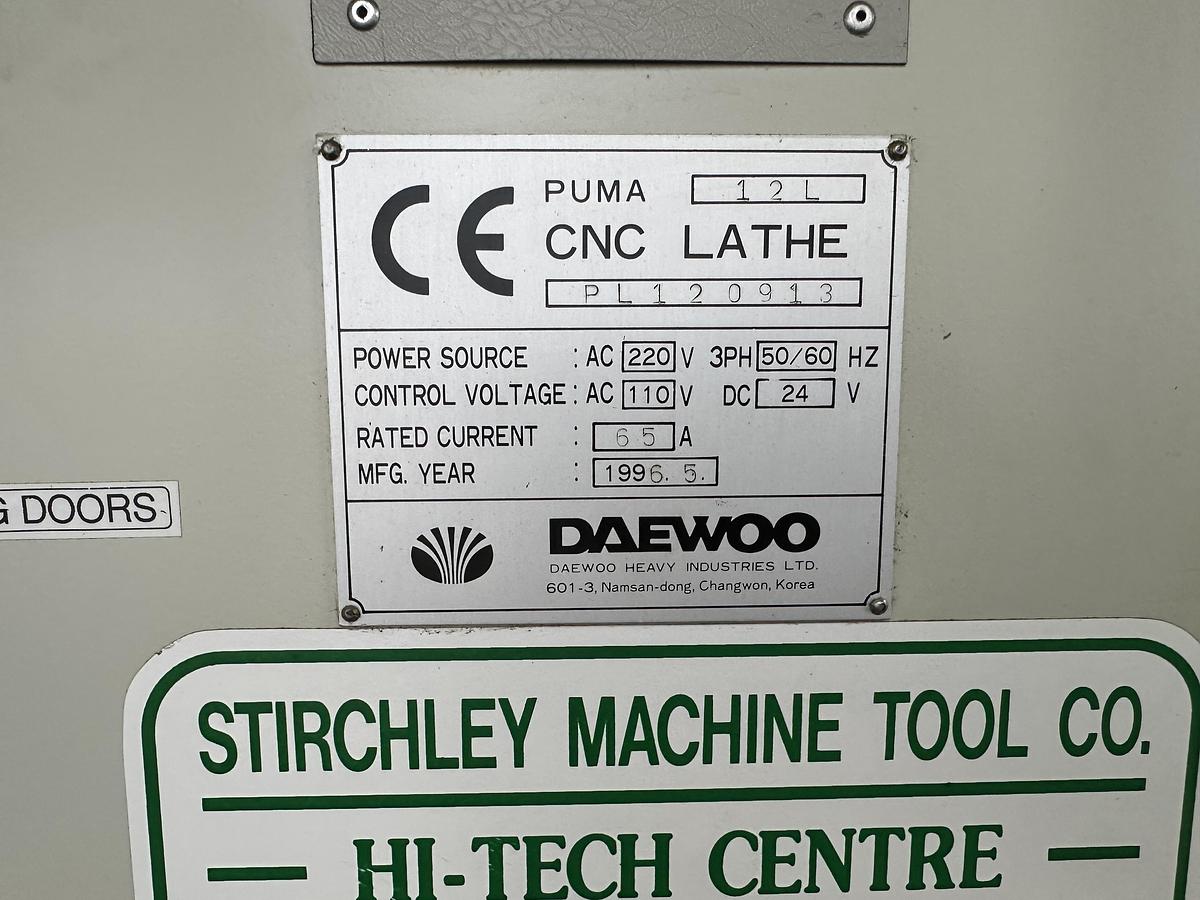

| Serial Number | PL120913 |
| Stock Number | 2869 |
Additional Features
Axis Travel:
X-axis travel: approx. 260 mm
Z-axis travel: approx. 1050 mm
Spindle
Spindle nose: A2-8
Spindle bore: approx. 77 mm
Maximum spindle speed: up to 2500 rpm
Spindle drive: Geared head

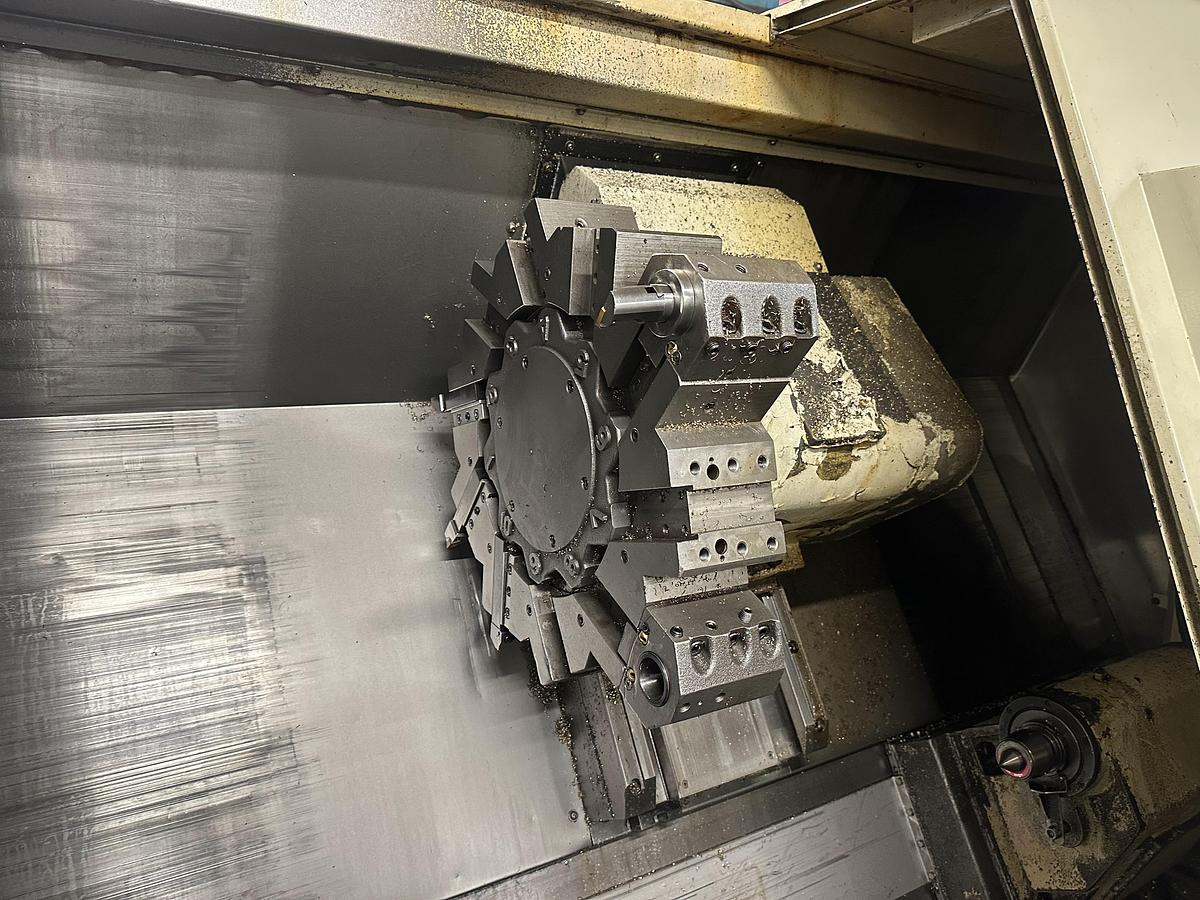

Turret
10 station automatic turret

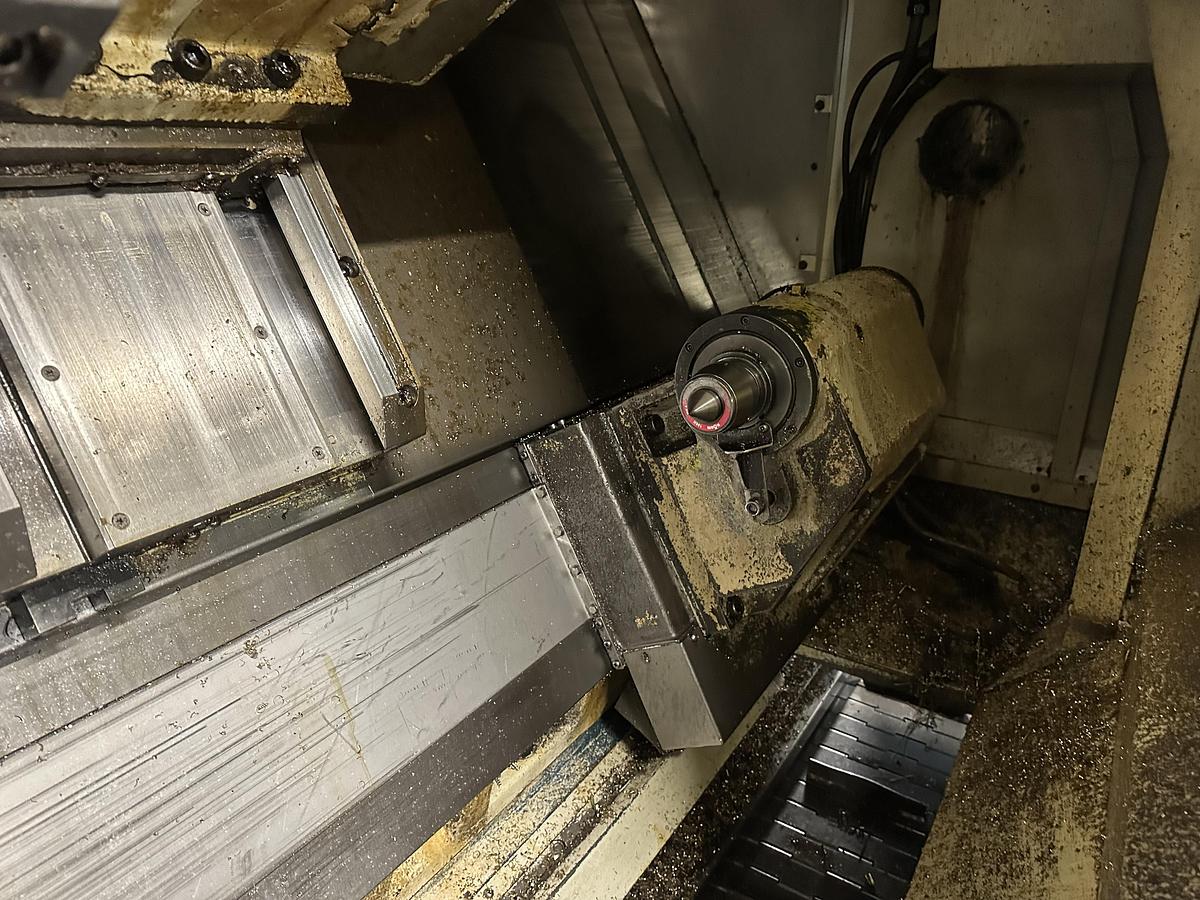

TailstocK
Manual / programmable tailstock
Tailstock quill travel approx. 100 mm
Equipment Included:

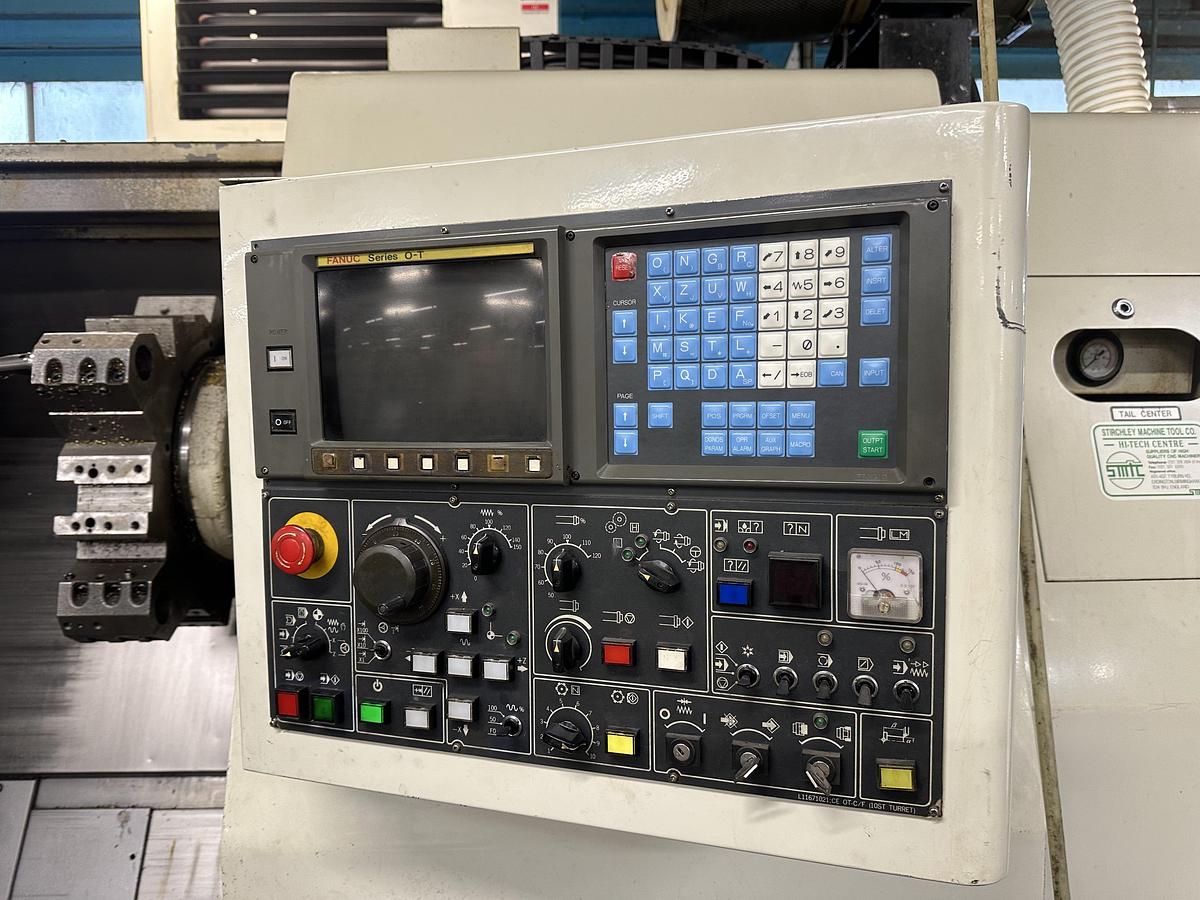

Fanuc 0T CNC control

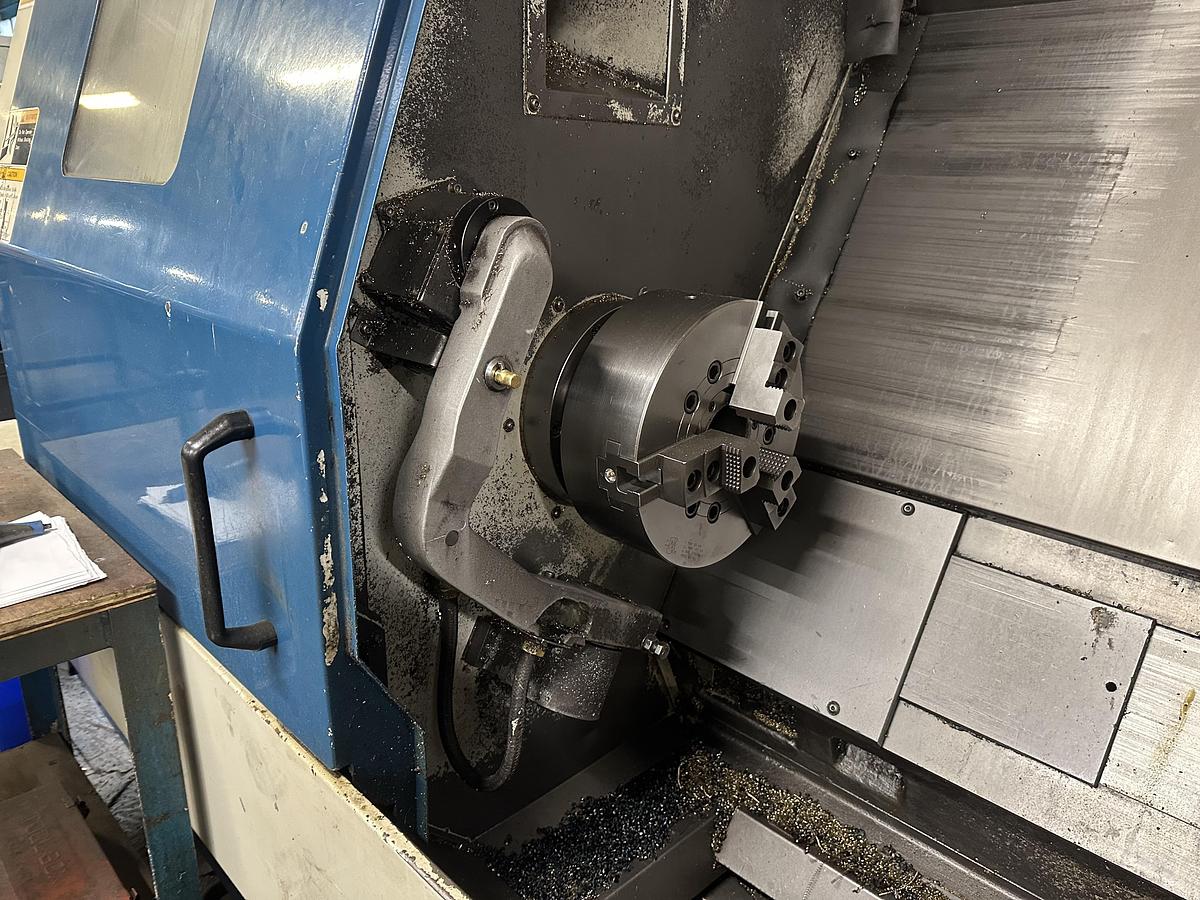

3 jaw power chuck
Tailstock
Tool arm with tooling
Coolant system
Full machine guarding
