Kellenbeger Kel Varia UR 175/1000
Description
Kel Varia UR 175/1000 CNC Grinder
Maximum workpiece diameter: 175 mm
Maximum grinding length: 1000 mm
Maximum workpiece weight: approx. 150 – 200 kg
Used Kel Varia UR 175/1000 CNC Grinder

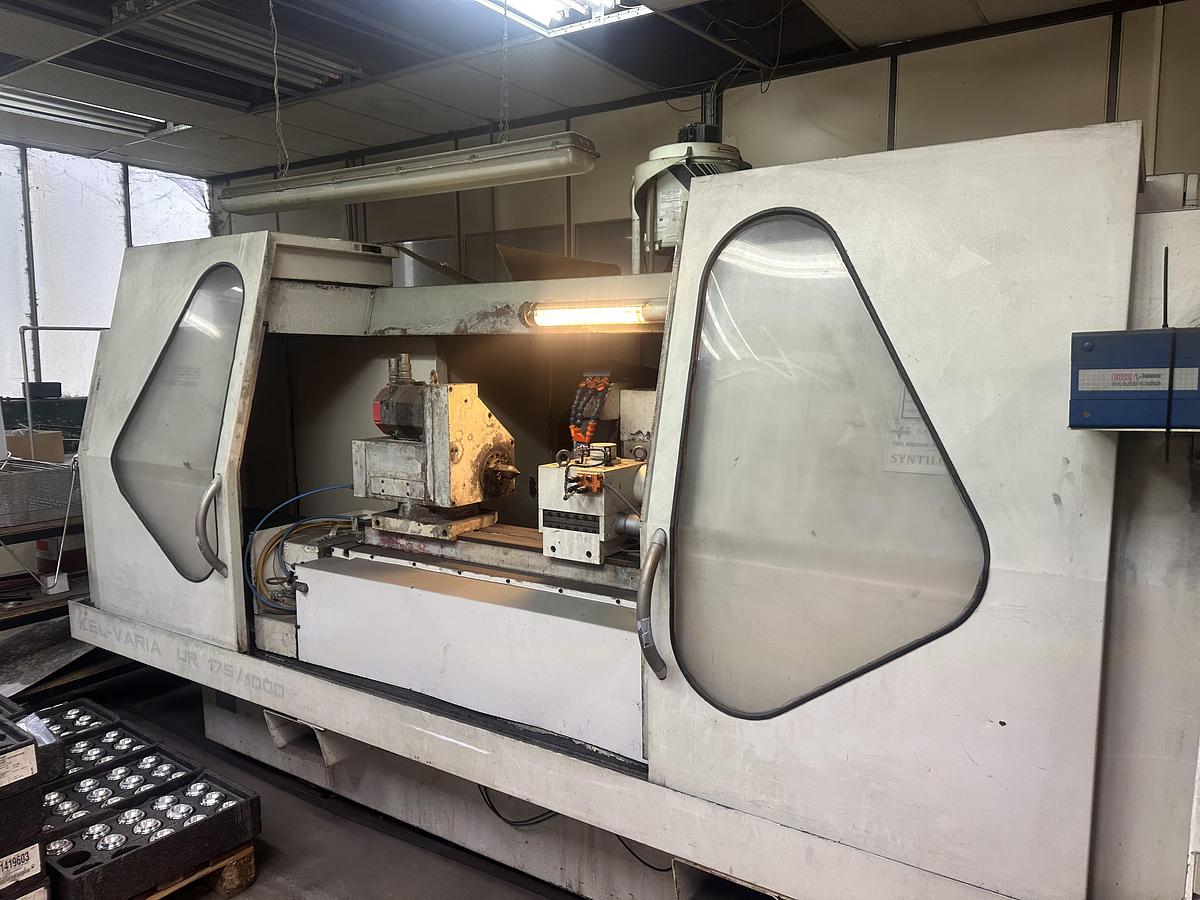

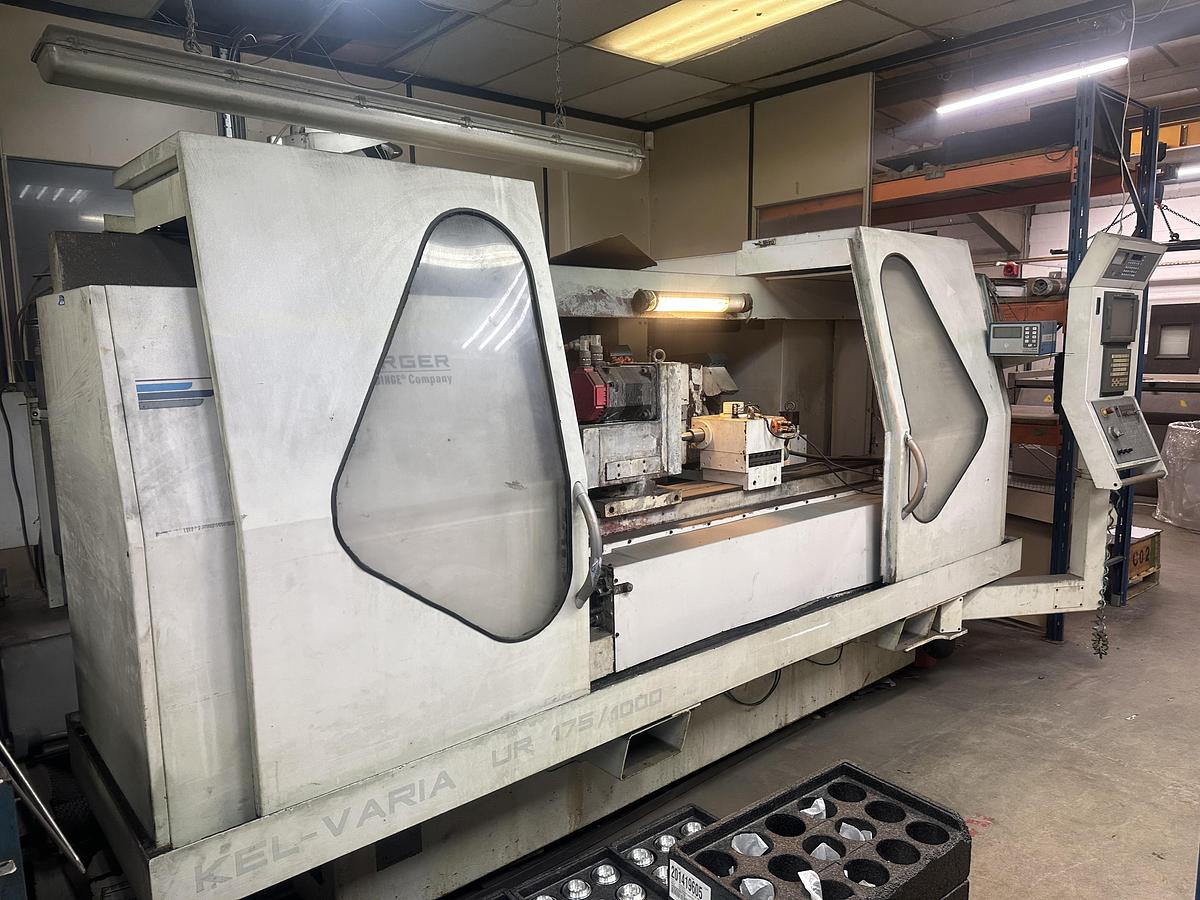

A Kel Varia UR 175/1000 CNC cylindrical grinder fitted with Fanuc 18i TA CNC control, serial number 650362, designed for high-precision external and internal grinding. Built with rigid construction and accurate guideways, the UR 175/1000 is ideal for toolroom, subcontract engineering, and production grinding applications.
Key Specifications
| Manufacturer | Kellenbeger |
| Model | Kel Varia UR 175/1000 |
| Condition | Used |
| Stock Number | 2872 |
Additional Features
Axes Travel
X-axis (cross feed): approx. 175 mm
Z-axis (longitudinal feed): approx. 1000 mm
Wheelhead traverse: depending on configuration

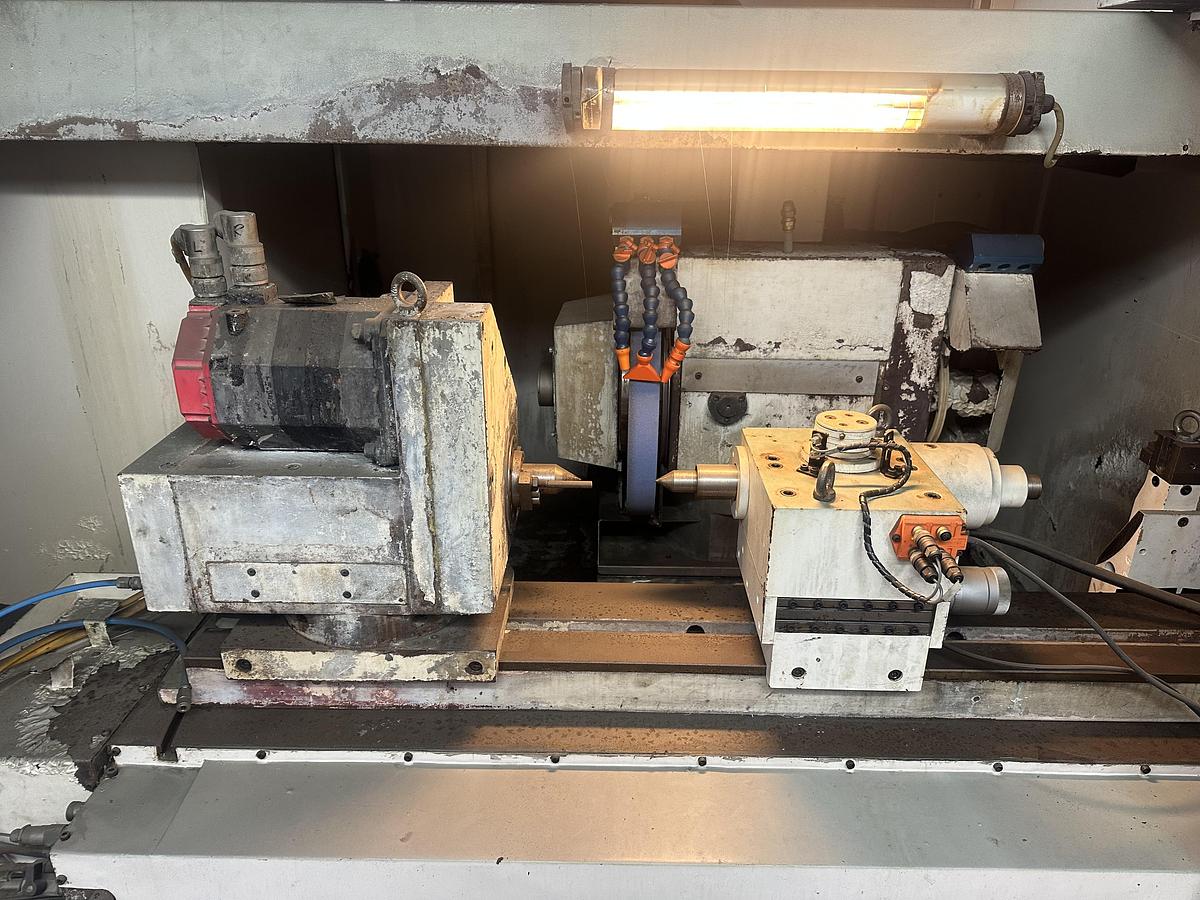

Spindle / Wheelhead
Grinding spindle speed: variable, up to 6,000 rpm
Wheel diameter: approx. 350 – 400 mm
Wheel motor power: approx. 7.5 – 11 kW

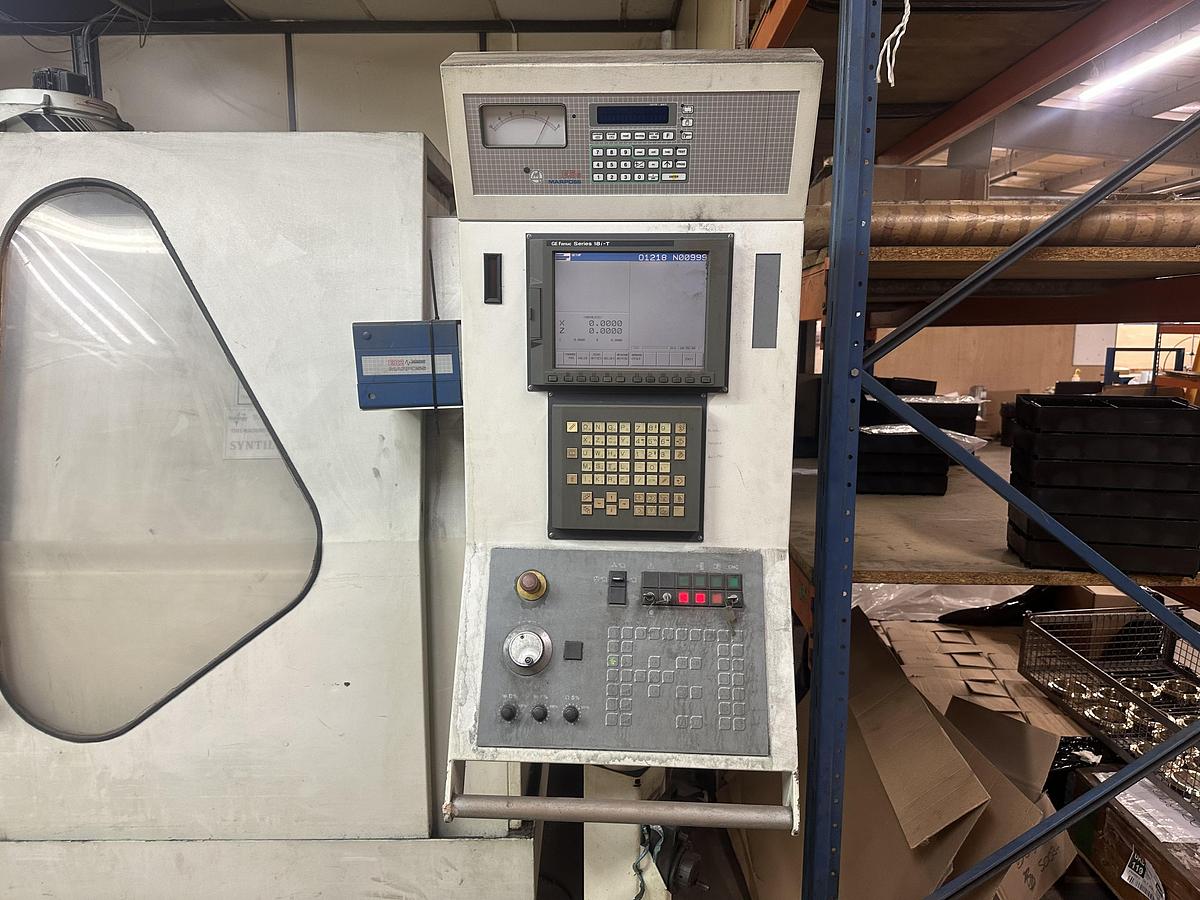

CNC Features
Fanuc 18i TA CNC control
Programmable X/Z axes for precise contour grinding
Supports multiple passes, taper grinding, and automated cycles
Equipment Included
Manuals
Filteration
Extraction
Machine Dimensions
Approx footprint: 3.0 m x 1.8 m
Approx weight: 4,500 – 5,500 kg
