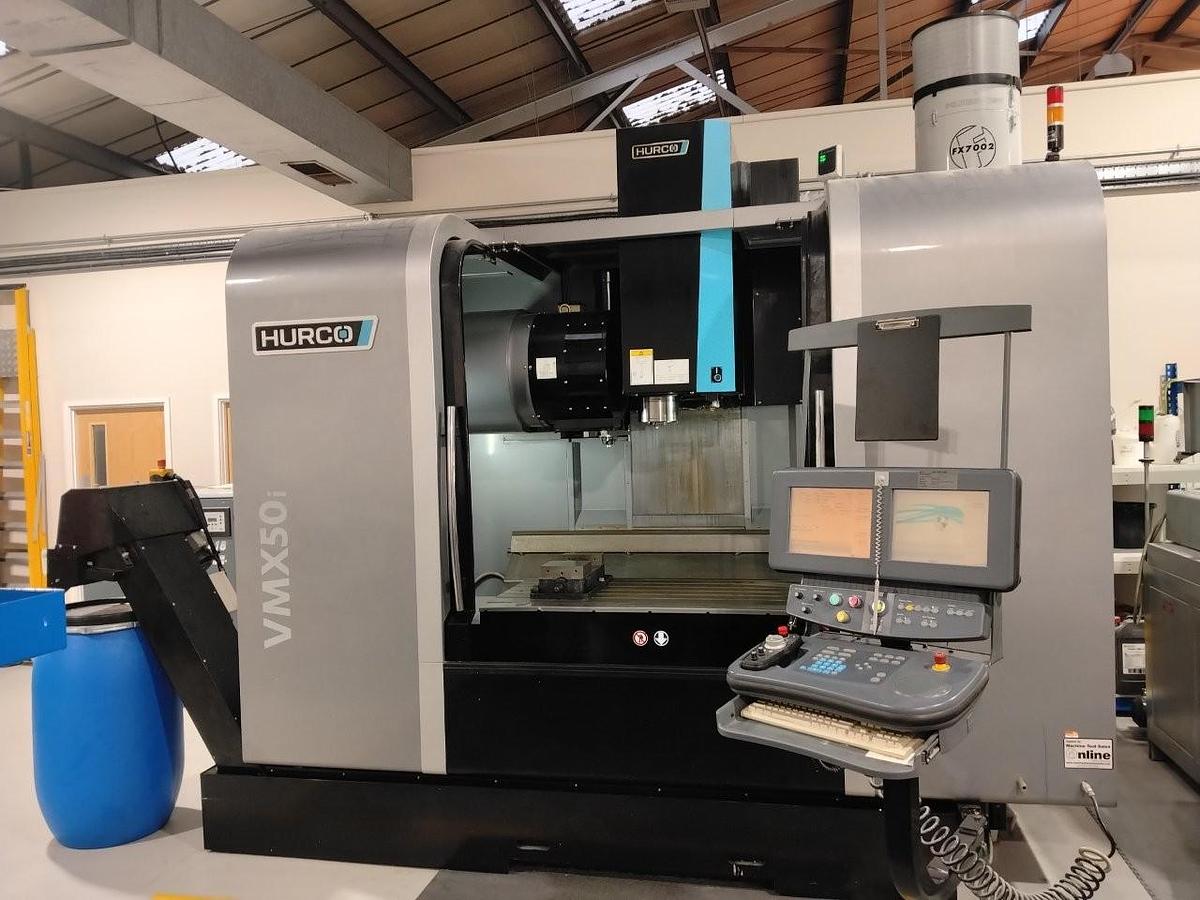

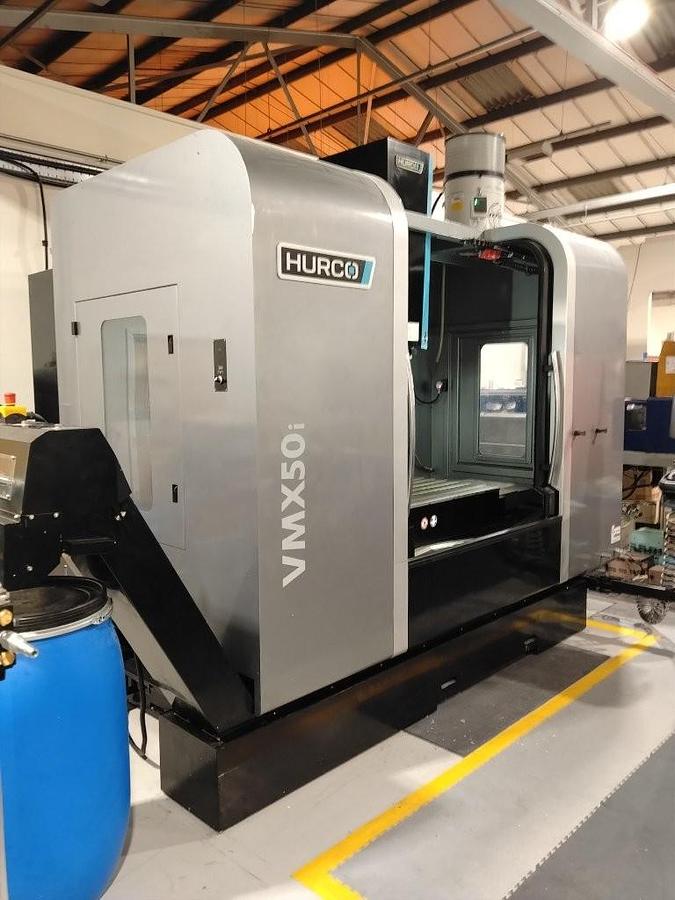

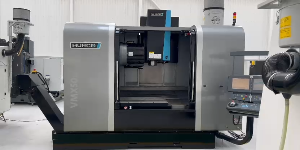

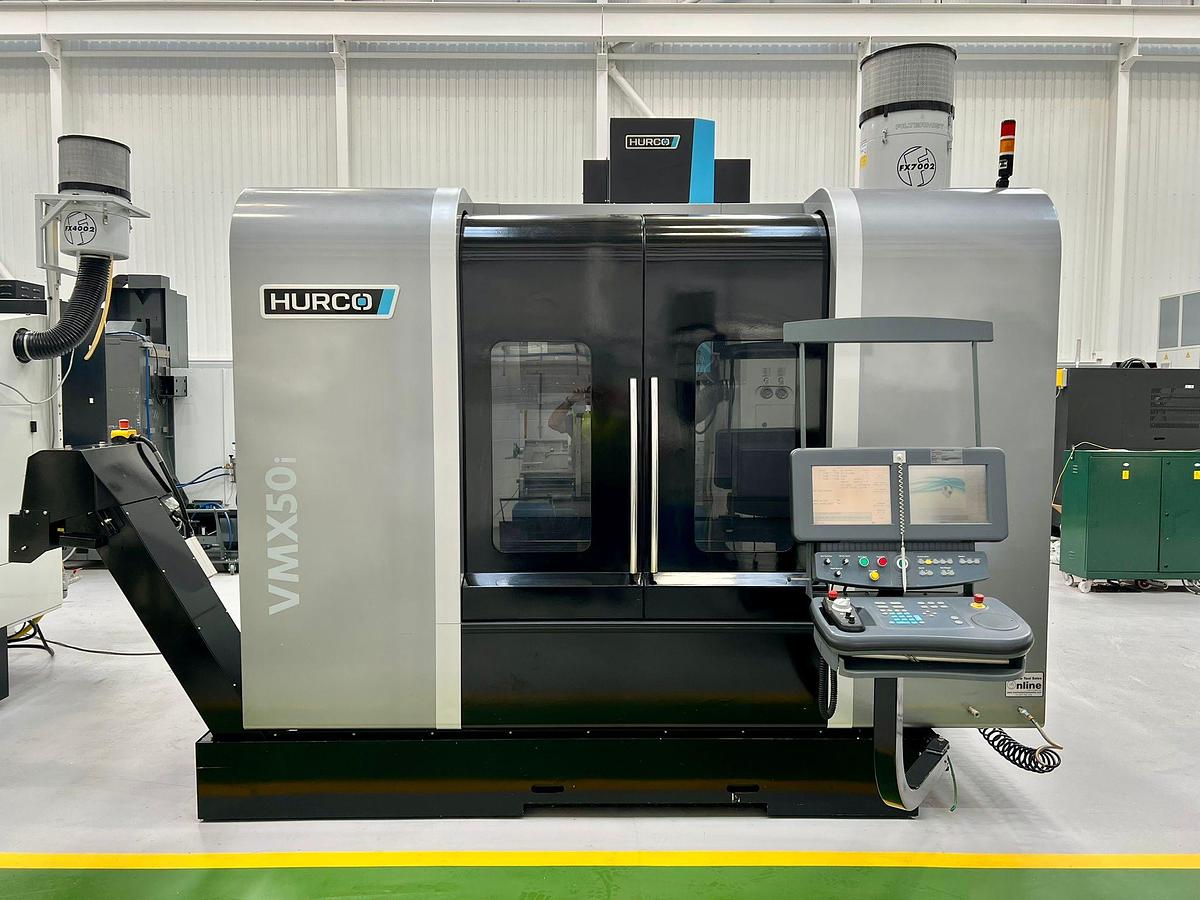

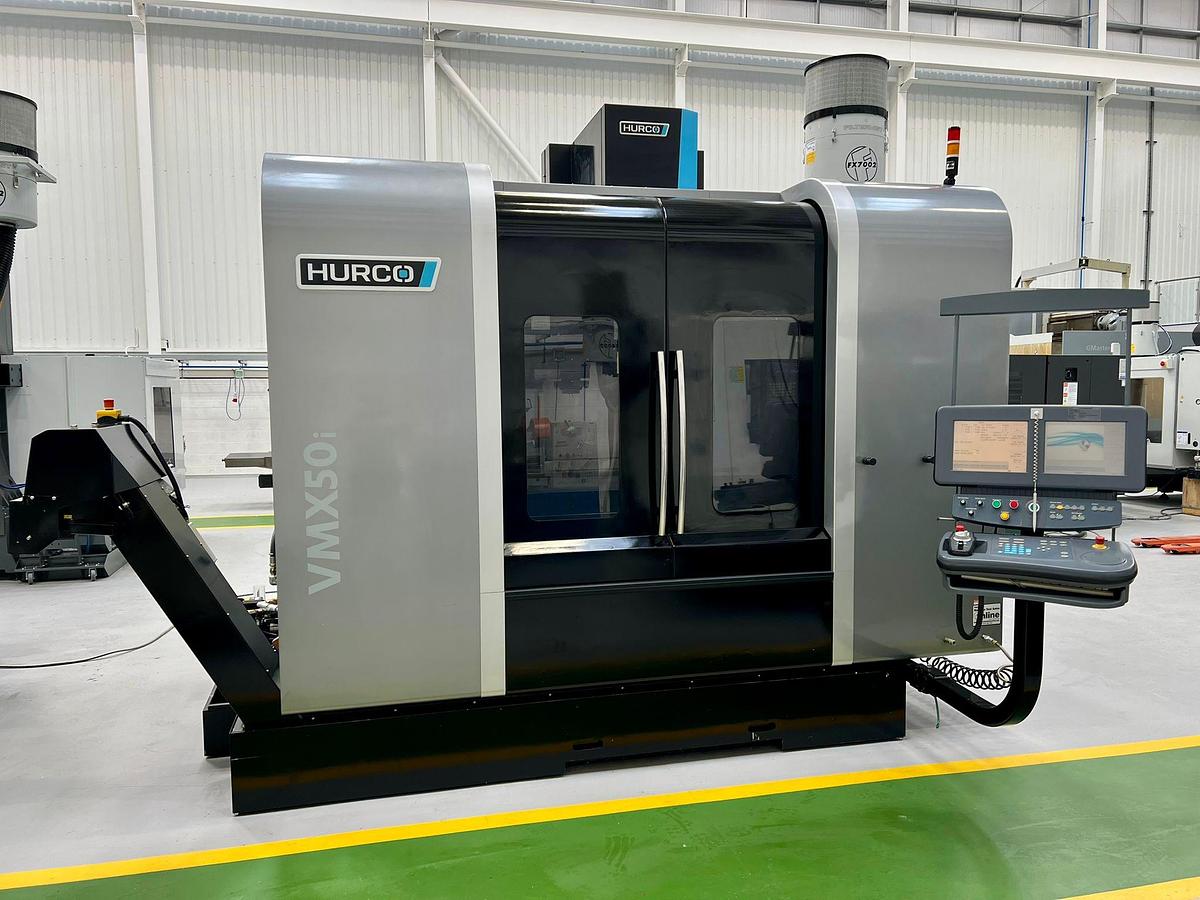

Hurco VMX50i (2014) 3-Axis Vertical Machining Centre
Description
Hurco VMX50i (2014) 3-Axis Vertical Machining Centre

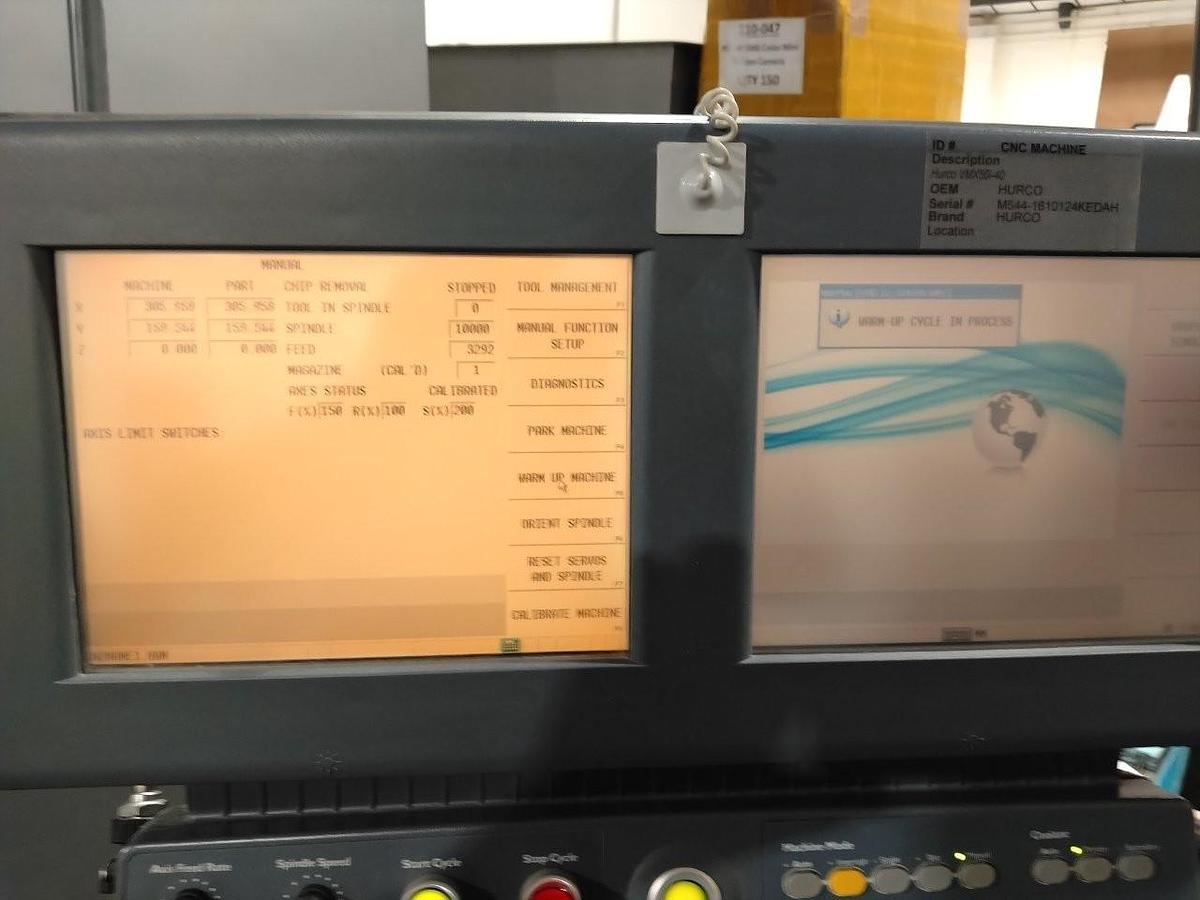

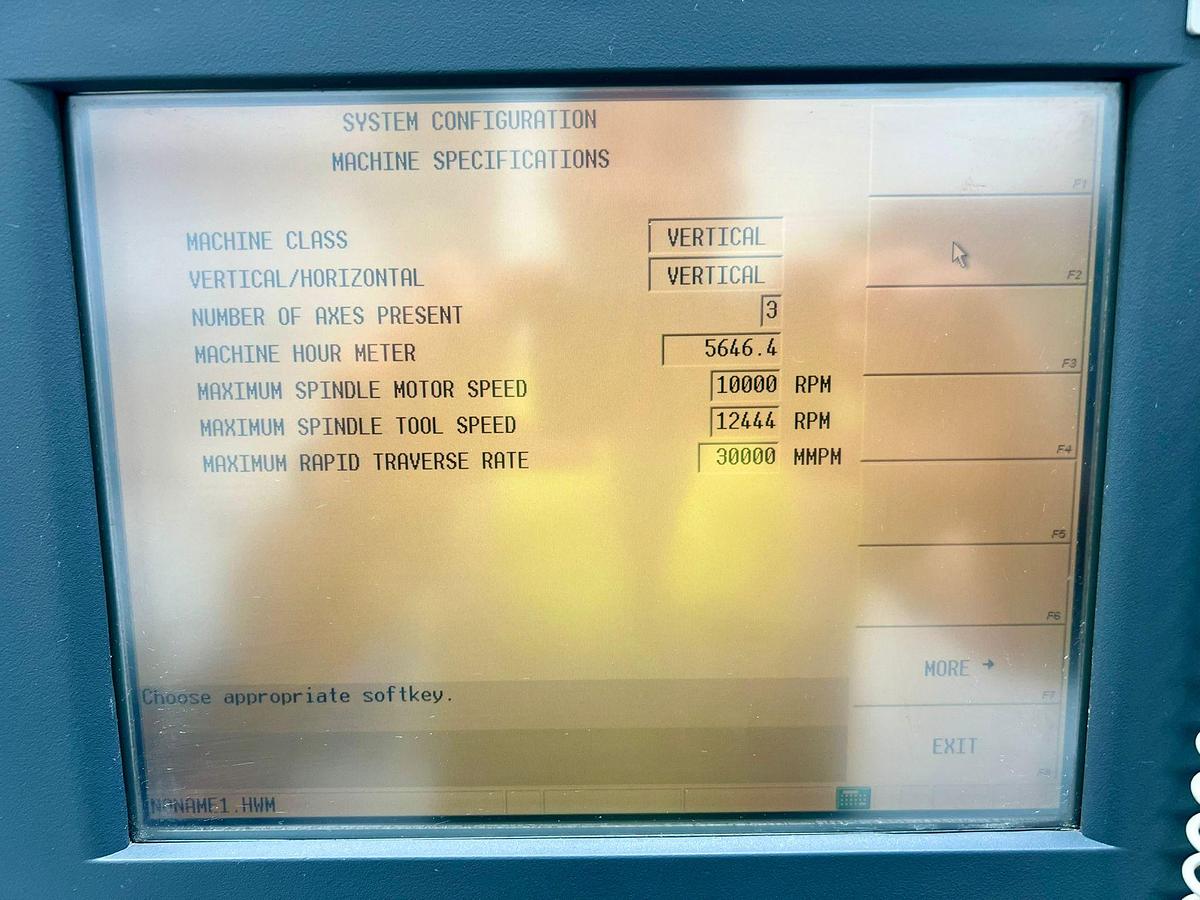

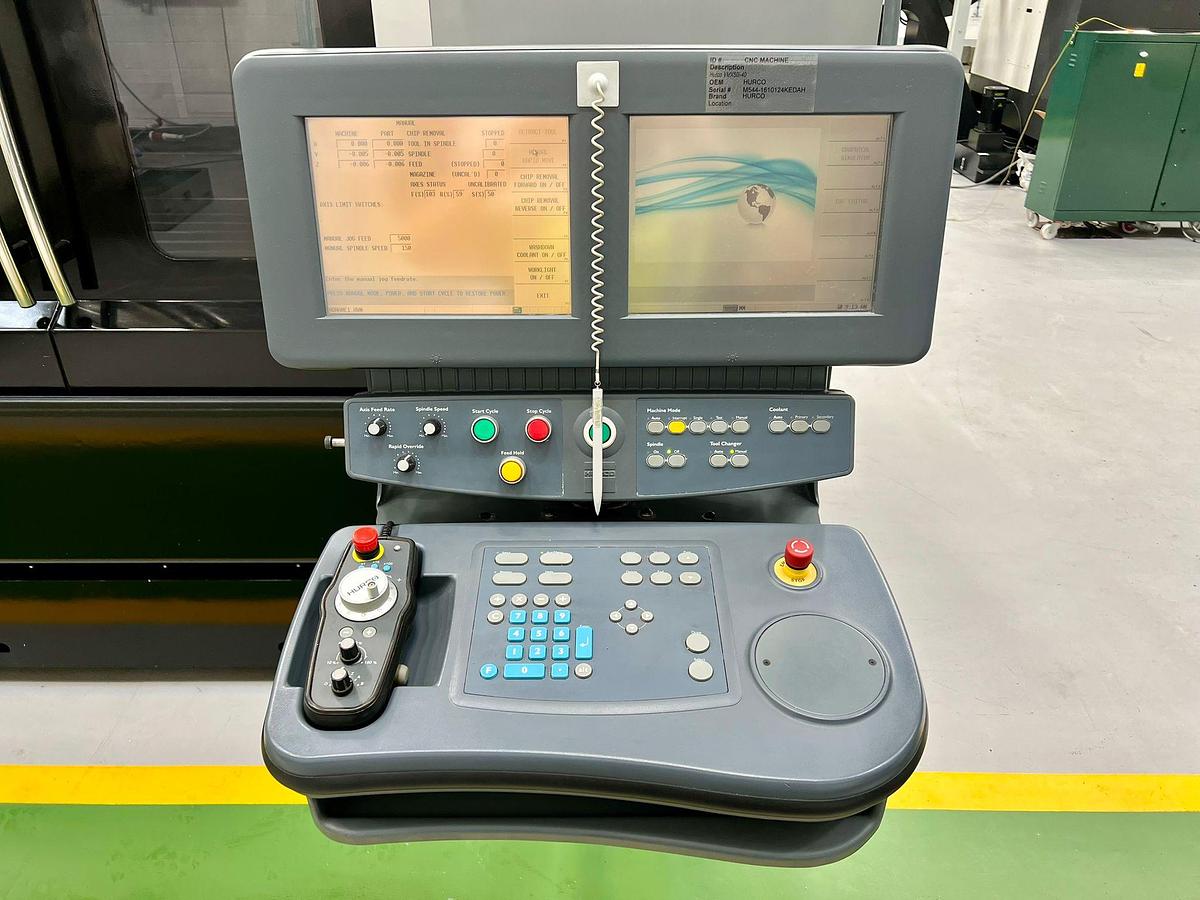

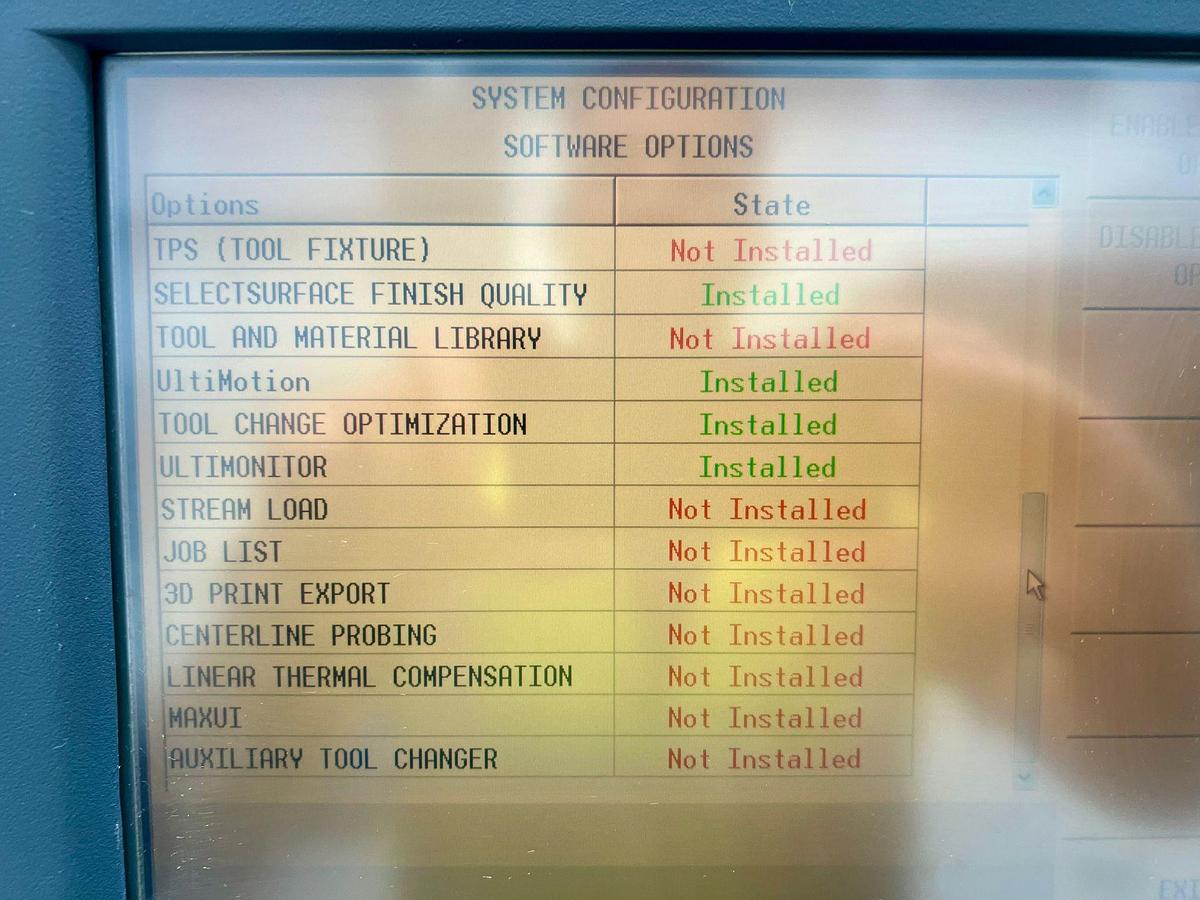

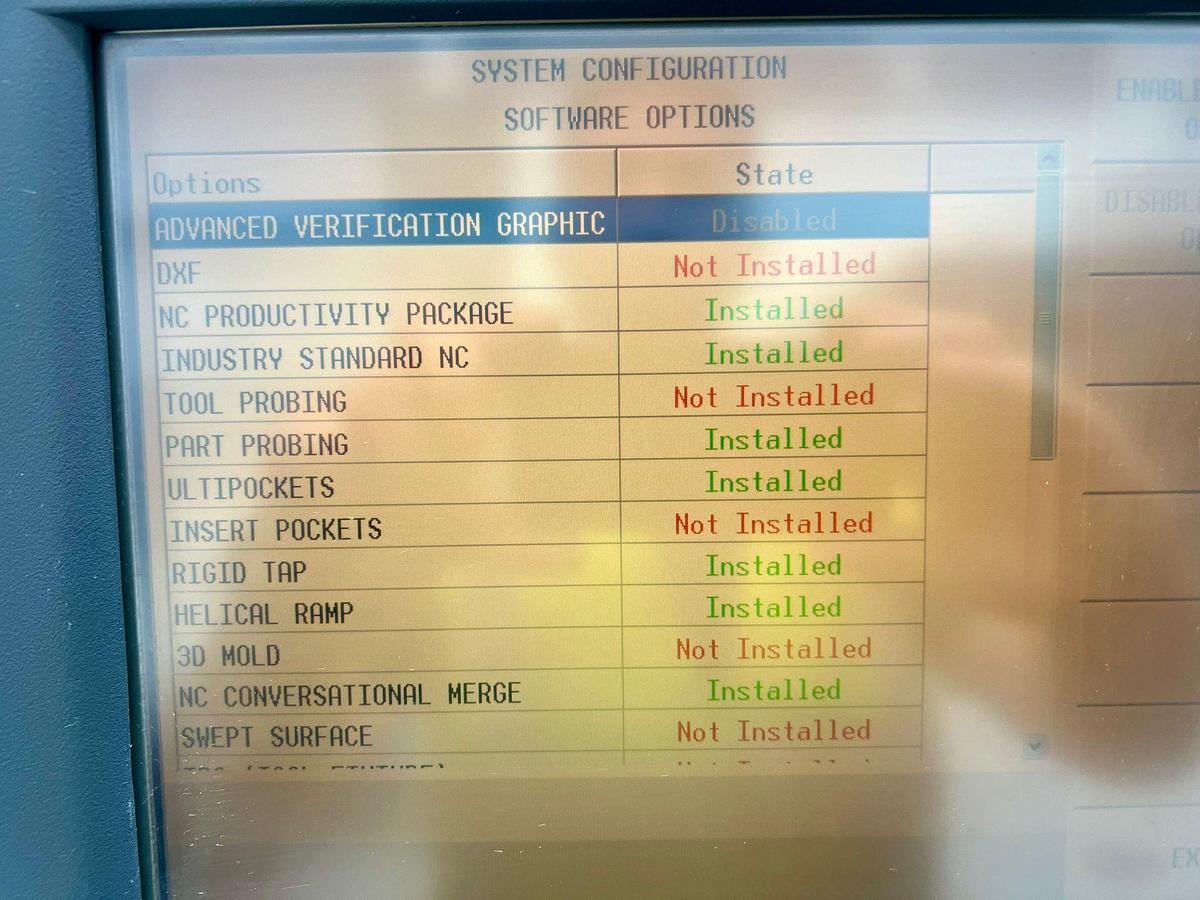

Control: Hurco WinMax
Travels & Capacity
X Axis Travel: 1270 mm
Y Axis Travel: 660 mm
Z Axis Travel: 610 mm

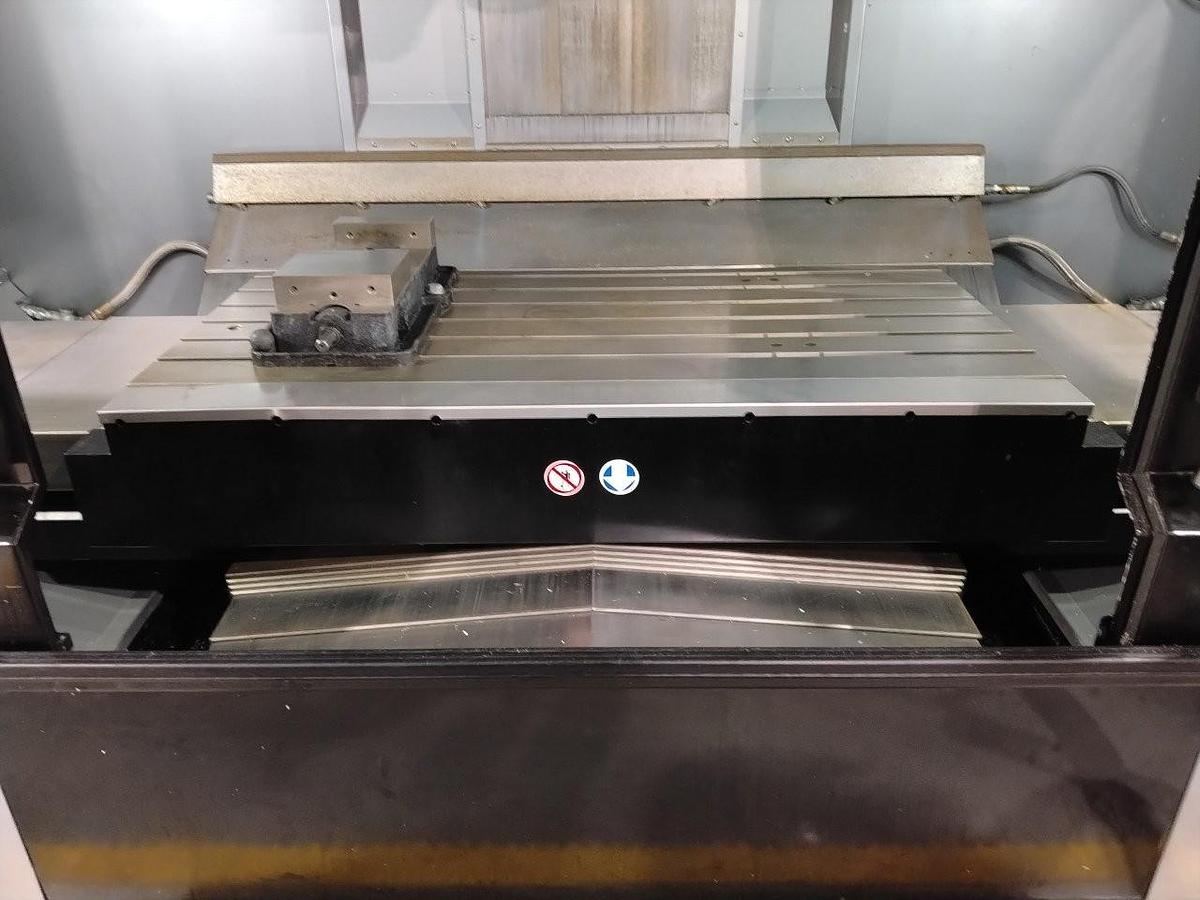

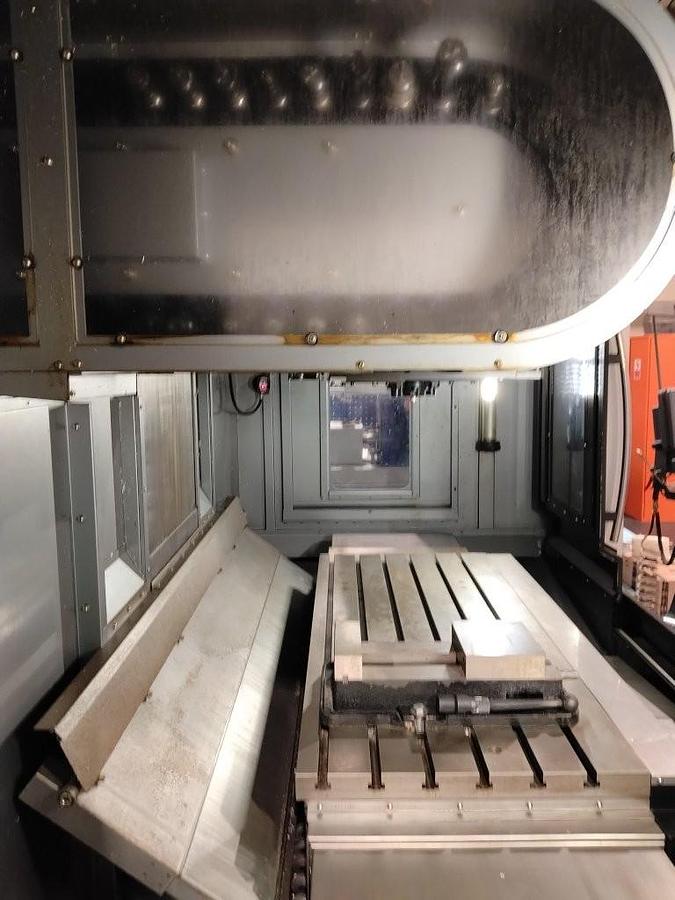

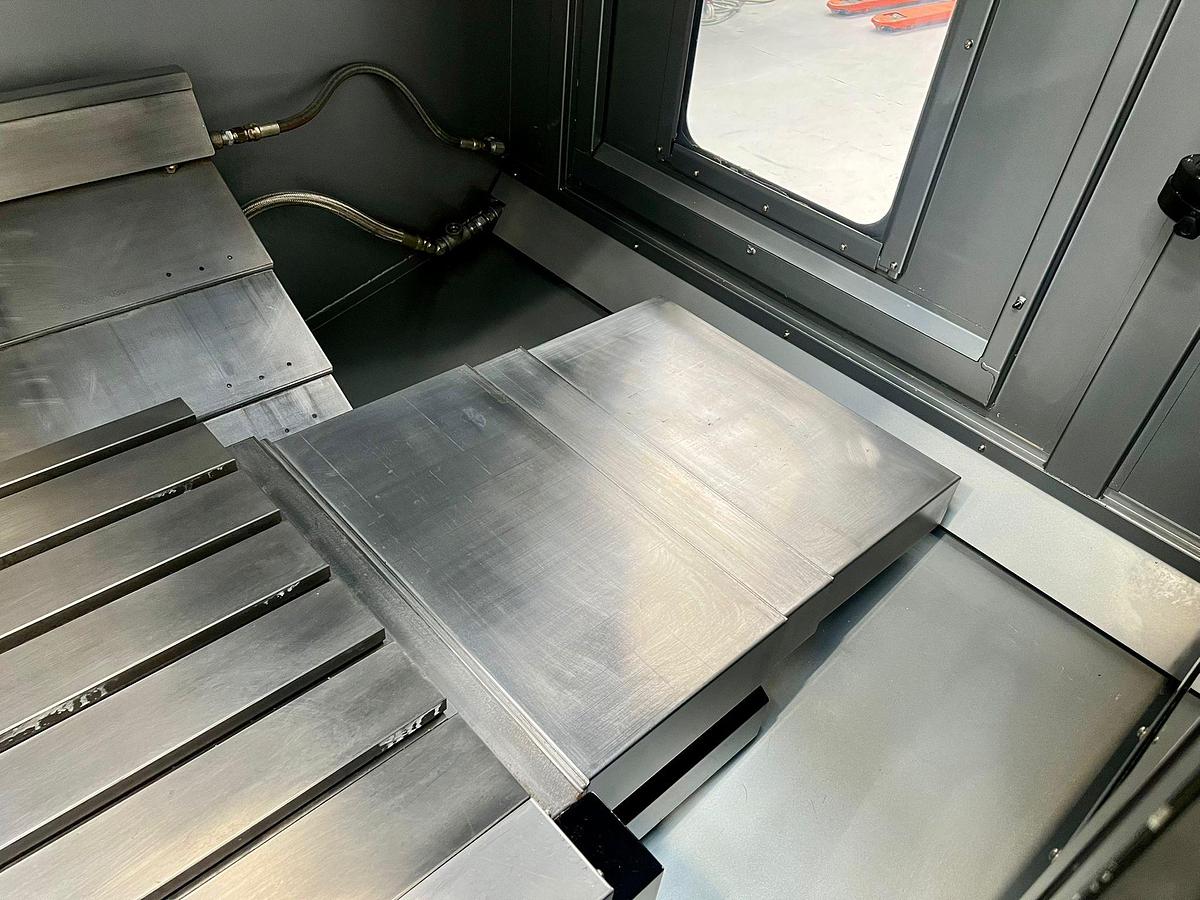

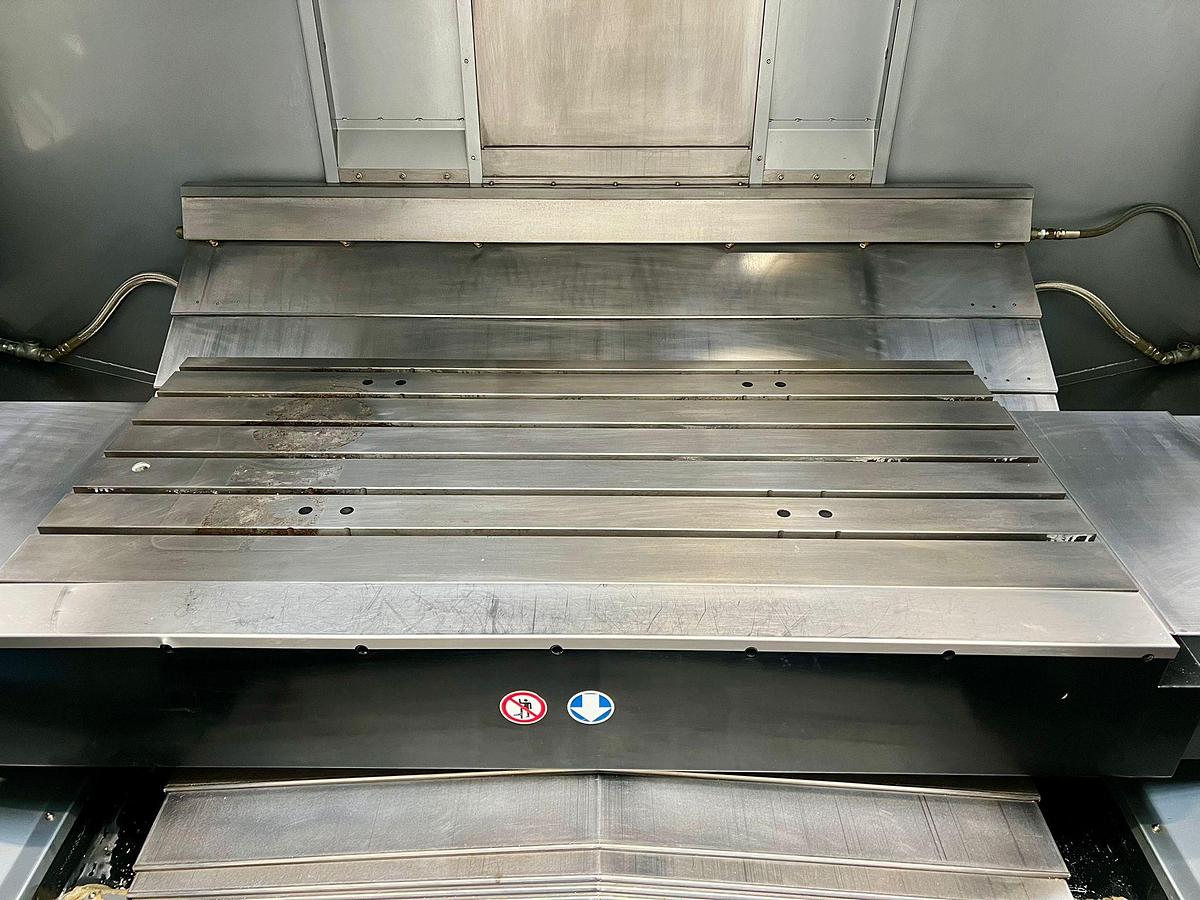

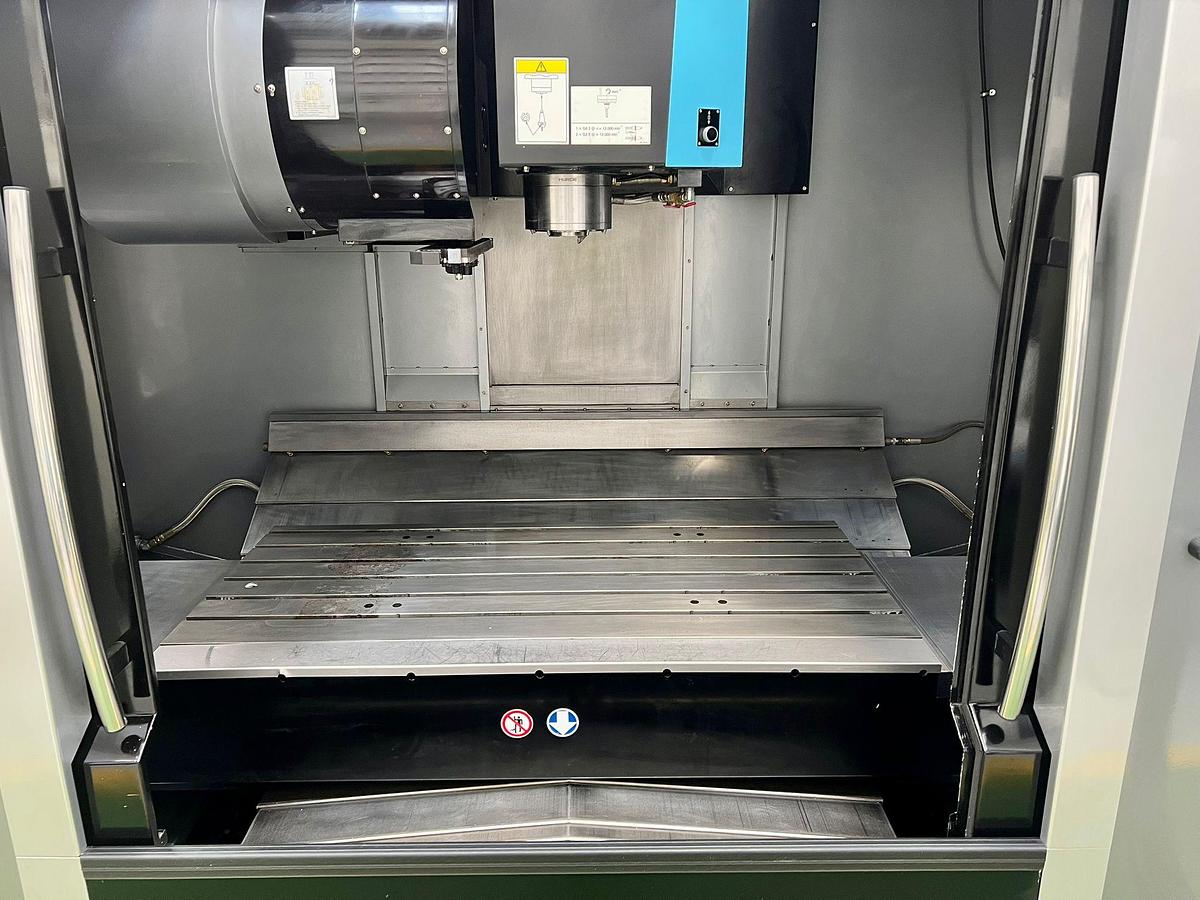

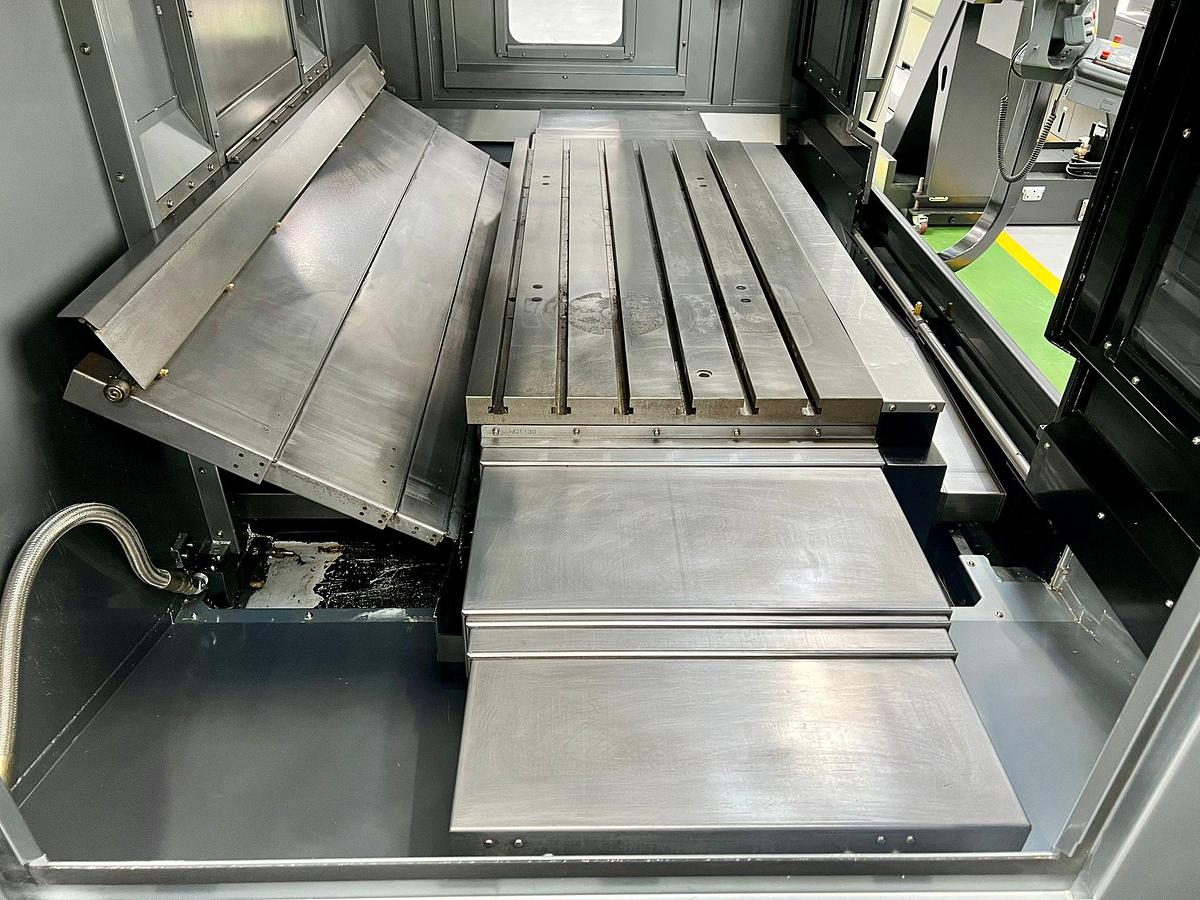

Table Size: 1500 x 660 mm
Max Table Load: 2000 kg
Key Specifications
| Manufacturer | Hurco |

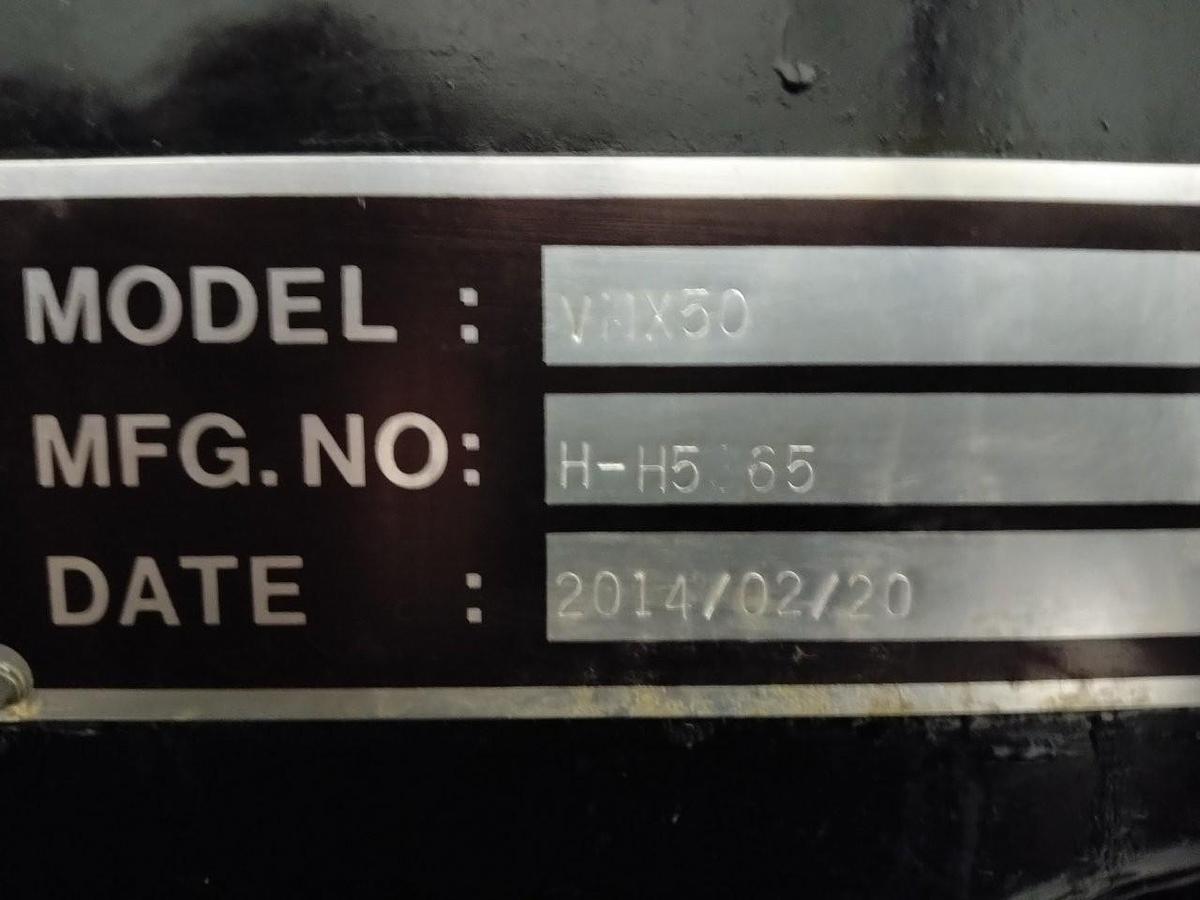

| Model | VMX50i |
| Year | 2014 |
| Condition | Used |
| Stock Number | 2876 |
Additional Features

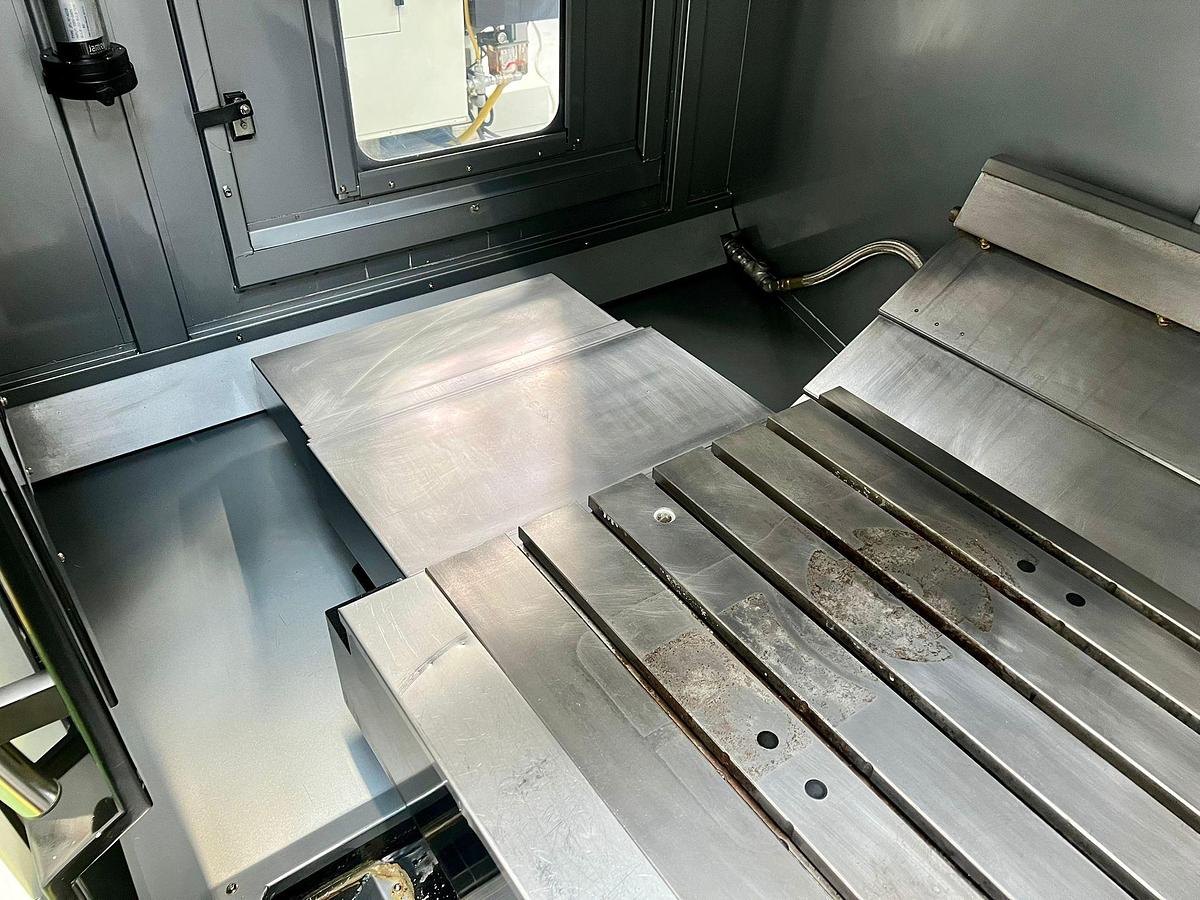

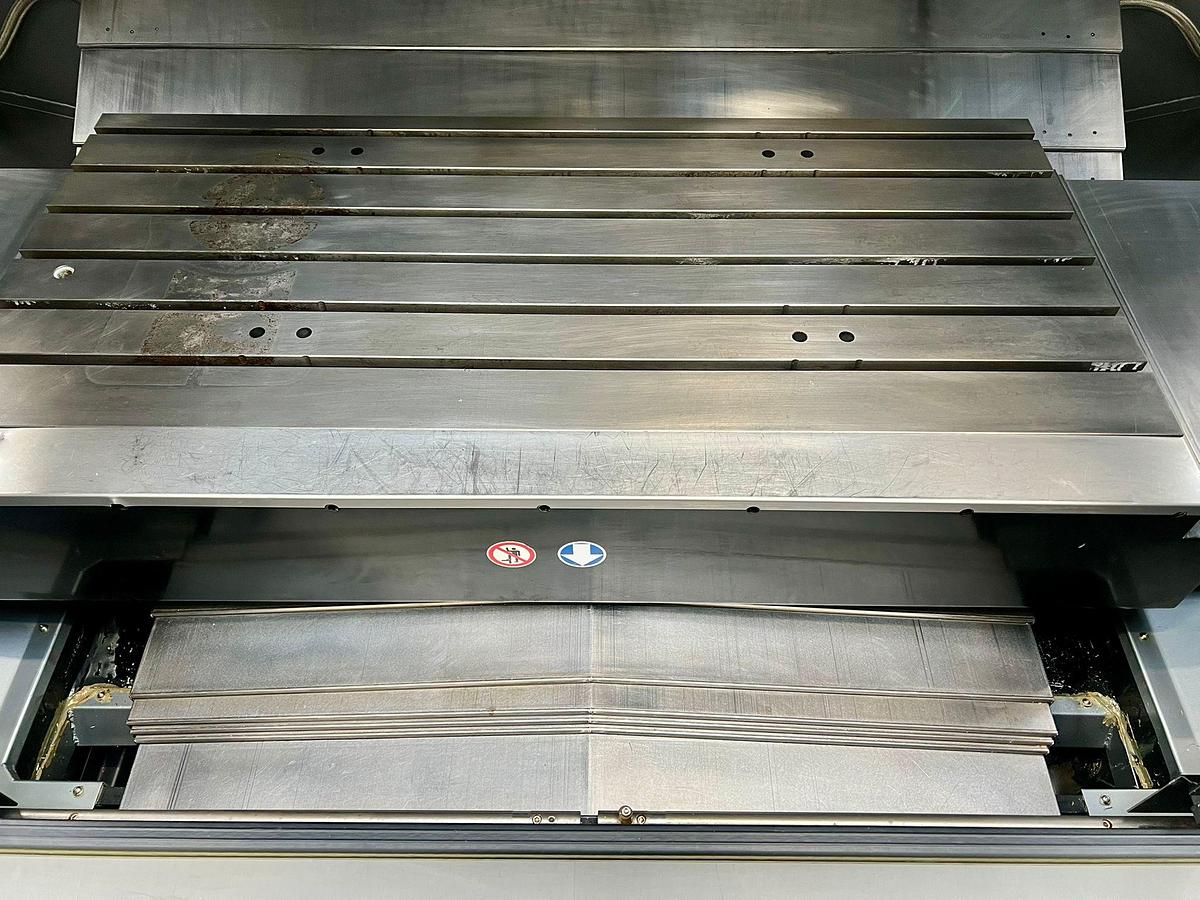

T-Slots: 6 x 18 mm
Spindle Nose to Table: ~100–150 mm (min)

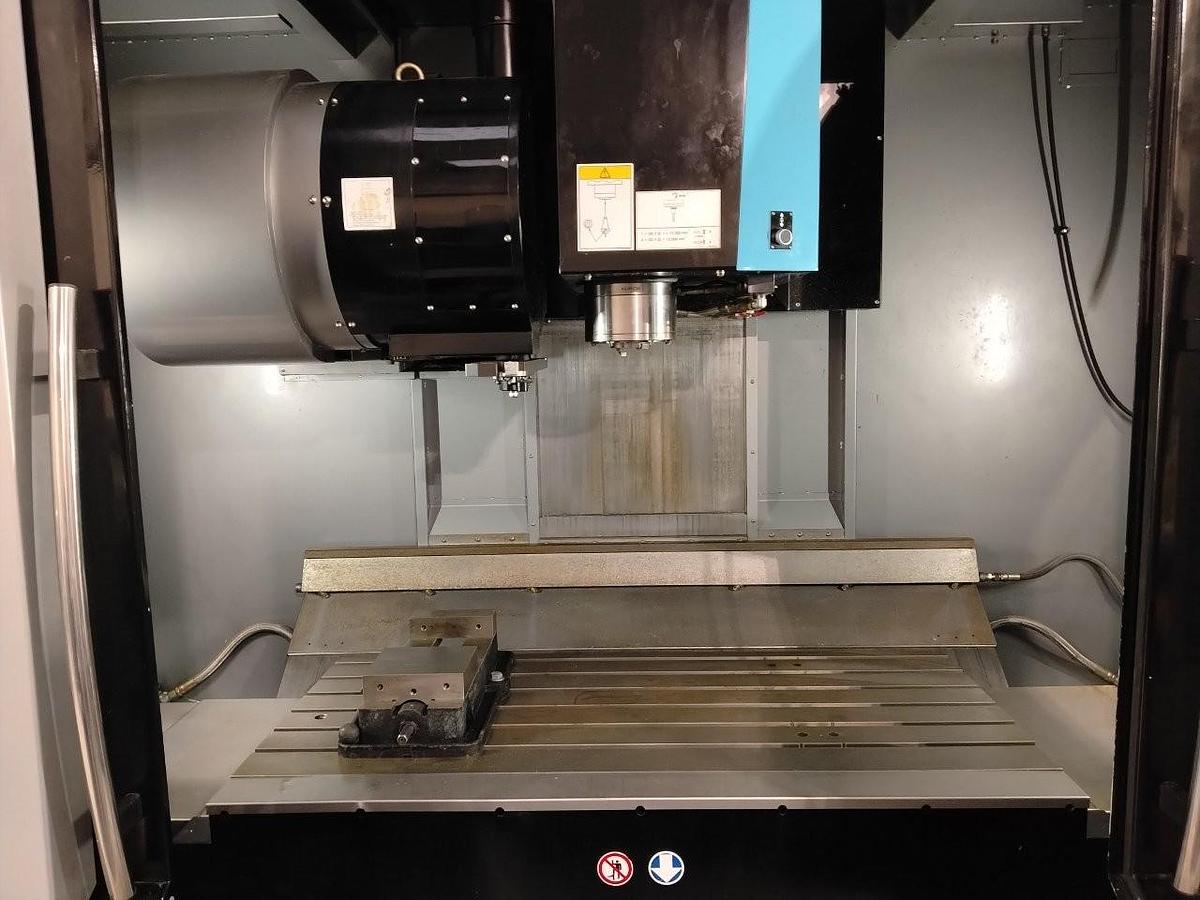

Spindle Taper: CAT / BT 40
Max Speed: 12,000 rpm
Spindle Power: 18 kW (24 hp peak)
Max Torque: ~239 Nm @ 720 rpm

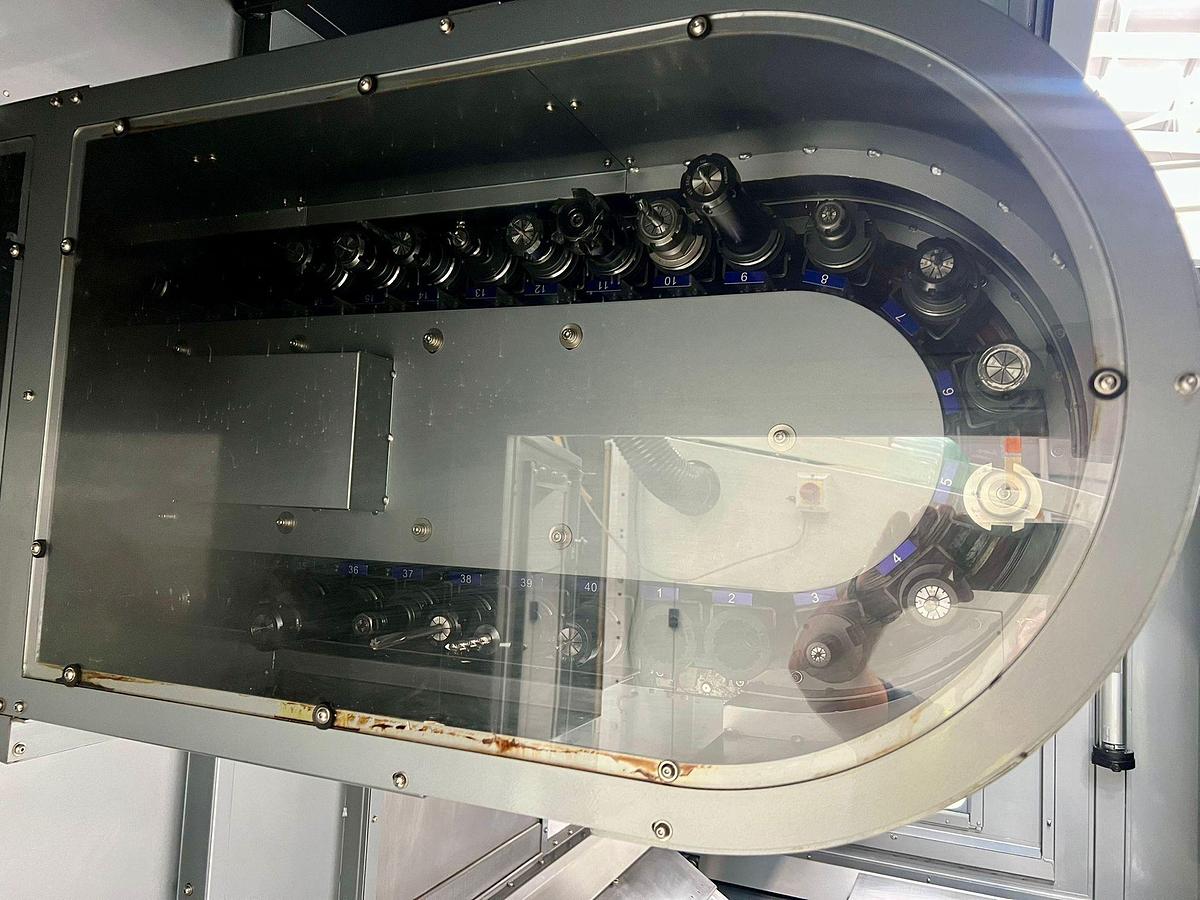

Tool Changer
Capacity: 30 tools
Max Tool Diameter: ~76–80 mm
Max Tool Length: 300 mm
Max Tool Weight: 7 kg (ISO40)
Feed Rates
Rapid Traverse (X/Y/Z): 32 / 32 / 24 m/min
Max Cutting Feed: 24 m/min
Machine Size & Weight
Floor Space: 5050 x 3800 x 3240 mm
Weight: 8,800 kg
Flood coolant system
Chip conveyor

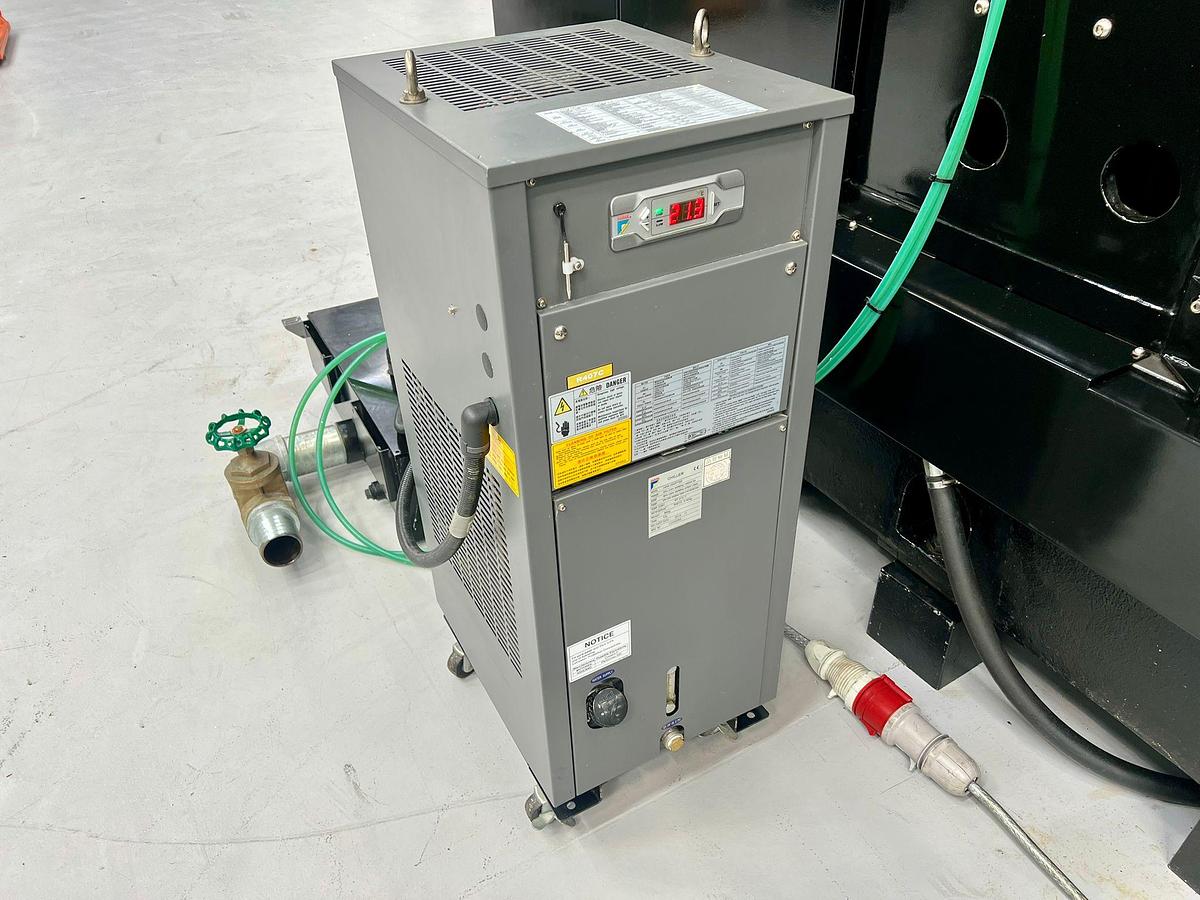

Spindle chiller
