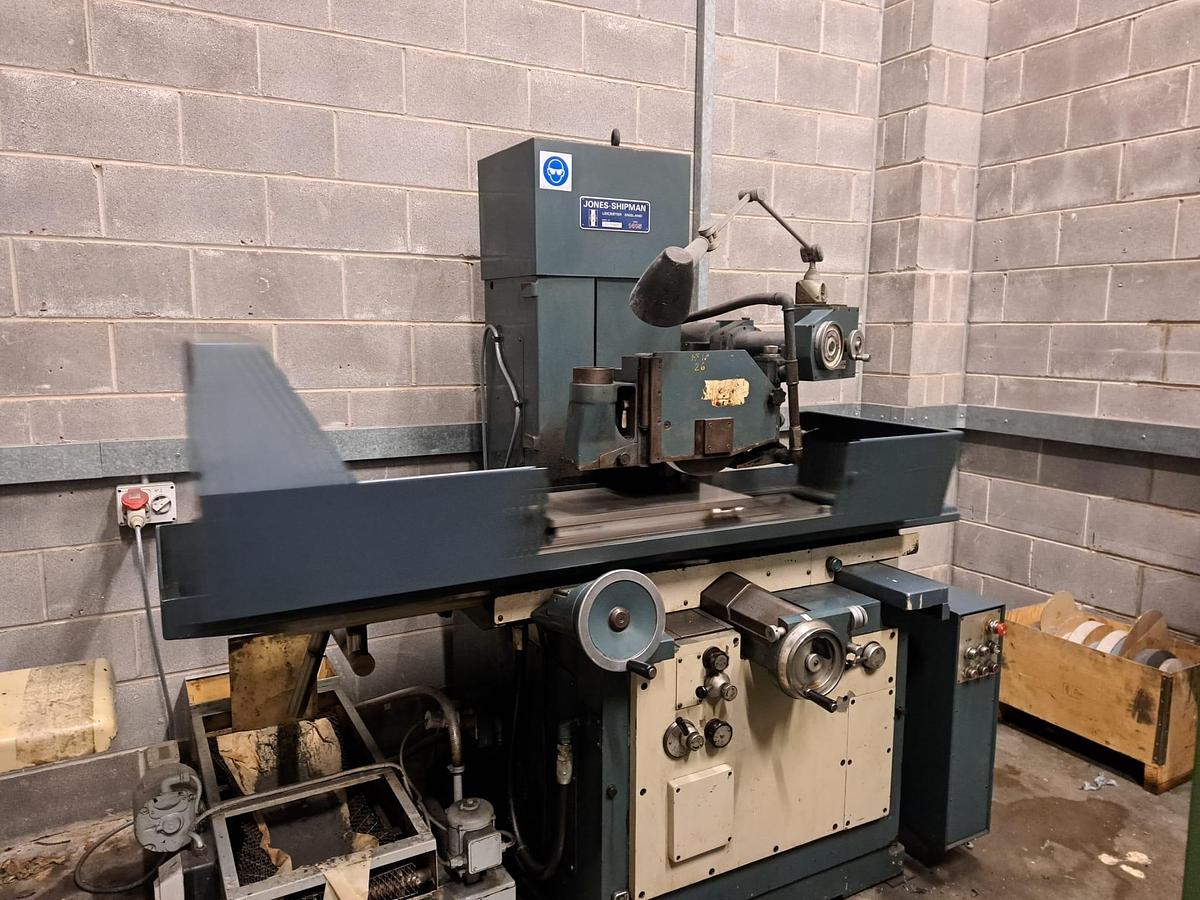

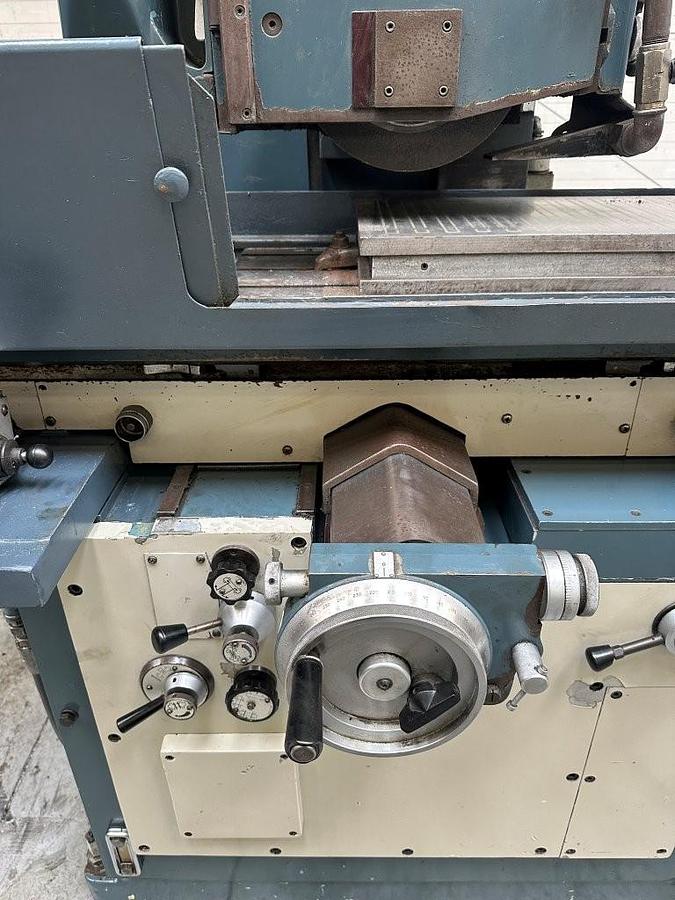

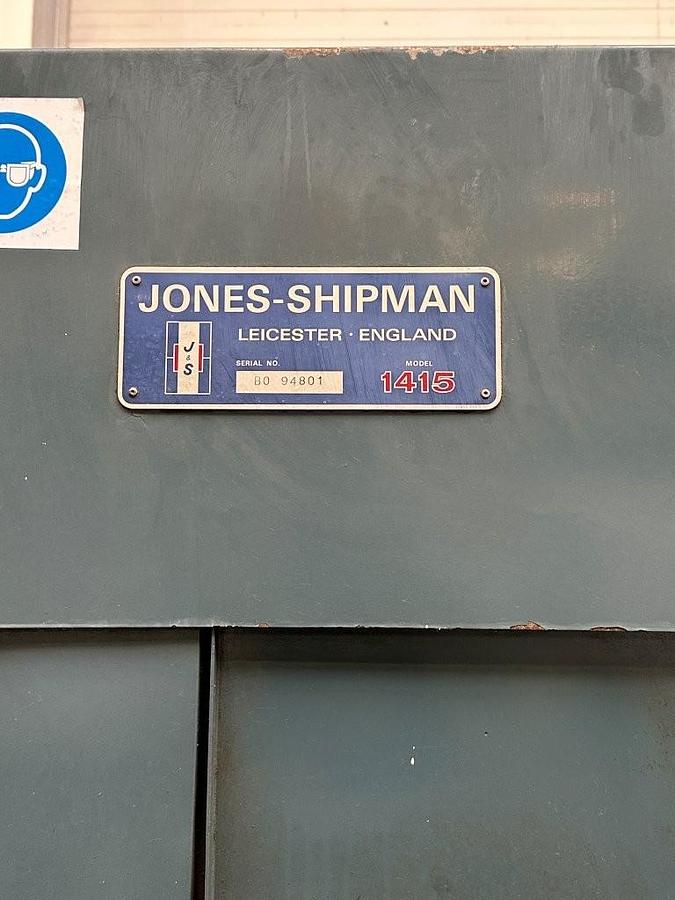

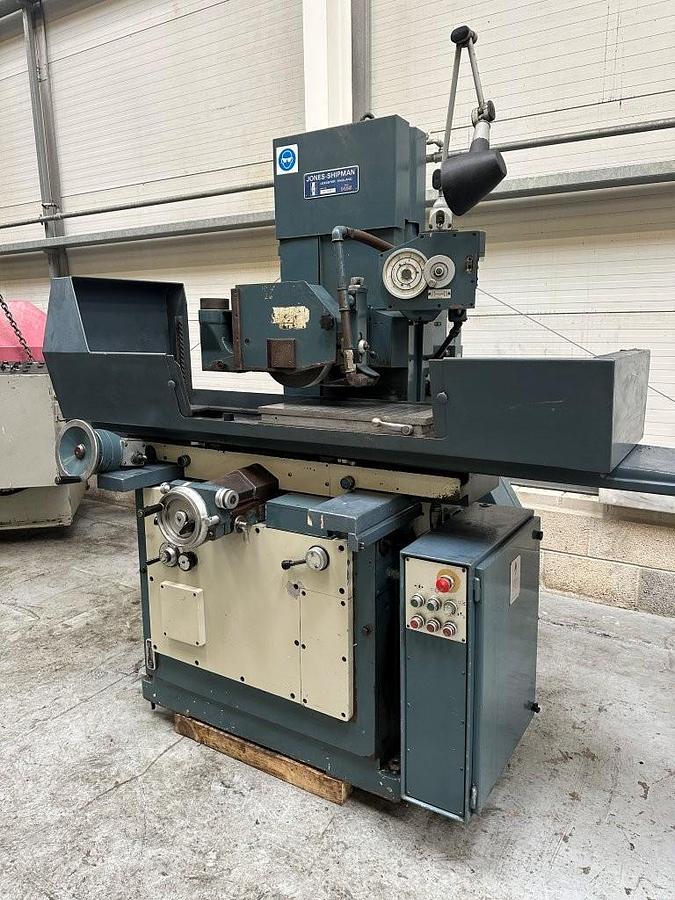

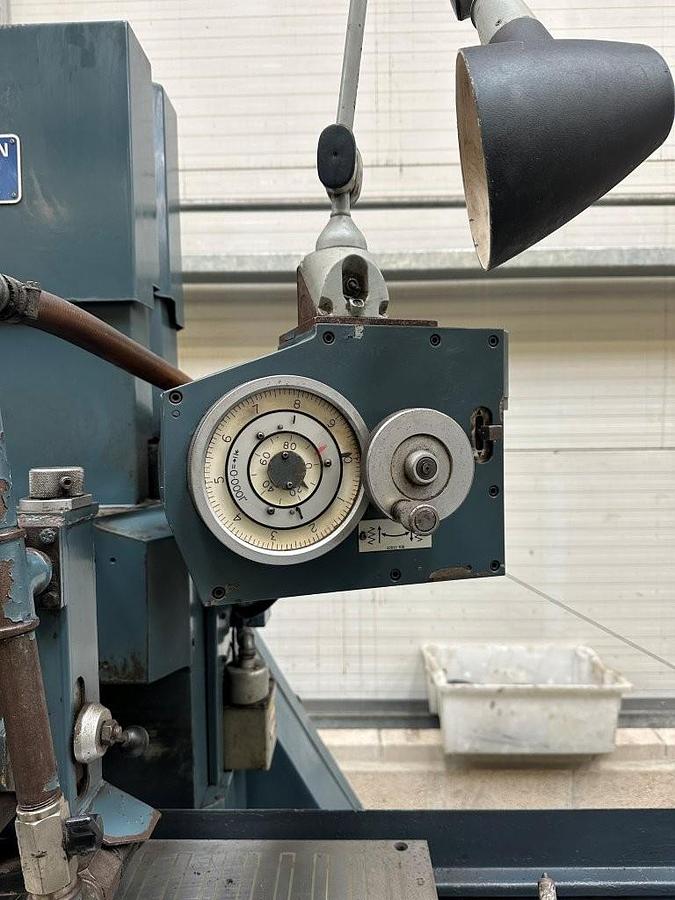

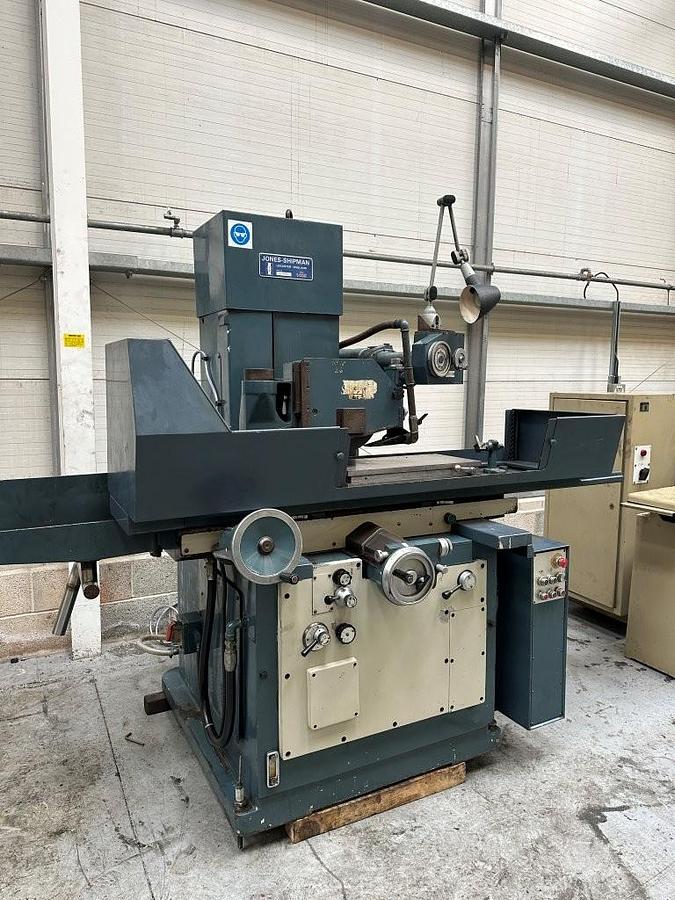

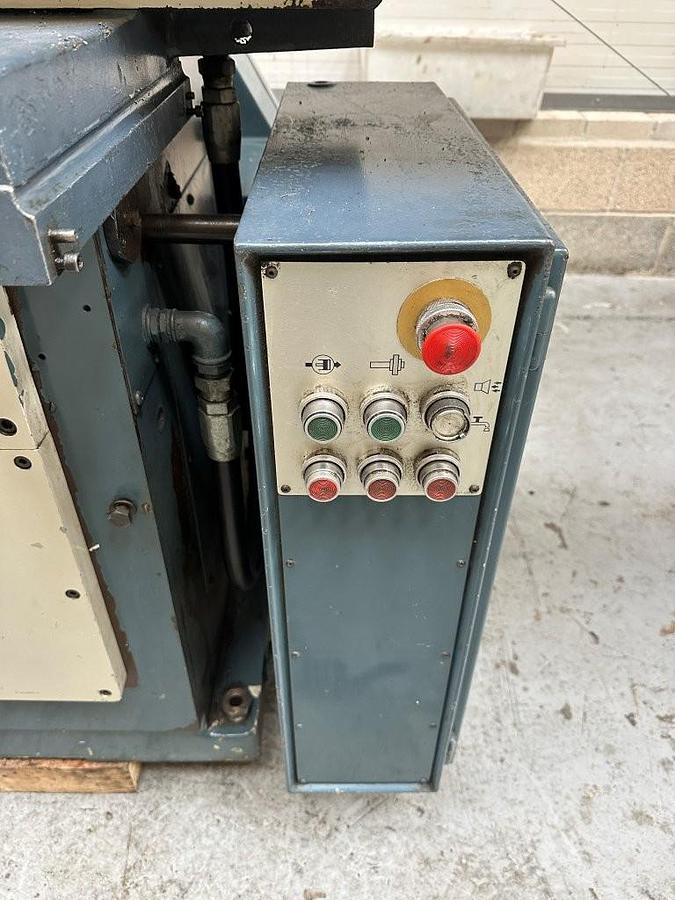

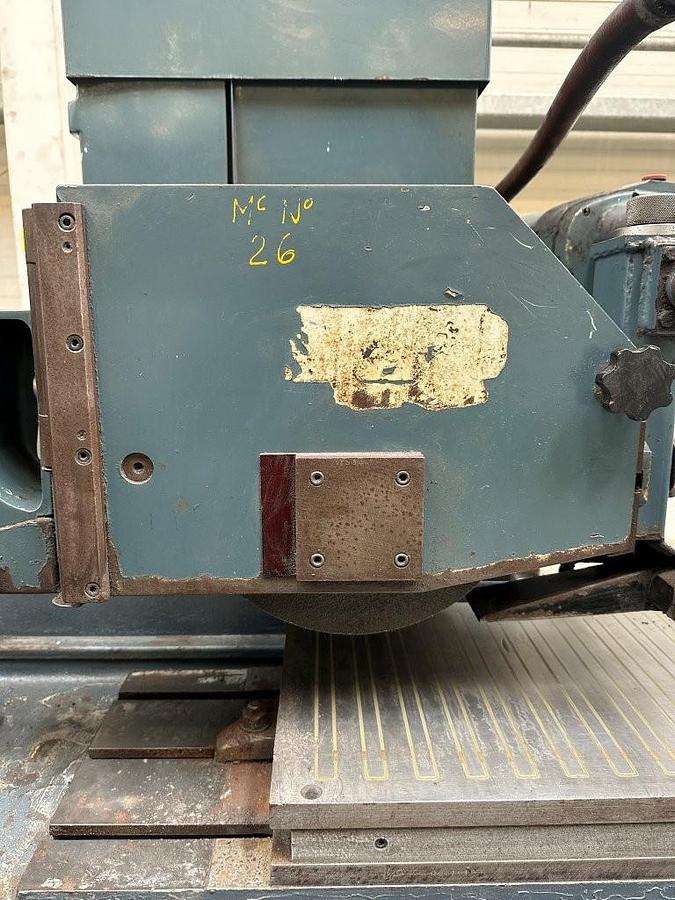

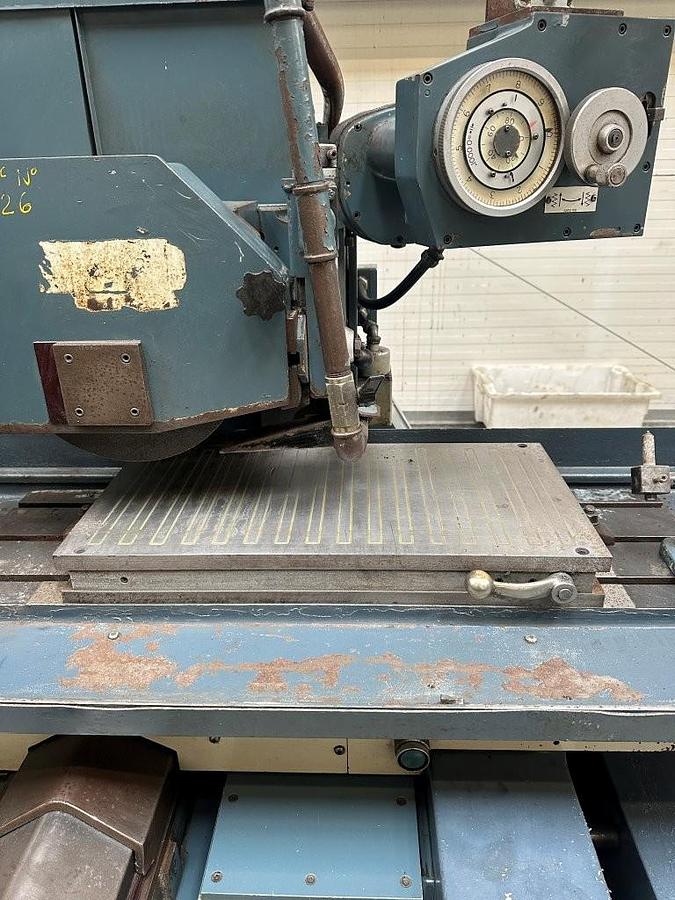

Jones & Shipman 1415 Surface Grinder
Description
Jones & Shipman 1415 Surface Grinder
Table Capacity 600 × 300 mm (24" × 12")
Magnetic Chuck 450 × 150 mm (18" × 6")
Longitudinal Travel 700 mm
Cross Travel 300 mm
Maximum Grinding Height 290 mm
Distance Under New Wheel Approx. 300 mm (11.75")
Rise & Fall
Cross Feed Hydraulic / Automatic
Grinding Wheel Diameter 300 mm (12")
Key Specifications
| Manufacturer | Jones & Shipman |
| Model | 1415 |
| Condition | Used |
| Stock Number | TBC |
Additional Features
Length 2,300 mm
Width 1,800 mm
Height 2,000 mm
Machine Weight Approx. 1,800–2,200 kg
Electrical Supply 415V, 3 Phase
