Nakamura-Tome Super NTJ 9-Axis Turn/Mill Centre
Description

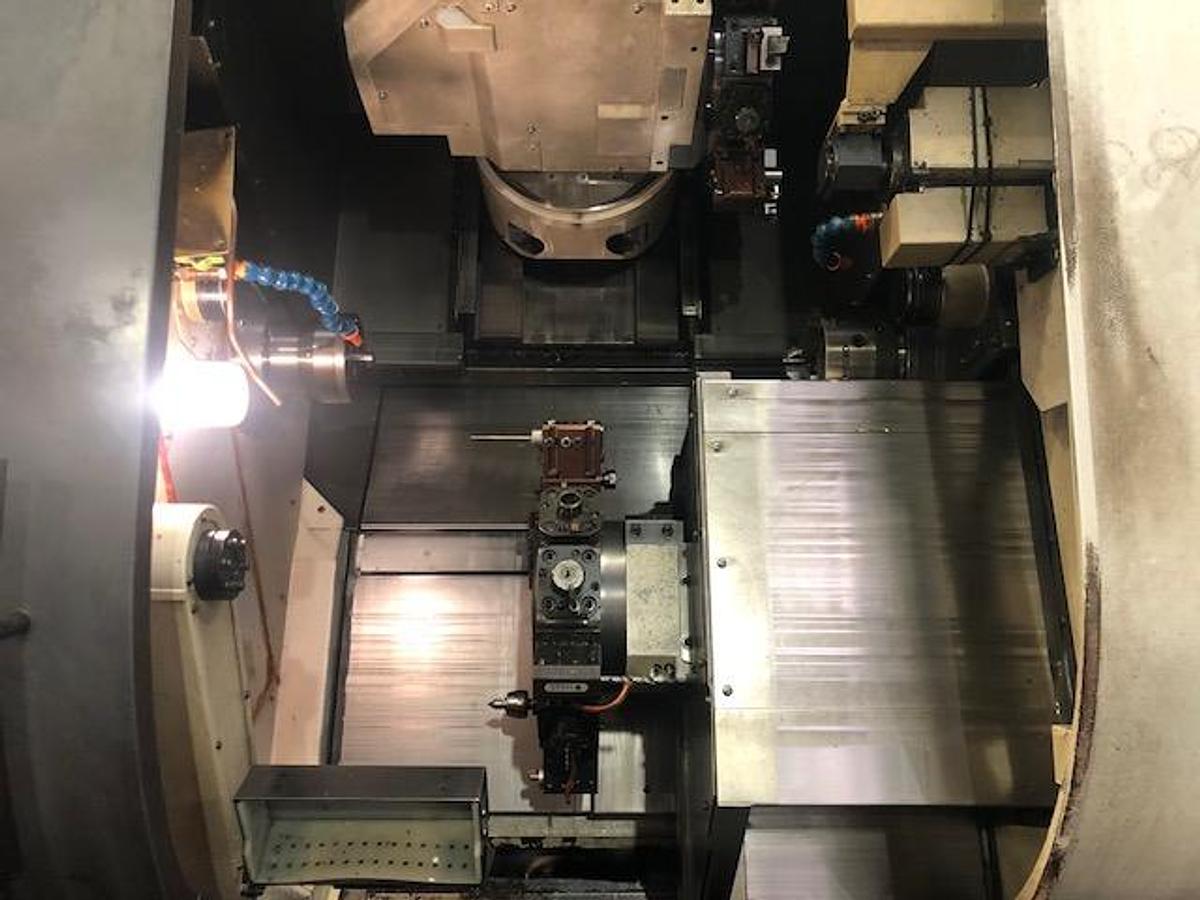

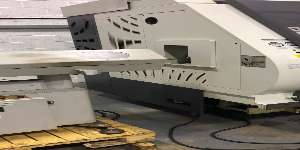

Nakamura-Tome Super NTJ 9-Axis Turn/Mill Centre
Year: 2003/2004

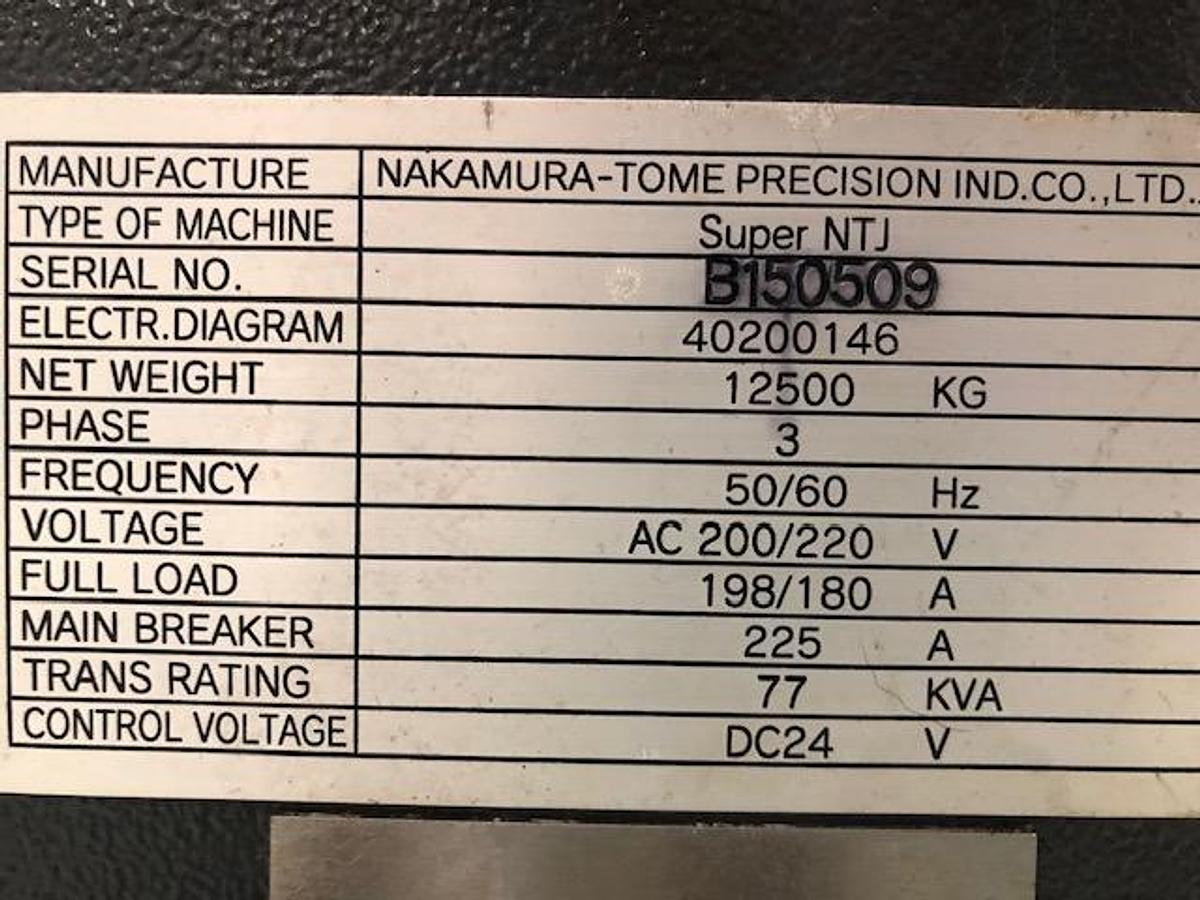

Serial Number: B150509

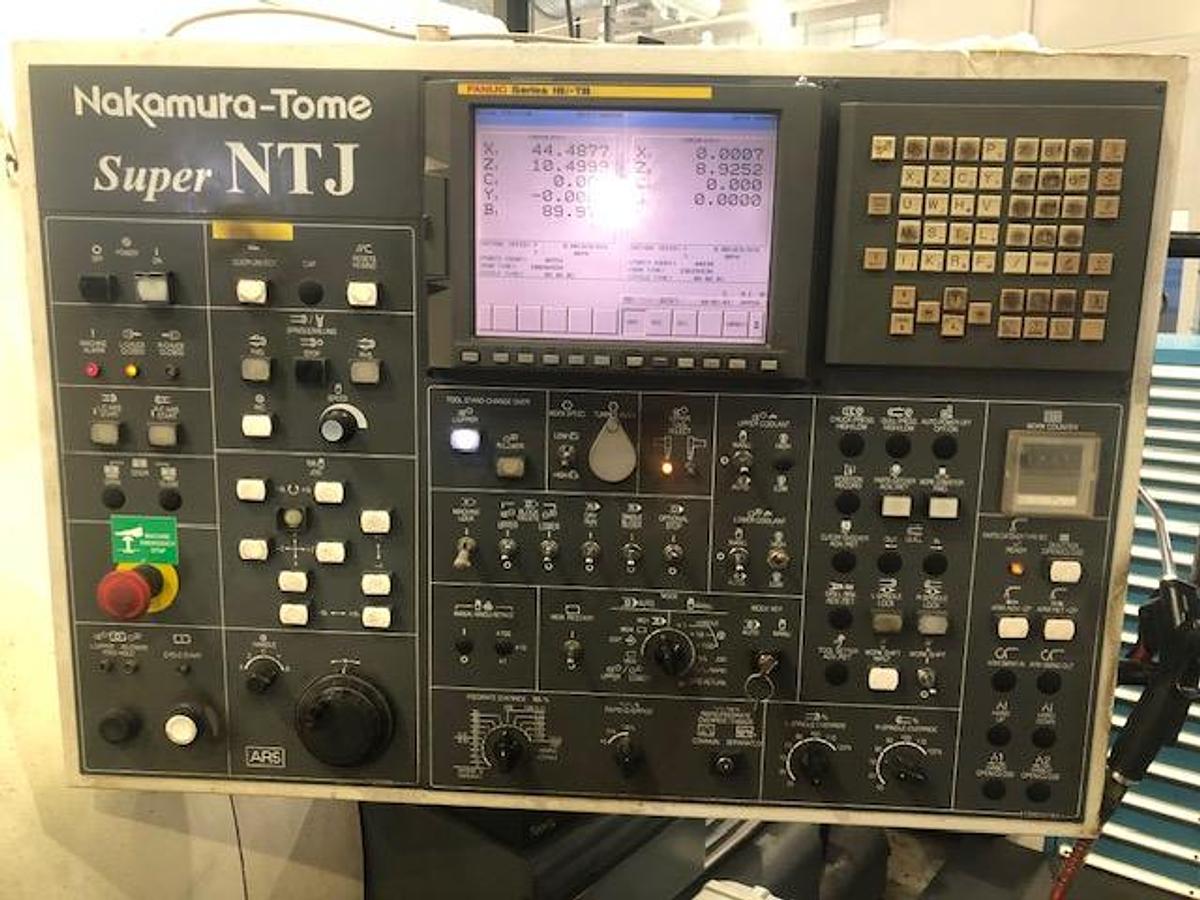

Control: Fanuc 18i-TB
Main Spindle
Maximum bar capacity: 65 mm
Maximum turning diameter: 190 mm
Spindle nose: A2-6
Spindle power: 15 kW
Spindle speed: 4,500 rpm
C-axis indexing: 0.001°
Sub-Spindle
Maximum bar capacity: 51 mm
Spindle nose: A2-5
Spindle power: 11 kW
Spindle speed: 5,000 rpm
C-axis indexing: 0.001°
Stroke: 760 mm

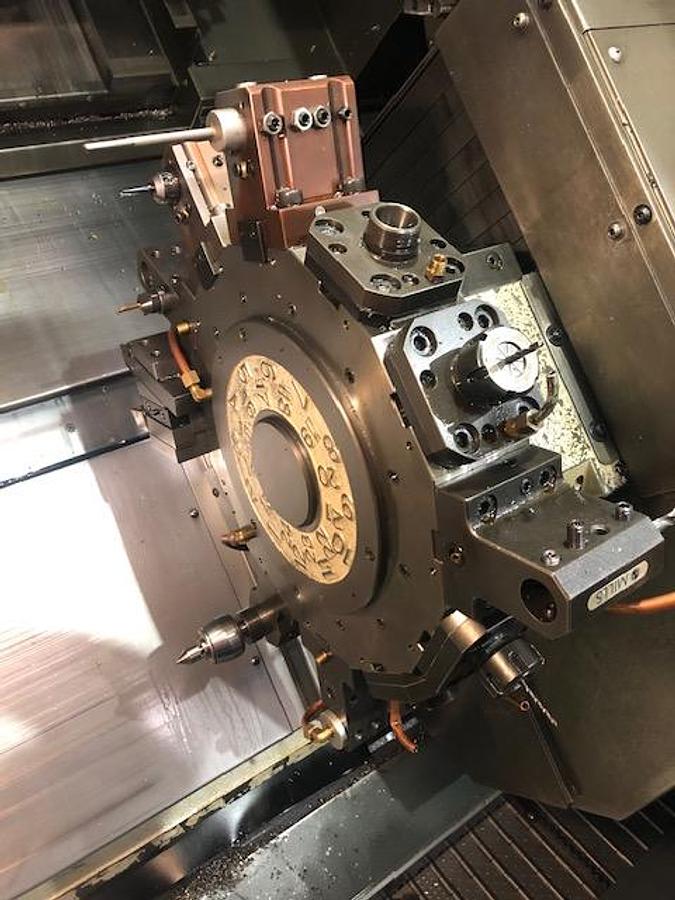

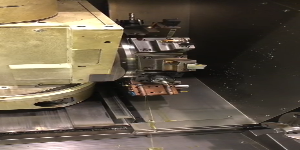

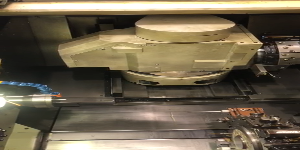

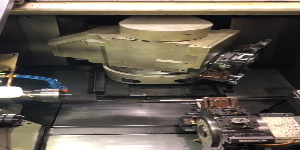

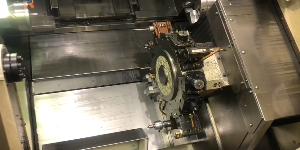

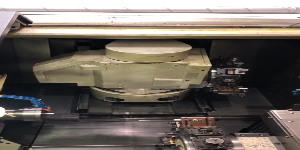

Upper Turret
Number of tool stations: 24
Motorised tool stations: 24
X-axis travel: 345 mm
Y-axis travel: ±45 mm
Z-axis travel: 1,240 mm
B-axis travel: ±91°
Live tooling speed: 6,000 rpm
Live tooling power: 5.5 kW
Lower Turret
Number of tool stations: 24
Motorised tool stations: 12
X-axis travel: 167.5 mm
Z-axis travel: 685 mm
Live tooling speed: 6,000 rpm
Live tooling power: 5.5 kW
Key Specifications
| Manufacturer | Nakamura-Tome |
| Model | Super NTJ 9-Axis Turn/Mill Centre |
| Year | 2003 |
| Condition | Used |
| Serial Number | B150509 |
| Stock Number | TBC |
Additional Features
Equipment
Full set of live tooling
Collet chuck on main spindle

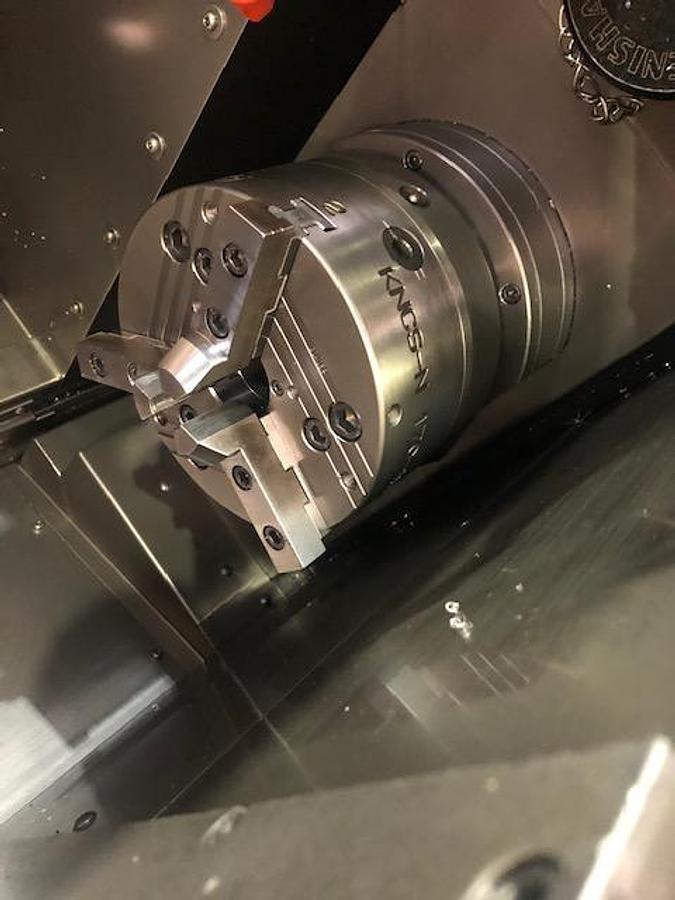

200 mm chuck on sub-spindle
Full set of collets
12 sets of additional chuck jaws in various forms
Tool eye/tool presetter

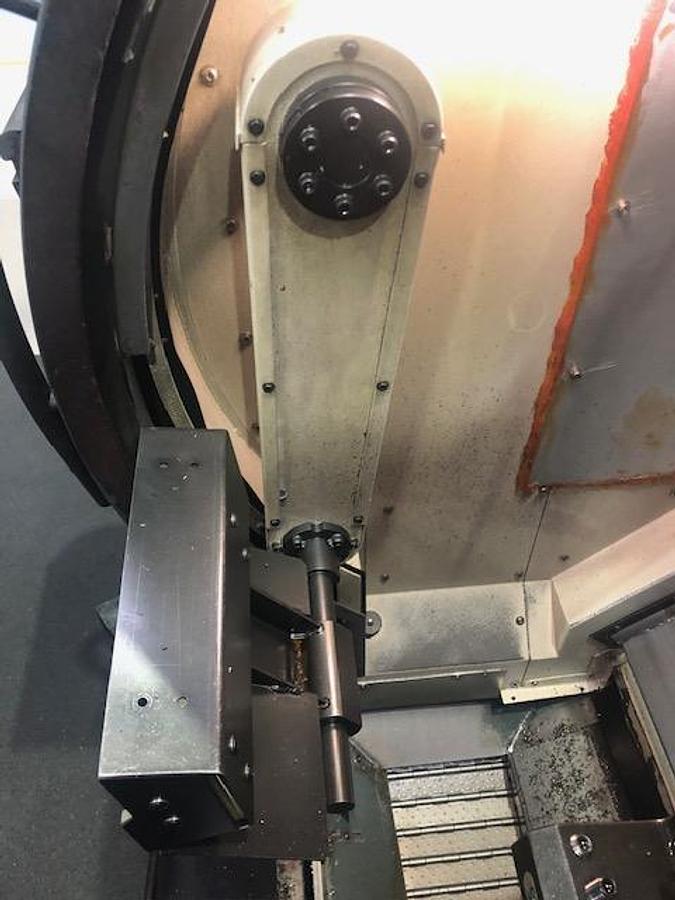

Parts catcher

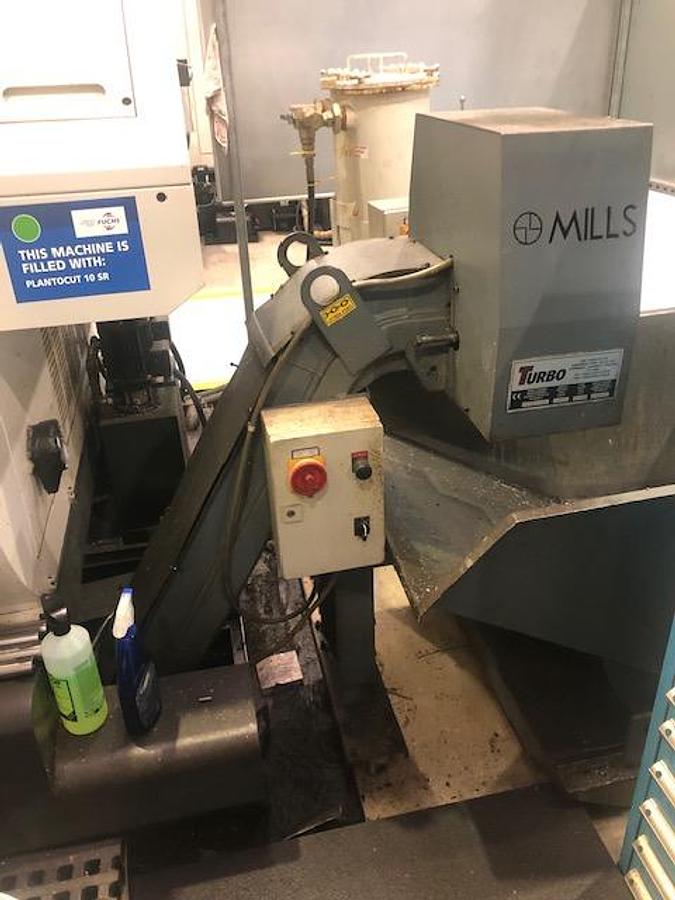

Chip conveyor

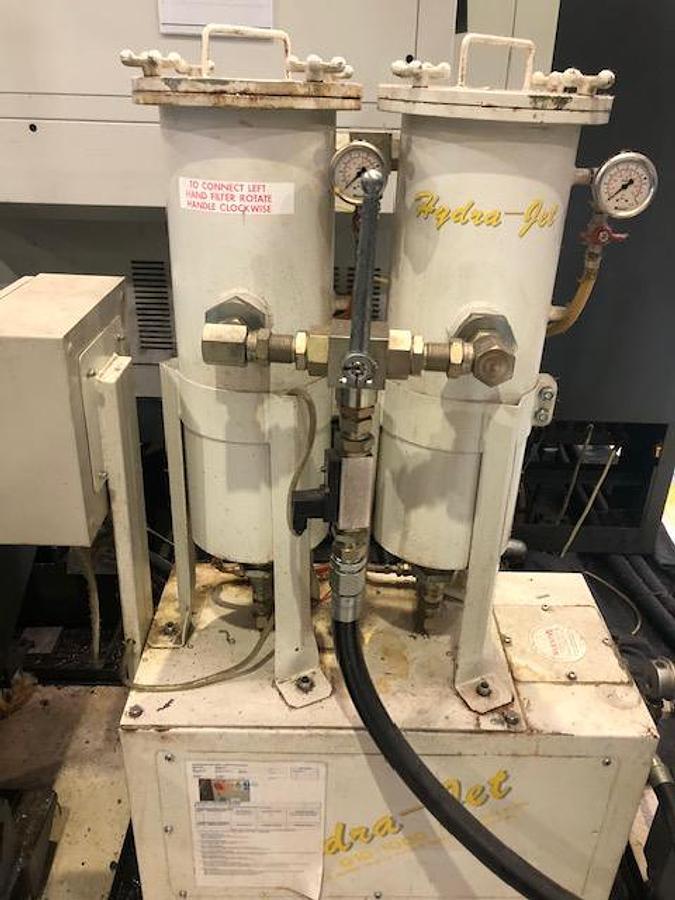

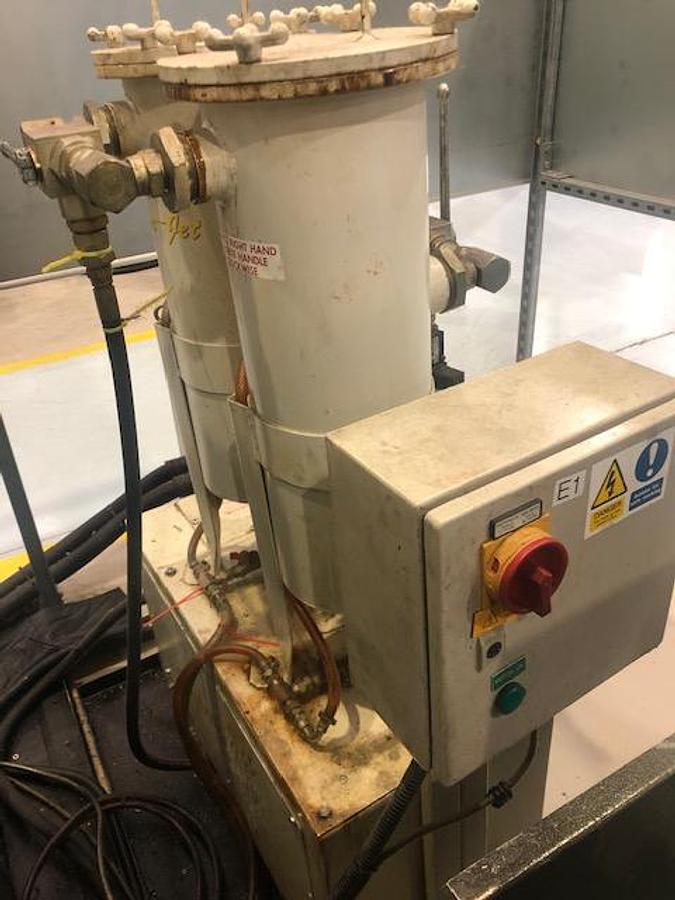

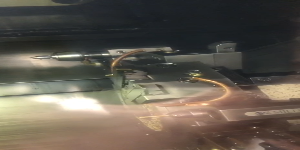

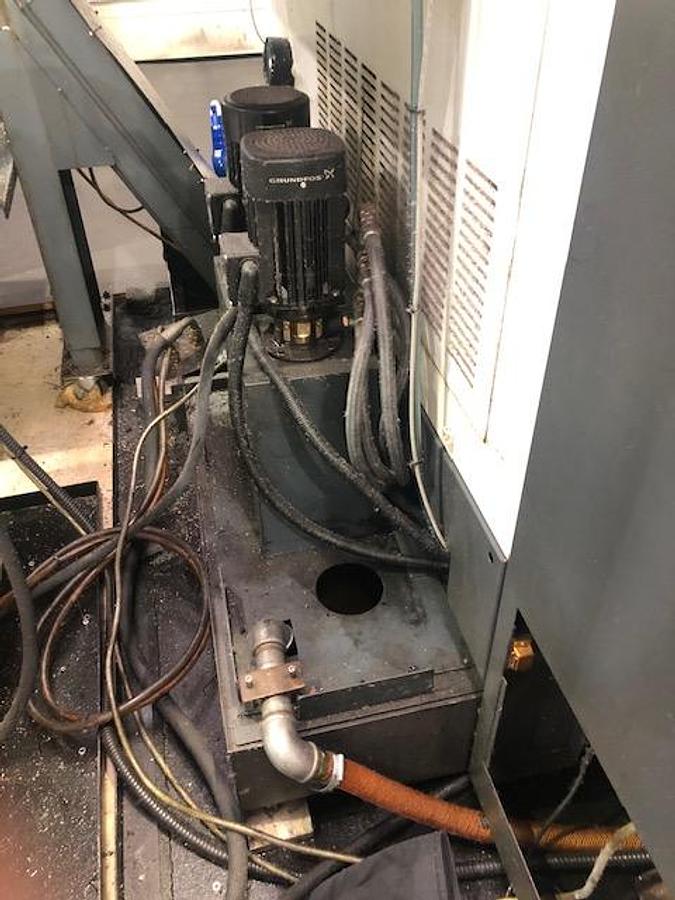

Hydrajet high-pressure coolant system

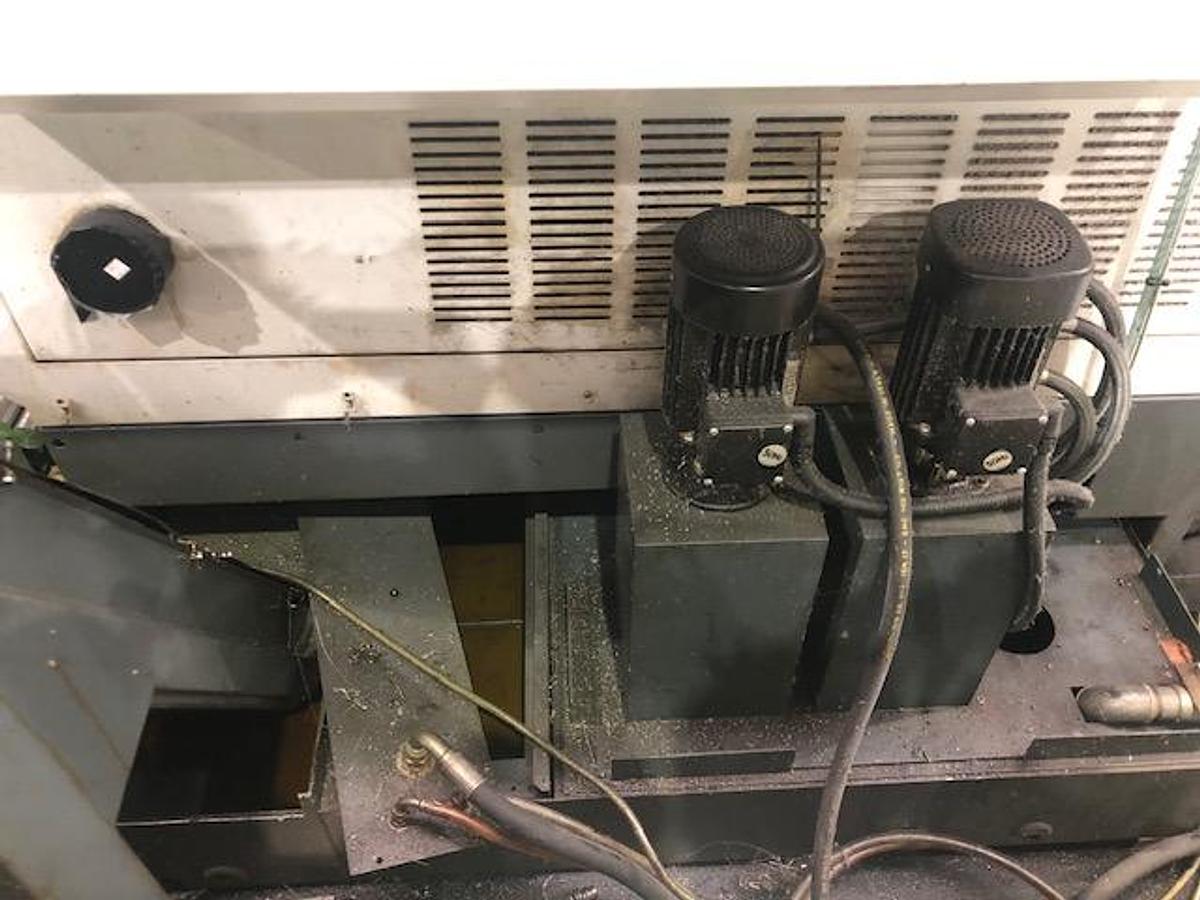

Standard coolant system

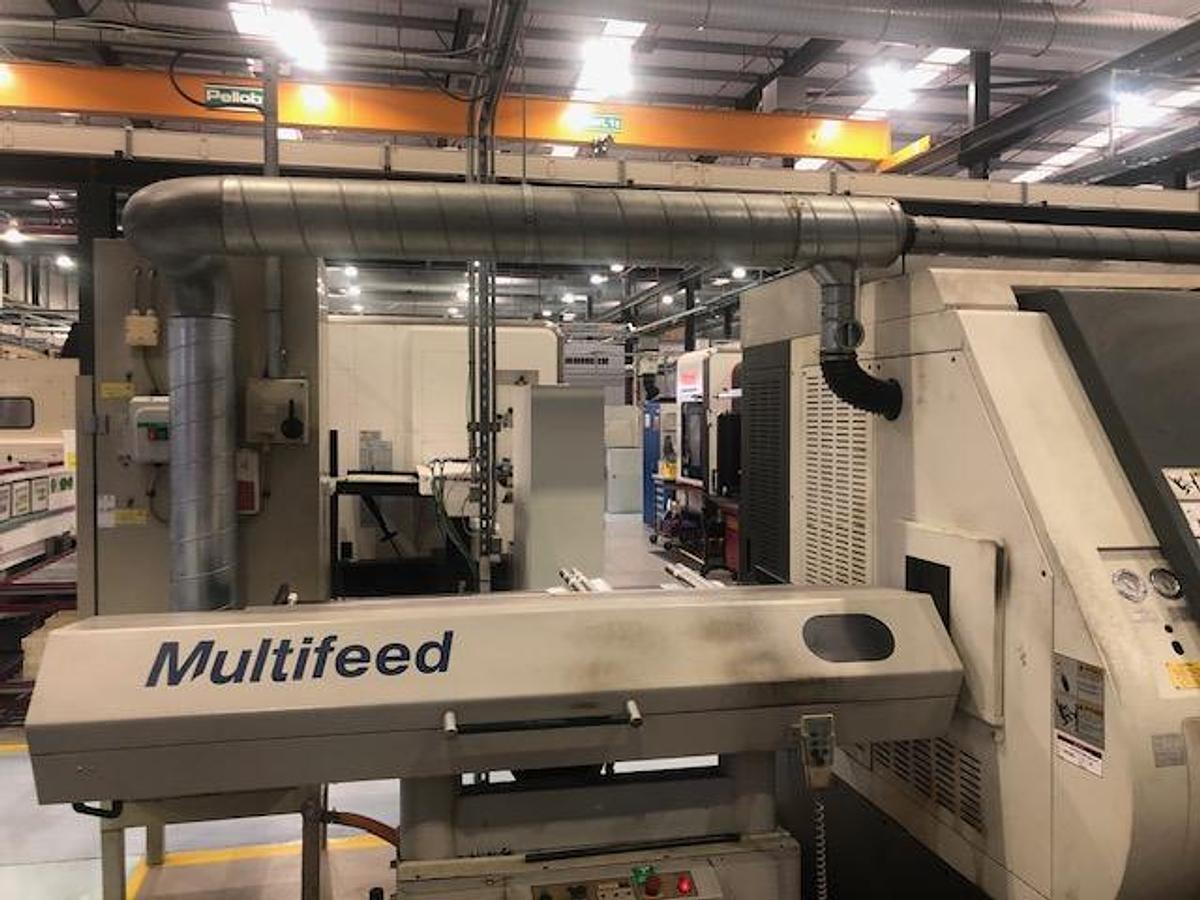

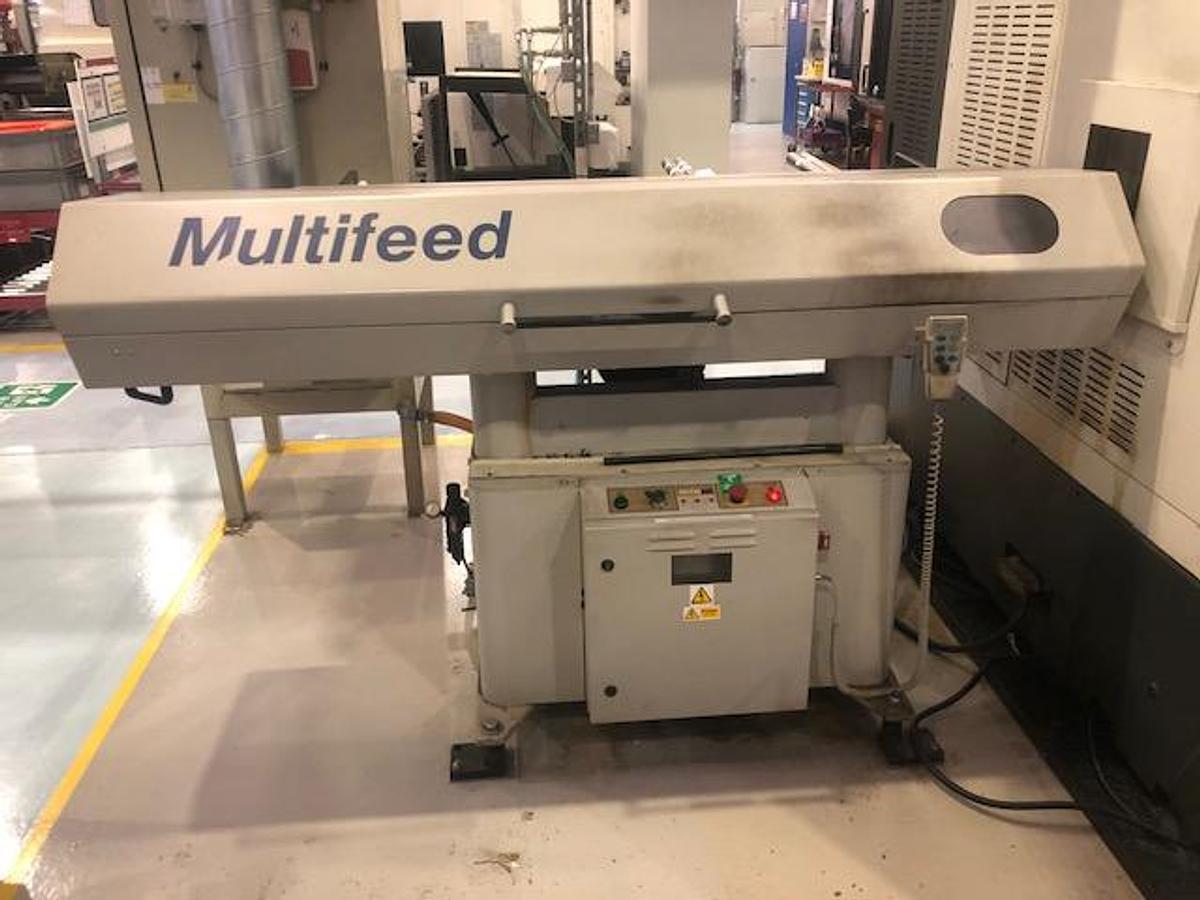

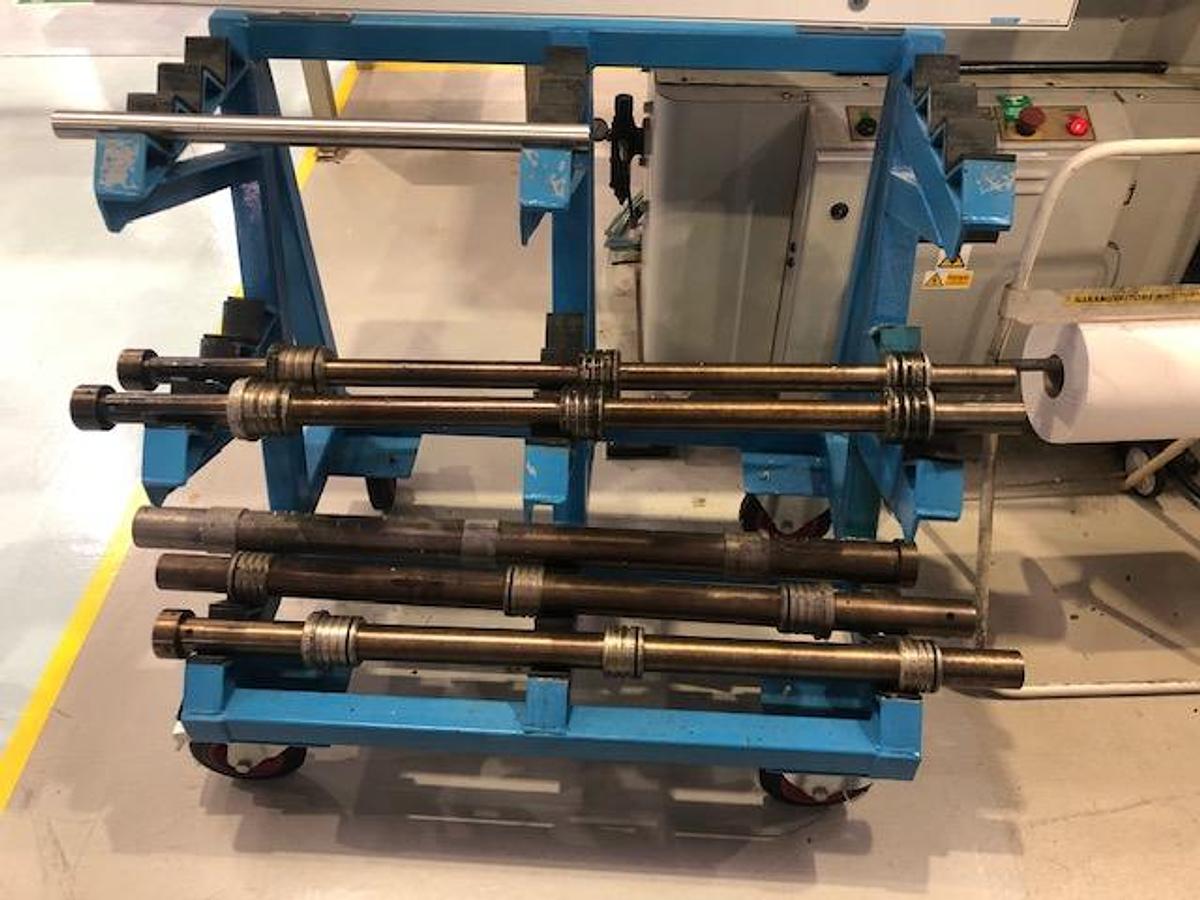

Hydrafeed Multifeed MX.1B bar feed with equipment

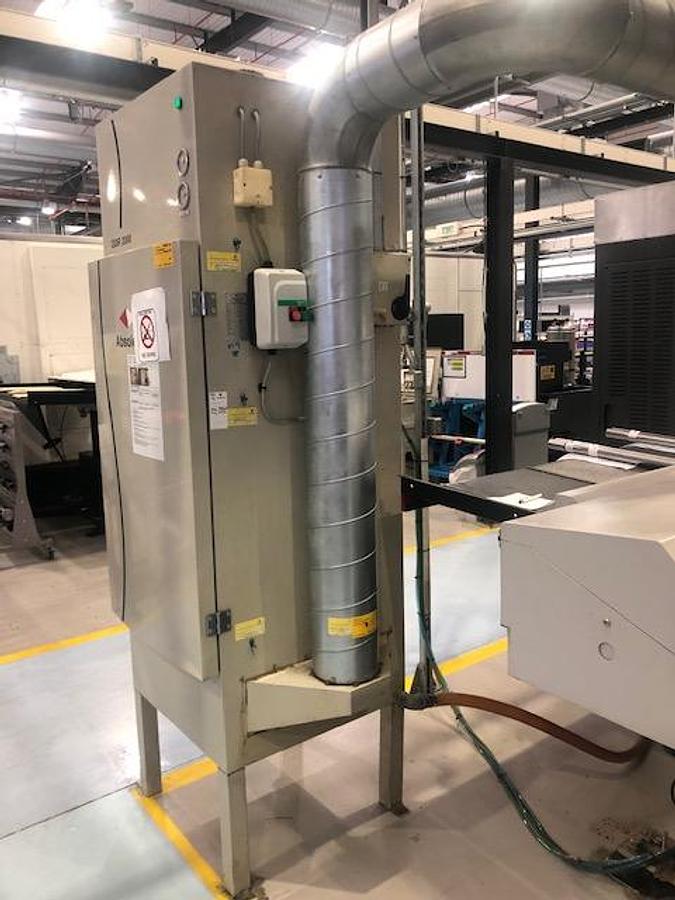

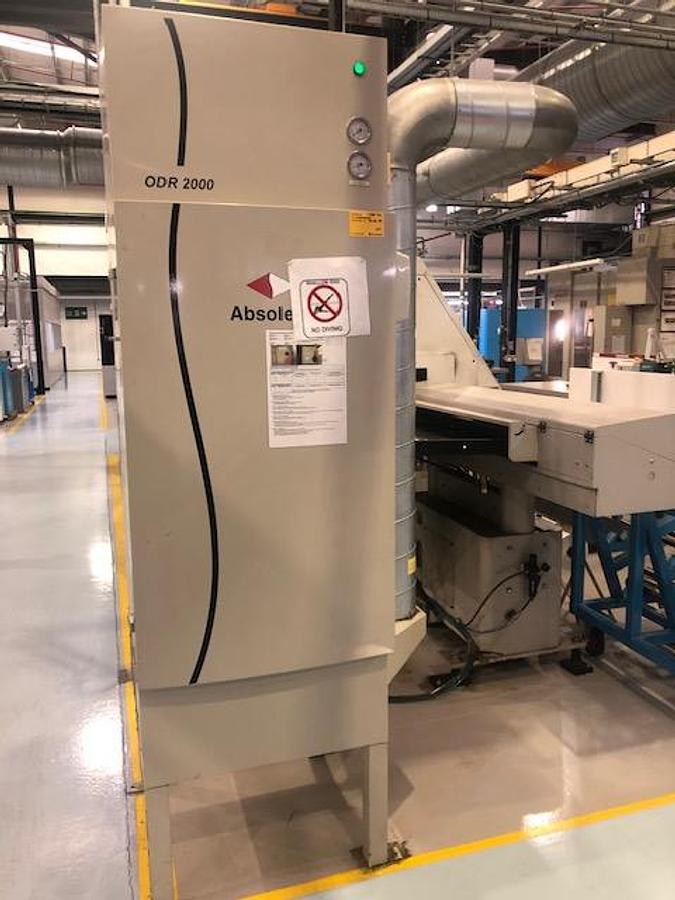

Absolute ODR 2000 stand-alone fume extraction unit
RS-232 and Ethernet ports
Manuals
Dimensions and Weight

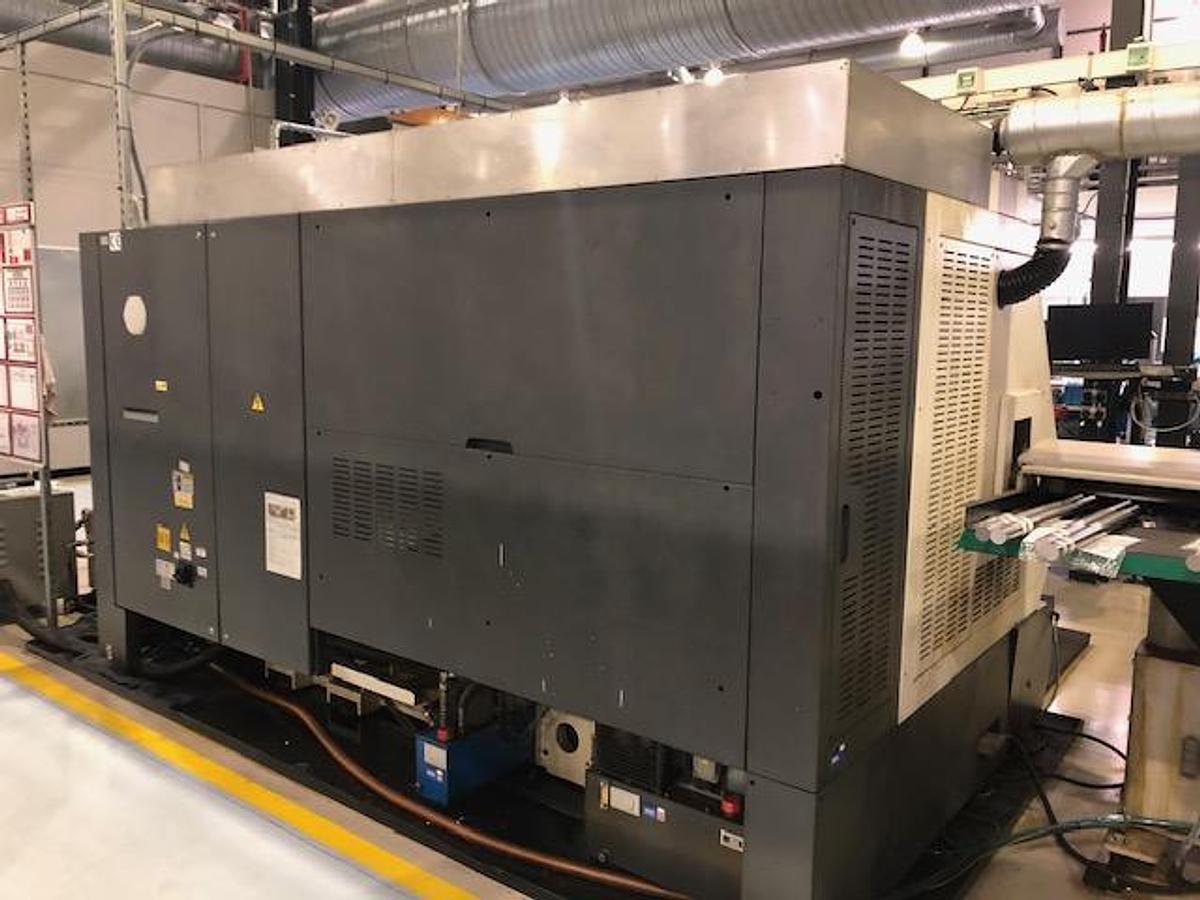

Machine dimensions: 4,000 × 2,600 × 2,400 mm
Bar feed dimensions: 2,000 × 700 × 1,200 mm
Machine weight: Approximately 13,000 kg
