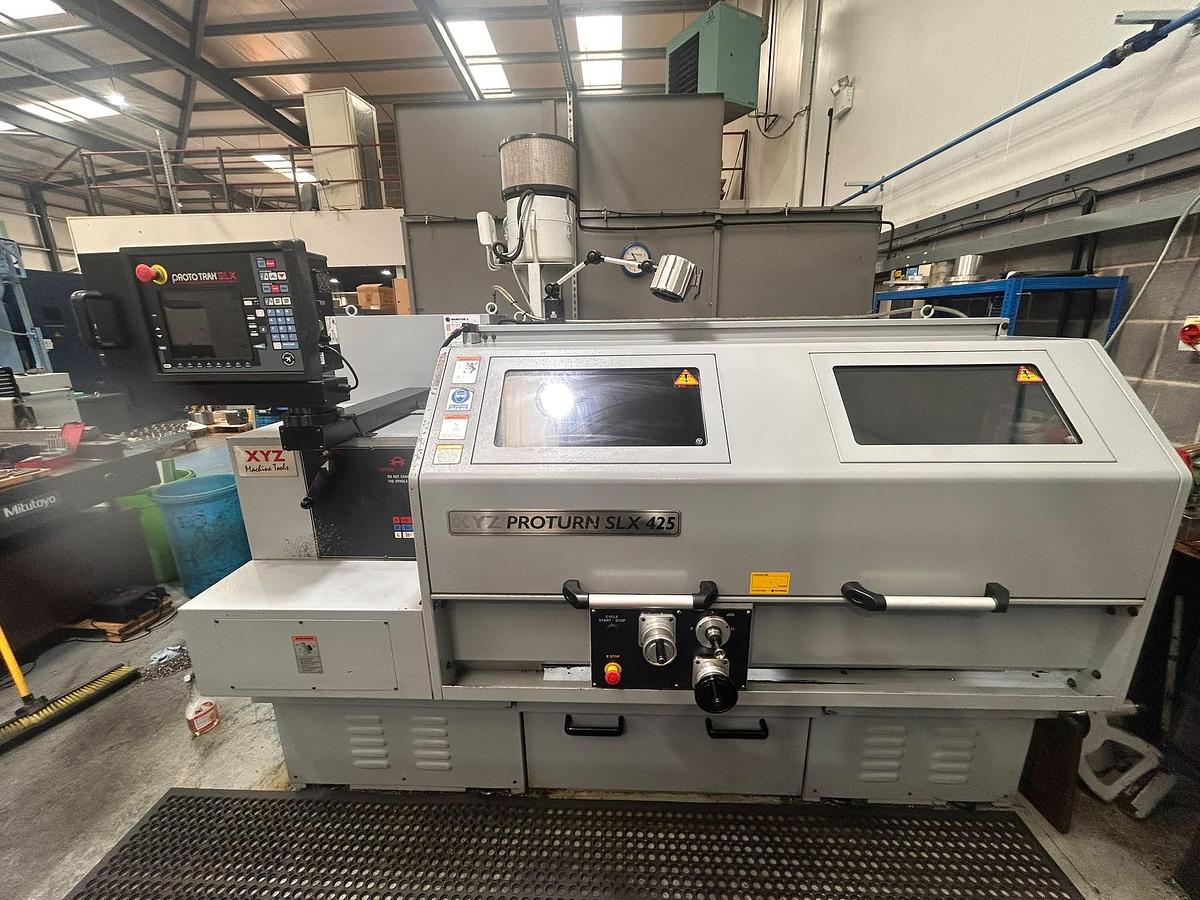

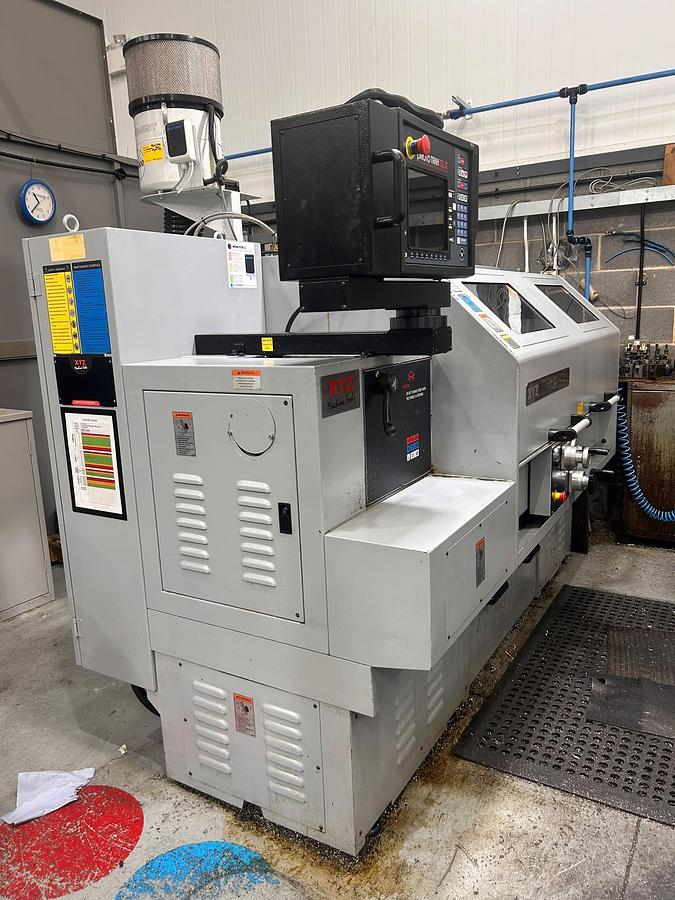

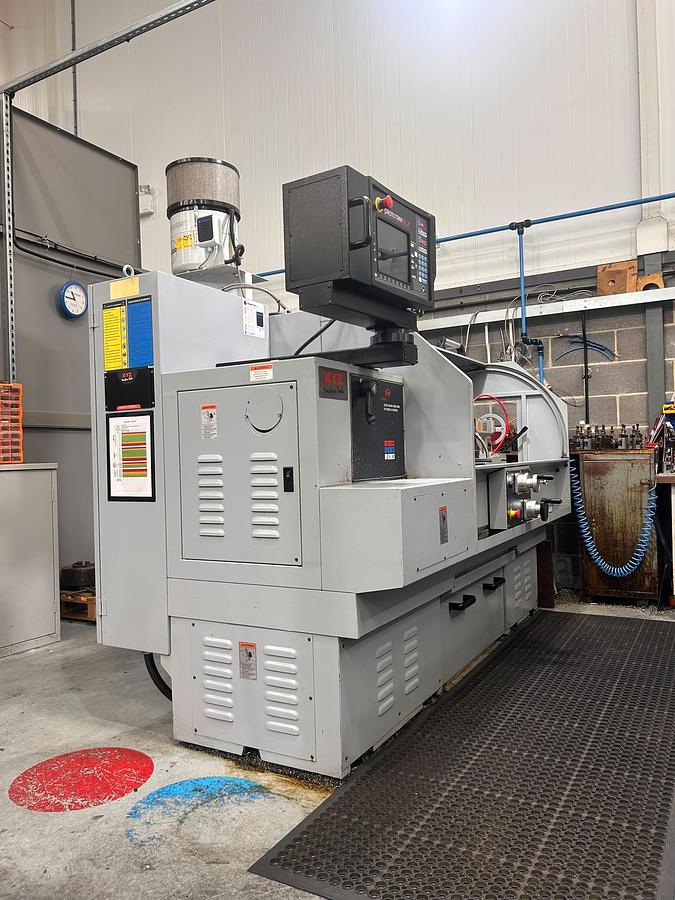

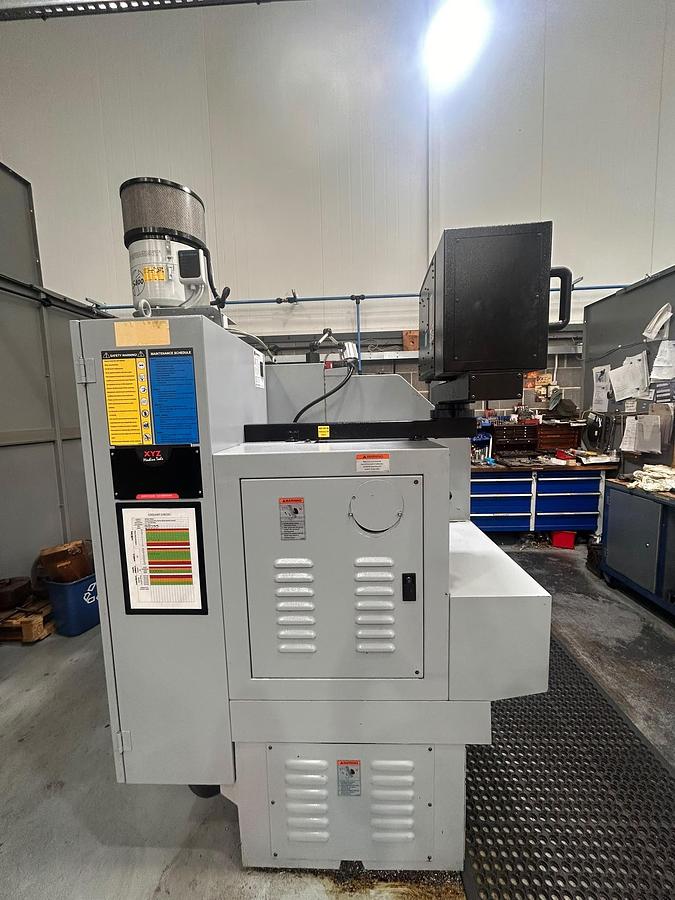

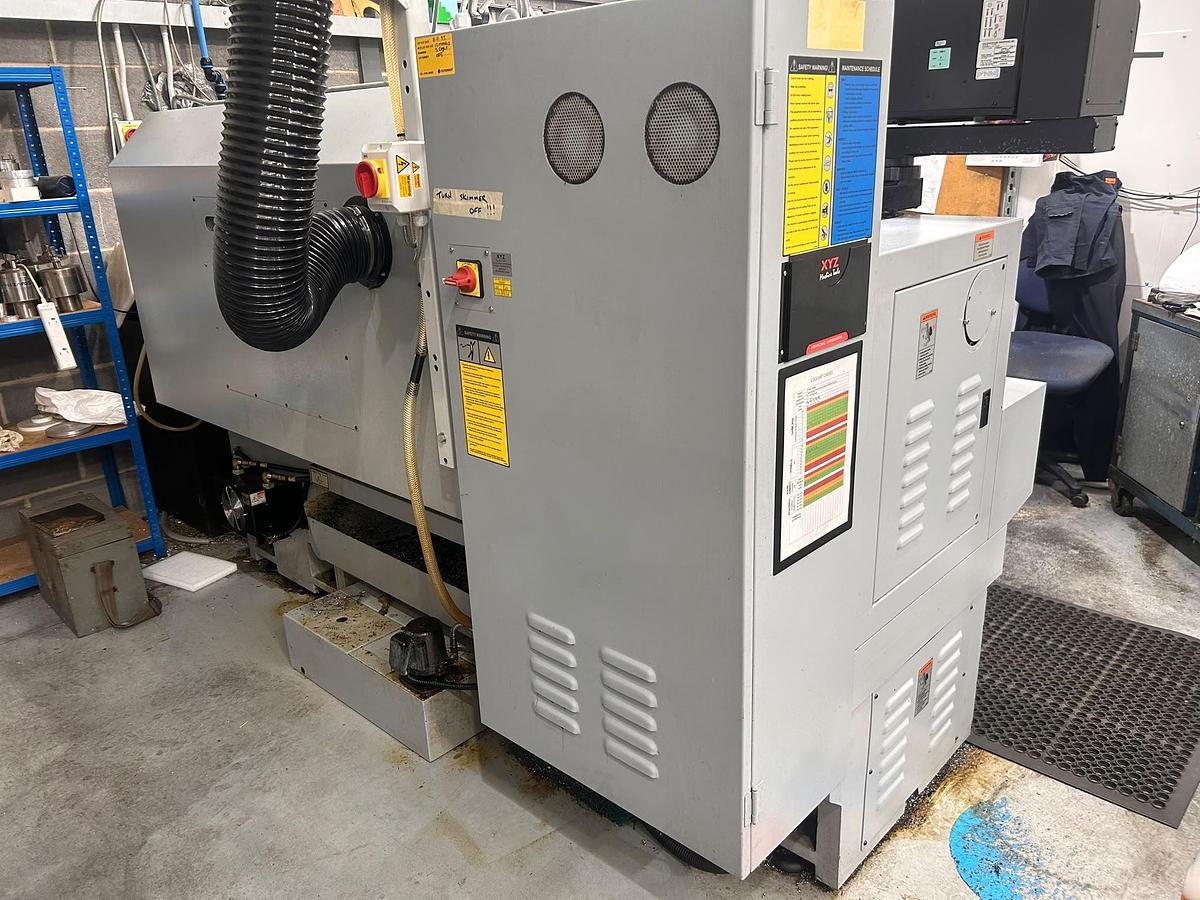

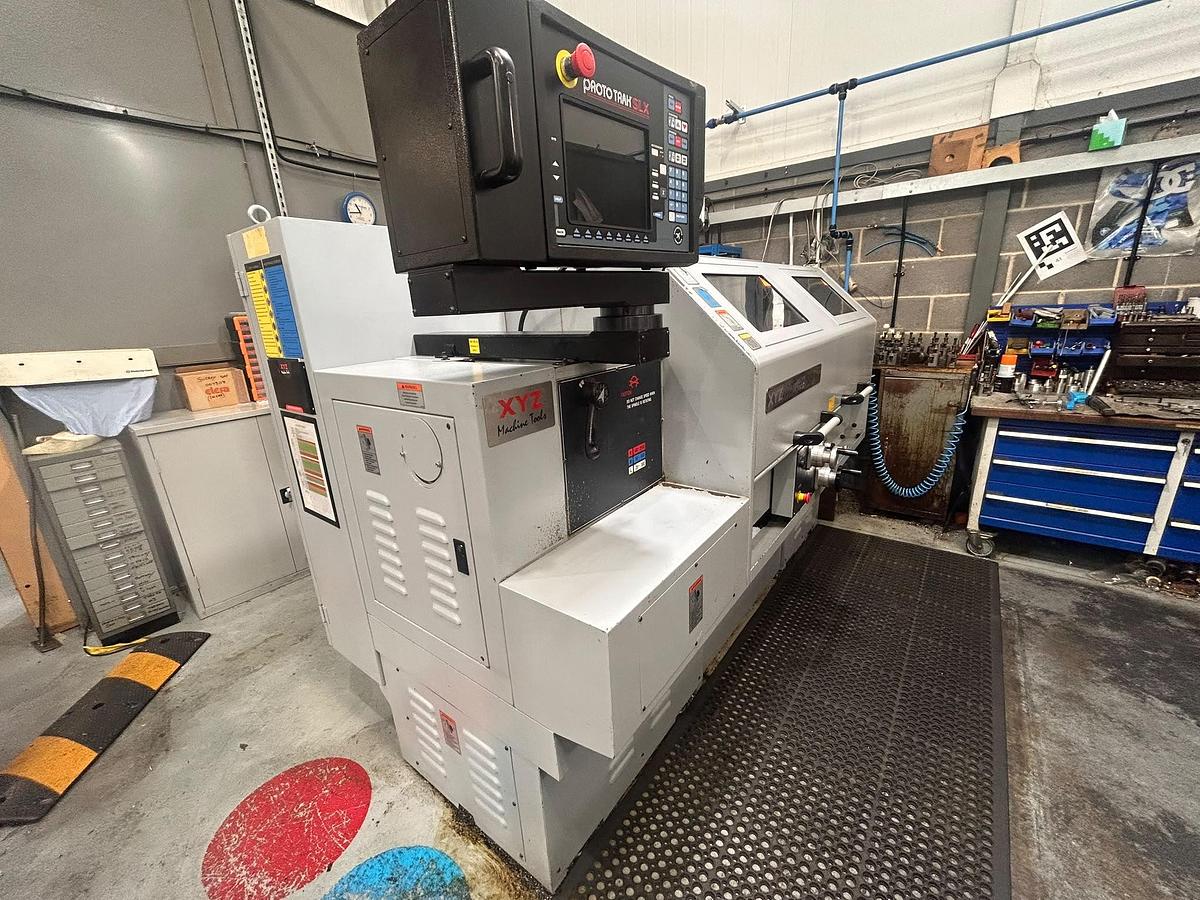

XYZ SLX 425 x 1.25m CNC Lathe
Description
XYZ SLX 425 x 1.25m CNC Lathe
Year 2016

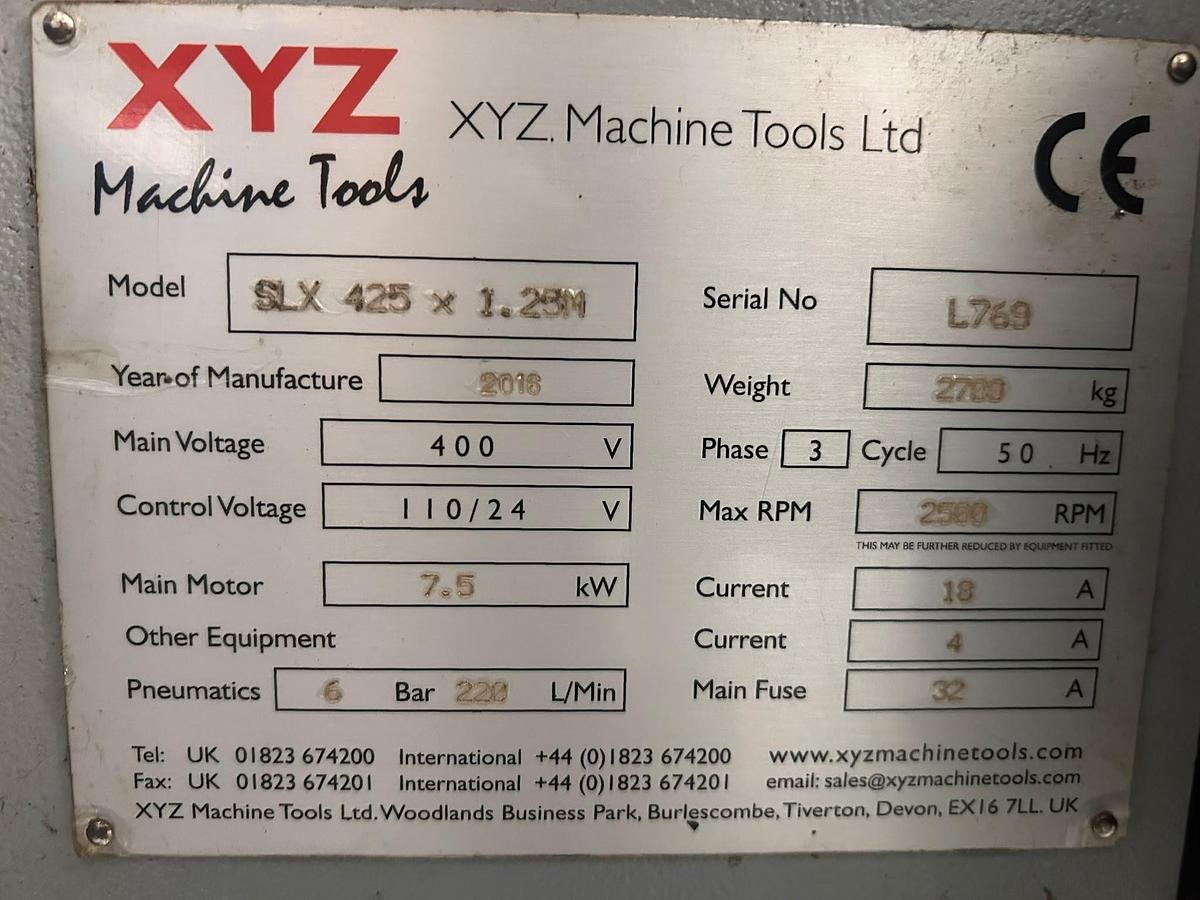

Serial number L769

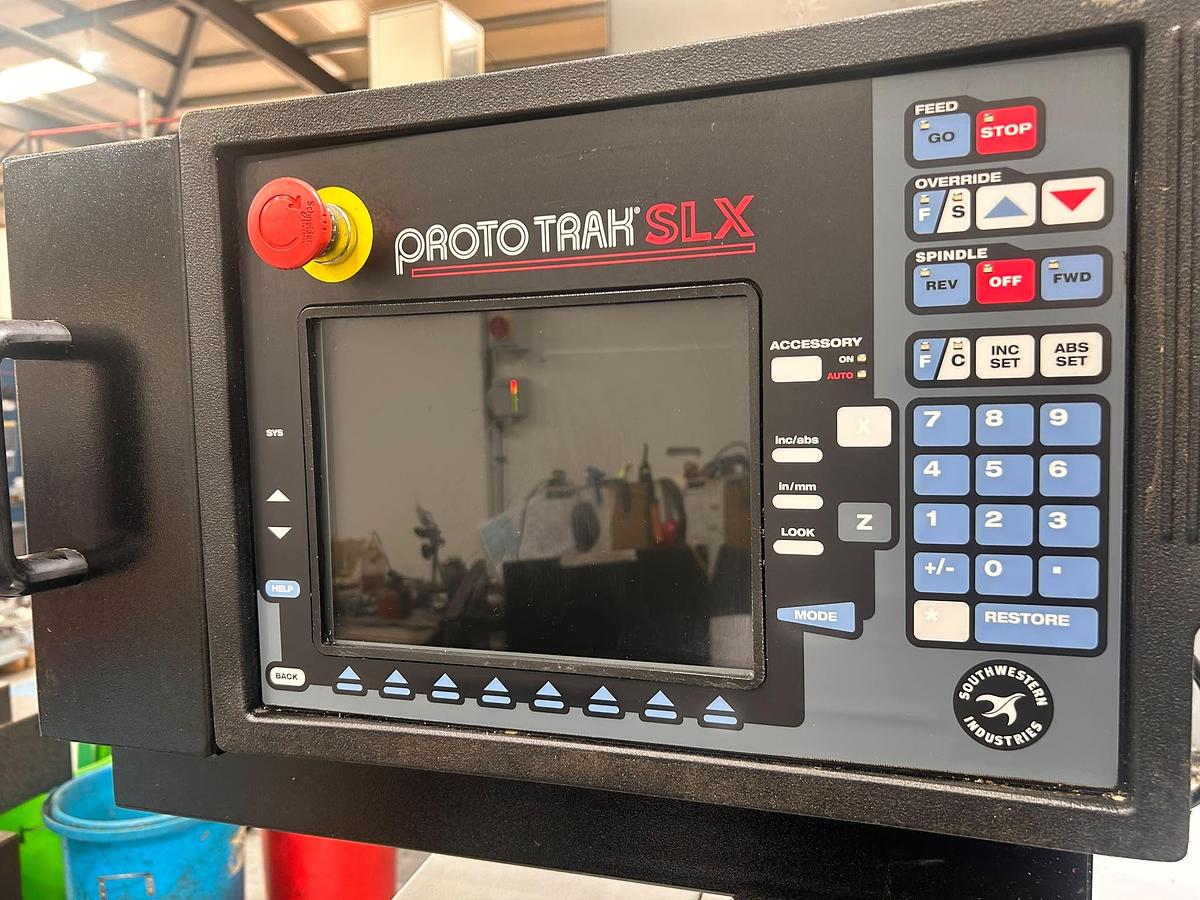

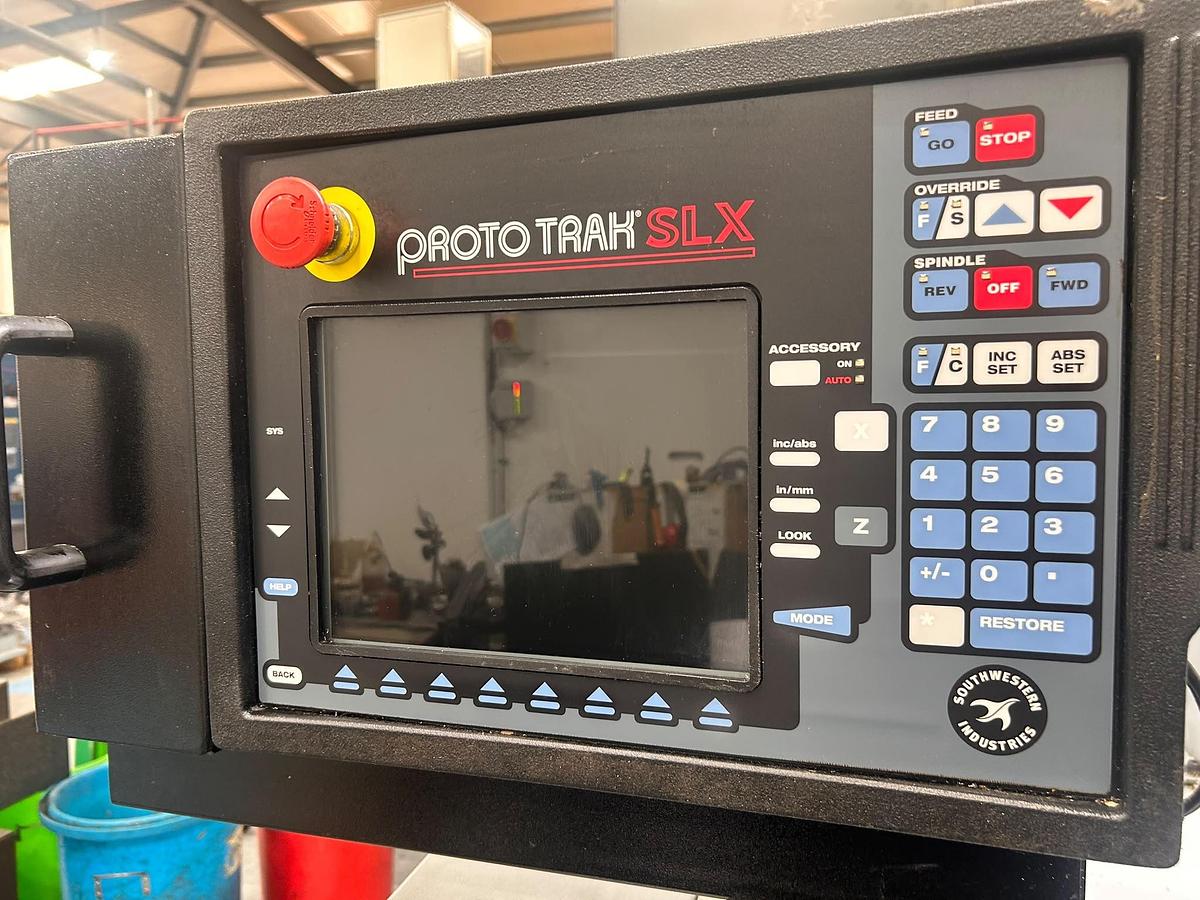

ProtoTRAK SLX
Distance between centres 1,250 mm
Maximum cutting length 1,080 mm
Swing over bed 480 mm
Swing over cross slide 257 mm
Key Specifications
| Manufacturer | XYZ |
| Model | SLX 425 x 1.25m |
| Year | 2016 |
| Condition | Used |
| Stock Number | TBC |
Additional Features
Swing in gap 700 mm
Gap in front of faceplate 170 mm
Cross slide travel 230 mm
Spindle bore 80 mm
Spindle nose D1-8 Camlock
Spindle motor 7.5 kW / 10 hp
Spindle speed range 25–2,500 rpm in 3 ranges

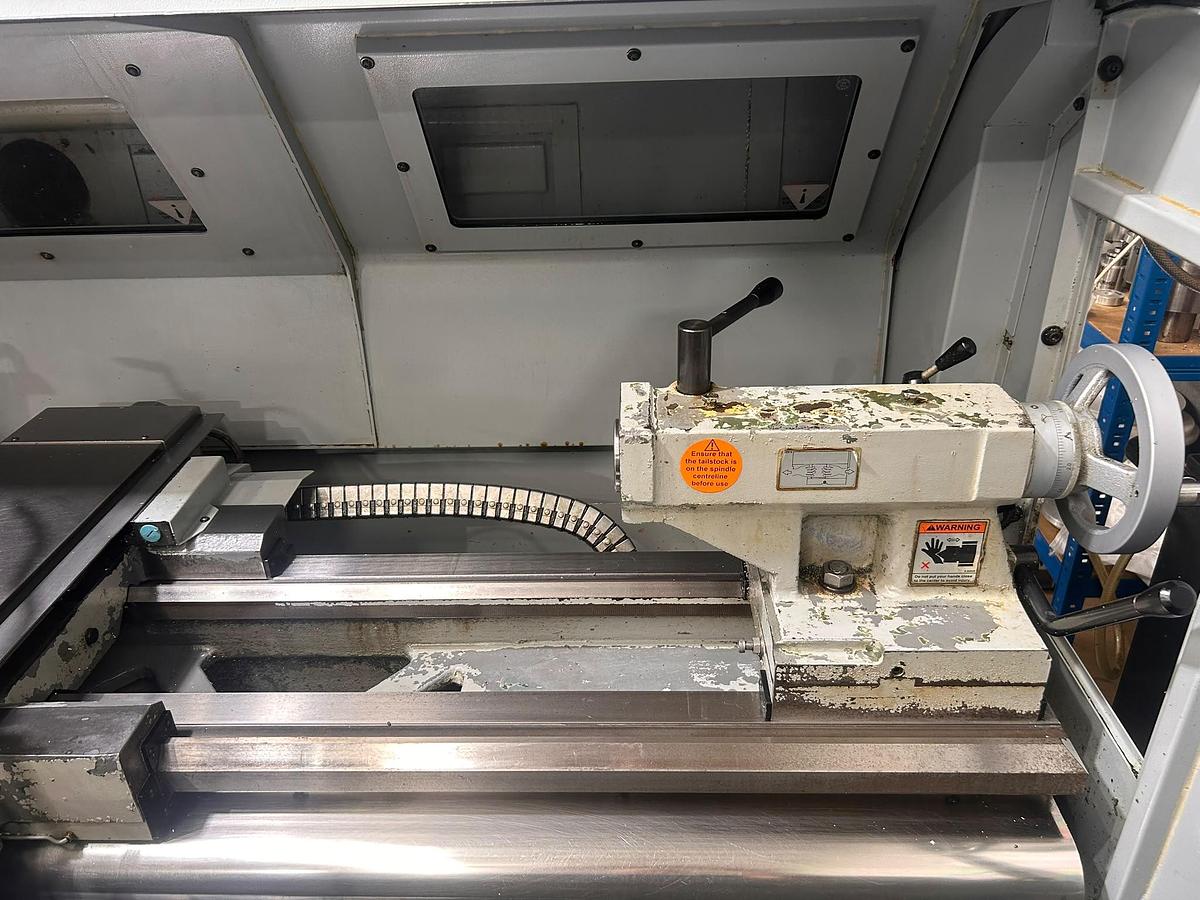

Tailstock quill travel 160 mm
Tailstock taper No. 5 Morse taper
Tailstock quill diameter 75 mm
Bed width 370 mm
