Bystronic BySprint 3015 2kW Fiber Laser
Description

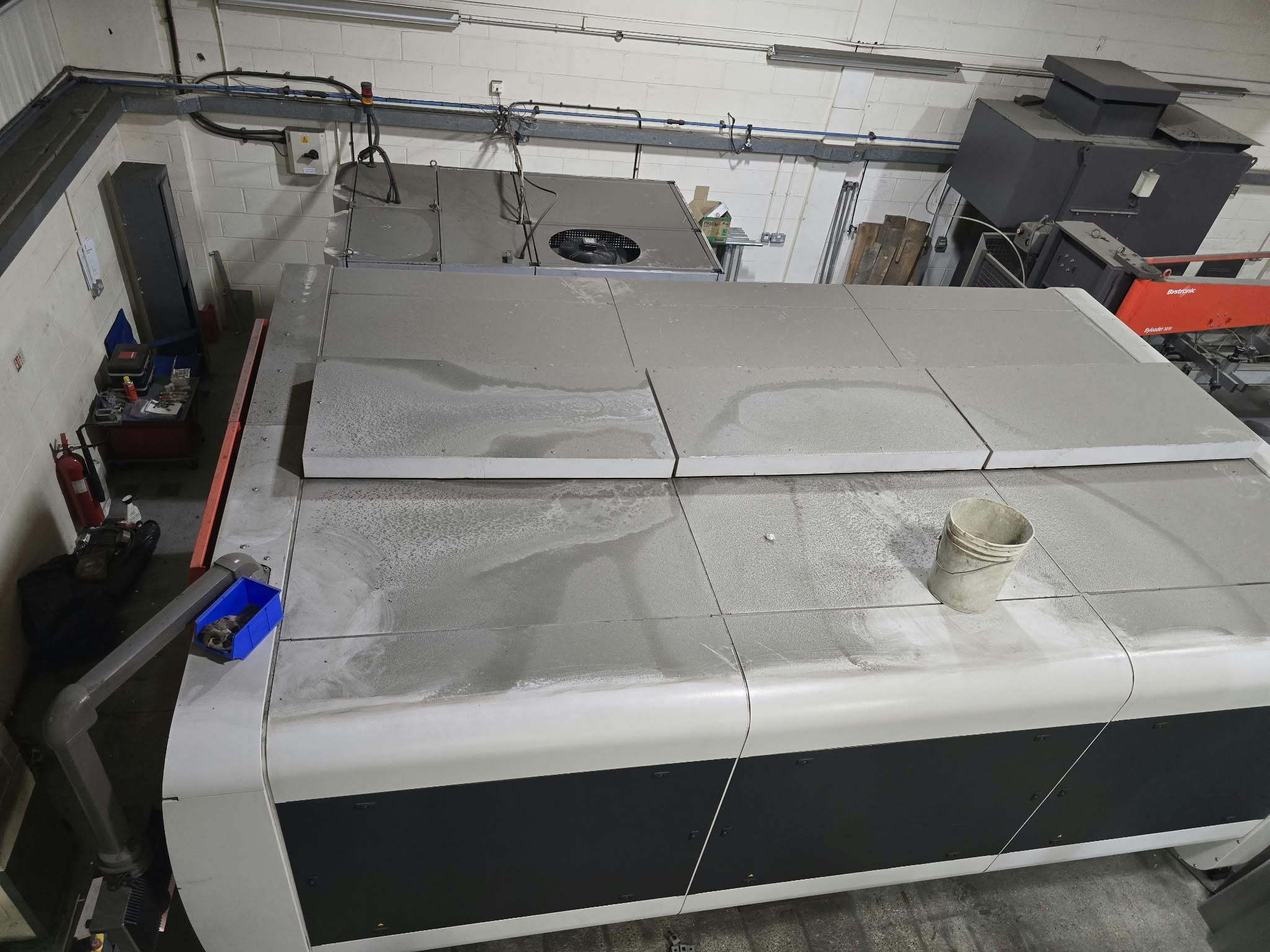

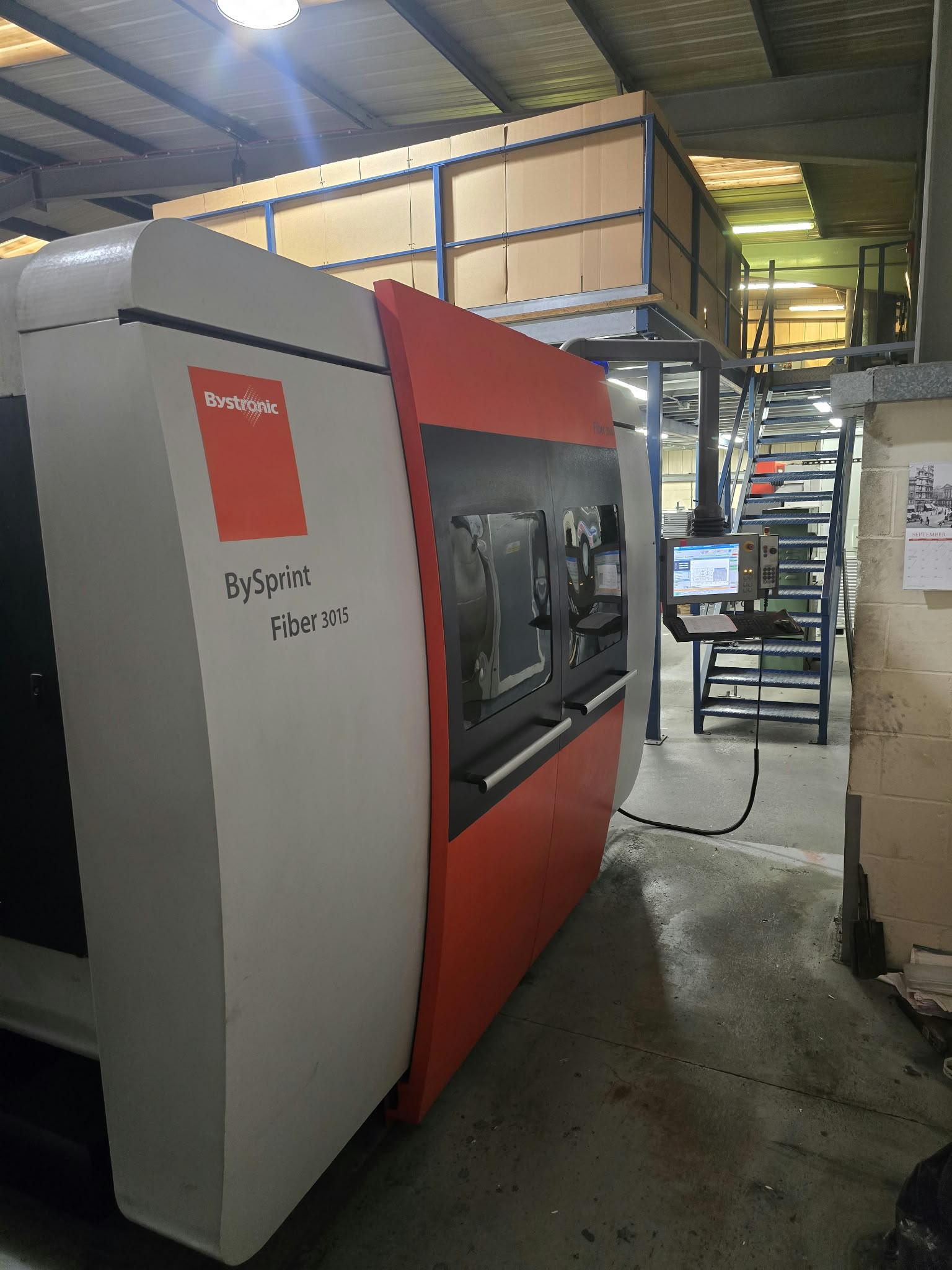

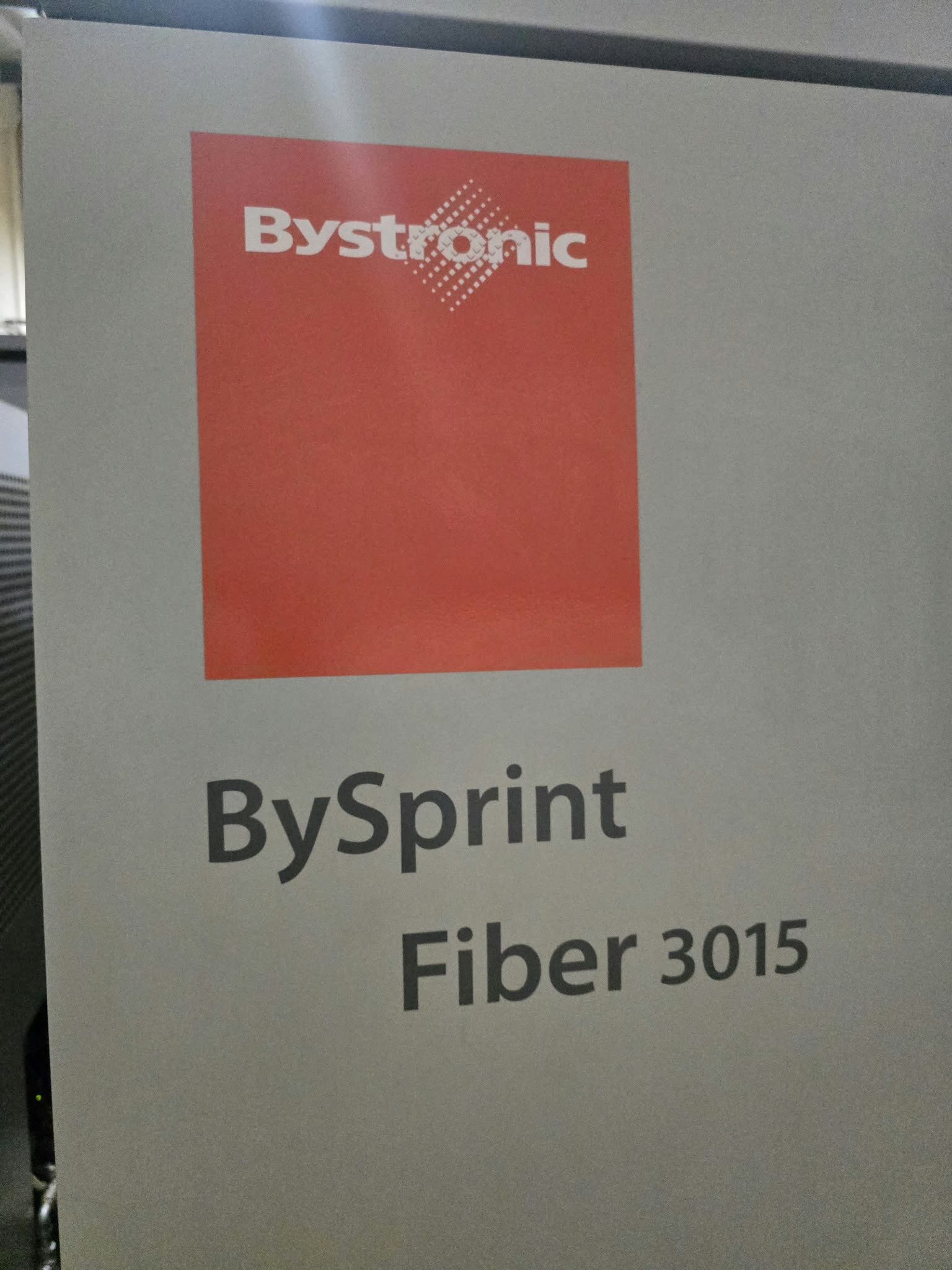

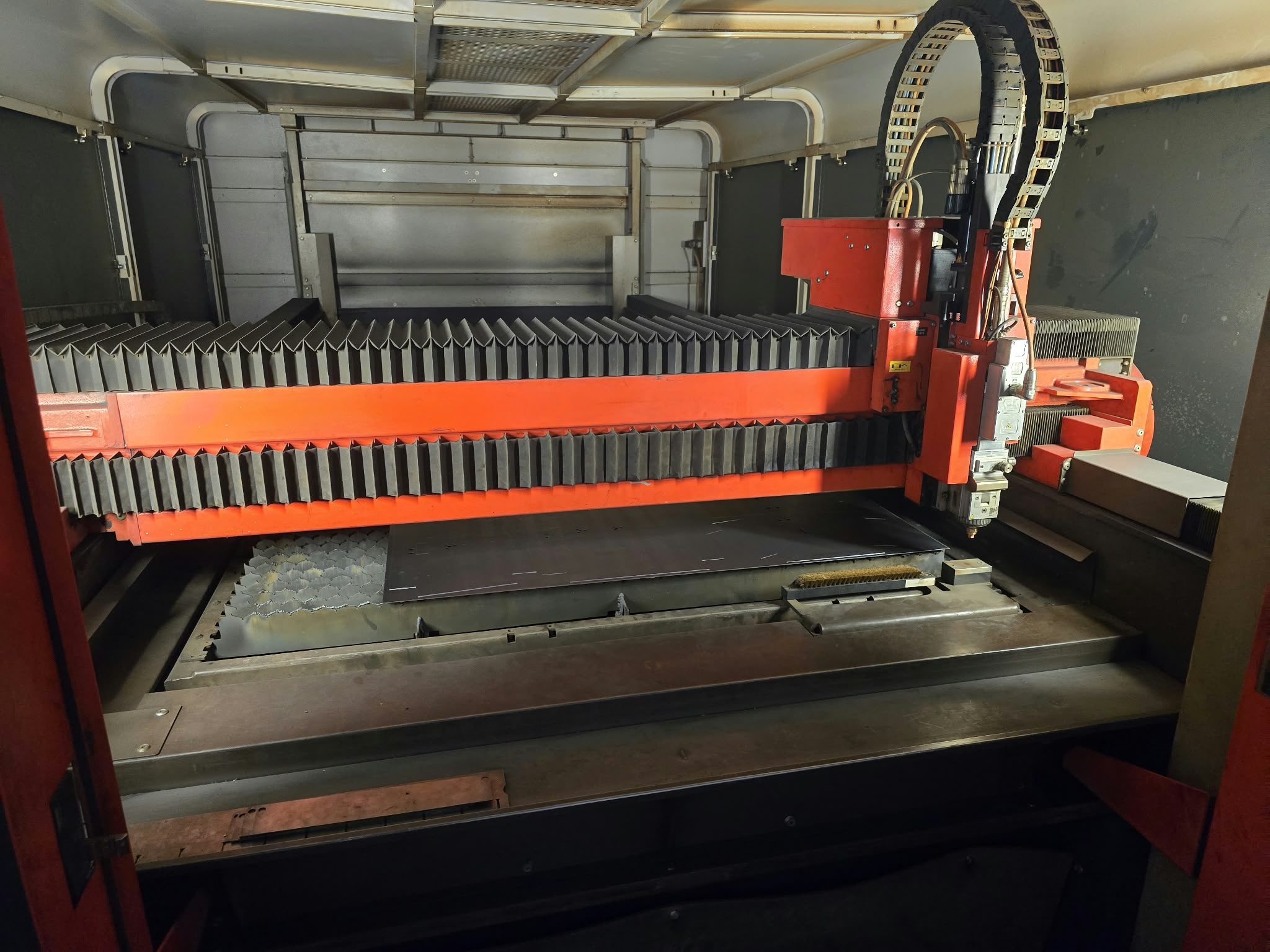

Bystronic BySprint Fiber 3015 – 2kW Fibre Laser Cutting Machine
Year: 2011

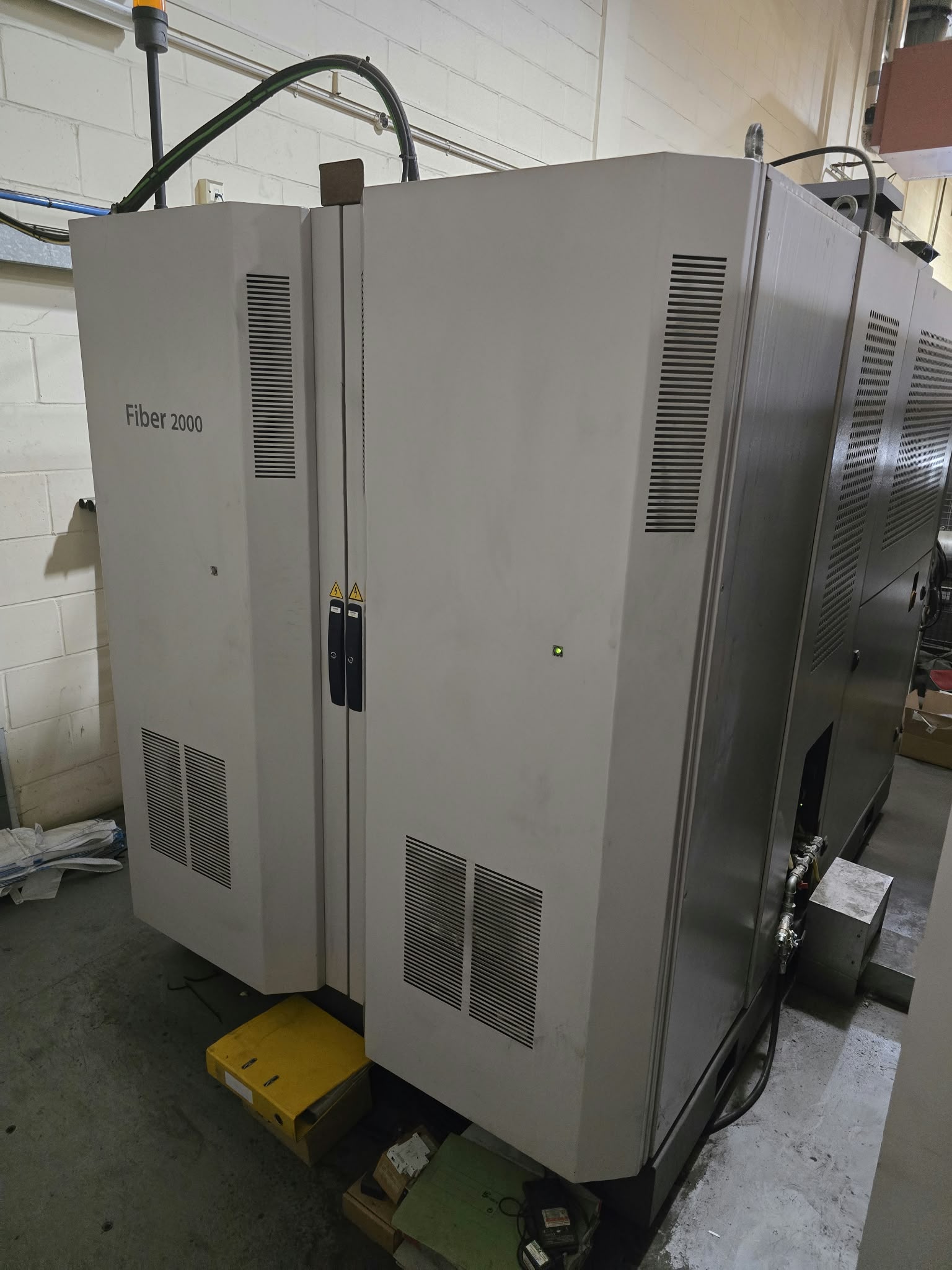

Laser power 2,000 W
Nominal sheet size 3,000 × 1,500 mm
Cutting area, X × Y 3,048 × 1,524 mm
Z-axis travel 70 mm
Maximum mild steel thickness 12 mm
Maximum stainless steel thickness 6 mm
Maximum aluminium thickness 8 mm
Maximum brass thickness 4 mm
Maximum copper thickness 3 mm
Maximum sheet weight 750 kg
Maximum positioning speed, individual axes 100 m/min
Maximum simultaneous positioning speed 140 m/min
Positioning accuracy ±0.10 mm
Repeatability ±0.05 mm
Key Specifications
| Manufacturer | Bystronic |
| Model | BySprint 3015 2kW Fiber Laser |
| Year | 2011 |
| Condition | Used |
| Stock Number | 3012 |
Additional Features
Equipment and additional information

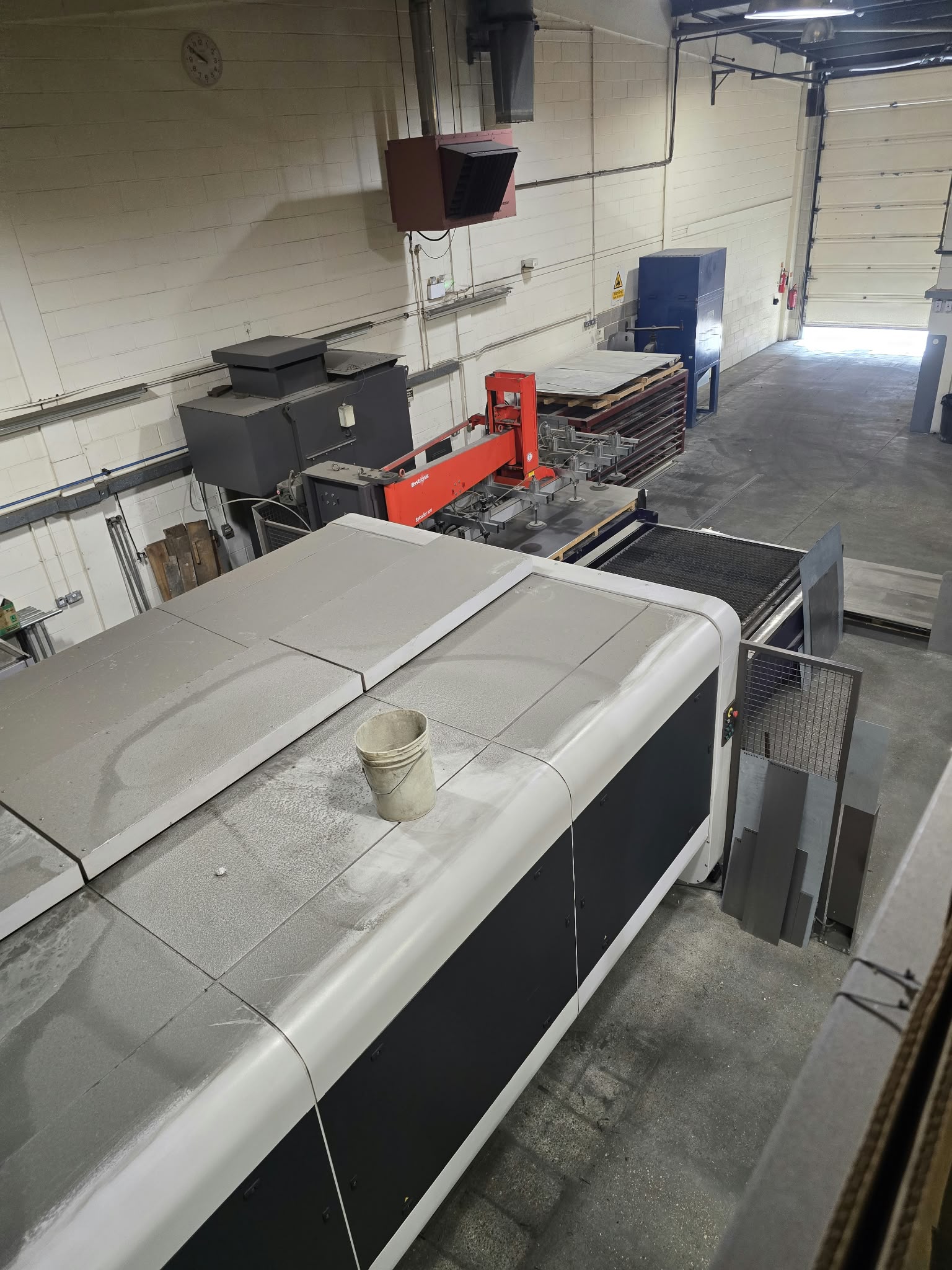

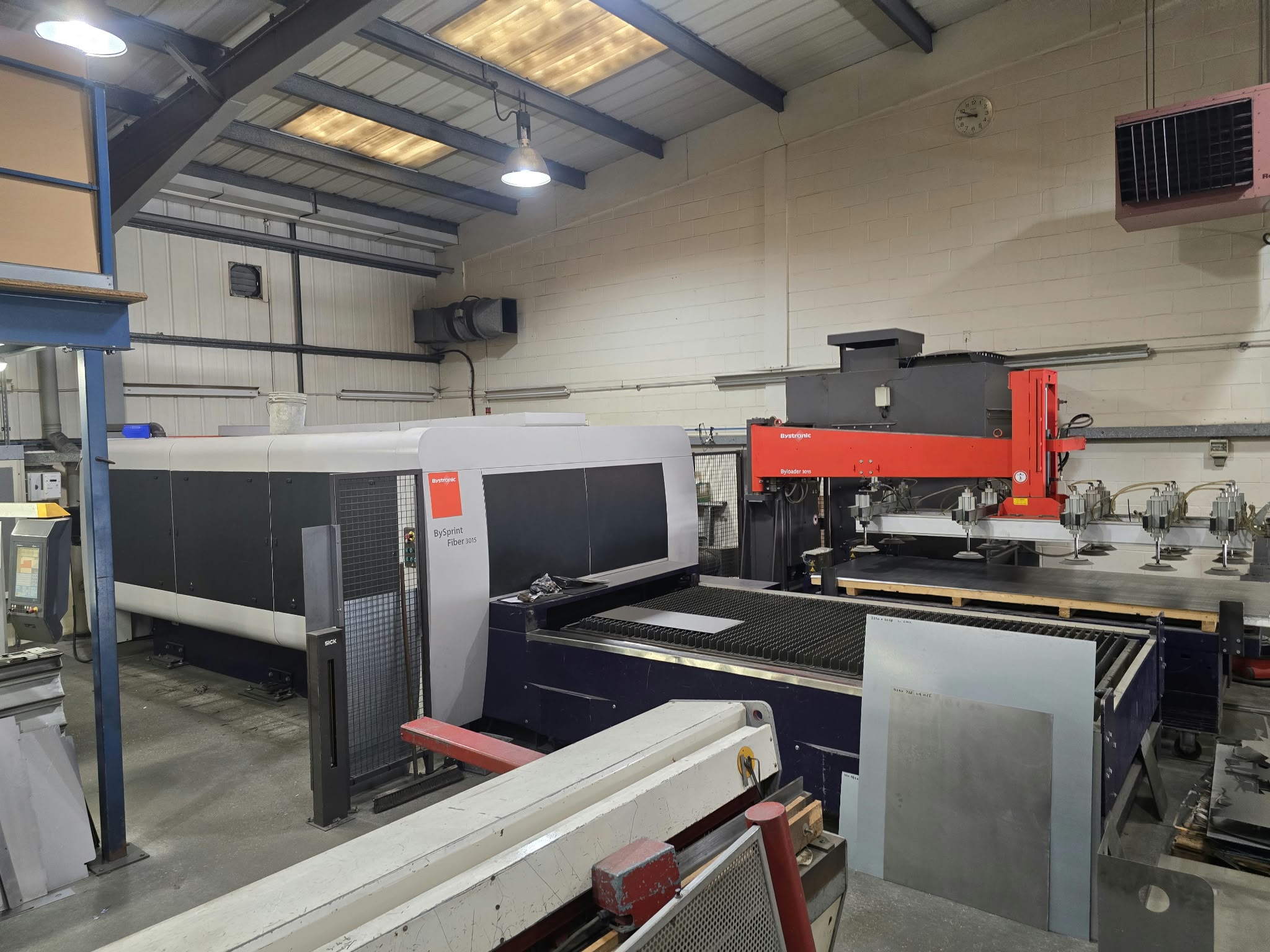

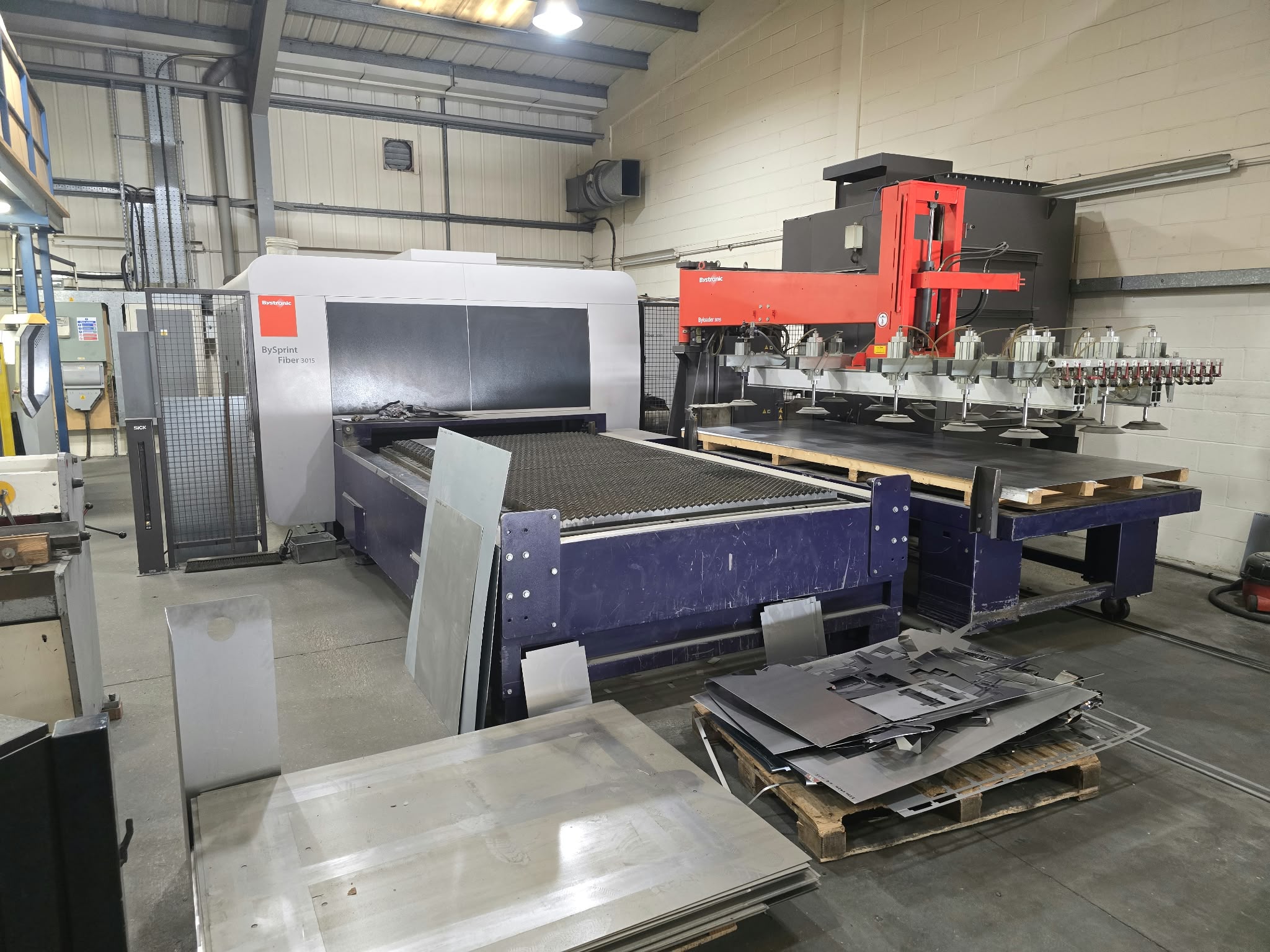

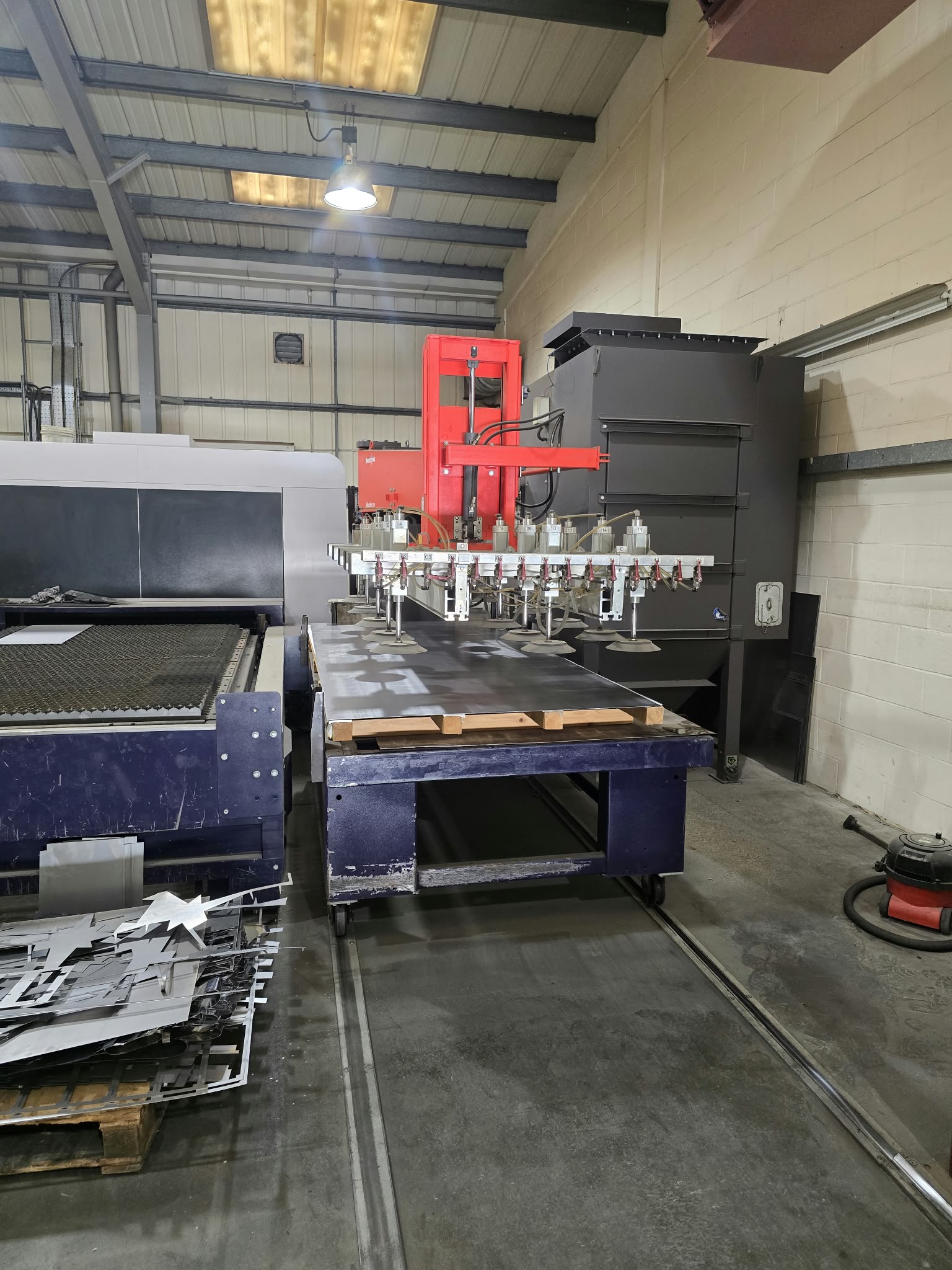

- Byloader sheet loading system.

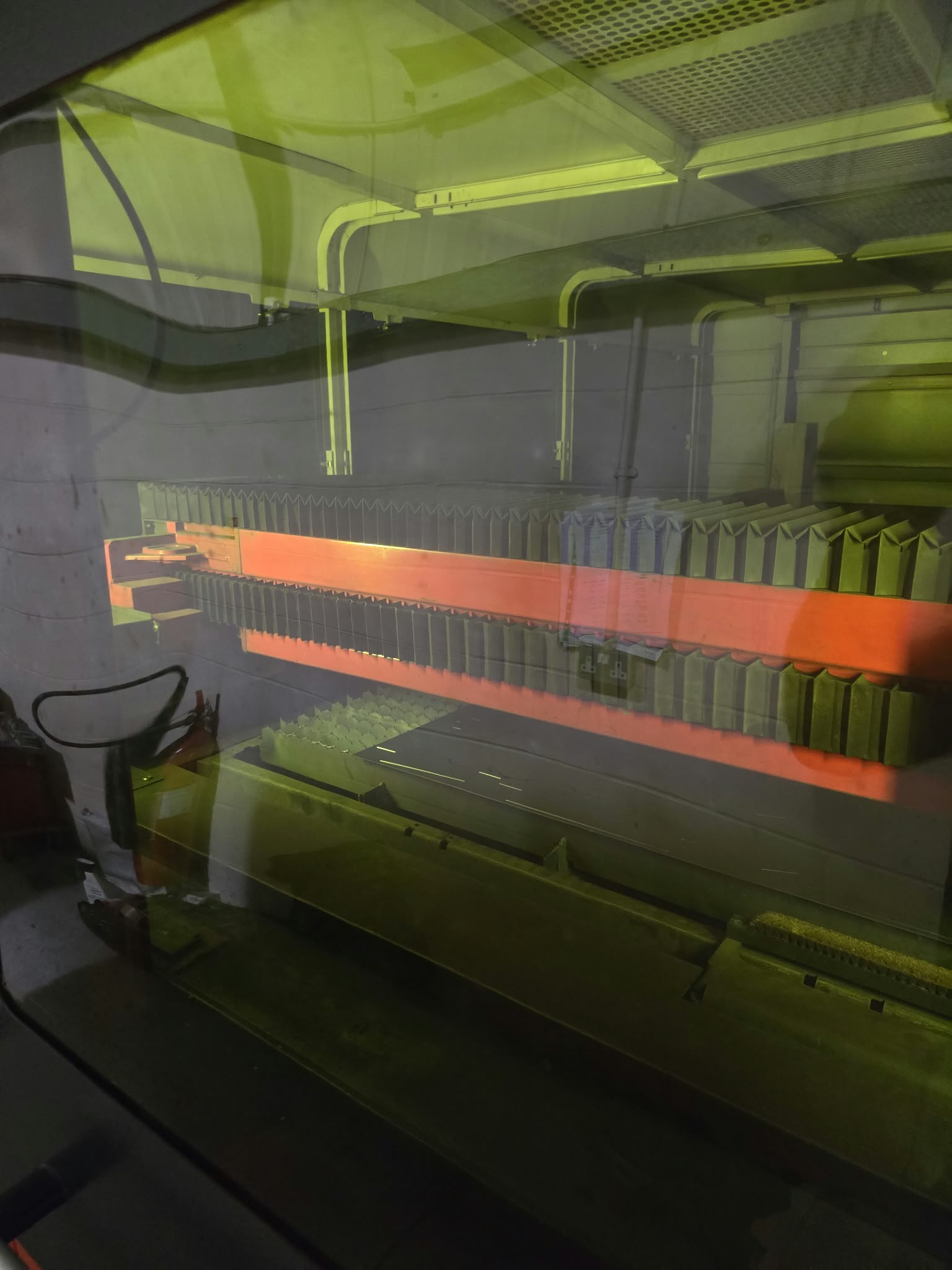

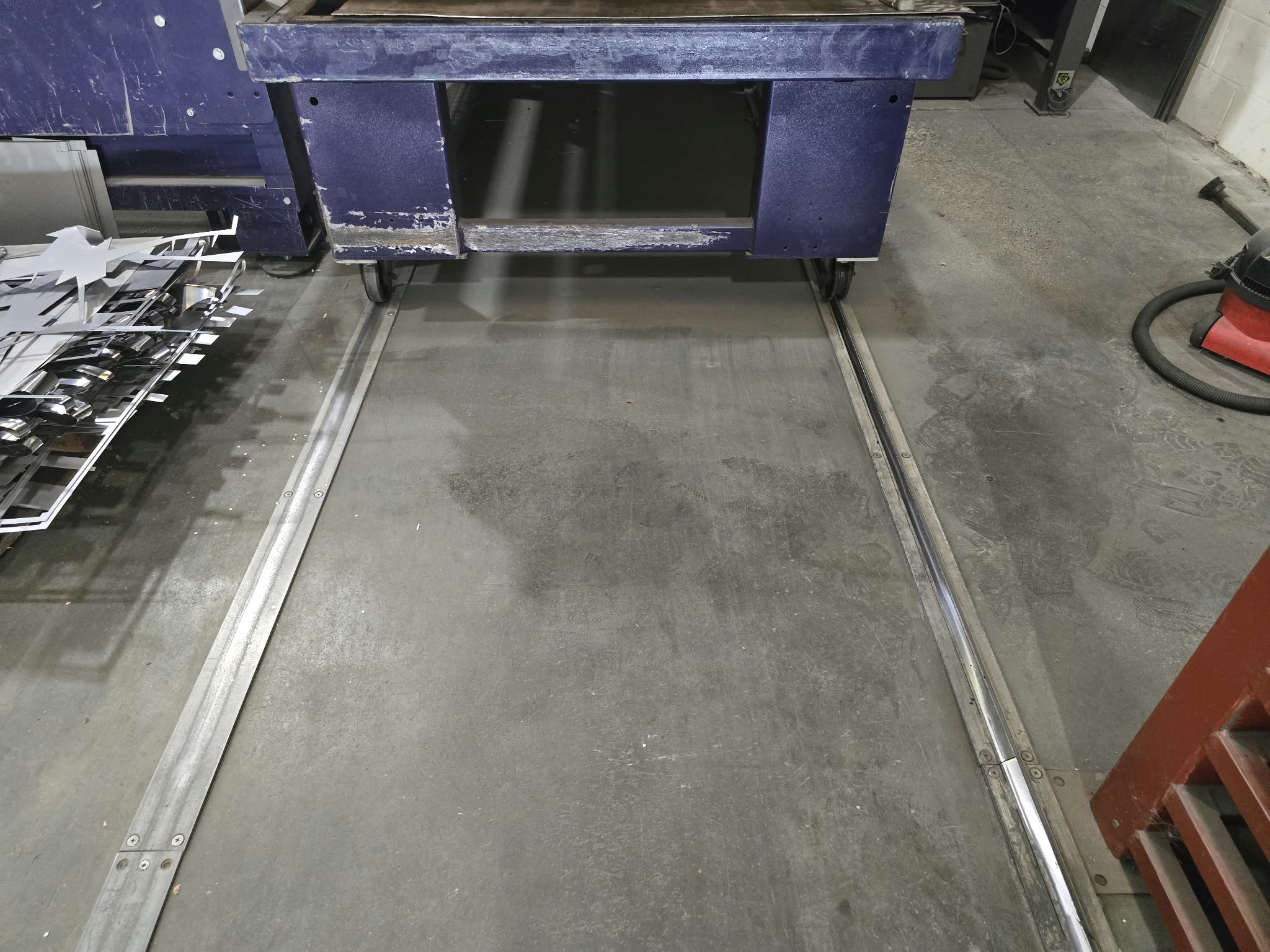

- Shuttle table.

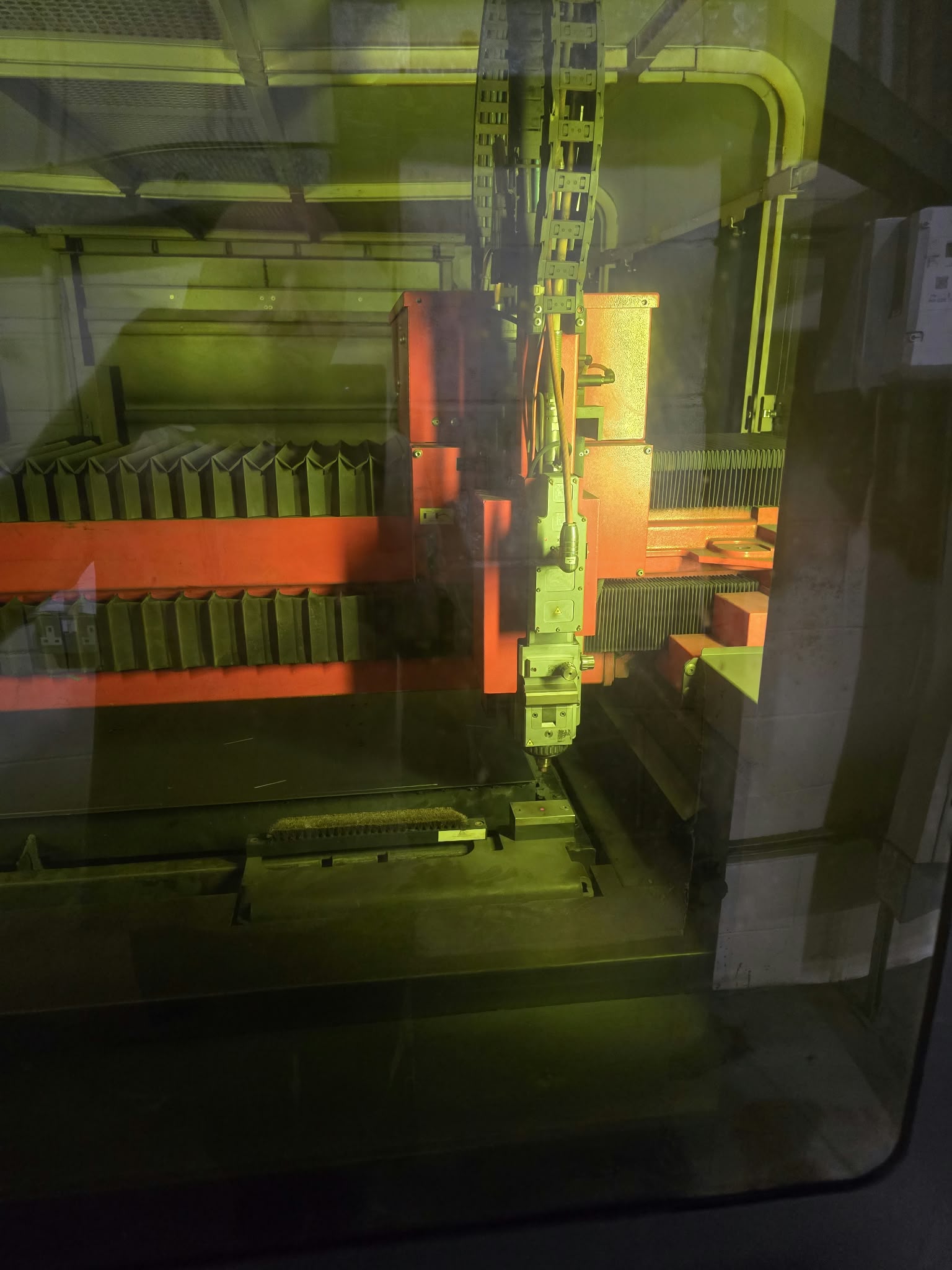

- Upgraded cutting head and new fibre fitted in 2020 at a reported cost of £46,000.
- Maintained by Bystronic.

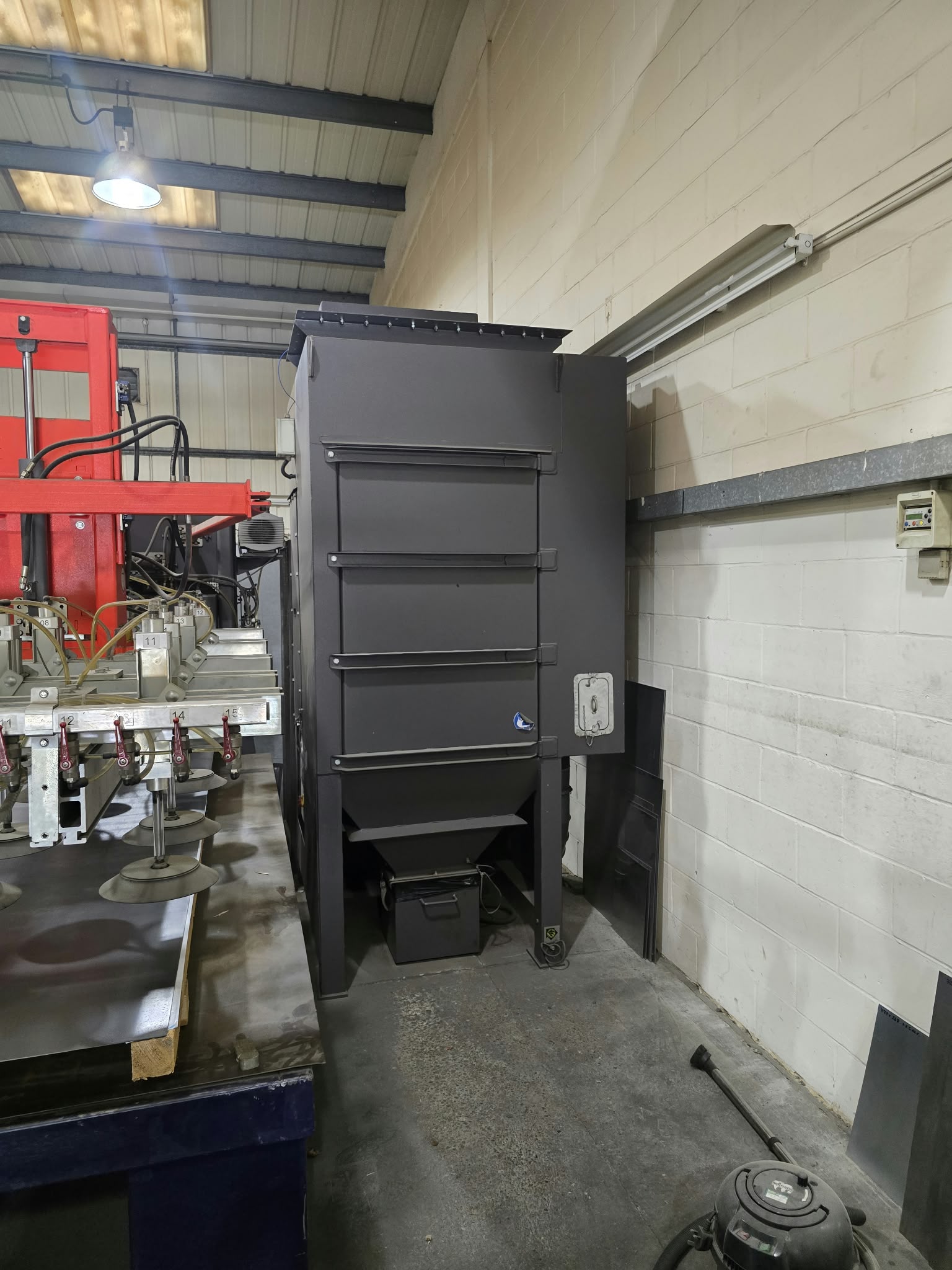

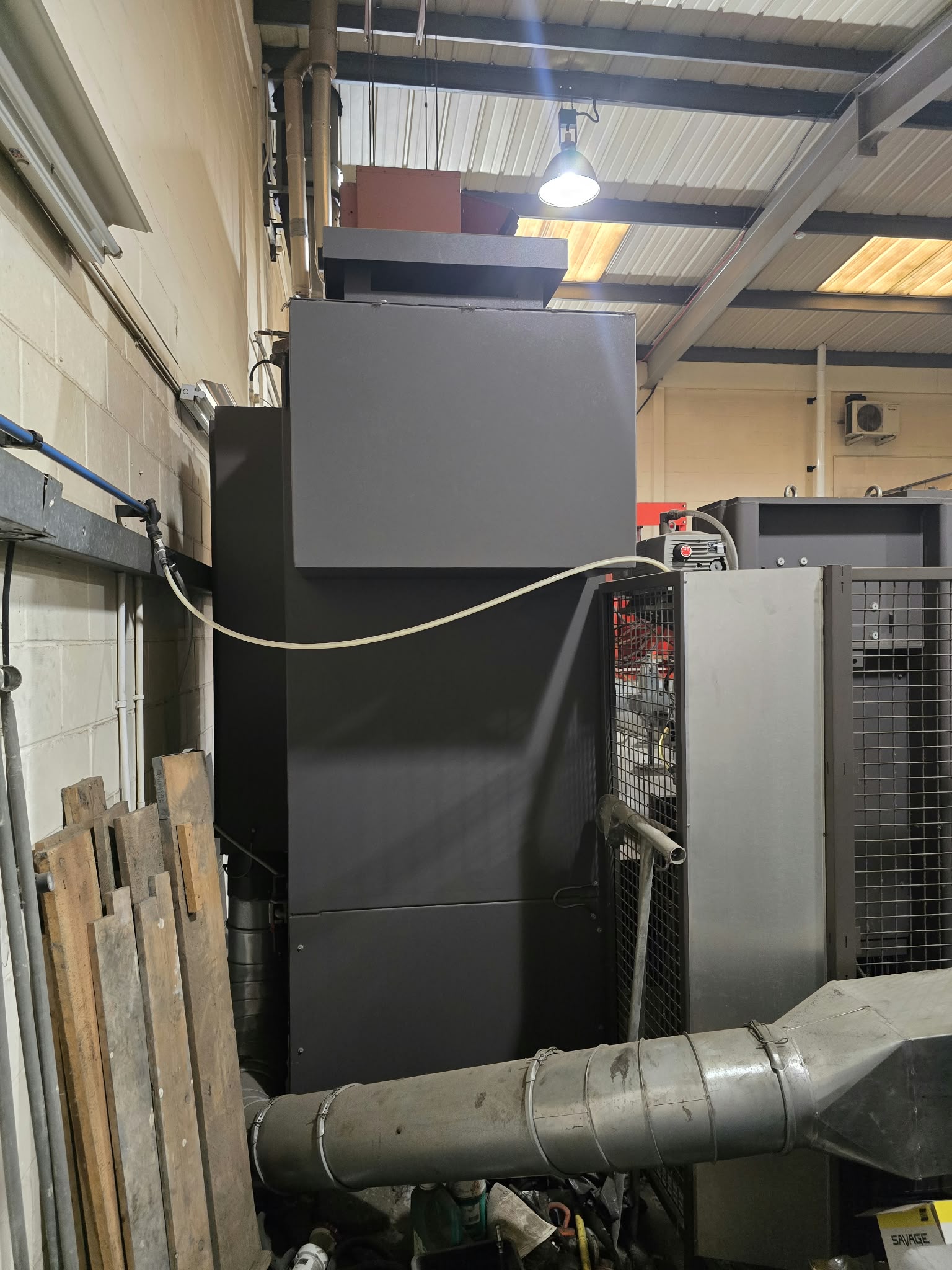

- Fume extraction system.

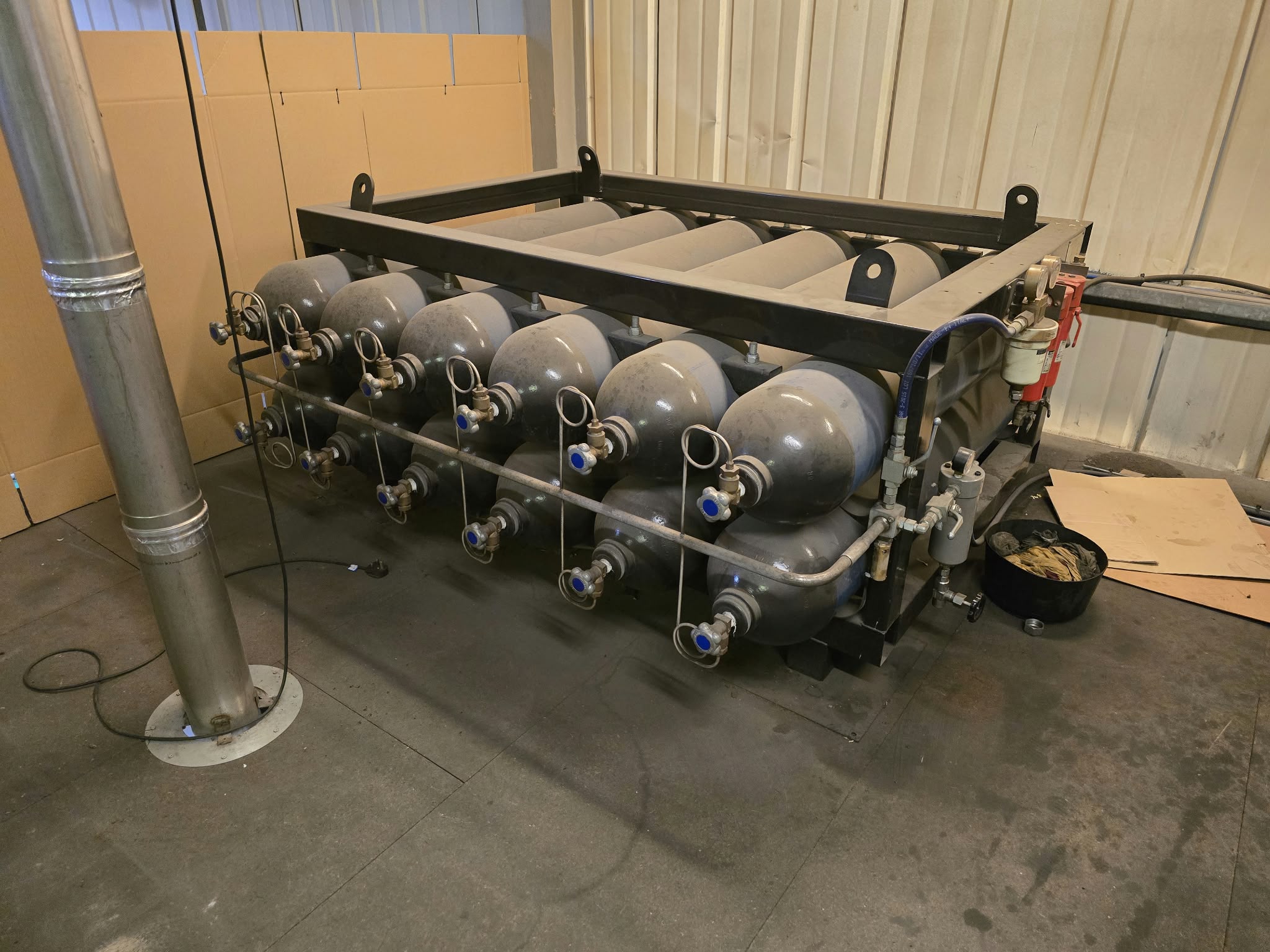

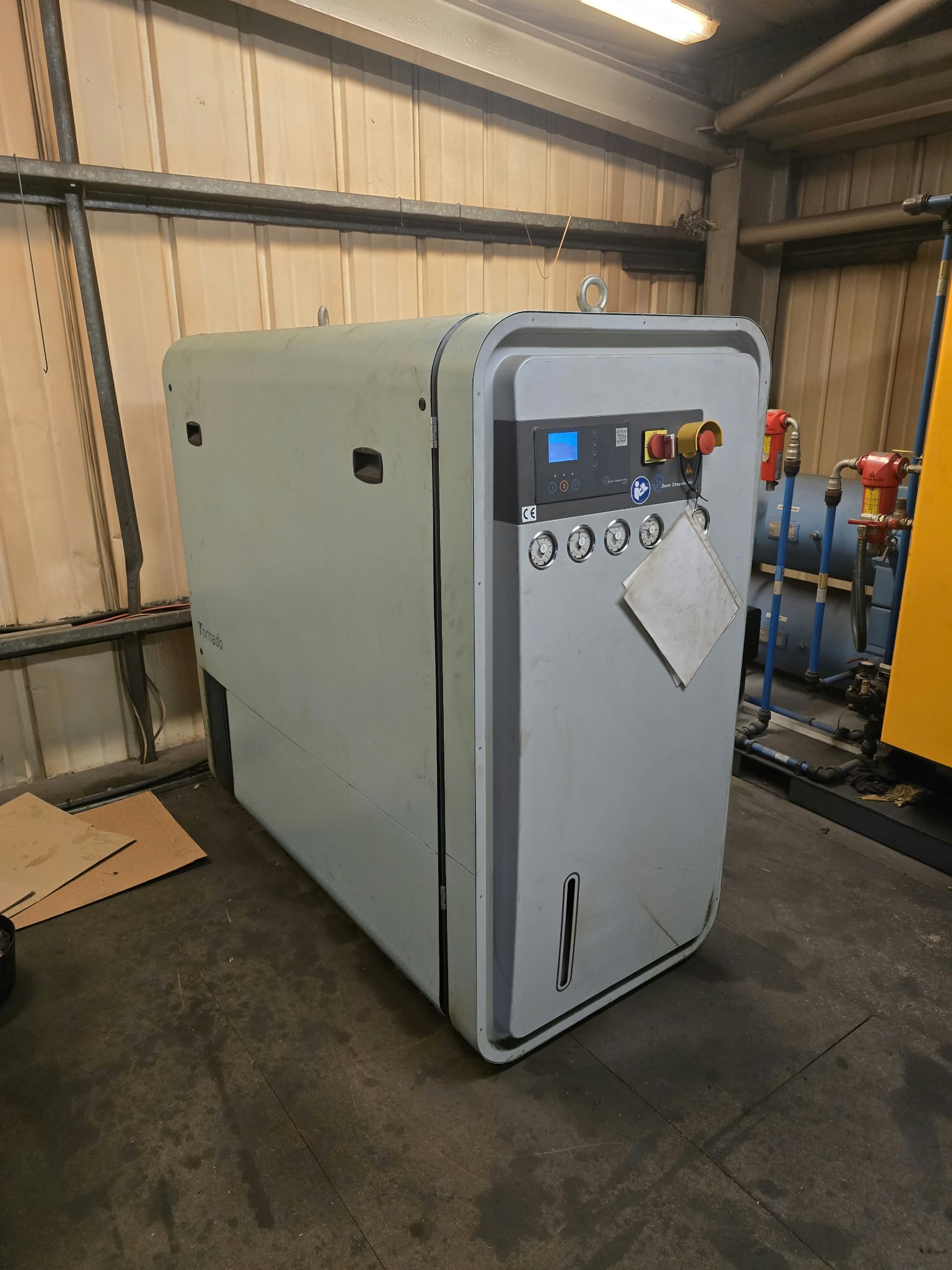

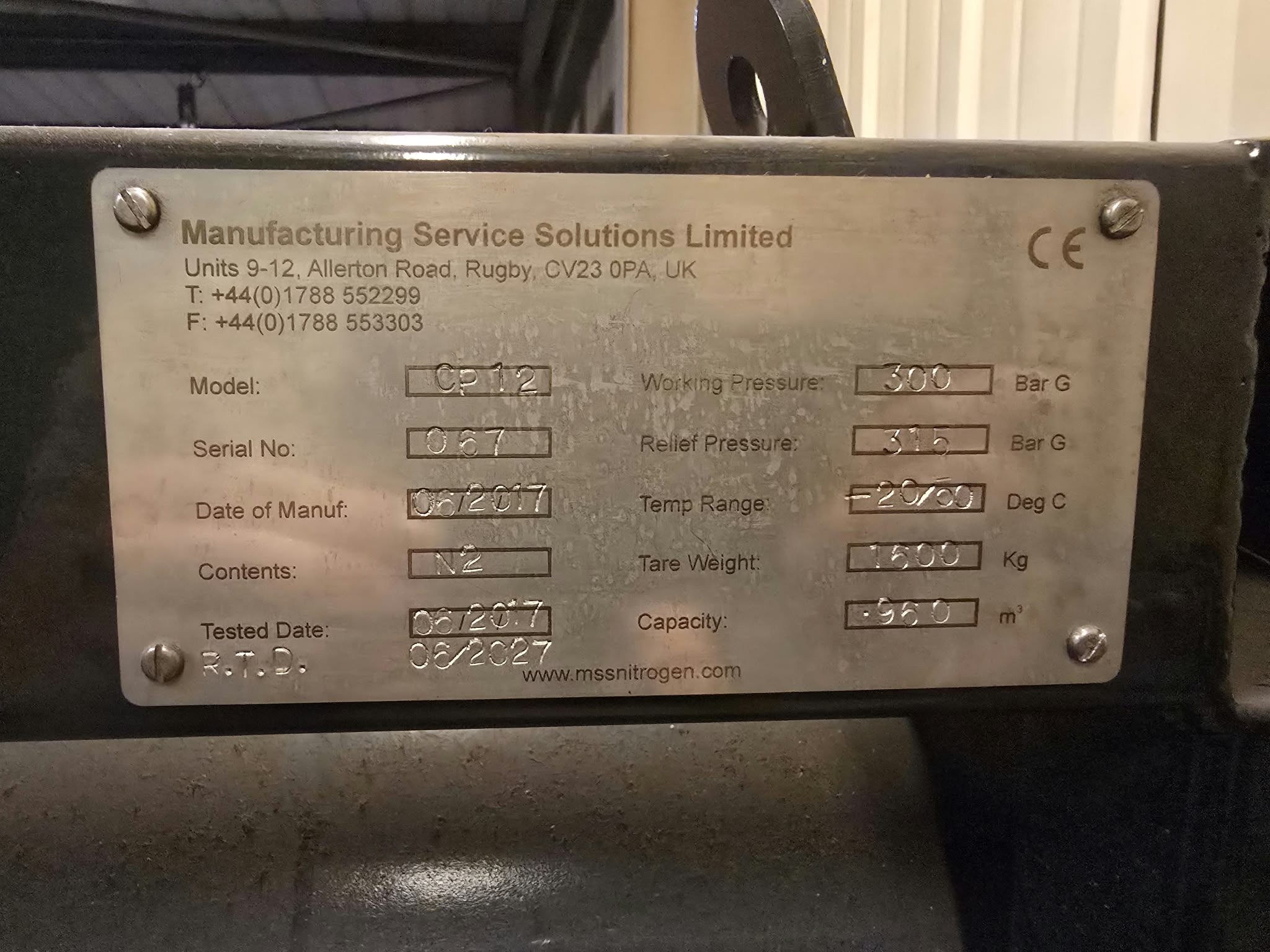

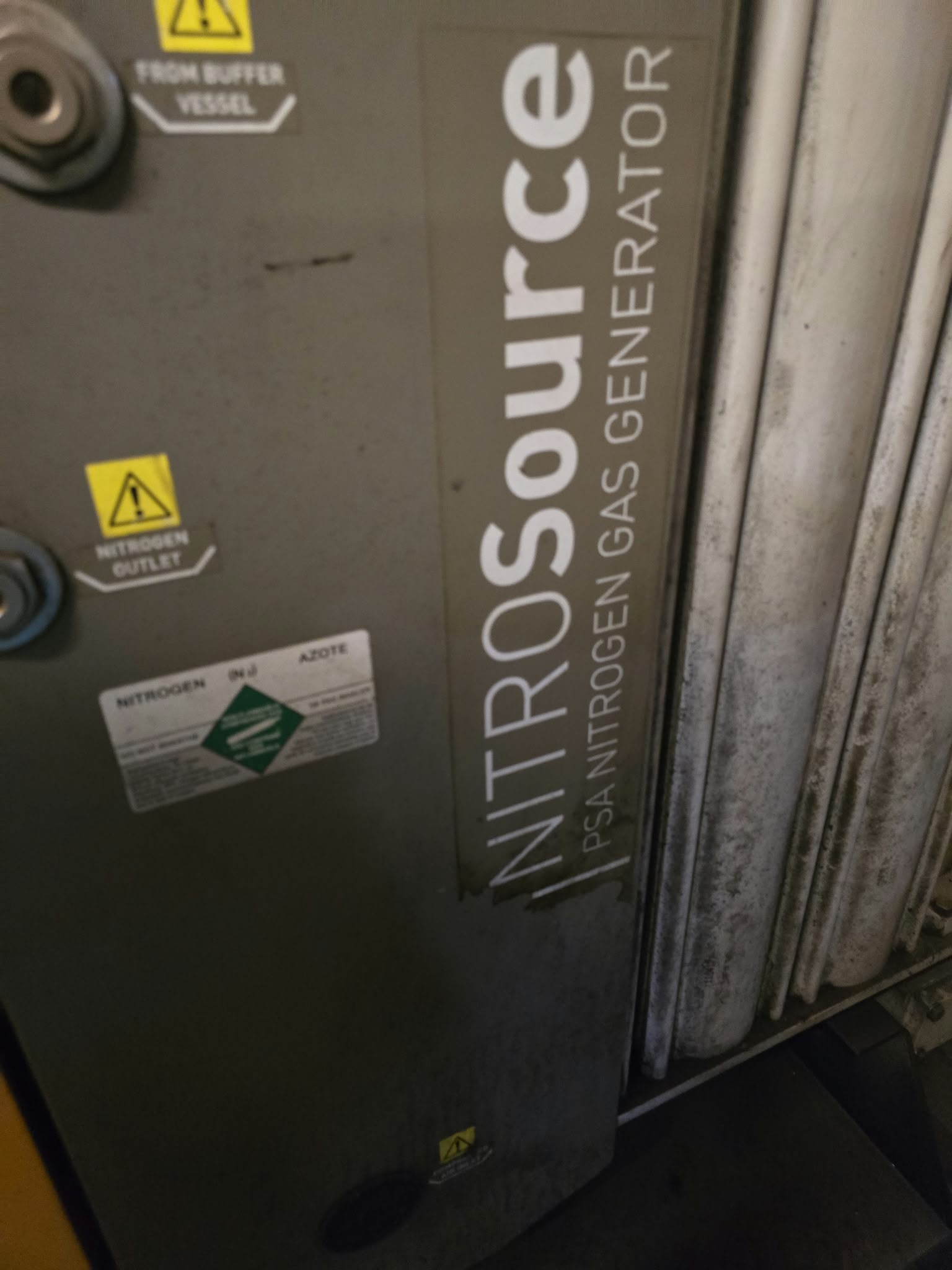

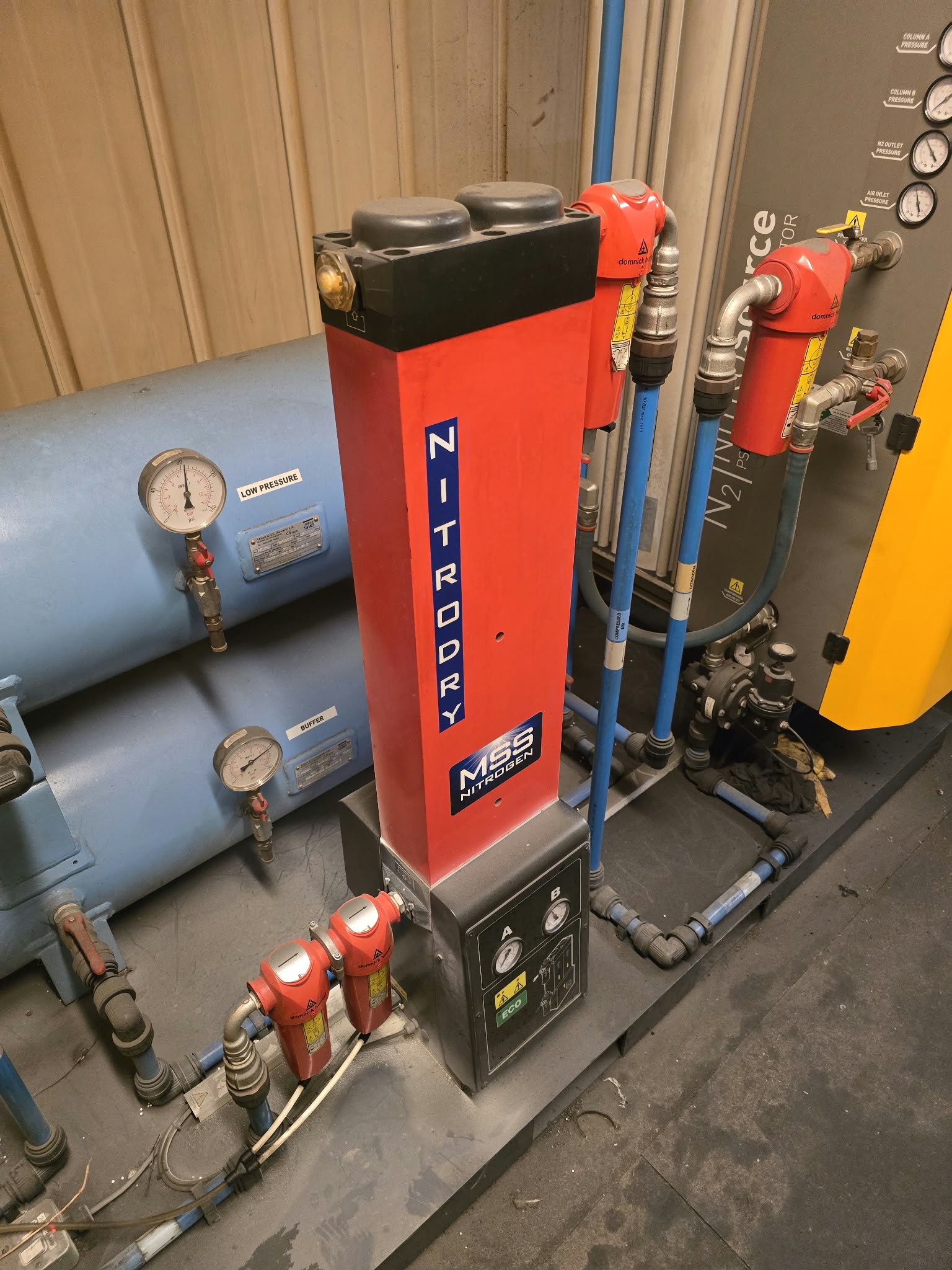

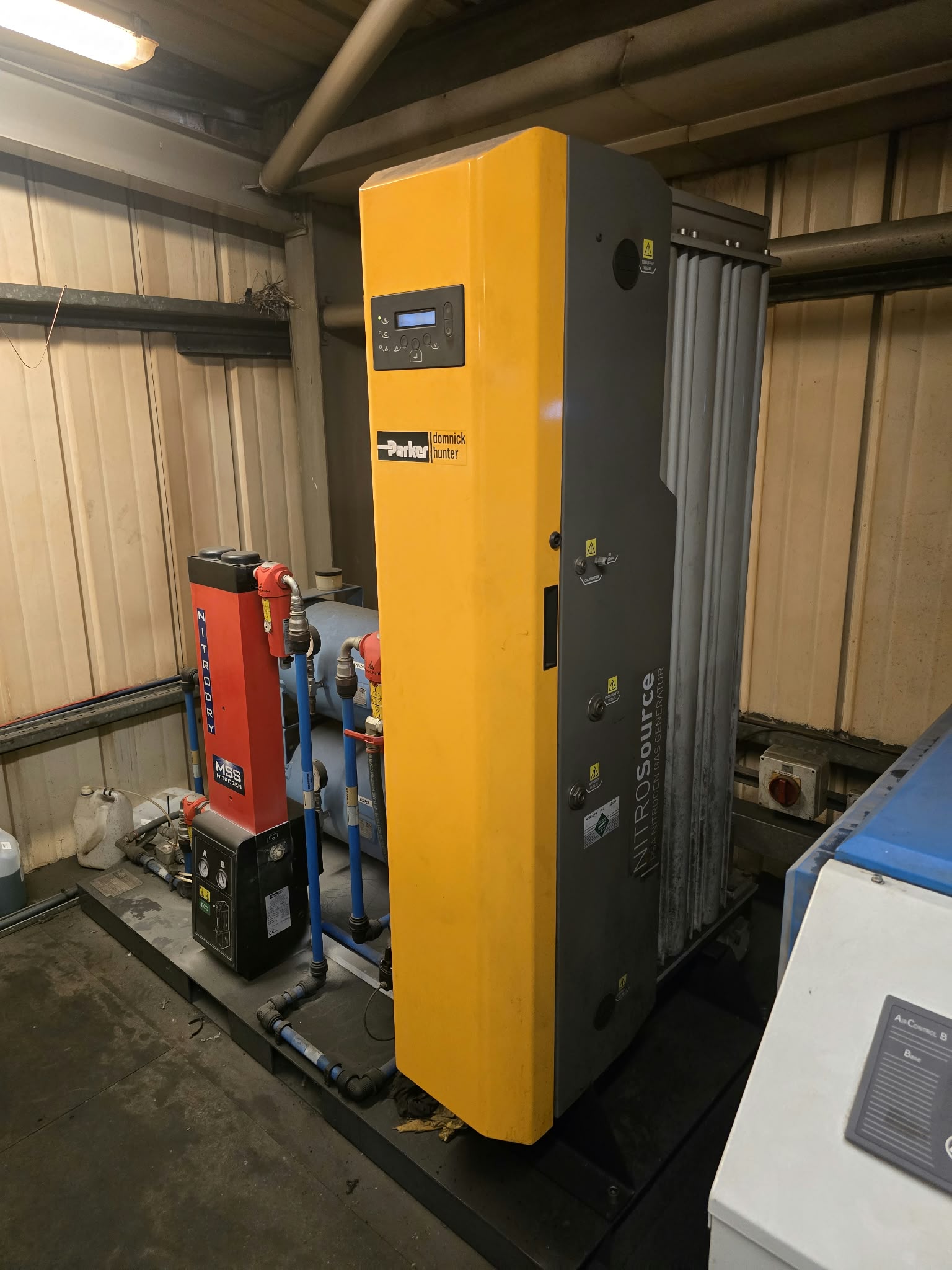

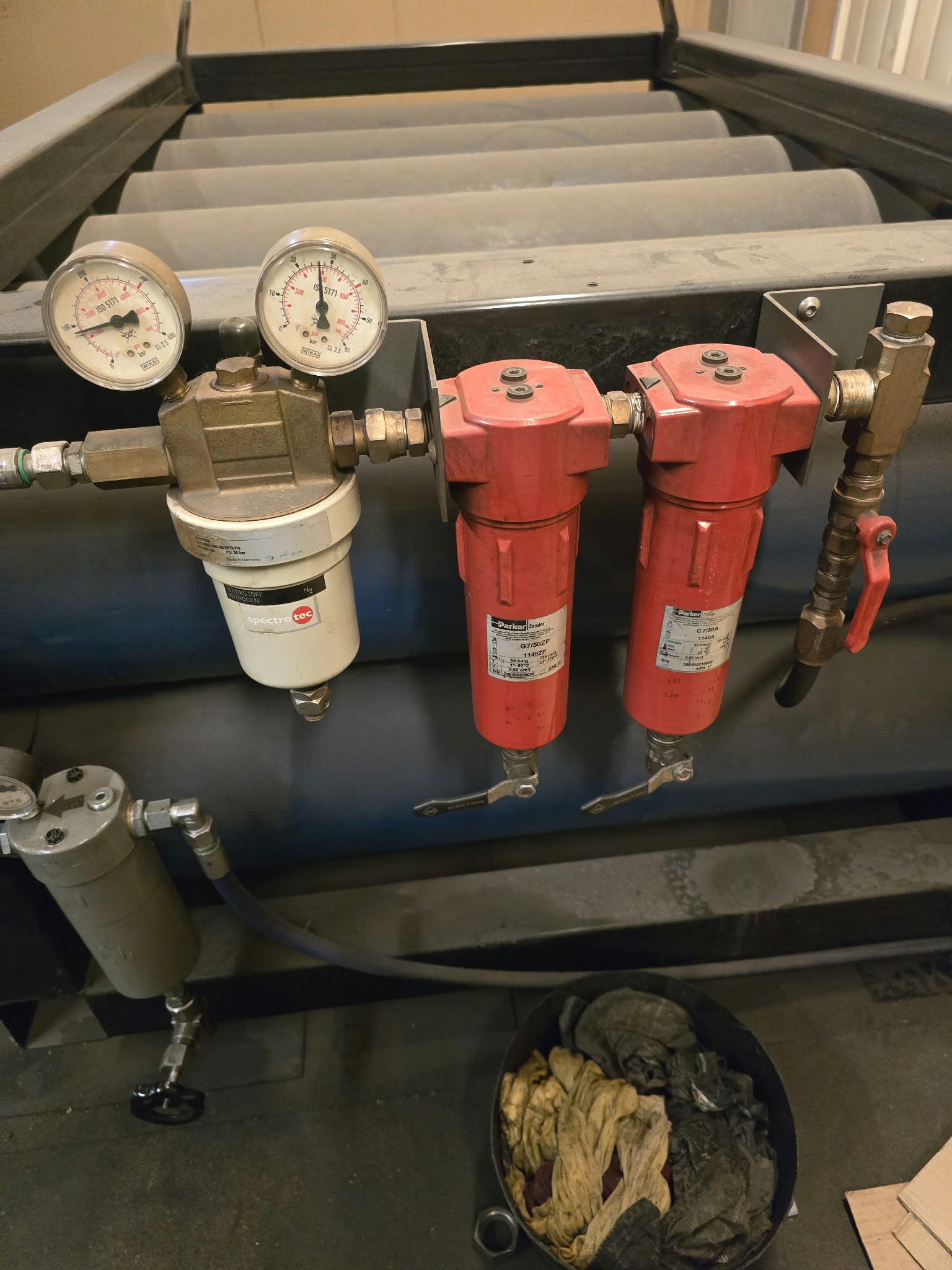

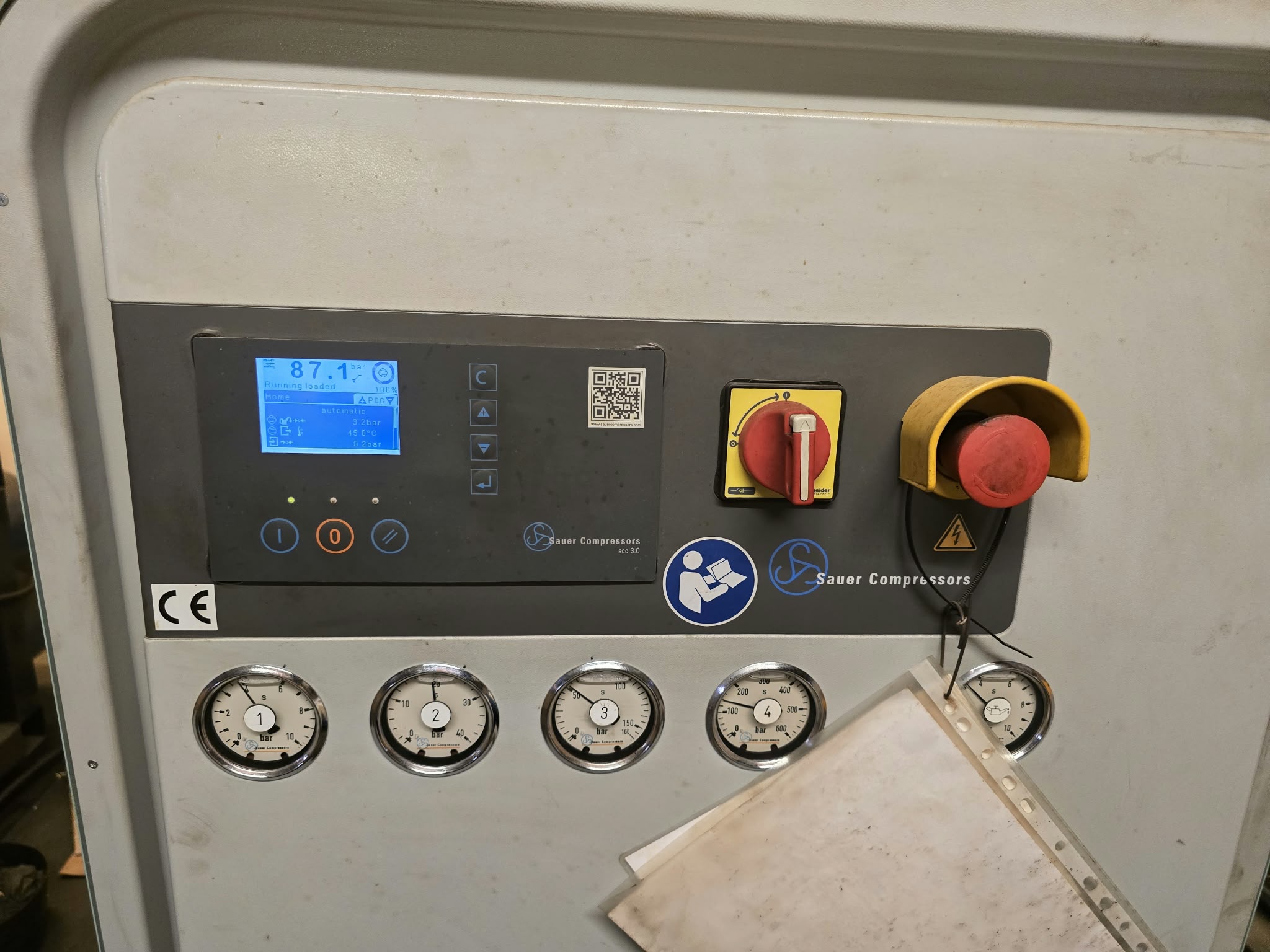

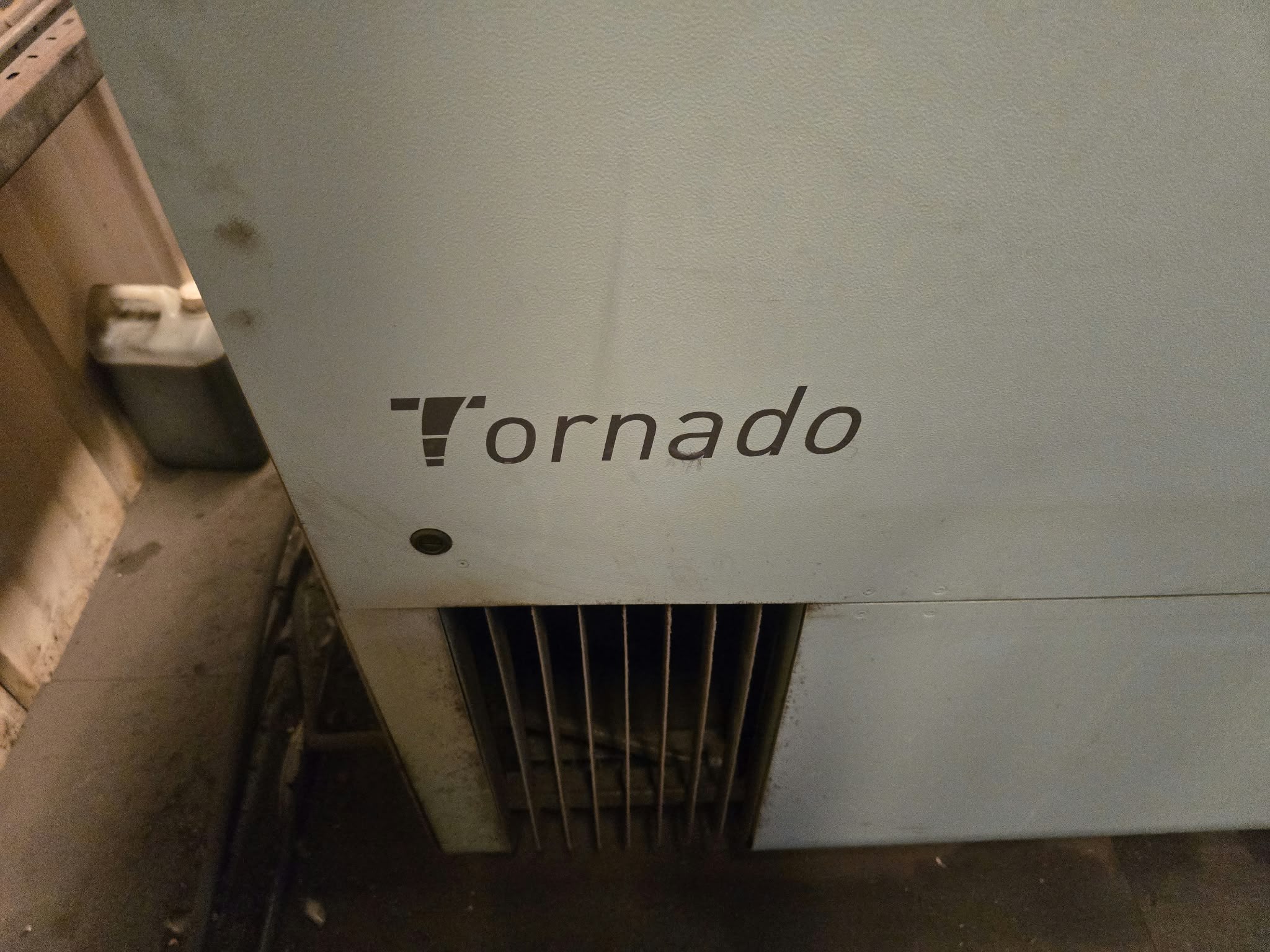

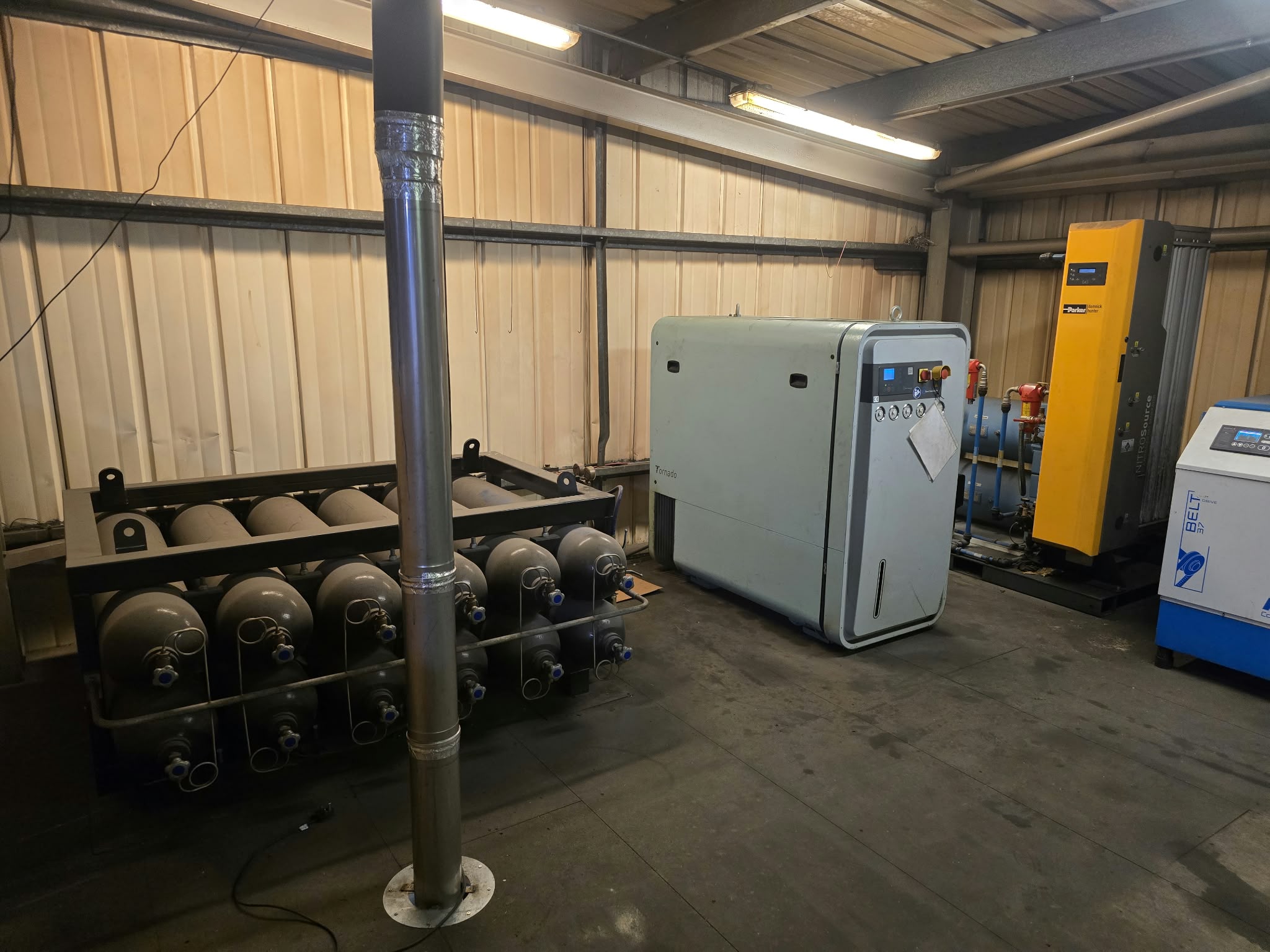

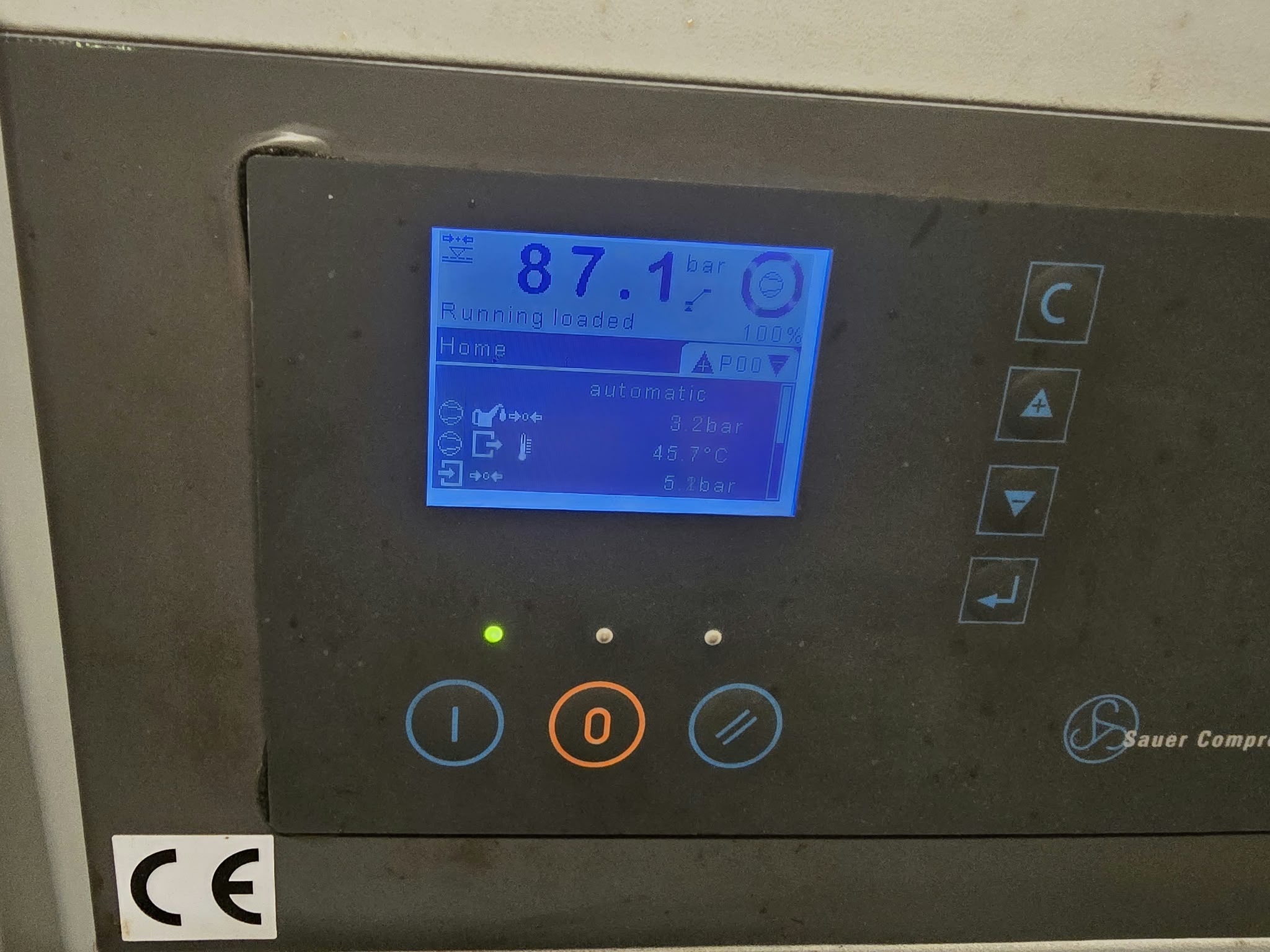

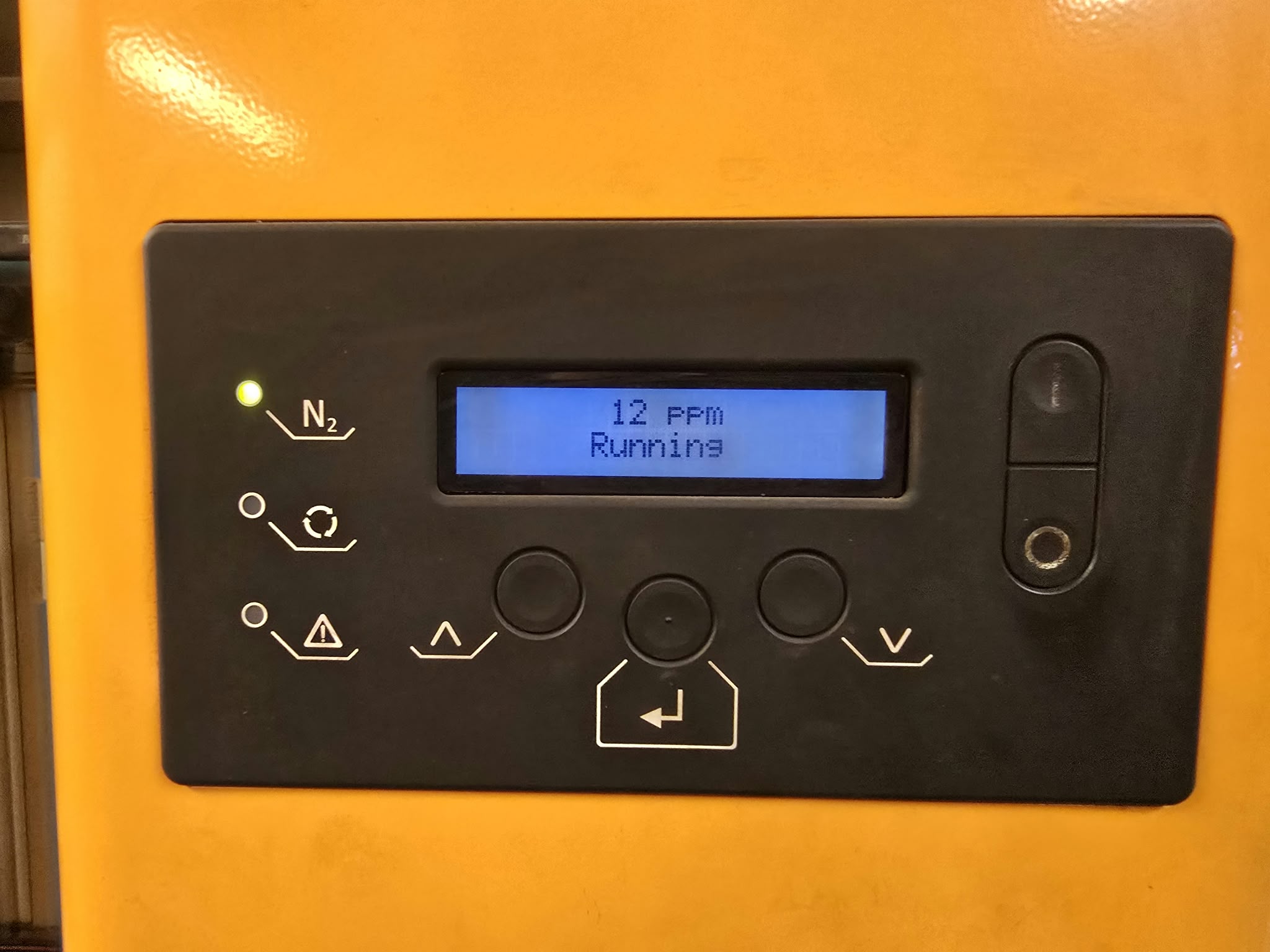

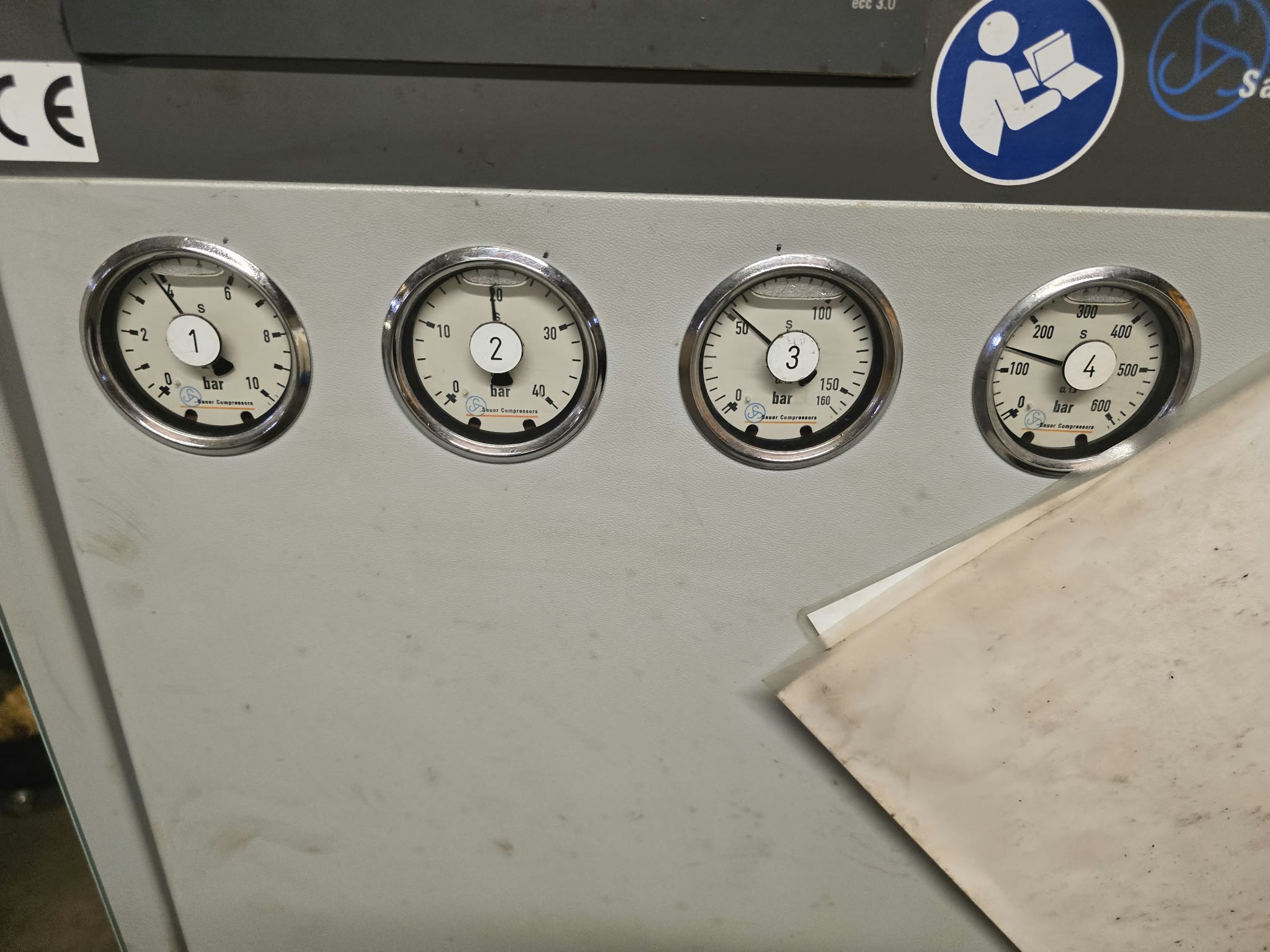

- Available with nitrogen generation plant, including Sauer Tornado booster compressor.
The nitrogen plant’s output, purity and working pressure should be added once its model details are
